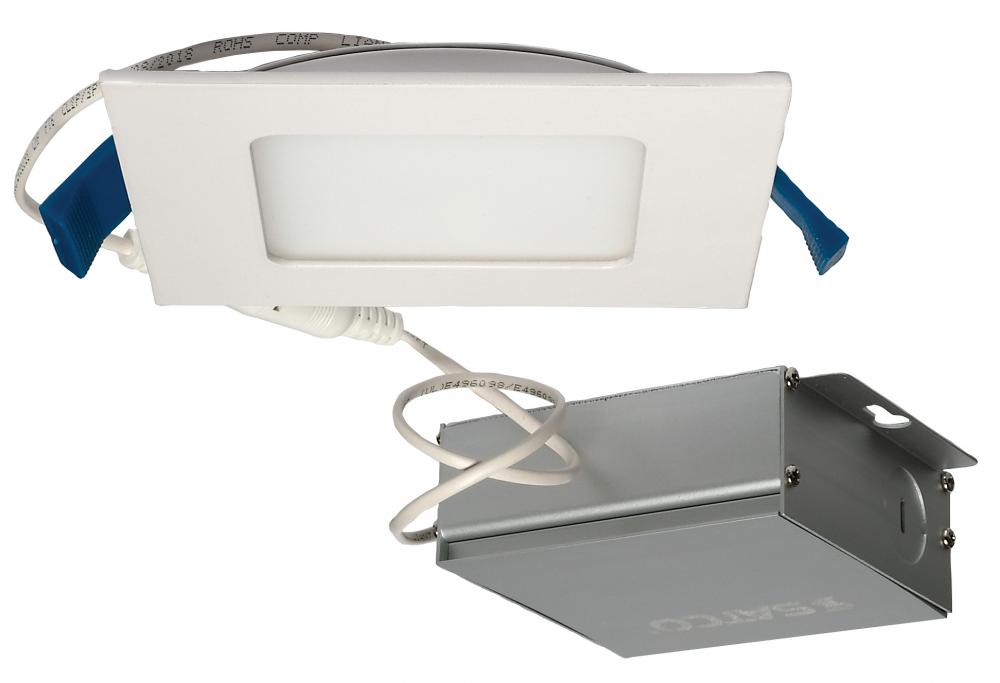

10 watt LED Direct Wire Downlight; Edge-lit; 4 inch; 4000K; 120 volt; Dimmable; Square; Remote (X3HXJ)

Image may not reflect selected features

No Image
Available

10 watt LED Direct Wire Downlight; Edge-lit; 4 inch; 4000K; 120 volt; Dimmable; Square; Remote

BASE PRICE:

/ / 1

($46.23 / 1)

WAS

Call for Price

Item #:

X3HXJ

Dimensions:

Height: 0.94"

Width: 4.75"

Finish:

White

Availability:

Manufacturer has 450 items available.
This Item has been Discontinued. Please verify product pricing and availability with vendor prior to submitting any orders.

Recommended Items

Description

Details

Downloads

10 watt LED Direct Wire Downlight; Edge-lit; 4 inch; 4000K; 120 volt; Dimmable; Square; Remote Driver

Category:

Recessed Ltg.

Subcategory:

Other Recessed Ltg.

Finish:

White

Option:

LED , Prop 65

Category:

Recessed

Sub Category:

Direct Wire

Additional Info:

Integrated j-box for direct wire installation

Bulb Hours:

50000

Bulb Kelvin:

Cool White

Bulb Shape:

Integrated LED

Bulb Type:

LED

Dimmable:

Yes-Dimmable

Harmonized Codes:

9405.11.8010

Length:

4.75

Lumens:

620L

Ship Carton Height:

5.39

Ship Carton Length:

6.65

Ship Carton Width:

2.13

Warranty:

5 Year Limited - Fixtures

Air Tight:

Yes

Amps:

0.083A

ANSI Base:

Integrated

BAA Compliant:

Beam Spread:

108

CA Prop-65:

Lead

Carton Cubic Feet:

0.0442

Cartons Per Unit:

CCT Selectable:

CEC:

California T24 2016 - 2022 JA8 Listed

CEC Terse:

Lawful for sale in California

CEC Web Text:

California T24 Listed

Ceiling Aperture:

4.125 in. Cutout

Clearance Height:

Connection:

Direct Wired

Country of Origin:

China

CRI:

Dimmable Down To:

100 to 10 percent

Dimming Type:

Forward Phase or Reverse Phase or Phase Selectable or Triac

Efficacy:

62.00 LPW

FCC Compliant:

Yes

Finish Family:

White

Fixture shape:

Square

Has Driver:

Yes

IC Rated:

Yes

Incandescent Equivalent:

60W

Indoor Outdoor:

Indoor

Installation Notes:

**If you purchase The 5W Emergency Driver (S8000) or the 10W Emergency Driver (S8002), you must also purchase the Emergency Driver Enclosure (80-973)

JA8 Compliant:

Yes

Lens Finish:

Frost

Lens Material:

Poly methyl methacrylate (PMMA)

Material:

Aluminum

Max Drywall Thickness:

5/8 in.

Mounting Procedure:

Ceiling

Operating Temprature:

-20C (-4F) to +45C (+113F)

Pack Type:

Box

Power Factor:

>0.9

Quantity In Pack:

Rec Spacing Between Fixtures:

3 ft. to 4 ft.

Replaceable Light Source:

RoHS Compliant:

Yes

Safety Listing:

cETLus - Listed

SDS class:

LED_Lamp

Short Description:

10WLED/DW/EL/4/940/SQ/RD

Sloped Ceiling Compatible:

Temperature (CCT):

4000K

Title 20 Compliant:

Title 24 Compliant:

Yes

Trim Color:

White

Wattage Selectable:

Weight Lb.:

0.82
