11 Watt; 2 Foot; T5 LED; Miniature Bi Pin Base; 5000K; Type A; 1400 Lumens : X6KH8

Return to Catalog

Part Number: X6KH8 / Vendor ID #: 27

11 Watt; 2 Foot; T5 LED; Miniature Bi Pin Base; 5000K; Type A; 1400 Lumens

$19.88

Item Sales Info

Add To Wishlist

Compare Item

Availability

Manufacturer has 2876 items available.

Dimensions

Width: 0.63"

Product Overview

11 Watt; 2 Foot; T5 LED; Miniature Bi Pin Base; 5000K; Type A; 1400 Lumens

Standard Information

Category:

Lamps

Subcategory:

LED Lamps

Lumens:

1101-1600

Kelvin:

4501-5000

Refinement Options

Category:

LED

Sub-Category:

LED T5

Volts:

Ballast Dependent

Bulb Dimmable:

Yes-Dimmable

Bulb Hours:

50000

Bulb Kelvin:

5000K

Bulb Shape:

Diameter:

0.63

EA Length:

22.17

Harmonized Codes:

8539.52.0051

Length:

22.5

Lumens:

1400L

Shap Carton Width:

0.65

Ship Carton Height:

0.65

Ship Weight:

0.13

Warranty:

5 Year Limited - T5 LED Bulbs

Weight:

0.13

Additional Info:

Light Emitting Area of 325 degrees; System Wattage (Type A) - 14W

BAA Compliant:

Ballast Bypass Direct:

Direct

Ballasting Requirements:

Ballast required

Beam Spread:

185

Bulb ANSI Base:

Bulb Base:

Miniature Bi Pin

Bulb Finish:

White

Burning Position:

Universal

Carton Cubic Feet:

0.0054

Cartons Per Unit:

CCT Selectable:

CEC:

Exempt - Base Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Color Temprature:

Natural Light

Country Of Origin:

China

CRI:

Dimmable Function:

Only in Type A mode; Check Ballast MFG for Dimmer Compatibility

DLC Approved:

Efficacy:

127.27 LPW

Enclosed Fixture Use:

Yes

Enclosure Rating:

Enclosed Rated Lamp

FCC Compliant:

Yes

Feature 1:

Over 50 percent Energy Savings Vs. Standard T5 Systems

Feature 2:

Compatible with T5 HO Ballasts

Feature 3:

Integrated Thermal Fuse at Pins

Feature 4:

All Glass Tube Construction

Feature 5:

Damp location rated

Feature 6:

Enclosed Fixture Rated

Flourescent Equivalent:

24W

Incandescent Equivalent:

50W

Indoor Outdoor:

Indoor

Installation Notes:

Not for use in vapor tight fixtures.

JA8 Compliant:

Lamp Ballast Type A/B/C:

Type A

Lamp End Type:

Double Ended

Lamp Filament:

LED

Lens Material:

Glass

Location Rating:

Damp

Long Description:

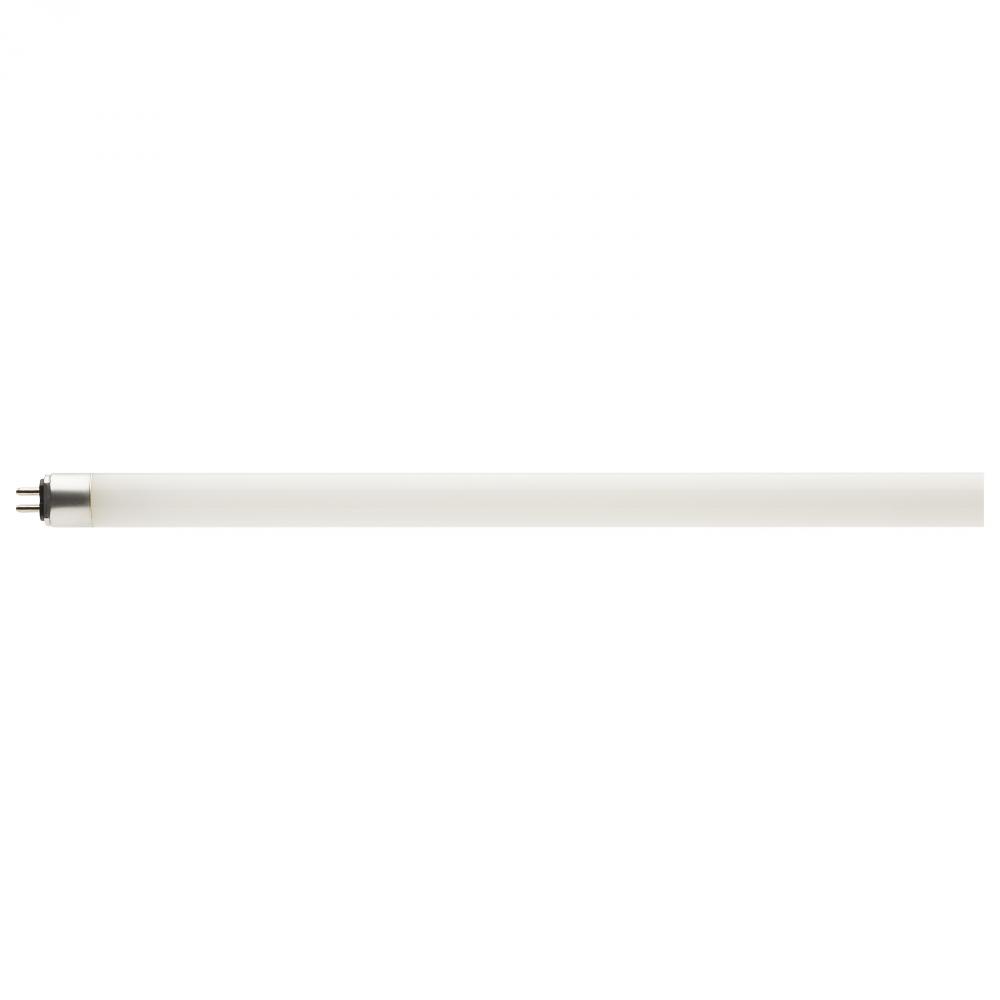

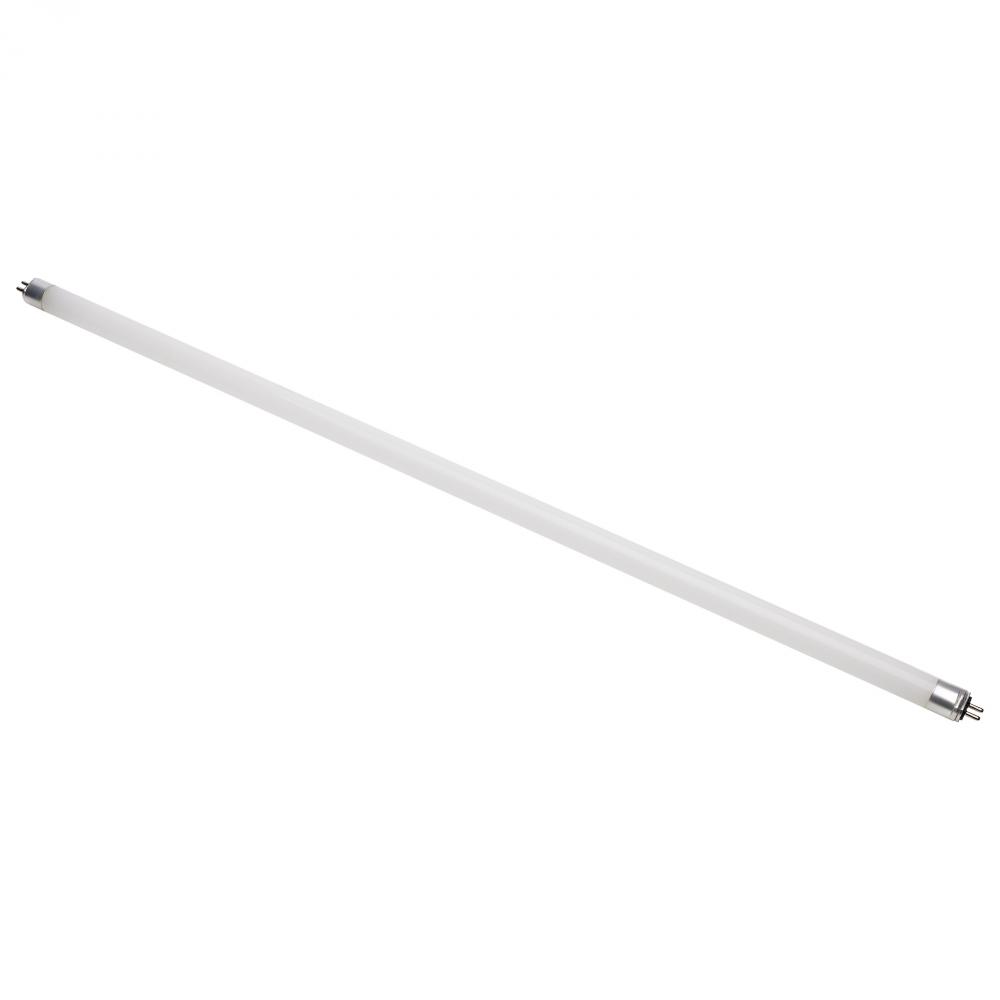

SATCO| NUVO's S19948 2-foot LED Linear T5 Ballast Compatible Lamp has over 50 percent more energy savings when compared to standard T5 systems. The 11 watt, 5000K lamp provides enhanced safety thanks to the integrated thermal fuse located at the pins.

Material:

Aluminum / Glass

Nominal Length:

NSF Approved:

Yes

Operating Frequency:

50/60Hz

Operating Temp:

-20C (-4F) to +45C (+113F)

Pack Type:

Box

Power Factor:

0.9

Quantity In Pack:

RoHS Compliant:

Yes

Romance Copy:

SATCO| NUVO's LED Linear T5 Ballast Compatible Lamps come in 2-foot and 4-foot sizes, have over 50 percent energy savings compared to standard T5 systems, and provide enhanced safety thanks to the integrated thermal fuse. Our all-glass tube design not

SDS class:

LED_Lamp

Short Description:

11T5/LED/24-850/DR

Style:

Utility

Technology:

LED

Title 20 Compliant:

Total Harmonic Distortion:

20%

Wattage Selectable:

Watts:

11W
