11 Watt; 4"; Directional Low-Profile Downlight; CCT Selectable; 120 Volt; White Finish : X6PGA

Return to Catalog

Part Number: X6PGA / Vendor ID #: 27

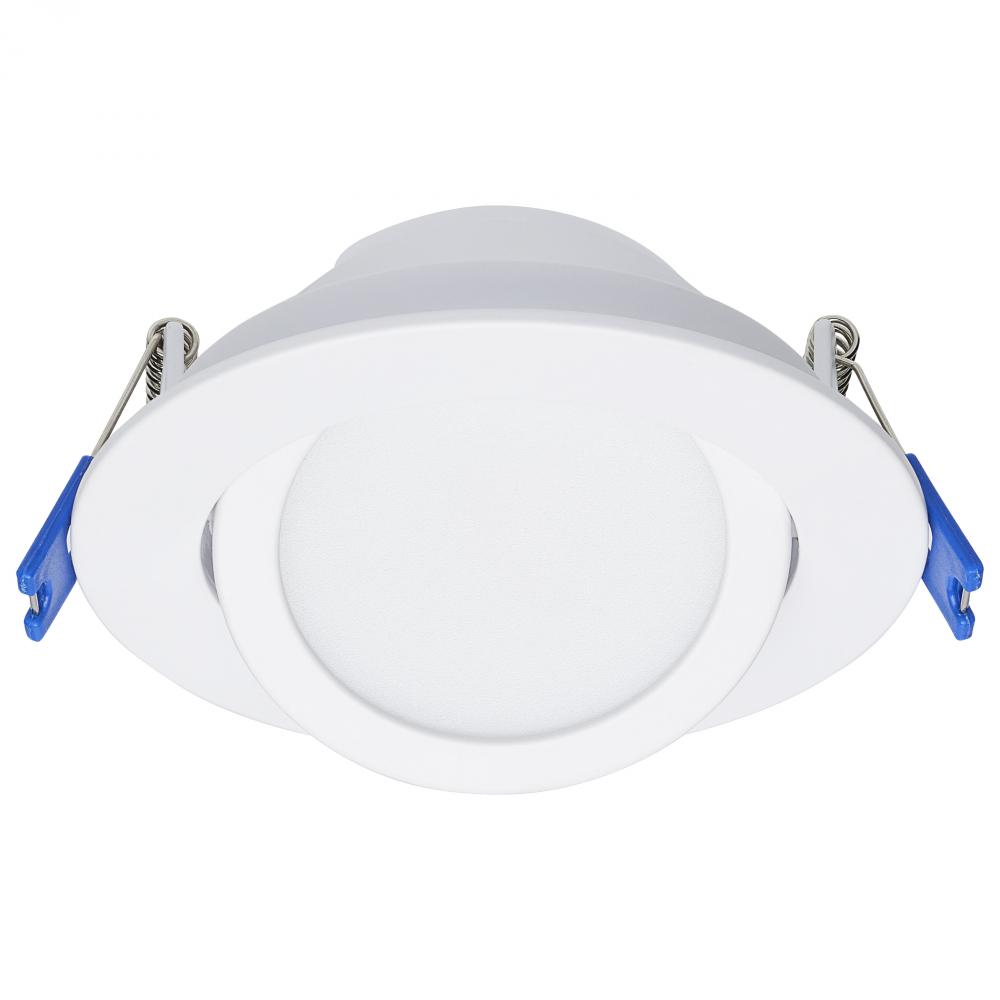

11 Watt; 4"; Directional Low-Profile Downlight; CCT Selectable; 120 Volt; White Finish

$28.73

Item Sales Info

Add To Wishlist

Compare Item

Availability

Manufacturer has 11449 items available.

Dimensions

Height: 1.57"

Width: 4.92"

Product Overview

11 Watt; 4"; Directional Low-Profile Downlight; CCT Selectable; 120 Volt; White Finish

Standard Information

Category:

Recessed Ltg.

Subcategory:

Recessed Lighting Trims

Finish:

White

Option:

Energy Star

LED

Prop 65

Refinement Options

Category:

Recessed

Sub Category:

Direct Wire

Style:

Utility

Bulb Hours:

50000

Bulb Shape:

Integrated LED

Bulb Type:

LED

Diameter:

4.92

Dimmable:

Yes-Dimmable

Harmonized Codes:

9405.11.8010

Lumens:

700L

Ship Carton Height:

5.71

Ship Carton Length:

5.59

Ship Carton Width:

3.98

Warranty:

5 Year Limited - Fixtures

Air Tight:

Amps:

0.092A

ANSI Base:

Integrated

Beam Spread:

107

CA Prop-65:

Lead

Carton Cubic Feet:

0.0735

Cartons Per Unit:

CCT Selectable:

Yes

CEC:

California T24 2016 - 2022 JA8 Listed

CEC Terse:

Lawful for sale in California

CEC Web Text:

California T24 Listed

Ceiling Aperture:

4.375 in. Cutout

Country Of Origin:

Thailand

CRI:

Dimmable Down To:

100 to 10 percent

Dimming Type:

Forward Phase or Reverse Phase or Phase Selectable or Triac

Efficacy:

63.64 LPW

ES Category:

Downlight Recessed

ES Unique ID:

ESID-2631725

FCC Compliant:

Yes

Feature 1:

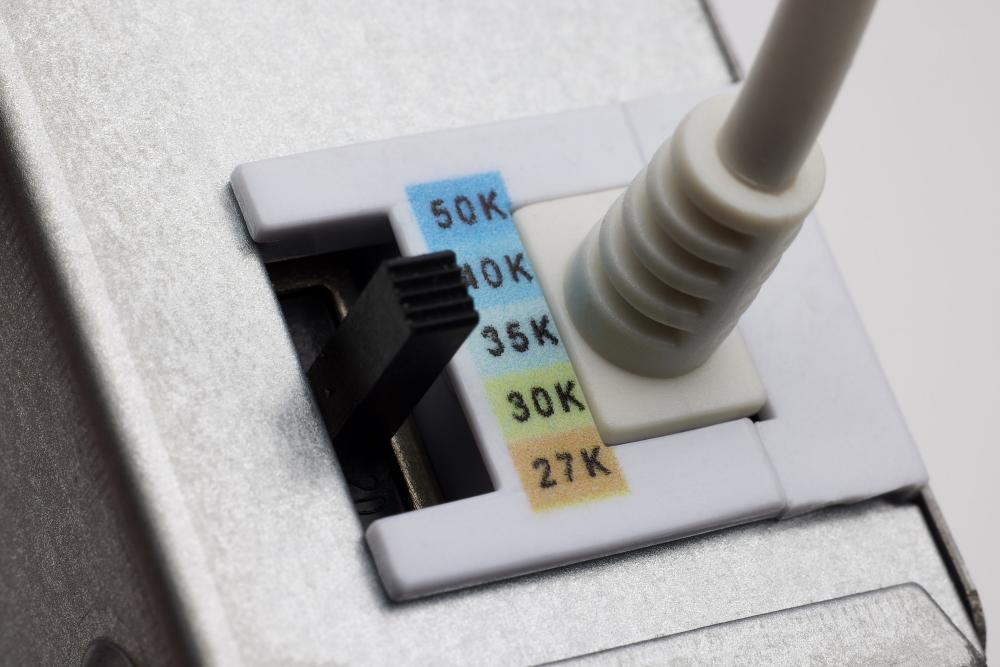

5 CCT Selectable

Feature 2:

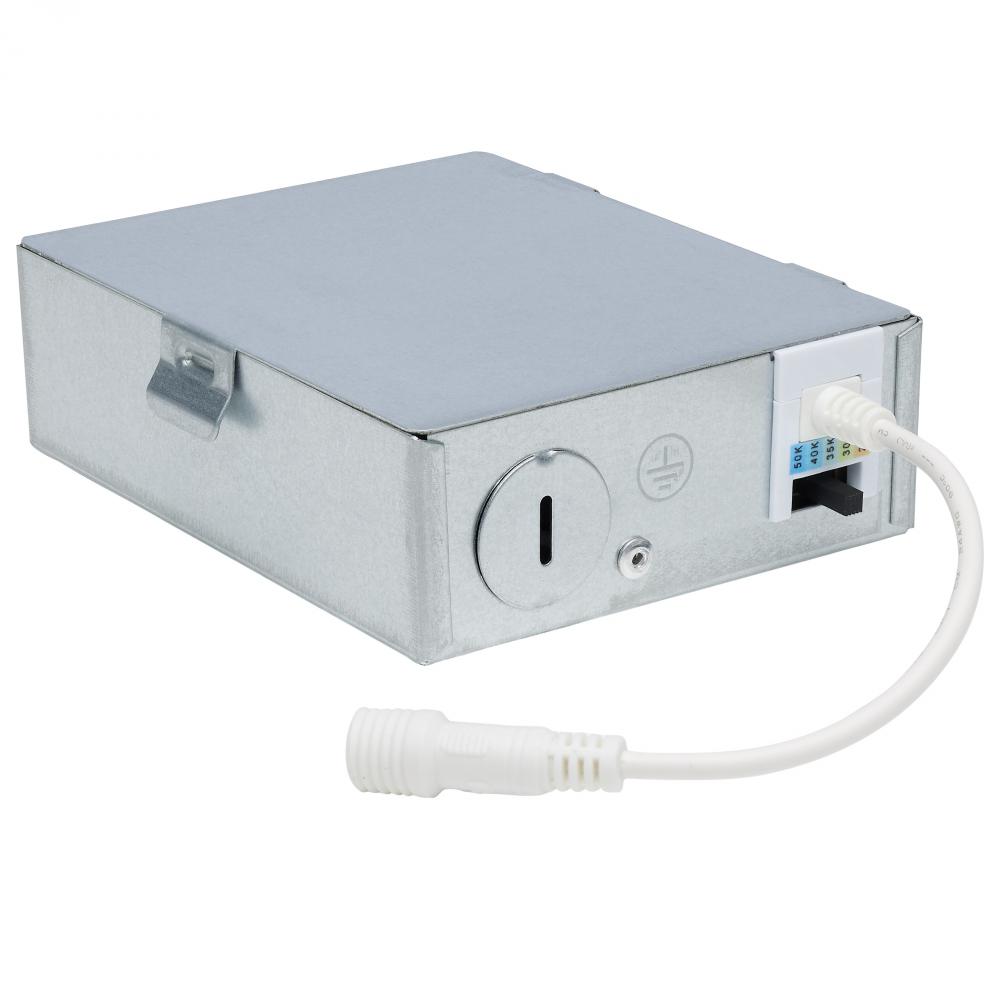

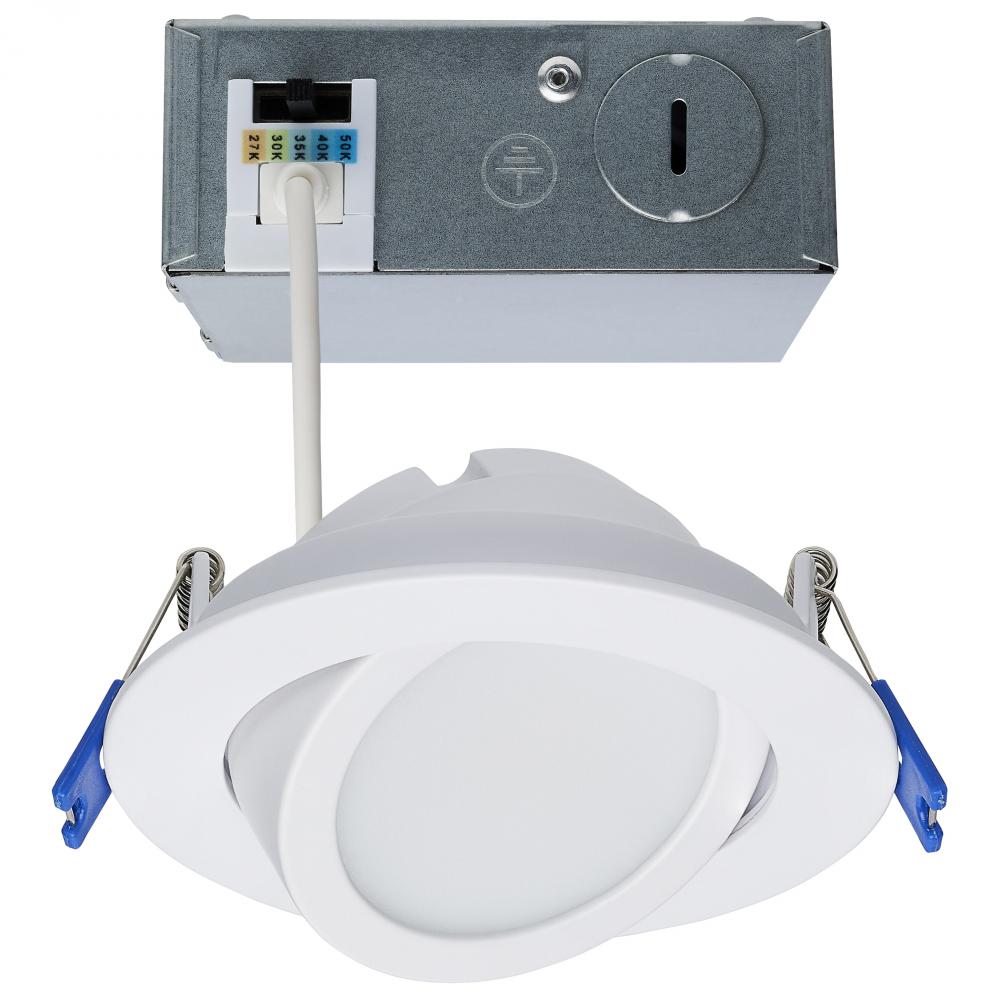

Includes Remote Driver

Feature 3:

90 CRI

Feature 4:

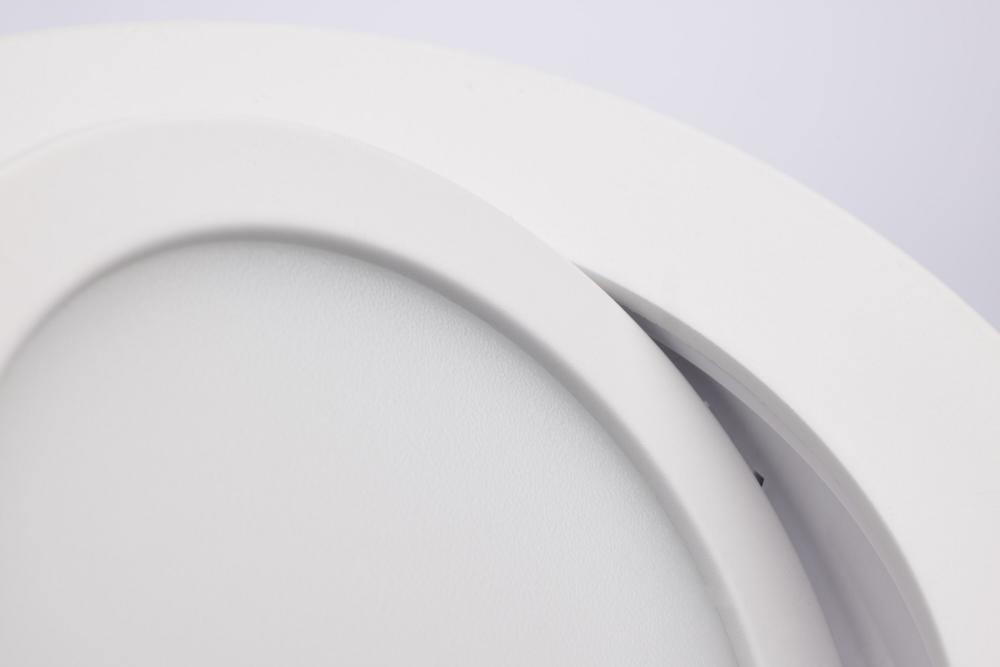

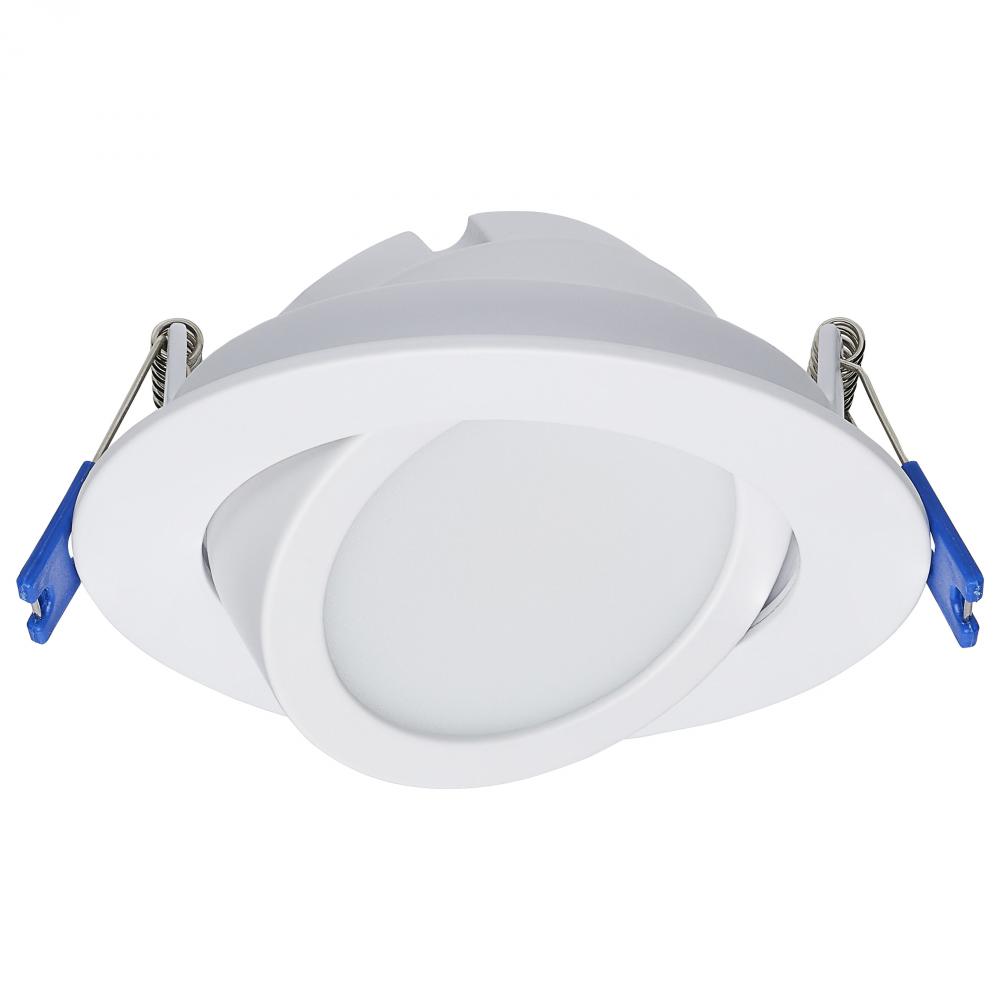

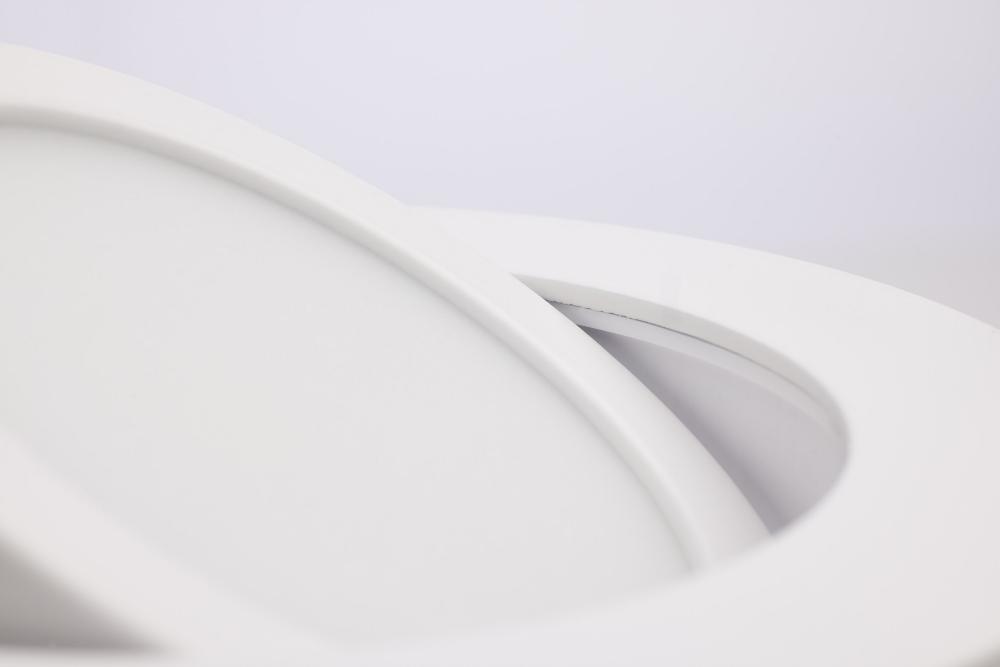

360 degree rotation; 30 degree tilt

Feature 5:

Phase-Cut Dimmable Down to 10%

Feature 6:

Low Profile Design

Feature 7:

Energy Star Rated

Finish Family:

White

Fixture shape:

Round

IC Rated:

Yes

Incandescent Equivalent:

50W

Indoor Outdoor:

Indoor

IOT Enabled:

JA8 Compliant:

Yes

Lens Material:

Polycarbonate (PC)

Long Description:

SATCO|NUVO’s S11878 LED Low Profile Directional Downlight illuminates your space with precision and style. This downlight is an 11-Watt, 4-inch round model with a 5 CCT color temperature selectable option. It features a 360 degree rotation and a 30 degre

Material:

Aluminum

Max Drywall Thickness:

1 in.

Operating Frequency:

60Hz

Operating Temprature:

-15C (+5F) to +40C (+104F)

Pack Type:

Box

Power Factor:

0.95

Quantity In Pack:

R9 Value:

Replaceable Light Source:

RoHS Compliant:

Yes

Romance Copy:

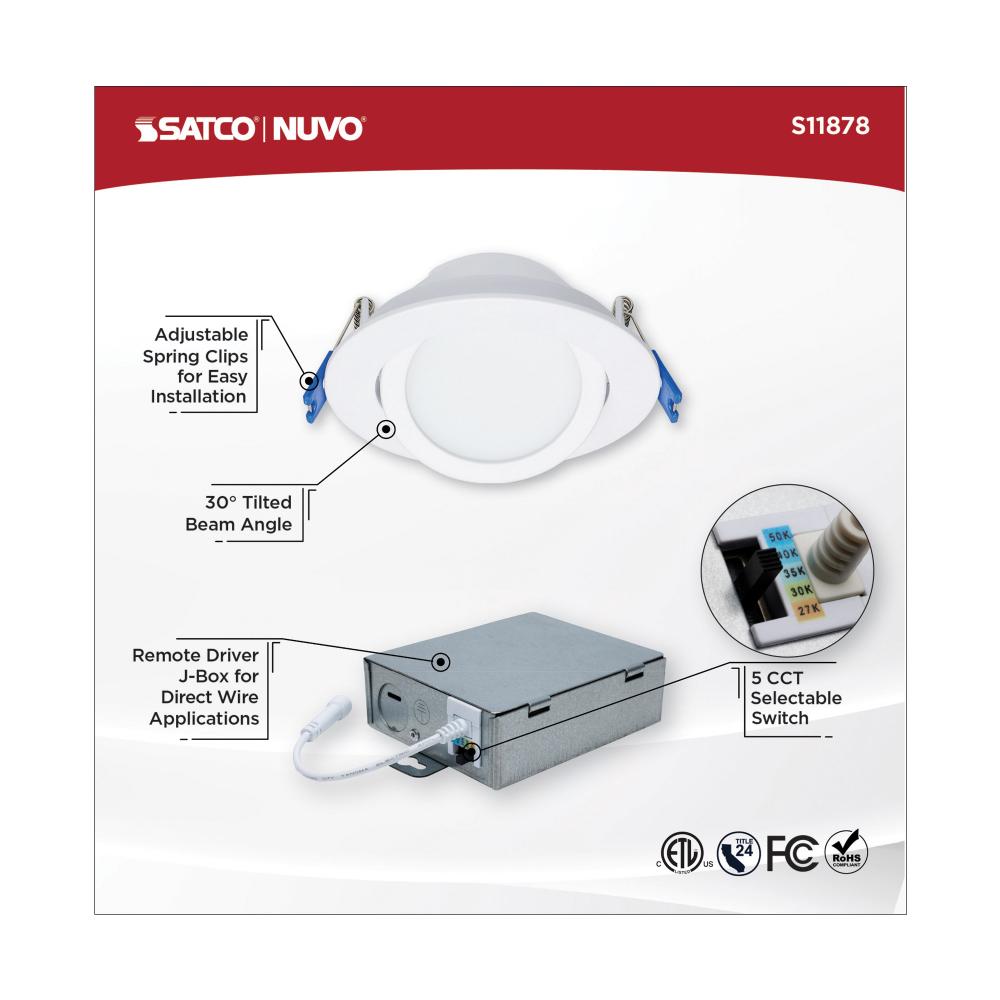

SATCO|NUVO’s LED Low Profile Directional Downlights illuminate your space with precision and style. Offered in 4 inch and 6 inch models, 5 CCT color temperature selectable with a 360 degree rotation and a 30 degree tilt, to customize your lighting experi

Safety Listing:

cETLus - Listed

SDS class:

LED_Lamp

Short Description:

11WLED/4/CCT/LP/RD/DIR/FL

Temperature (CCT):

2700K/3000K/3500K/4000K/5000K

Title 20 Compliant:

Title 24 Compliant:

Yes

Total Harmonic Distortion:

20%

Trim Color:

White

Wattage Selectable:

Weight Lb.:

0.9
