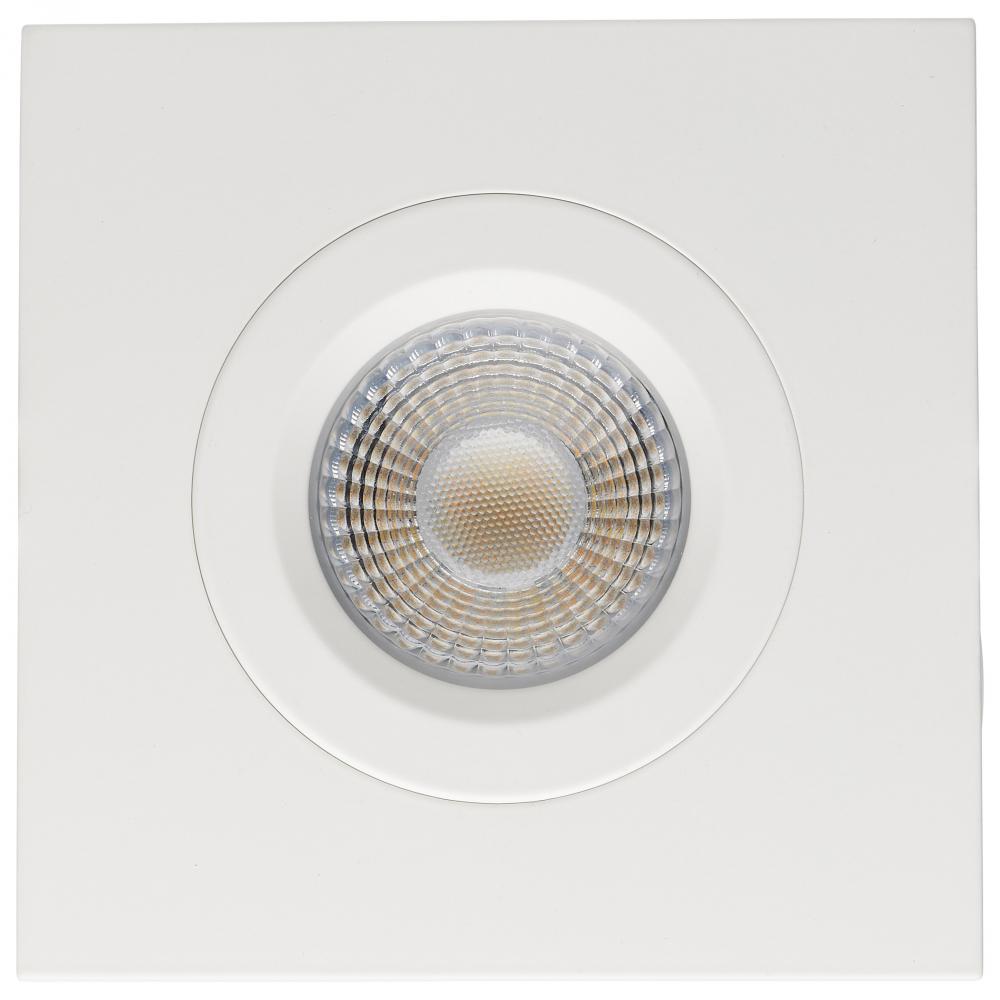

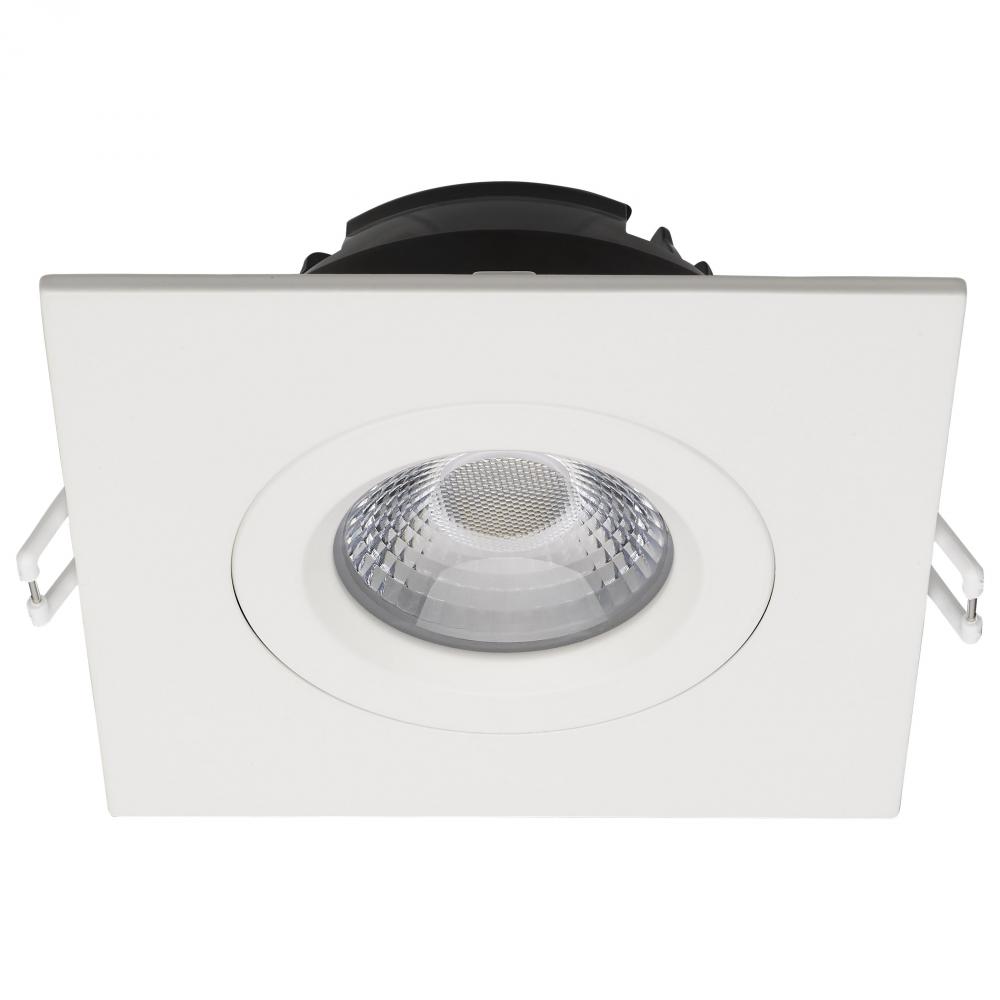

12 Watt LED Direct Wire Downlight; Gimbaled; 4 Inch; CCT Selectable; Square; Remote Driver; White : X6PFL

Return to Catalog

Part Number: X6PFL / Vendor ID #: 27

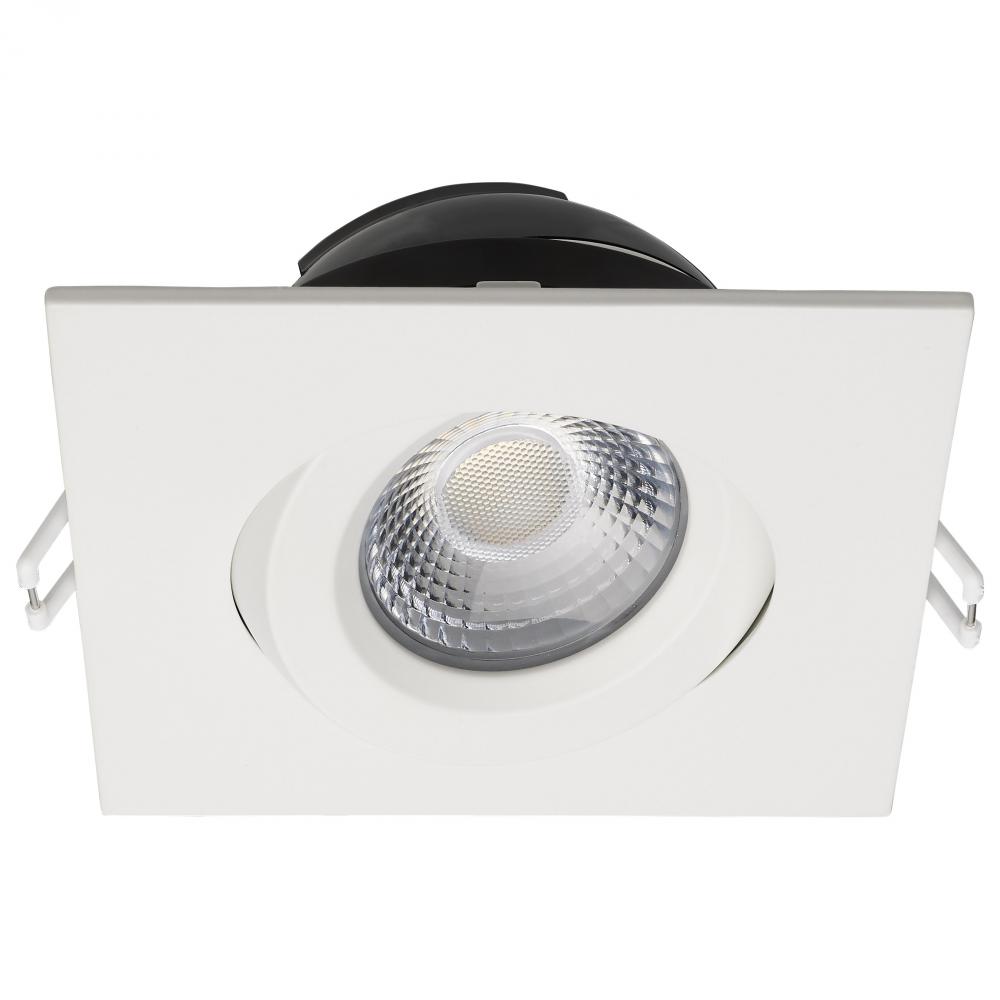

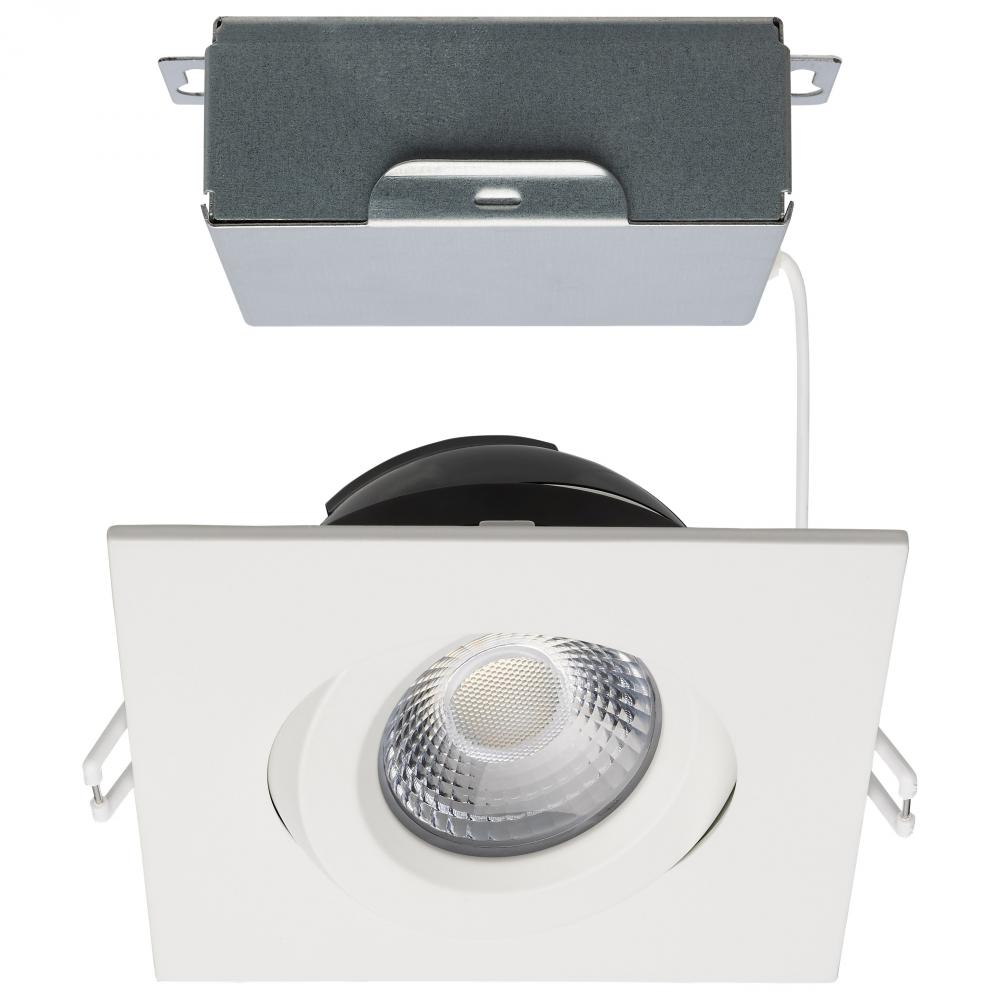

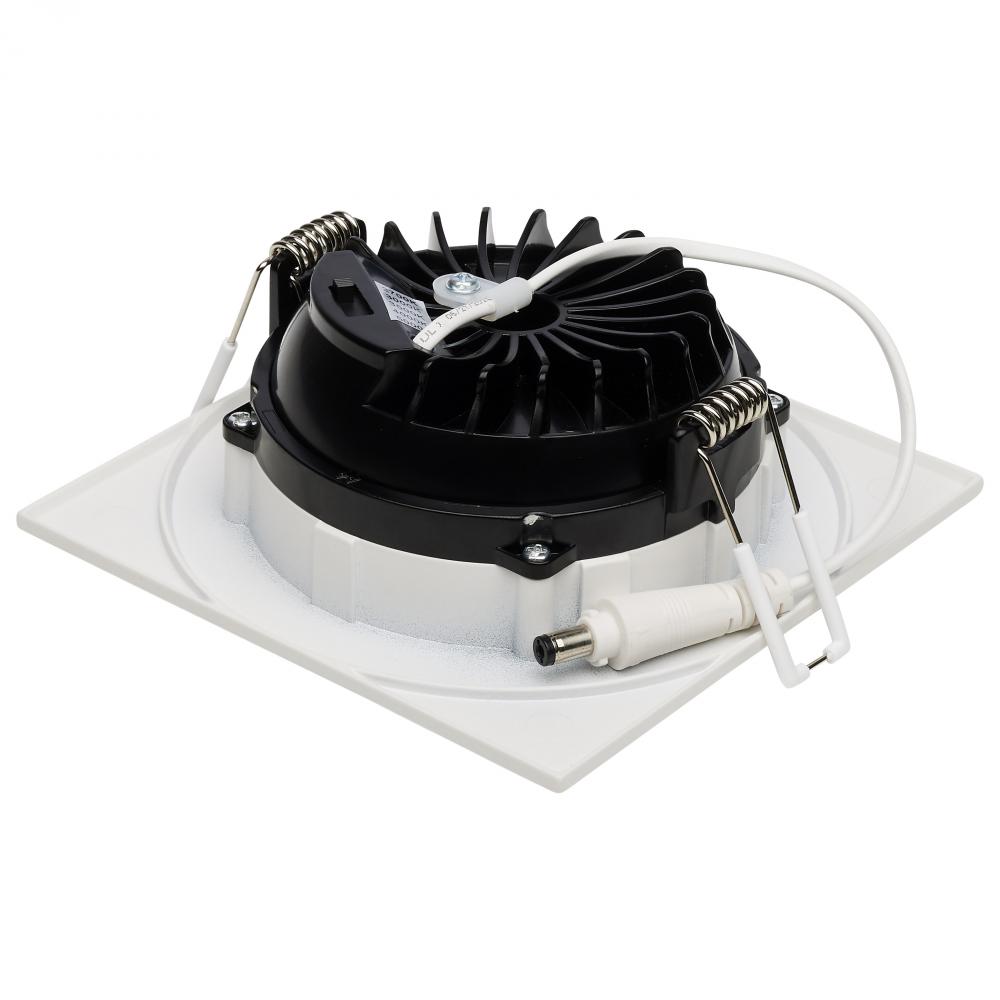

12 Watt LED Direct Wire Downlight; Gimbaled; 4 Inch; CCT Selectable; Square; Remote Driver; White

$47.38

Item Sales Info

Add To Wishlist

Compare Item

Availability

Manufacturer has 779 items available.

Dimensions

Height: 2.00"

Width: 4.92"

Product Overview

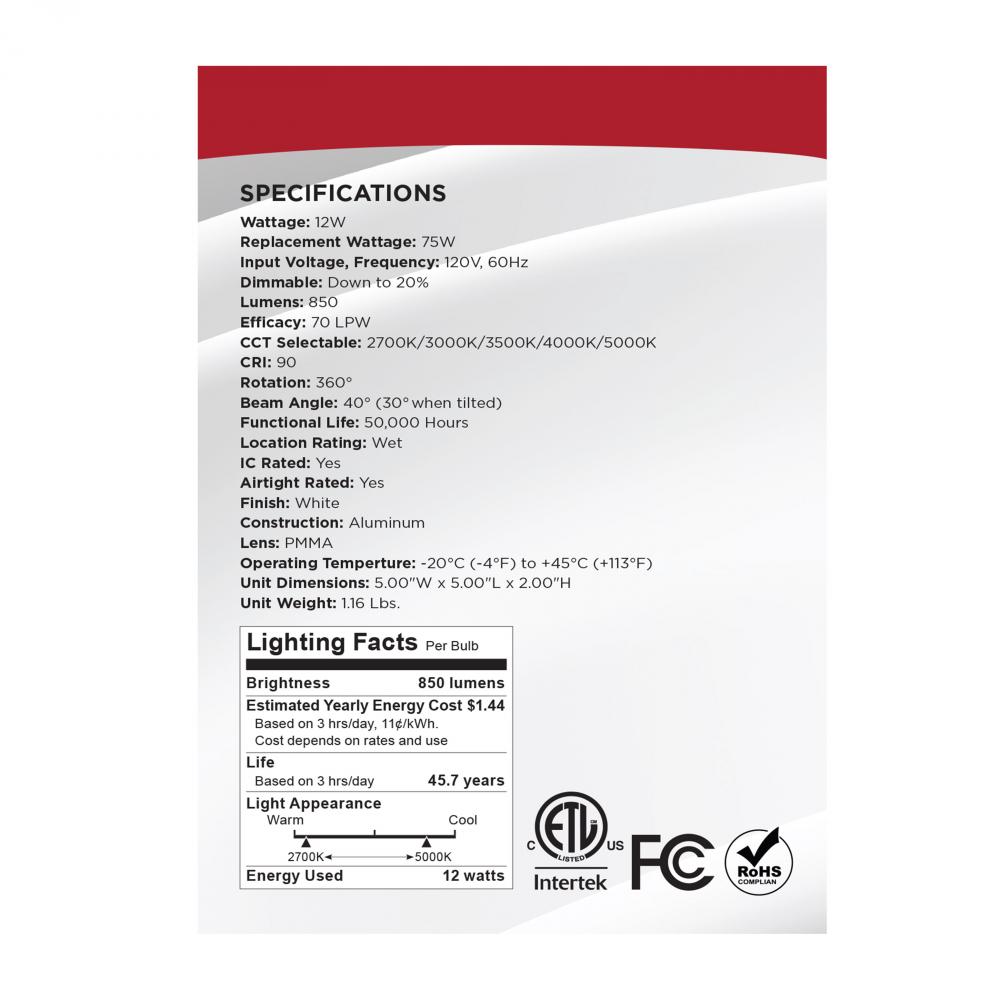

12 Watt LED Direct Wire Downlight; Gimbaled; 4 Inch; CCT Selectable; Square; Remote Driver; White Finish; 850 Lumens; 120 Volt

Standard Information

Category:

Recessed Ltg.

Subcategory:

Recessed Lighting Trims

Finish:

White

Option:

Energy Star

LED

Prop 65

Refinement Options

Category:

Recessed

Sub Category:

Direct Wire

Style:

Utility

Additional Info:

360 Degree Rotation; 30 Degree Tilt

Bulb Hours:

50000

Bulb Shape:

Integrated LED

Bulb Type:

LED

Dimmable:

Yes-Dimmable

Harmonized Codes:

9405.11.8010

Length:

4.92

Lumens:

850L

Ship Carton Height:

5.43

Ship Carton Length:

6.3

Ship Carton Width:

3.46

Warranty:

5 Year Limited - Fixtures

Air Tight:

Yes

Amps:

0.100A

ANSI Base:

Integrated

BAA Compliant:

Beam Spread:

CA Prop-65:

Lead

Carton Cubic Feet:

0.06850000000000001

Cartons Per Unit:

CCT Selectable:

Yes

CEC:

California T24 2016 - 2022 JA8 Listed

CEC Terse:

Lawful for sale in California

CEC Web Text:

California T24 Listed

Ceiling Aperture:

4.25 in. Cutout

Connection:

Direct Wired

Country Of Origin:

Vietnam

CRI:

Dimmable Down To:

100 to 20 percent

Dimming Type:

Forward Phase or Reverse Phase or Phase Selectable or Triac

Efficacy:

70.83 LPW

ES Category:

Downlight Recessed

ES Unique ID:

ESID-2684098

FCC Compliant:

Yes

Feature 1:

90 CRI

Feature 2:

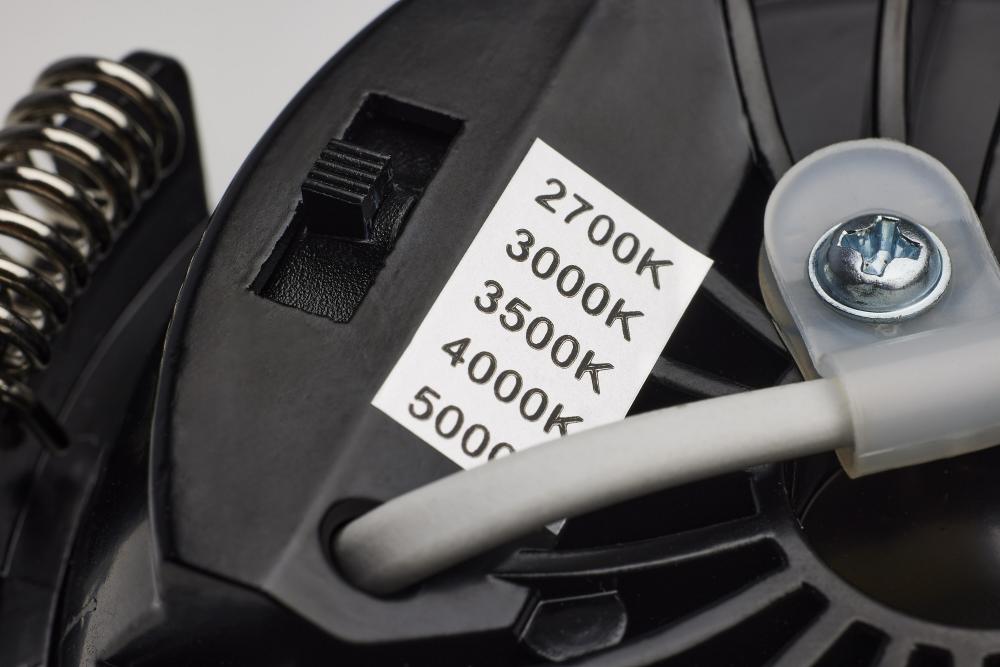

5 CCT Selectable

Feature 3:

Dimmable

Feature 4:

Wet location rated

Feature 5:

Title 24 Compliant

Feature 6:

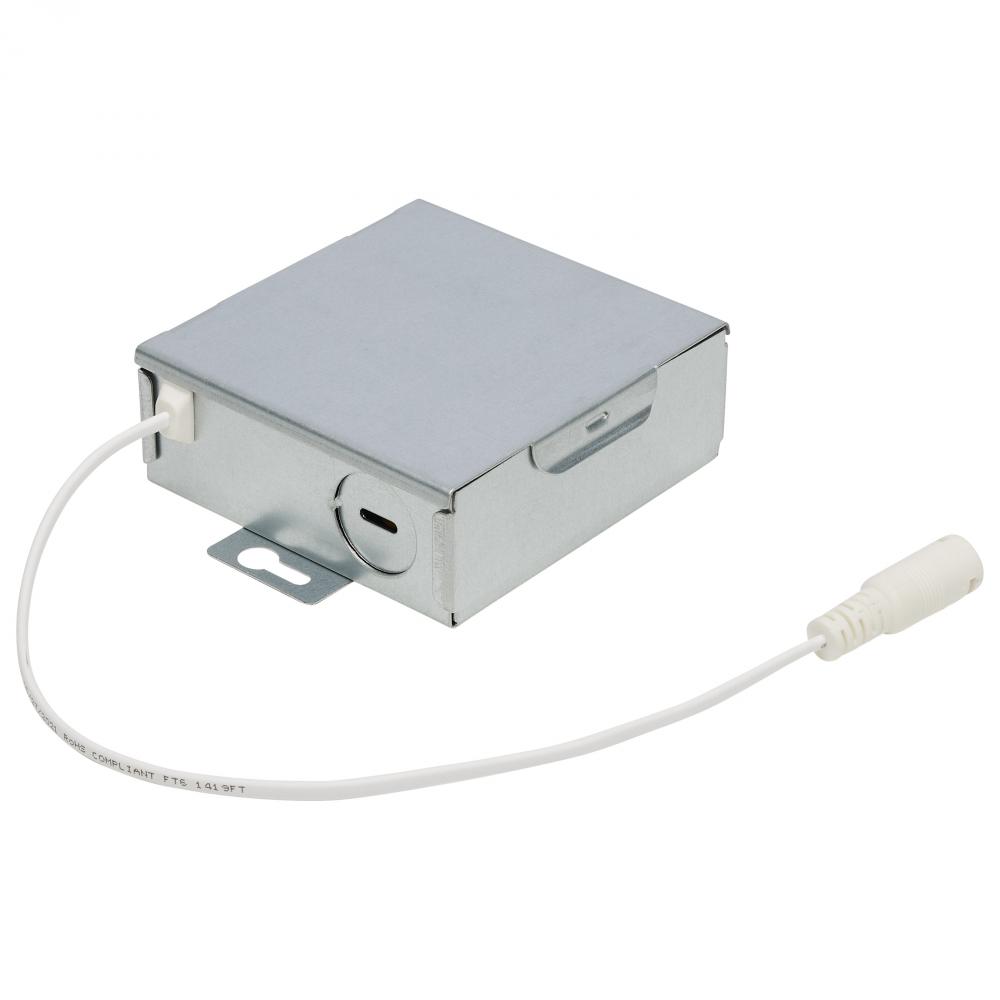

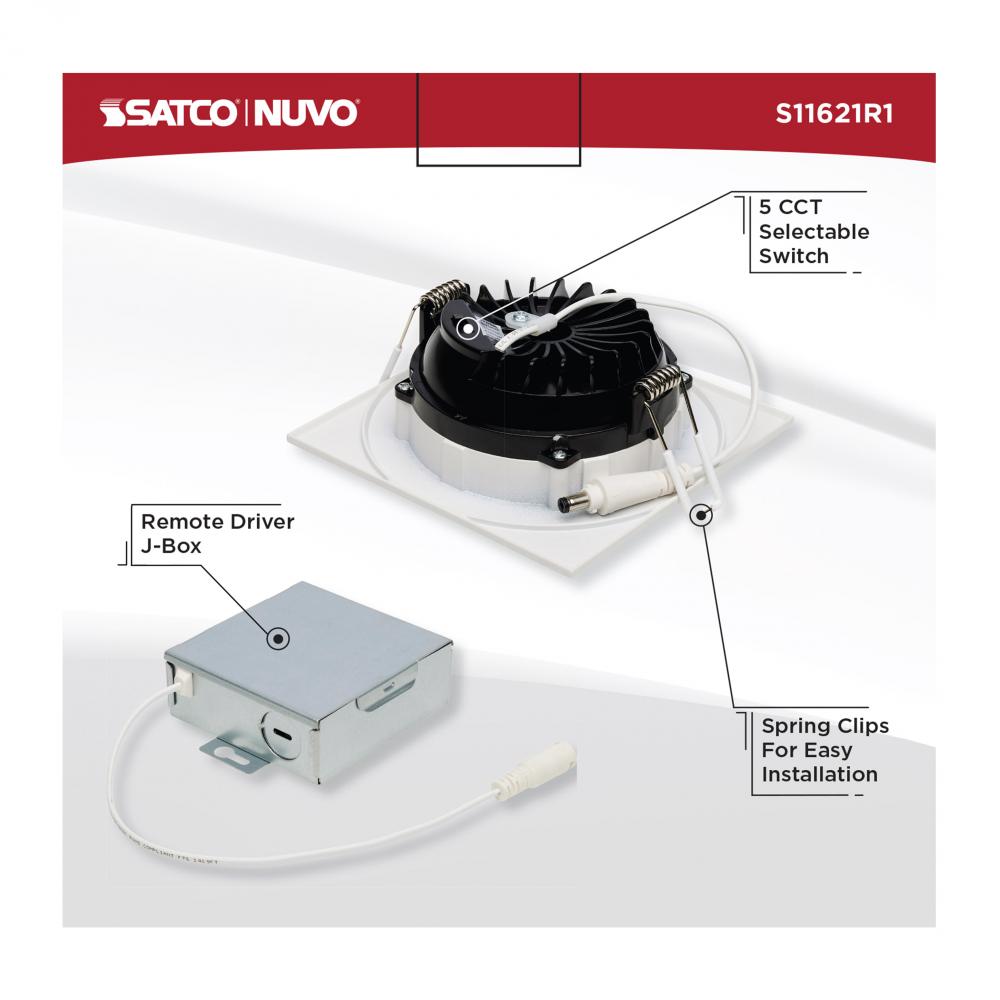

Remote J-Box

Feature 7:

360-Degree Rotation, 30-Degree Tilt

Feature 8:

IC Rated

Feature 9:

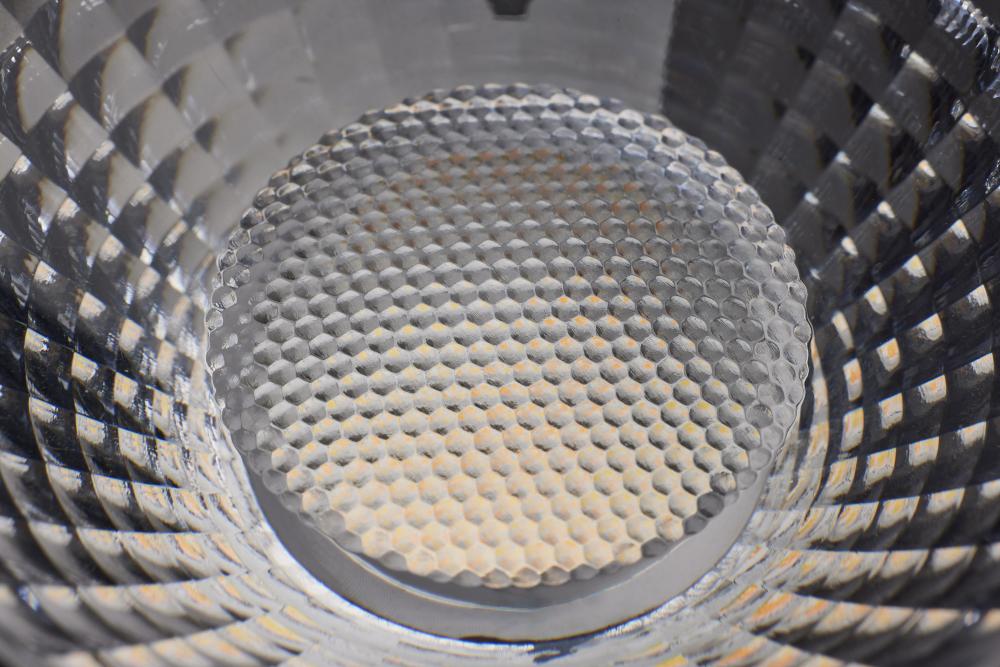

Aluminum Construction with PMMA Lens

Finish Family:

White

Fixture shape:

Square

IC Rated:

Yes

Incandescent Equivalent:

75W

Indoor Outdoor:

Indoor;Outdoor

IOT Enabled:

JA8 Compliant:

Yes

Lens Finish:

Frost

Lens Material:

Poly methyl methacrylate (PMMA)

Long Description:

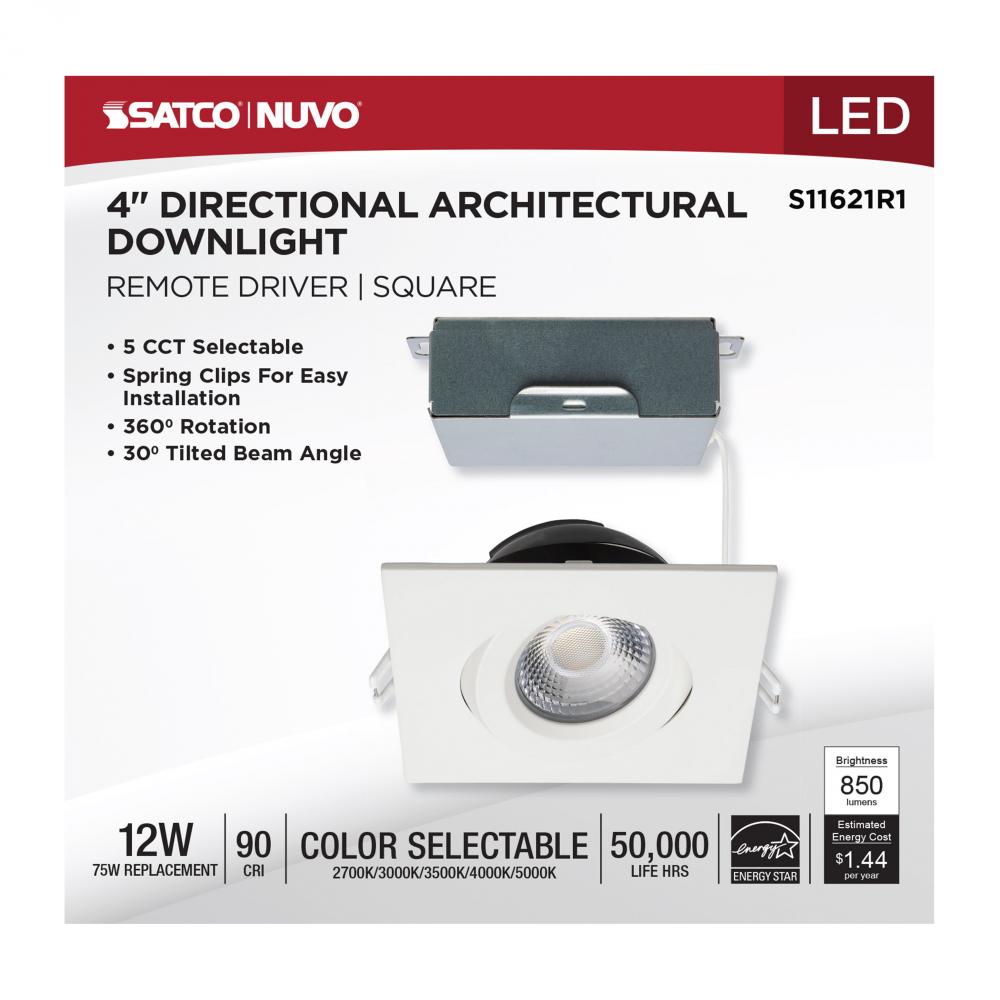

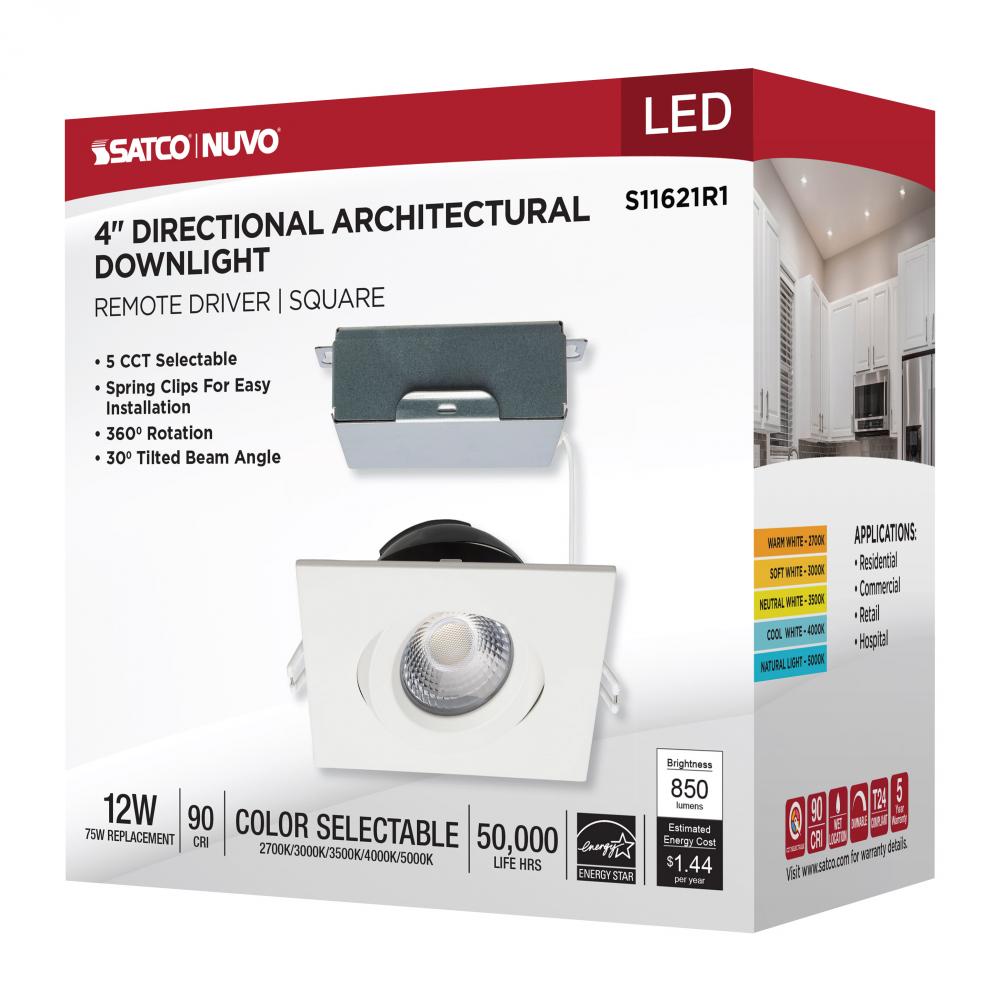

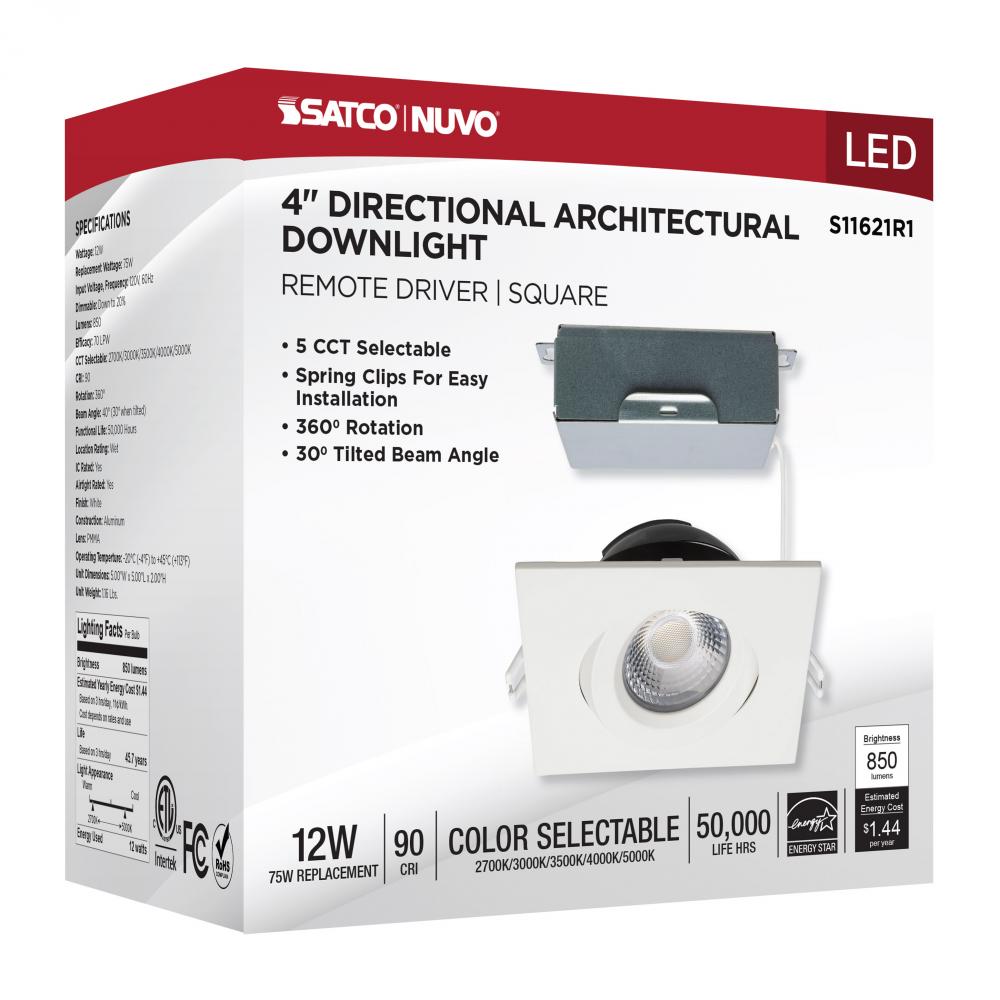

SATCO|NUVO’s S11621R1 LED Directional Architectural Downlight is made to offer focused illumination. With 360-degree rotation and 30-degree tilt, lighting can be installed to highlight artwork, entryways, or aimed to create the perfect reading nook. Inst

Material:

Aluminum

Mounting Procedure:

Recessed Direct Wire

Operating Frequency:

60Hz

Operating Temprature:

-20C (-4F) to +45C (+113F)

Pack Type:

Box

Power Factor:

>0.9

Quantity In Pack:

R9 Value:

Replaceable Light Source:

RoHS Compliant:

Yes

Romance Copy:

SATCO|NUVO’s LED Directional Architectural Downlights are made to offer focused illumination. With 360-degree rotation and 30-degree tilt, lighting can be installed to highlight artwork, entryways, or aimed to create the perfect reading nook. Install as

Safety Listing:

cETLus - Listed

SDS class:

LED_Lamp

Short Description:

12W/DW/GBL/4/CCT/SQ/RD/WH

Temperature (CCT):

2700K/3000K/3500K/4000K/5000K

Title 20 Compliant:

Title 24 Compliant:

Yes

Total Harmonic Distortion:

<30%

Trim Material:

Aluminum

Wattage Selectable:

Weight Lb.:

1.16
