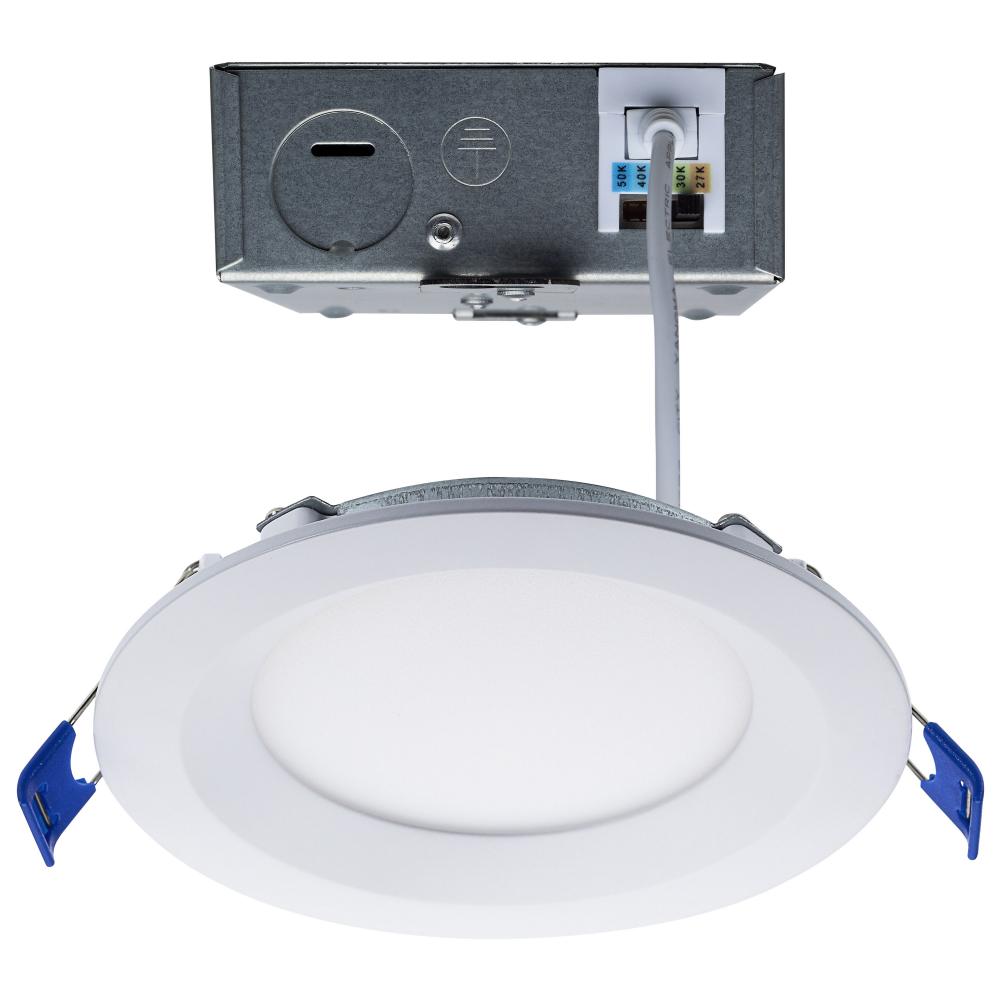

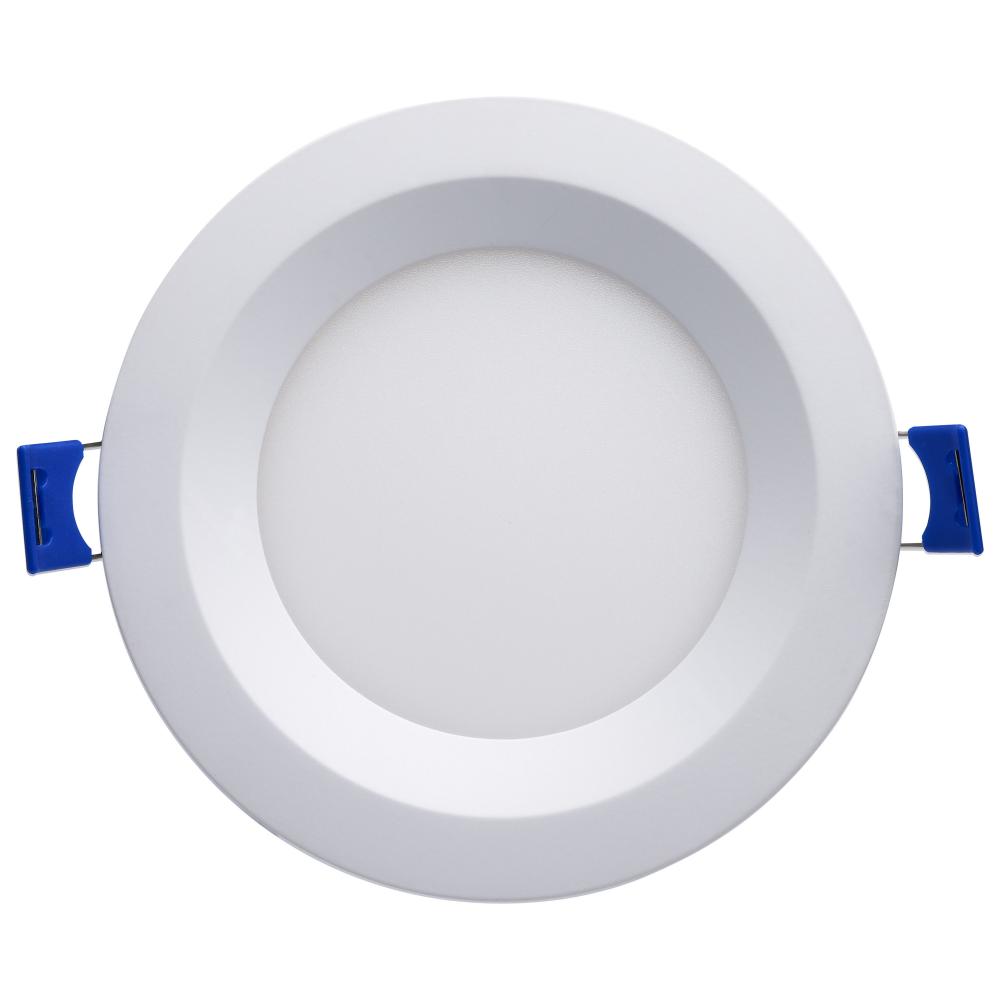

12 Watt LED Low Profile Regress Baffle Downlight; 4 Inch; Remote Driver; CCT Selectable; Round : X3RPH

Return to Catalog

Part Number: X3RPH / Vendor ID #: 27

12 Watt LED Low Profile Regress Baffle Downlight; 4 Inch; Remote Driver; CCT Selectable; Round

$27.38

Item Sales Info

Add To Wishlist

Compare Item

Availability

Manufacturer may be Out Of Stock.

Dimensions

Height: 1.25"

Width: 5.06"

Product Overview

12 Watt LED Low Profile Regress Baffle Downlight; 4 Inch; Remote Driver; CCT Selectable; Round Shape; White Finish; 120 Volt

Standard Information

Category:

Recessed Ltg.

Subcategory:

Other Recessed Ltg.

Finish:

White

Option:

Energy Star

LED

Prop 65

Lumens:

801-1100

Kelvin:

4001-4500

Wattage:

12w

Refinement Options

Category:

Recessed

Sub Category:

Direct Wire

Style:

Utility

Bulb Hours:

50000

Bulb Kelvin:

Warm White to Natural Light

Bulb Shape:

Integrated LED

Bulb Type:

LED

Diameter:

5.06

Dimmable:

Yes-Dimmable

Harmonized Codes:

9405.11.8010

Lumens:

850L

Ship Carton Height:

5.31

Ship Carton Length:

5.79

Ship Carton Width:

3.35

Warranty:

5 Year Limited - Fixtures

Air Tight:

Yes

Amps:

0.100A

ANSI Base:

Integrated

Beam Spread:

112

CA Prop-65:

Lead

Carton Cubic Feet:

0.0596

Cartons Per Unit:

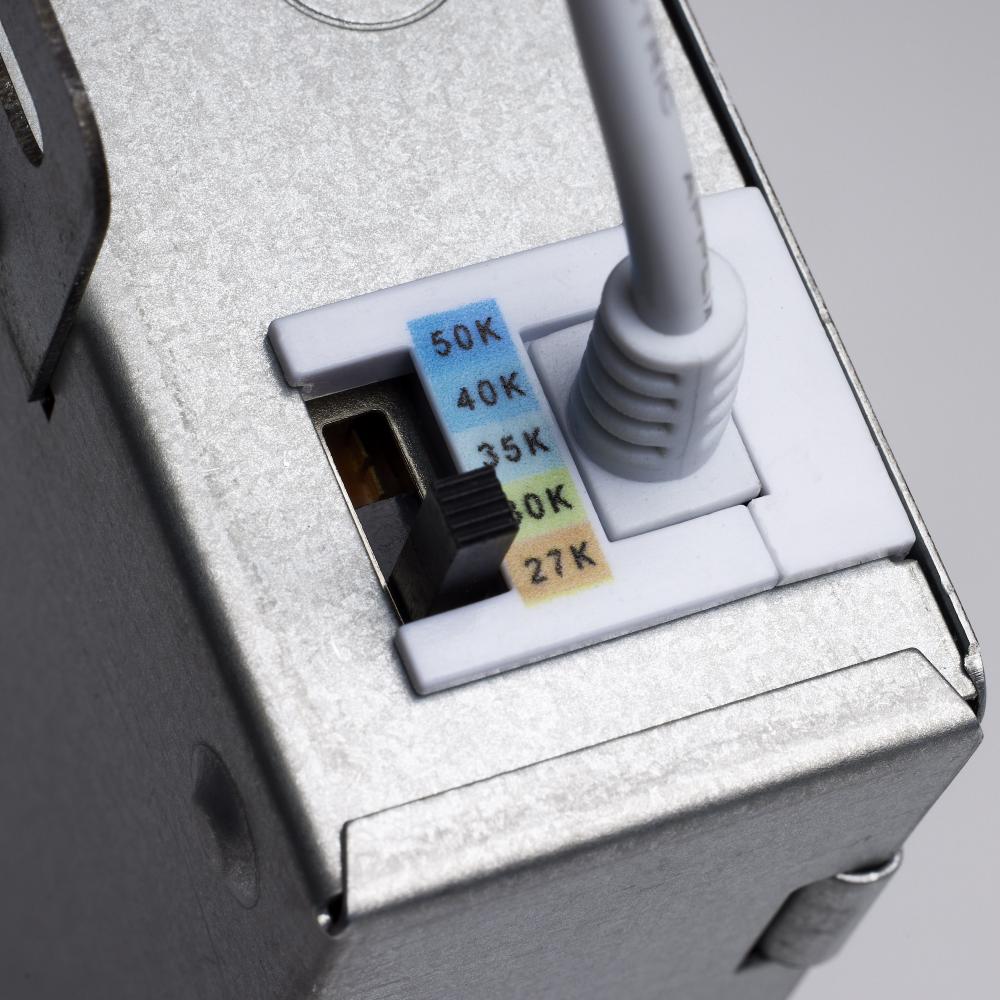

CCT Selectable:

Yes

CEC:

California T24 2016 - 2022 JA8 Listed

CEC Terse:

Lawful for sale in California

CEC Web Text:

California T24 Listed

Ceiling Aperture:

4.25 in. Cutout

Closet Rated:

Connection:

Direct Wired

Country Of Origin:

Thailand

CRI:

Dimmable Down To:

100 to 10 percent

Efficacy:

70.83 LPW

ES Category:

Downlight Recessed

ES Unique ID:

ESID-2408267

FCC Compliant:

Yes

Feature 1:

CCT Selectable

Feature 2:

90 CRI

Feature 3:

Dimmable

Feature 4:

Wet location rated

Feature 5:

Rated for 50,000 hours

Feature 6:

5-Year warranty

Feature 7:

FCC and RoHS compliant

Finish Family:

White

Fixture shape:

Round

Has Driver:

Yes

IC Rated:

Yes

Incandescent Equivalent:

60W

Indoor Outdoor:

Indoor

Installation Notes:

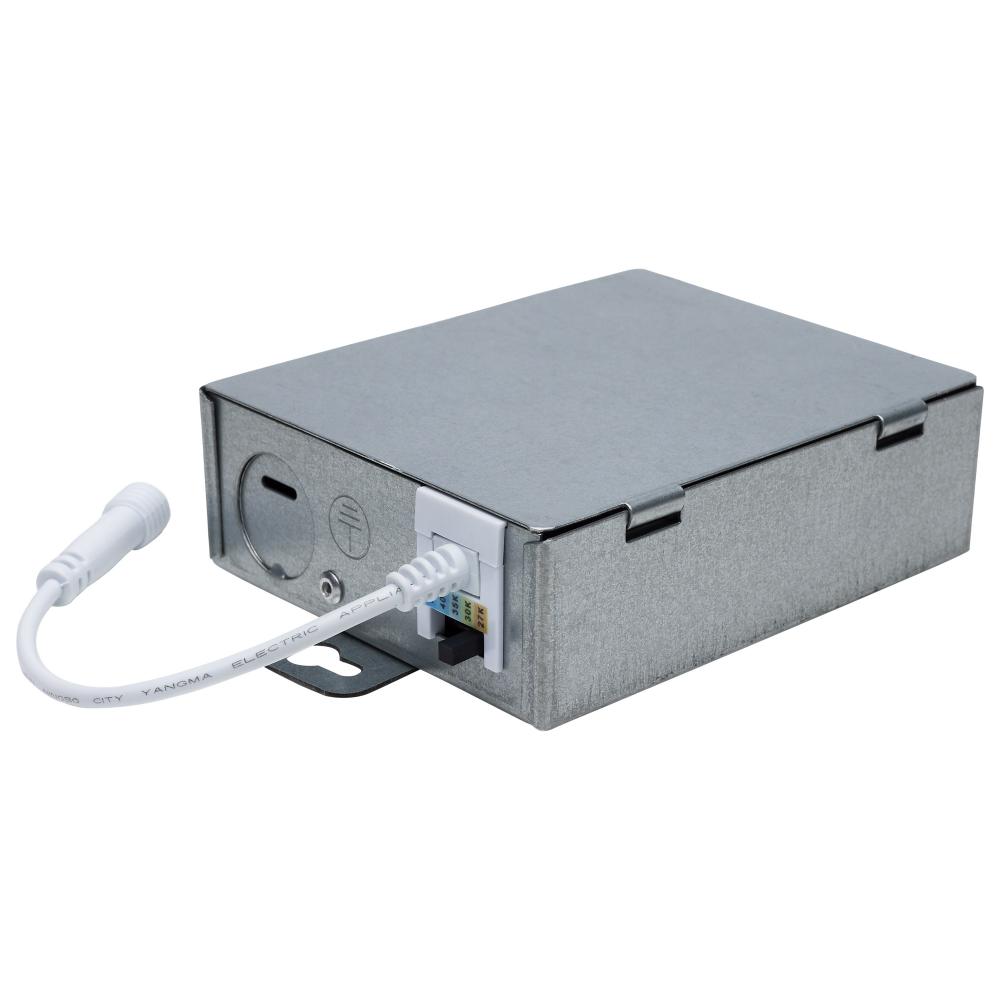

Driver Dimensions: 4.27 x 3.62 x 1.44

IOT Enabled:

IP Rating:

IP65

JA8 Compliant:

Yes

Lens Finish:

White

Lens Material:

Polystyrene (PS)

Long Description:

SATCO|NUVO's S11870 Slim Fit 4 inch white round Downlight fixture delivers an efficient LED solution with its sleek, low-profile design and smooth baffle for uniform light distribution and minimal glare. Offering a range of five color temperatures from

Material:

Aluminum

Mounting Procedure:

Recessed Ceiling

Operating Frequency:

60Hz

Operating Temprature:

-20C (-4F) to +40C (+104F)

Pack Type:

Box

Power Factor:

0.97

Quantity In Pack:

R9 Value:

Replaceable Light Source:

RoHS Compliant:

Yes

Romance Copy:

The Slim Fit Downlight from SATCO|NUVO delivers an efficient LED solution with its sleek, low-profile design and smooth baffle for uniform light distribution and minimal glare. Offering a range of five color temperatures from 2700K to 5000K, you can custom

Safety Listing:

cETLus - Listed

SDS class:

LED_Lamp

Short Description:

12WLED/DW/4/CCT-SEL/RND/RD/WH

Temperature (CCT):

2700K/3000K/3500K/4000K/5000K

Title 20 Compliant:

Title 24 Compliant:

Yes

Wattage Selectable:

Weight Lb.:

0.92
