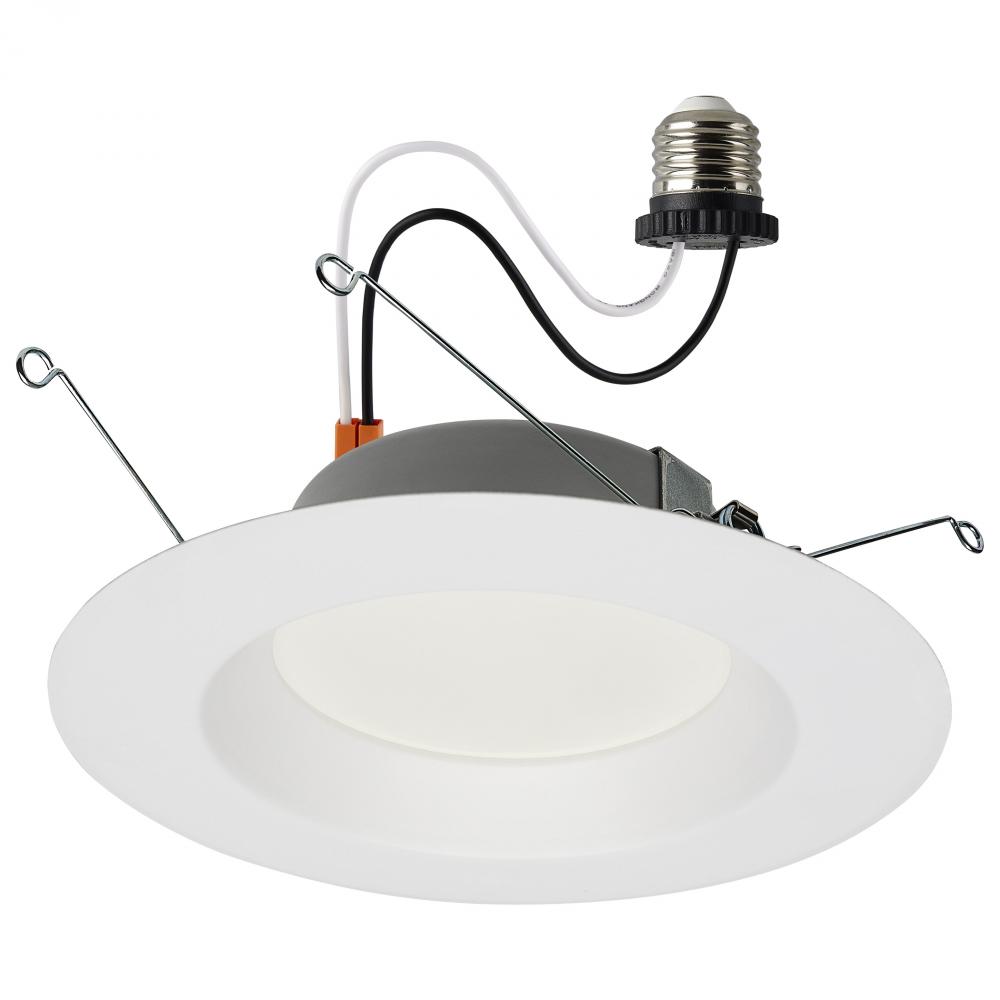

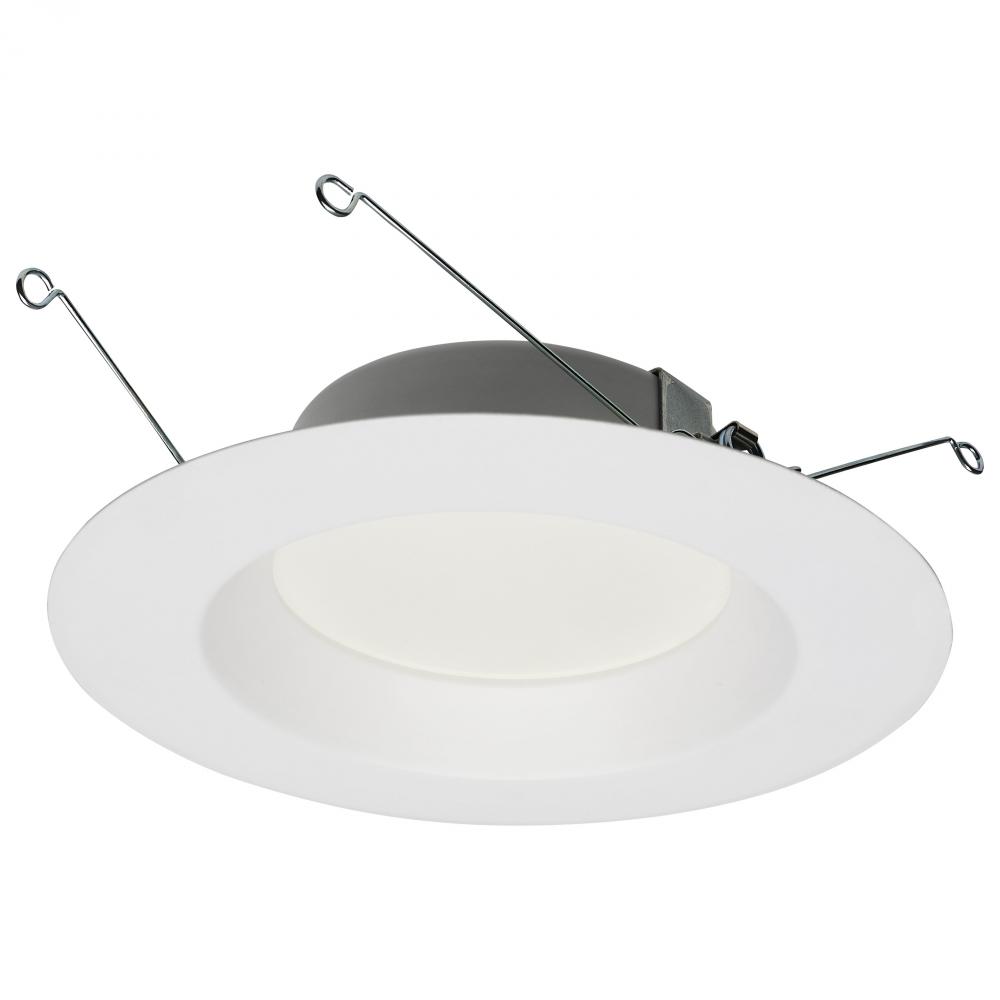

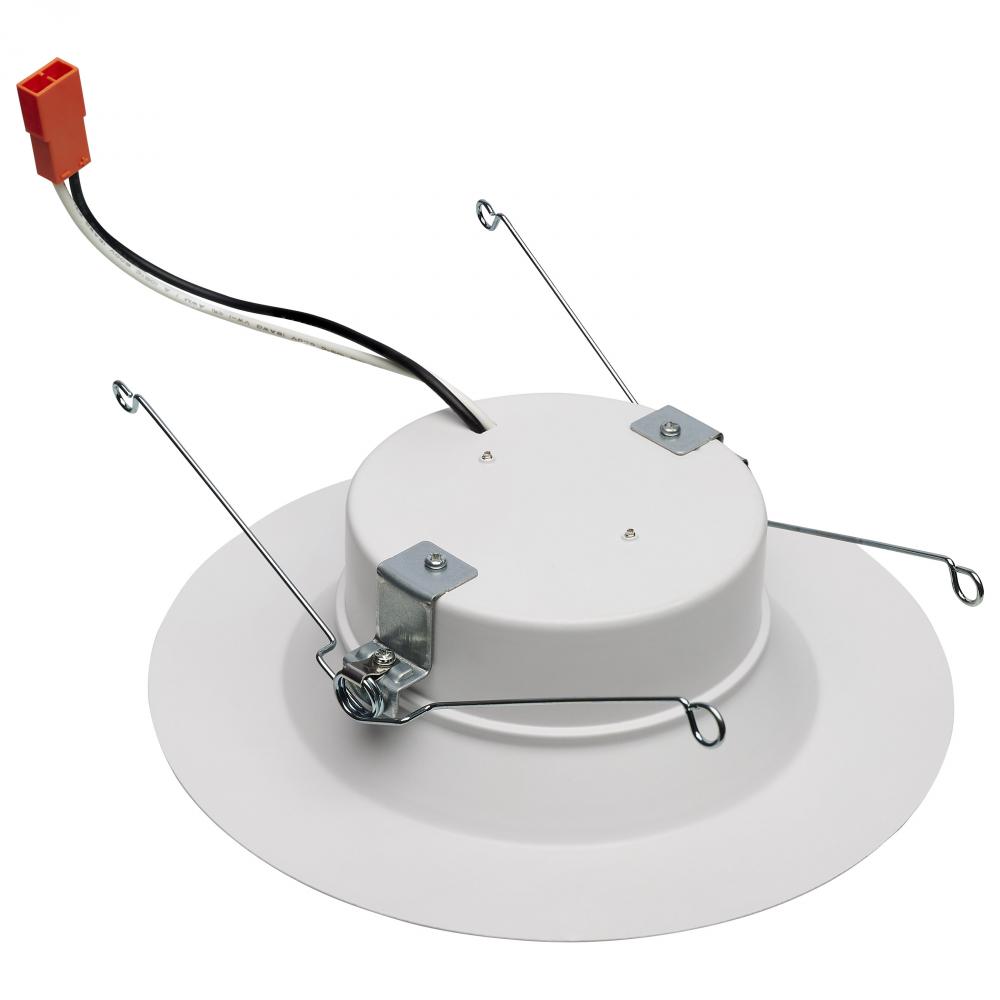

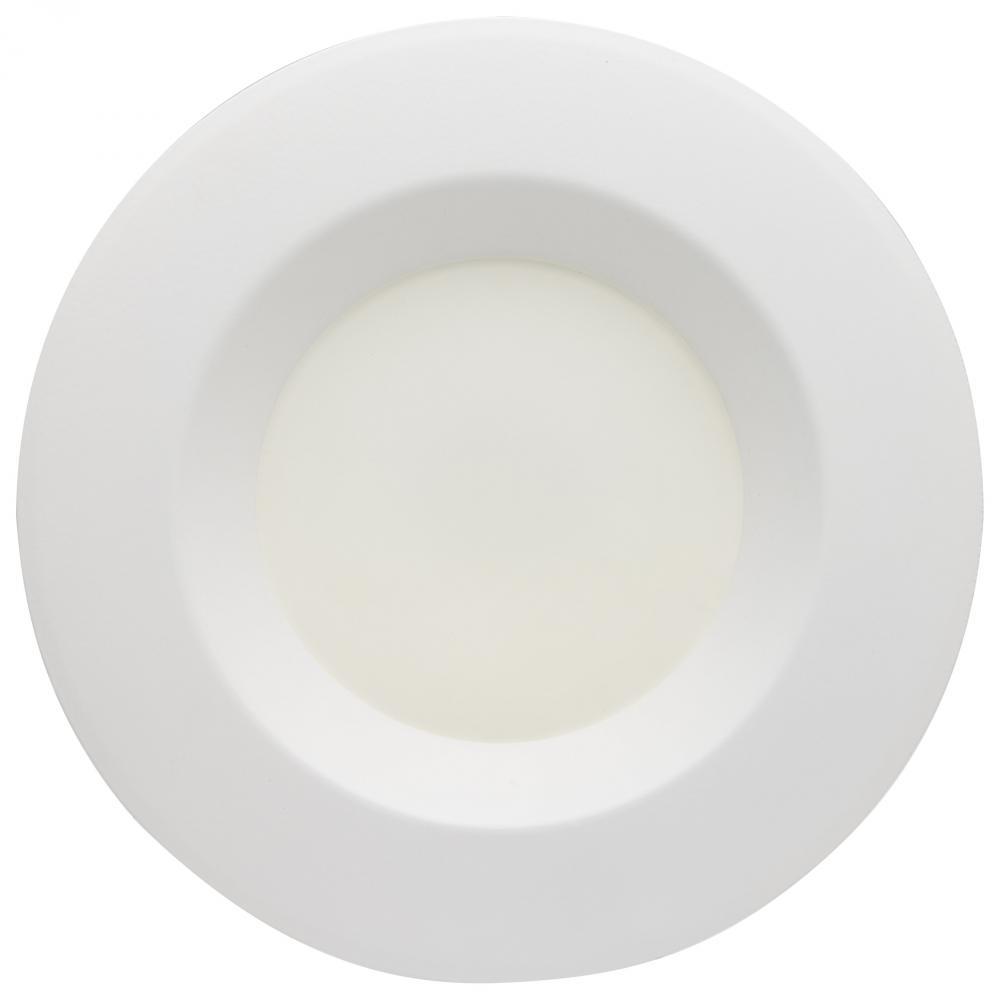

12.5 Watt LED Downlight Retrofit; 5-6"; 2700K; 120 Volts; Dimmable; White Finish : X6PFW

Return to Catalog

Part Number: X6PFW / Vendor ID #: 27

12.5 Watt LED Downlight Retrofit; 5-6"; 2700K; 120 Volts; Dimmable; White Finish

$19.88

Item Sales Info

Add To Wishlist

Compare Item

Availability

Manufacturer has 1494 items available.

Dimensions

Height: 1.97"

Width: 7.36"

Product Overview

12.5 Watt LED Downlight Retrofit; 5-6"; 2700K; 120 Volts; Dimmable; White Finish

Standard Information

Category:

Recessed Ltg.

Subcategory:

Recessed Lighting Trims

Finish:

White

Option:

LED

Prop 65

Refinement Options

Category:

Recessed

Sub Category:

Retrofits

Style:

Utility

Bulb Hours:

35000

Bulb Kelvin:

Warm White

Bulb Shape:

Integrated LED

Bulb Type:

LED

Diameter:

7.36

Dimmable:

Yes-Dimmable

Harmonized Codes:

8539.52.0091

Lumens:

900L

Ship Carton Height:

8.07

Ship Carton Length:

8.07

Ship Carton Width:

2.76

Warranty:

5 Year Limited - Fixtures

Air Tight:

Yes

Amps:

0.104A

ANSI Base:

E26 Adapter

Beam Spread:

100

CA Prop-65:

Lead

Can Size:

5-6 in.

Carton Cubic Feet:

0.104

Cartons Per Unit:

CCT Selectable:

CEC:

California T24 2016 - 2022 JA8 Listed; T20 Listed

CEC Terse:

Lawful for sale in California

CEC Web Text:

California T24 Listed

Ceiling Aperture:

5.36 in. Cutout

Connection:

Connector or Adapter

Country Of Origin:

China

CRI:

Dimmable Down To:

100 to 10 percent

Dimming Type:

Phase cut

Efficacy:

72.00 LPW

Enclosed Fixture Use:

Yes

FCC Compliant:

Yes

Feature 1:

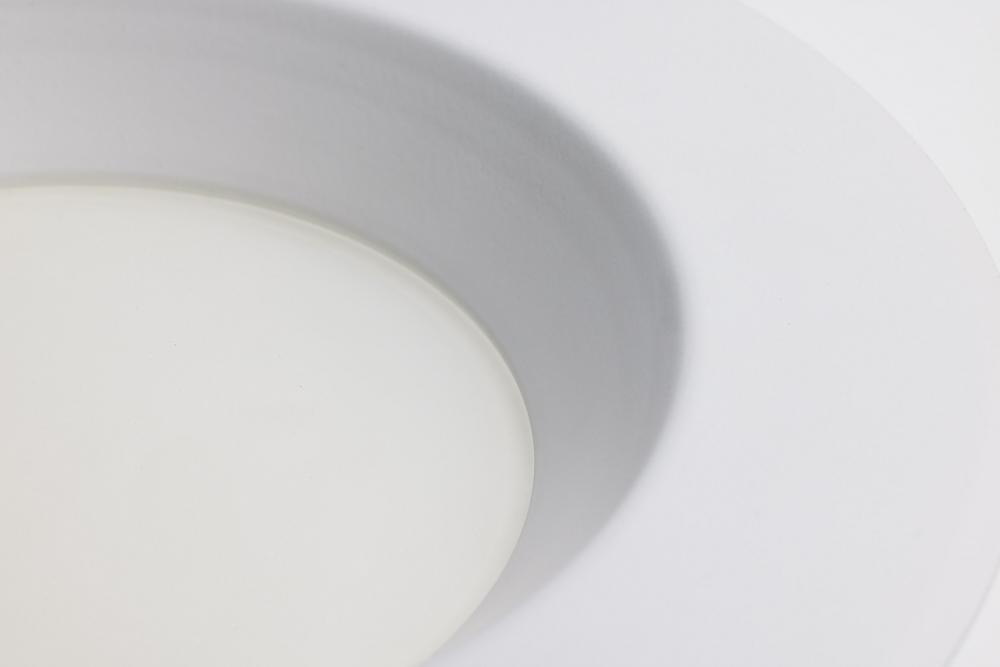

Smooth Baffle | Round

Feature 2:

90 CRI

Feature 3:

E26 Adapter

Feature 4:

Wet Location

Feature 5:

Compatible with 5-6 inch standard housing

Feature 6:

T24 Compliant

Feature 7:

Phase-Cut Dimmable down to 10 percent

Finish Family:

White

Fixture shape:

Round

IC Rated:

Yes

Incandescent Equivalent:

75W

Includes:

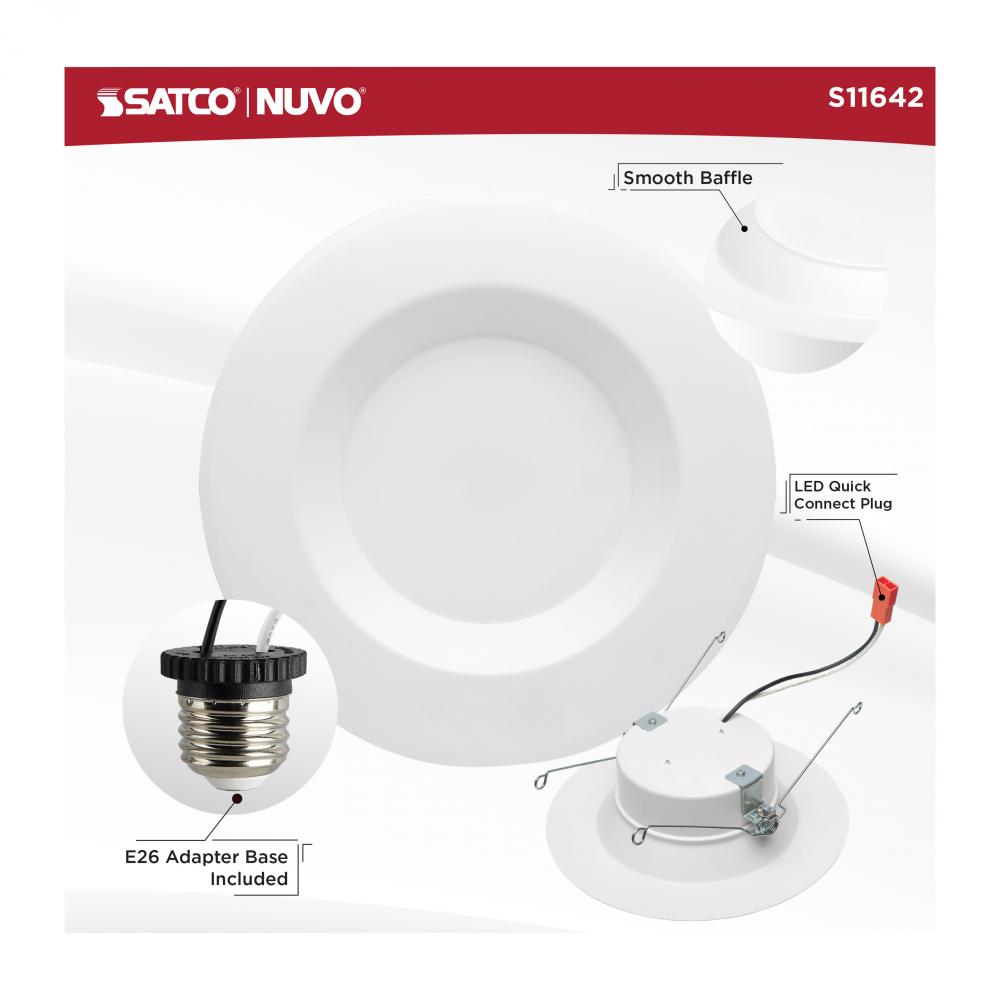

E26 Adapter included (S9001)

Indoor Outdoor:

Indoor

IOT Enabled:

JA8 Compliant:

Yes

Lens Finish:

White

Lens Material:

Polycarbonate (PC)

Long Description:

Elevate your lighting with SATCO|NUVO’s S11642 LED Retrofit Downlight, designed with impeccable color rendering. This retrofit is 12.5-watts with a beam spread of 100 degrees and a color rendering temperature of 2700K, making it the perfect upgrade for e

Material:

Die-Cast Aluminum

Minimum Compartment Size:

For the 5 in. Recessed Luminaire: Dia: 5.38, Height: 7.5; For the 6 in. Recessed Luminaire: Dia: 6 In, Height: 7.5 in

Mounting Procedure:

Ceiling

Operating Frequency:

60Hz

Operating Temprature:

-20C (-4F) to +45C (+113F)

Pack Type:

Box

Power Factor:

0.9

Quantity In Pack:

R9 Value:

Replaceable Light Source:

Romance Copy:

Elevate your lighting with SATCO|NUVO’s LED Retrofit Downlights, designed with impeccable color rendering. These retrofits include an E26 adapter making them the perfect upgrade to replace existing screw base lamps in downlight applications. Featuring a

Safety Listing:

cULus - Classified

SDS class:

LED_Lamp

Short Description:

12.5WLED/RDL/5-6/927/120V

Temperature (CCT):

2700K

Title 20 Compliant:

Yes

Title 24 Compliant:

Yes

Total Harmonic Distortion:

<30%

Trim Color:

White

Wattage Selectable:

Weight Lb.:

0.6
