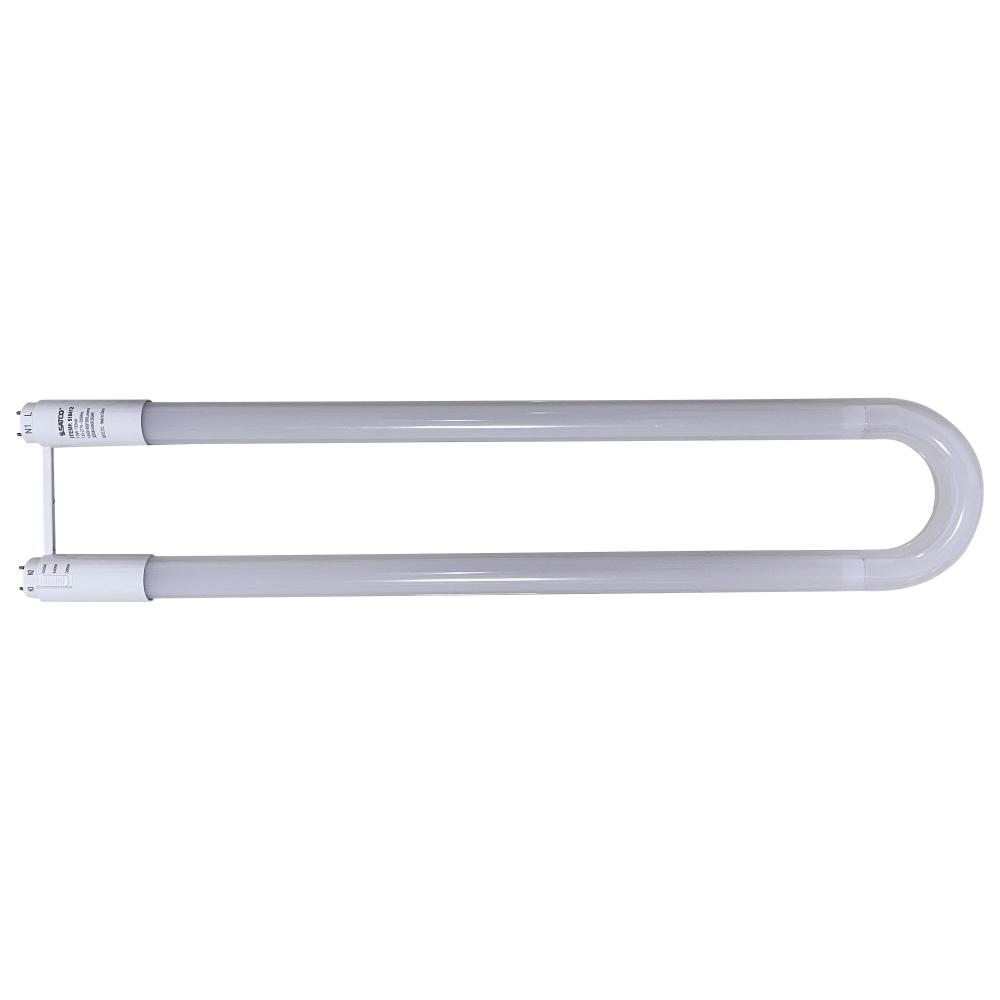

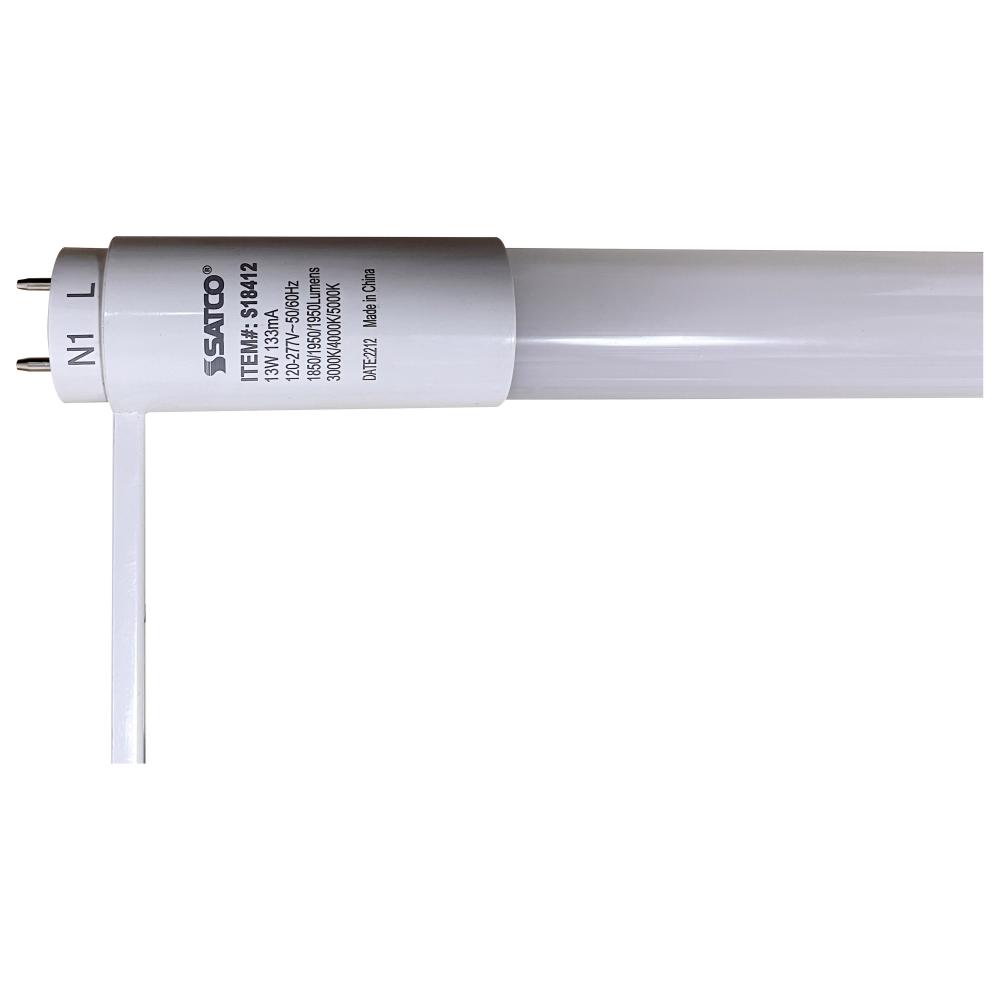

13 Watt T8 U-BEND LED; 50000 Hours; Medium Bi Pin Base; CCT Selectable; Type B; White Finish; : X3QPU

Return to Catalog

Part Number: X3QPU / Vendor ID #: 27

13 Watt T8 U-BEND LED; 50000 Hours; Medium Bi Pin Base; CCT Selectable; Type B; White Finish;

$31.40

Item Sales Info

Add To Wishlist

Compare Item

Availability

Manufacturer has 1066 items available.

Dimensions

Width: 1.00"

Product Overview

13 Watt T8 U-BEND LED; 50000 Hours; Medium Bi Pin Base; CCT Selectable; Type B; White Finish; 120-277 Volt

Standard Information

Category:

Lamps

Subcategory:

LED Lamps

Lumens:

1601-2600

Kelvin:

3001-3500

Wattage:

13w

Refinement Options

Category:

LED

Sub-Category:

LED T8 U Bend

Volts:

120V-277V

Bulb Dimmable:

Non-Dimmable

Bulb Hours:

50000

Bulb Kelvin:

3000K/4000K/5000K

Bulb Shape:

Diameter:

EA Length:

22.83

Harmonized Codes:

8539.52.0051

Length:

22.6

Lumens:

1850L/1950L/1950L

Shap Carton Width:

4.72

Ship Carton Height:

1.18

Ship Weight:

0.63

Warranty:

5 Year Limited - T8 LED Bulbs

Weight:

0.58

Additional Info:

Replaces FB34T12/U3

BAA Compliant:

Ballast Bypass Direct:

Ballast Bypass

Ballasting Requirements:

Ballast Bypass

Beam Spread:

160

Bulb ANSI Base:

G13

Bulb Base:

Medium Bi Pin

Bulb Finish:

White

Burning Position:

Universal

Carton Cubic Feet:

0.0736

Cartons Per Unit:

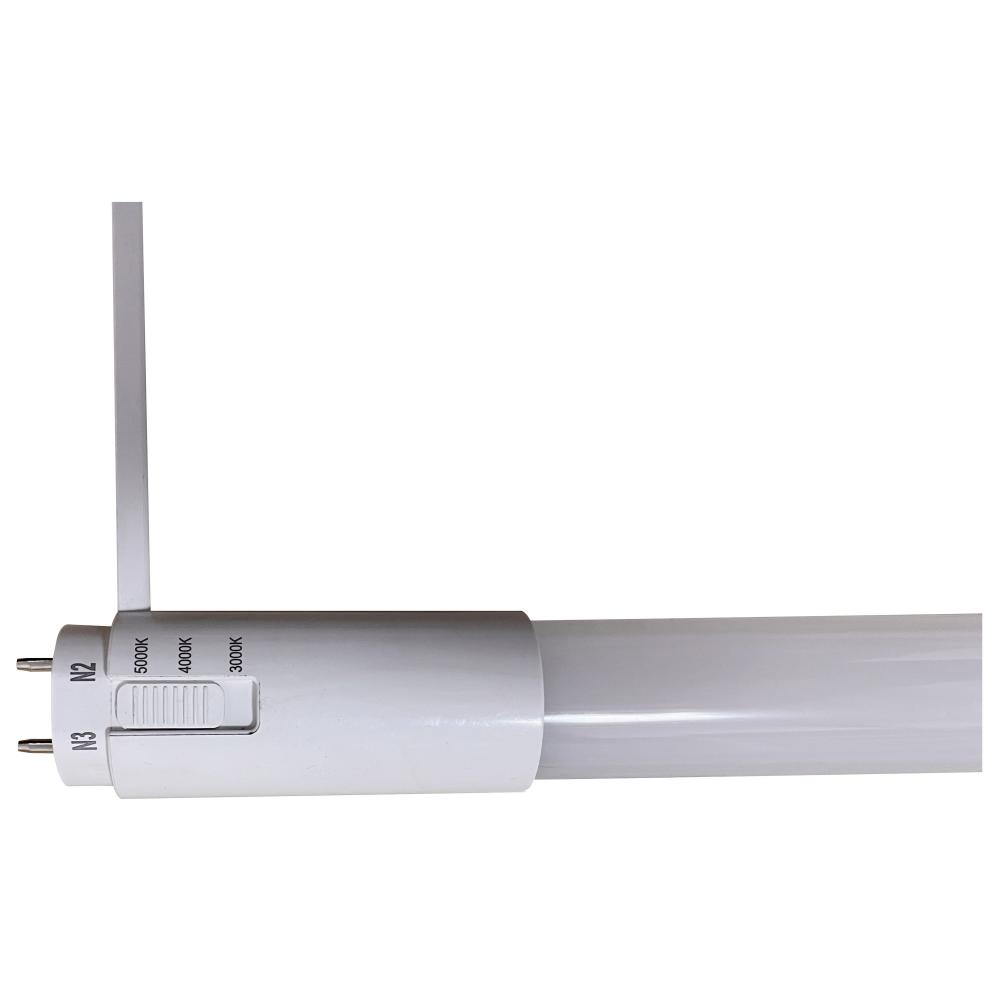

CCT Selectable:

Yes

CEC:

Exempt - Base Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Color Temprature:

Neutral White to Natural Light

Country Of Origin:

China

CRI:

DLC Approved:

DLC ID:

Efficacy:

142.31/150.00/150.00 LPW

Enclosed Fixture Use:

Yes

Enclosure Rating:

Enclosed Rated Lamp

FCC Compliant:

Yes

Feature 1:

CCT Selectable

Feature 2:

Dual mode models compatible with ballast or in ballast bypass configurations

Feature 3:

Shatterproof tube

Feature 4:

Single or double-ended wiring when installed for ballast bypass operation

Feature 5:

Compatible with select emergency backup and dimming ballasts

Feature 6:

5-Year warranty

Feature 7:

3 inch leg spacing

Feature 8:

Medium Bi Pin base

Flicker Free:

Flourescent Equivalent:

32W

Housing Color:

White

Incandescent Equivalent:

50W

Indoor Outdoor:

Indoor

Installation Notes:

Not for use in vapor tight fixtures.

IP Rating:

IP20

JA8 Compliant:

Lamp Ballast Type A/B/C:

Type B

Lamp End Type:

Single Ended;Double Ended

Lamp Filament:

LED

Leg Spacing:

Lens Finish:

Frost

Lens Material:

Plastic

Location Rating:

Damp

Long Description:

SATCO|NUVO'S S18412 LED T8 U-Bend lamp is CCT selectable to provide versatility in a range of applications. This 3-inch model is ballast bypass. This lamp can be easily installed with single-ended non-shunted sockets or double-ended shunted or non-shun

Material:

Plastic

Nominal Length:

22.5

NSF Approved:

Yes

Operating Frequency:

50/60Hz

Operating Temp:

-20C (-4F) to +45C (+113F)

Order In Multiples Of:

Pack Type:

Color Box

Power Factor:

0.9

Quantity In Pack:

R9 Value:

RoHS Compliant:

Yes

Romance Copy:

SATCO|NUVO'S LED T8 U-Bend lamps are CCT selectable and available in 1 inch, 3 inch, and 6 inch models to provide versatility in a range of applications. 1 inch and 6 inch models are Dual Mode to operate in ballast bypass or ballast compatible configur

SDS class:

LED_Lamp

Short Description:

13T8/U3/LED/CCT/BP/SE-DE

Style:

Utility

Surge Protection:

Built-in-surge protection - 0.7KV

Technology:

LED

Title 20 Compliant:

Title 24 Compliant:

Total Harmonic Distortion:

20%

Wattage Selectable:

Watts:

13W
