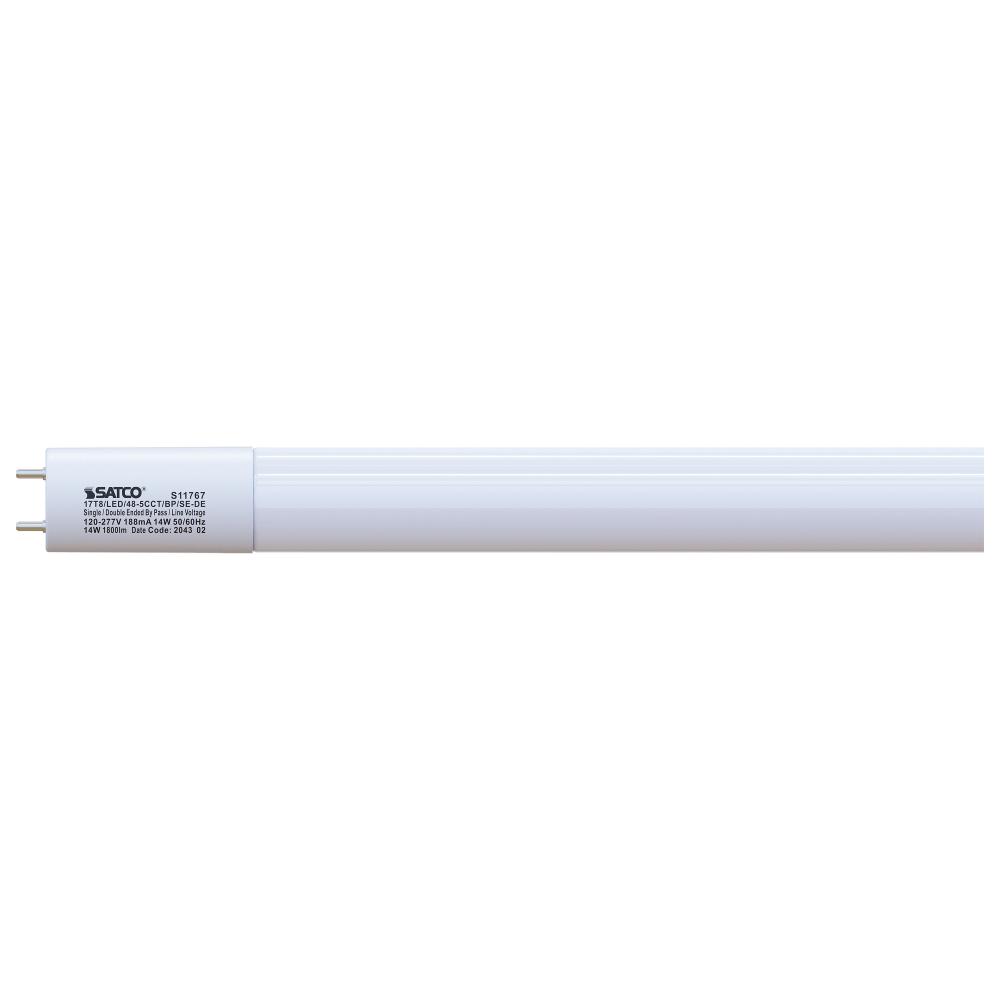

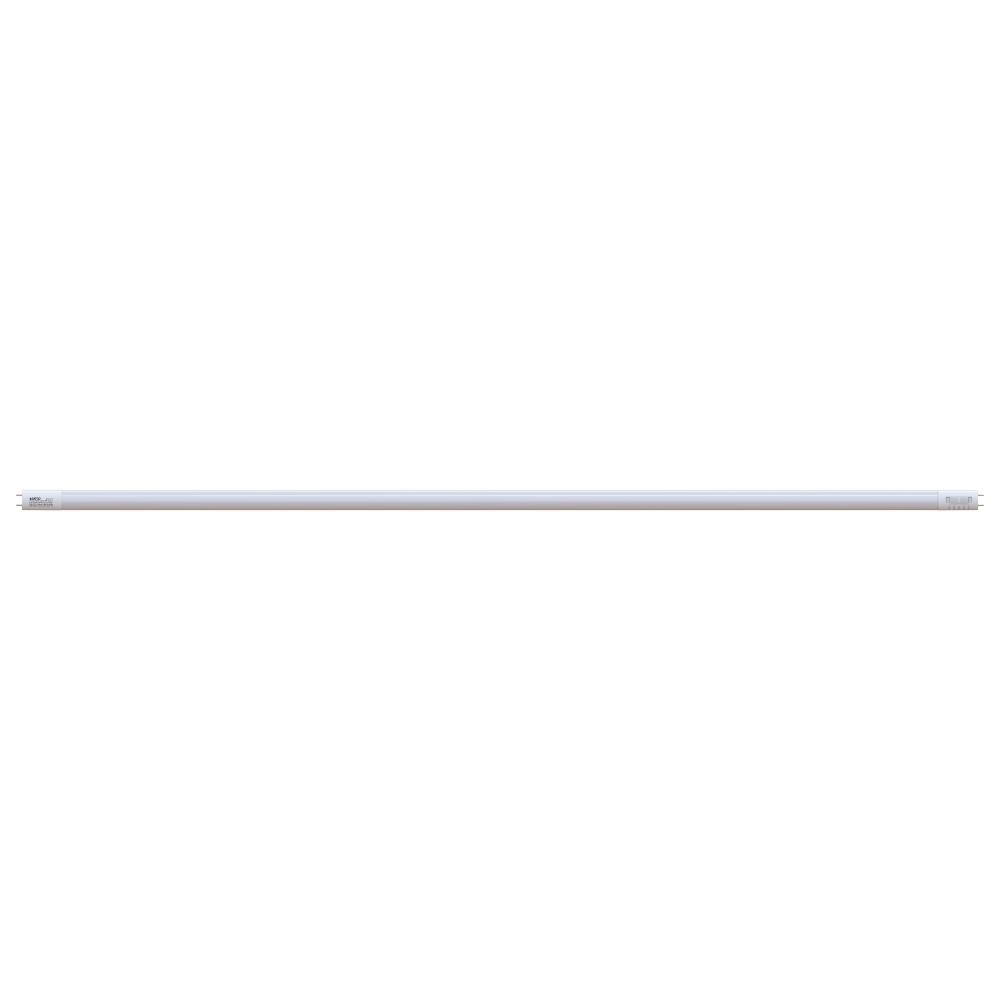

17 Watt; 4 Foot LED; T8; CCT Selectable; Type B Ballast Bypass; G13 Base; 120-277 Volt : X3QRV

Return to Catalog

Part Number: X3QRV / Vendor ID #: 27

17 Watt; 4 Foot LED; T8; CCT Selectable; Type B Ballast Bypass; G13 Base; 120-277 Volt

$14.88

Item Sales Info

Add To Wishlist

Compare Item

Availability

Manufacturer has 10833 items available.

Dimensions

Width: 1.00"

Product Overview

17 Watt; 4 Foot LED; T8; CCT Selectable; Type B Ballast Bypass; G13 Base; 120-277 Volt

Standard Information

Category:

Lamps

Subcategory:

LED Lamps

Lumens:

1601-2600

Kelvin:

3001-3500

Refinement Options

Category:

LED

Sub-Category:

LED T8

Volts:

120V-277V

Bulb Hours:

50000

Bulb Kelvin:

3000K/3500K/4000K/5000K/6500K

Bulb Shape:

Diameter:

EA Length:

47.8

Harmonized Codes:

8539.52.0051

Length:

47.17

Lumens:

2100L/2100L/2200L/2200L/2200L

Shap Carton Width:

0.9399999999999999

Ship Carton Height:

0.9399999999999999

Ship Weight:

0.45

Warranty:

5 Year Limited - T8 LED Bulbs - Ballast Bypass

Weight:

0.45

Additional Info:

Non CCT Selectable options are S39904-S39907

BAA Compliant:

Ballast Bypass Direct:

Ballast Bypass

Ballasting Requirements:

Ballast Bypass

Beam Spread:

210

Bulb ANSI Base:

G13

Bulb Base:

Medium Bi Pin

Bulb Finish:

White

Burning Position:

Universal

Carton Cubic Feet:

0.0244

Cartons Per Unit:

CCT Selectable:

Yes

CEC:

Exempt - Base Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Color Temprature:

Warm White to Daylight

Country Of Origin:

China

CRI:

DLC Approved:

Yes

DLC Classification:

Standard

DLC ID:

S-J4M2XF

DLC Primary Use:

Internal Driver/Line Voltage (UL Type B) Lamps

Efficacy:

123.53/126.47/129.41 LPW

Enclosed Fixture Use:

Yes

FCC Compliant:

Yes

Feature 1:

MOL: 47.17 inches, MOD: 1.00 inch

Feature 2:

Medium Bi Pin base

Feature 3:

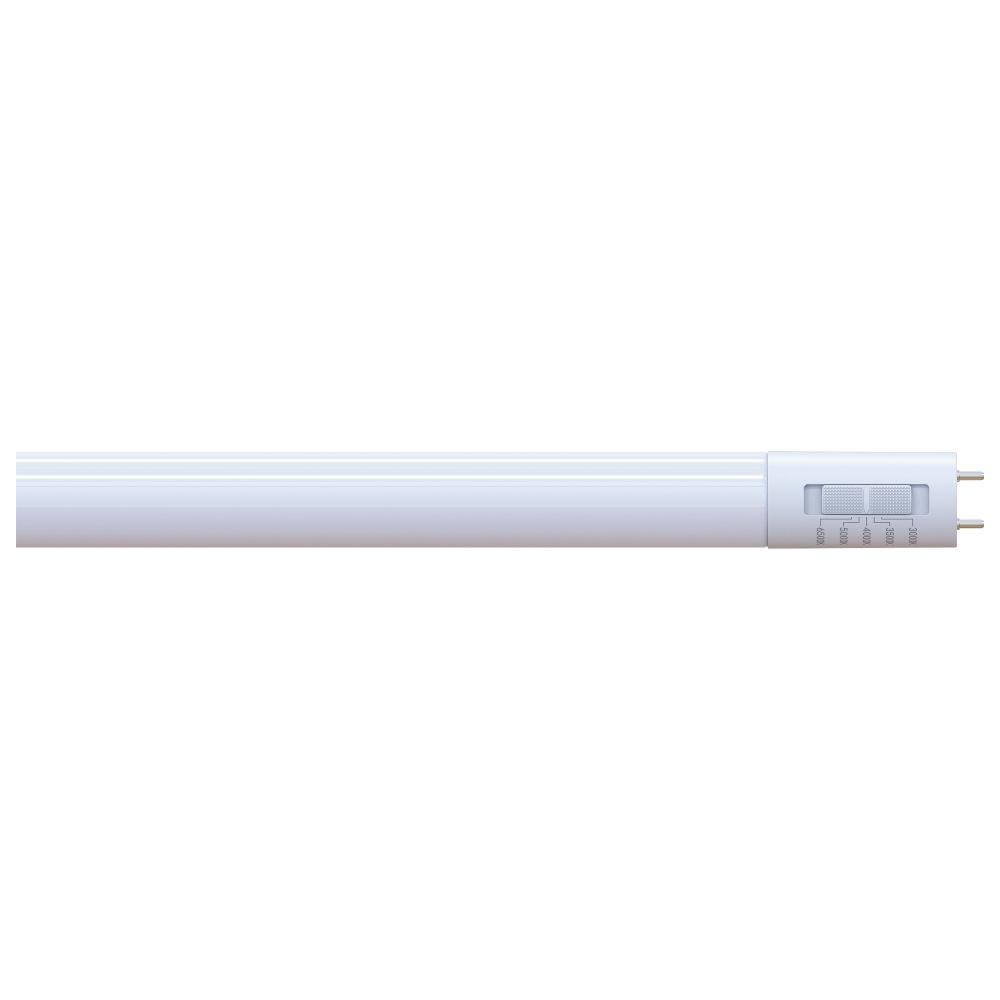

CCT Selectable

Feature 4:

Rated for 50,000 hours

Feature 5:

Damp location rated

Feature 6:

Single or double-ended wiring

Feature 7:

5-Year Warranty

Flourescent Equivalent:

45W

Housing Color:

White

Incandescent Equivalent:

90W

Installation Notes:

Not for use in vapor tight fixtures.

JA8 Compliant:

Lamp Ballast Type A/B/C:

Type B

Lamp End Type:

Single Ended;Double Ended

Lamp Filament:

LED

Lens Finish:

Frost

Lens Material:

Glass

Location Rating:

Damp

Material:

Glass / Plastic

Nominal Length:

NSF Approved:

Yes

Operating Frequency:

50/60Hz

Operating Temp:

-20C (-4F) to +45C (+113F)

Order In Multiples Of:

Pack Type:

Sleeve

Power Factor:

0.9

Quantity In Pack:

R9 Value:

RoHS Compliant:

Yes

Romance Copy:

SATCO|NUVO'S Type B Ballast Bypass lamps are designed to replace T8 or T12 medium bi-pin fluorescent lamps. Engineered for single or double-ended wiring options, these lamps will not light unless the ballast is bypassed. Choose from 3000K, 3500K, 4000K

SDS class:

LED_Lamp

Short Description:

17T8/LED/48-5CCT/BP/SE-DE

Style:

Utility

Technology:

LED

Title 20 Compliant:

Title 24 Compliant:

Total Harmonic Distortion:

<25%

Wattage Selectable:

Watts:

17W
