Sub Category:
Direct Wire
Bulb Shape:
Integrated LED
Harmonized Codes:
9405.11.8010
Ship Carton Height:
10.04
Ship Carton Length:
10.04
Warranty:
5 Year Limited - Fixtures
Carton Cubic Feet:
0.1598
CEC:
California T24 2016 - 2022 JA8 Listed
CEC Terse:
Lawful for sale in California
CEC Web Text:
California T24 Listed
Ceiling Aperture:
8.10 in. Cutout
Dimmable Down To:
100 to 10 percent
Dimming Type:
Forward Phase or Reverse Phase or Phase Selectable
Feature 1:
Canless recess lighting engineered for new constructions, drop ceilings, multi-level constructions and shallow ceilings.
Feature 2:
Fixture dimensional specifications (in inches) Height: 2.00, Diameter: 8.69
Feature 3:
Direct Wired installation. Suitable for damp locations, indoor use only. Ceiling mount installation, hardware included.
Feature 4:
Integrated LED
Feature 5:
90 CRI superior quality LED light, rated for 40000 hours, for an energy efficient lighting option.
Feature 6:
5 year limited warranty. See manufacturer website for details.
Incandescent Equivalent:
85W
Long Description:

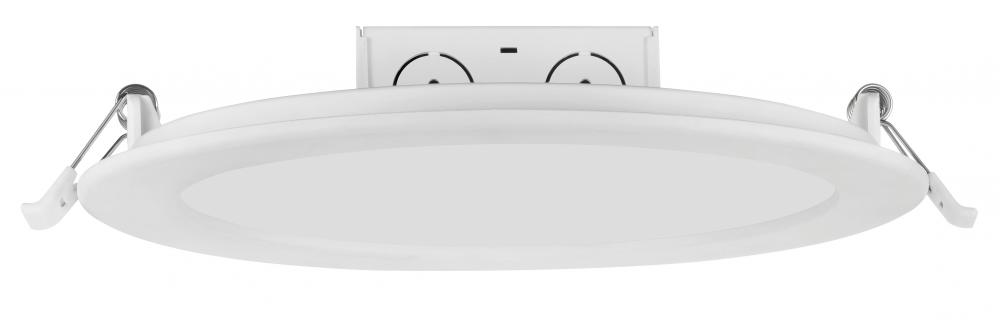

Satco's S11716, 8 inch round 18 watt LED direct wire edge-lit, ultra-thin, canless recessed fixture makes downlighting convenient to install in multi-level spaces. Dimmable, with superior 90 CRI light in 2700K, this fixture is engineered for new constr
Material:
Polybutylene Terephthalate (PBT) / Polyamide (PA) / Polycarbonate (PC)
Max Drywall Thickness:
7/8 in.
Minimum Compartment Size:
Diameter: 8.66 in. Height: 2.36 in.
Mounting Procedure:
Ceiling
Operating Frequency:
50/60Hz
Operating Temprature:
-20C (-4F) to +40C (+104F)
Replaceable Light Source:
No
Romance Copy:
The 8 inch round 18 watt LED direct wire edge-lit, ultra-thin, recessed fixture makes downlighting convenient to install in multi-level spaces. Dimmable, with superior 90 CRI light in 2700K, this fixture is engineered for new constructions, drop ceilings,
Safety Listing:
cETLus - Listed
Short Description:
18WLED/DW/EL/8/27K/120V
