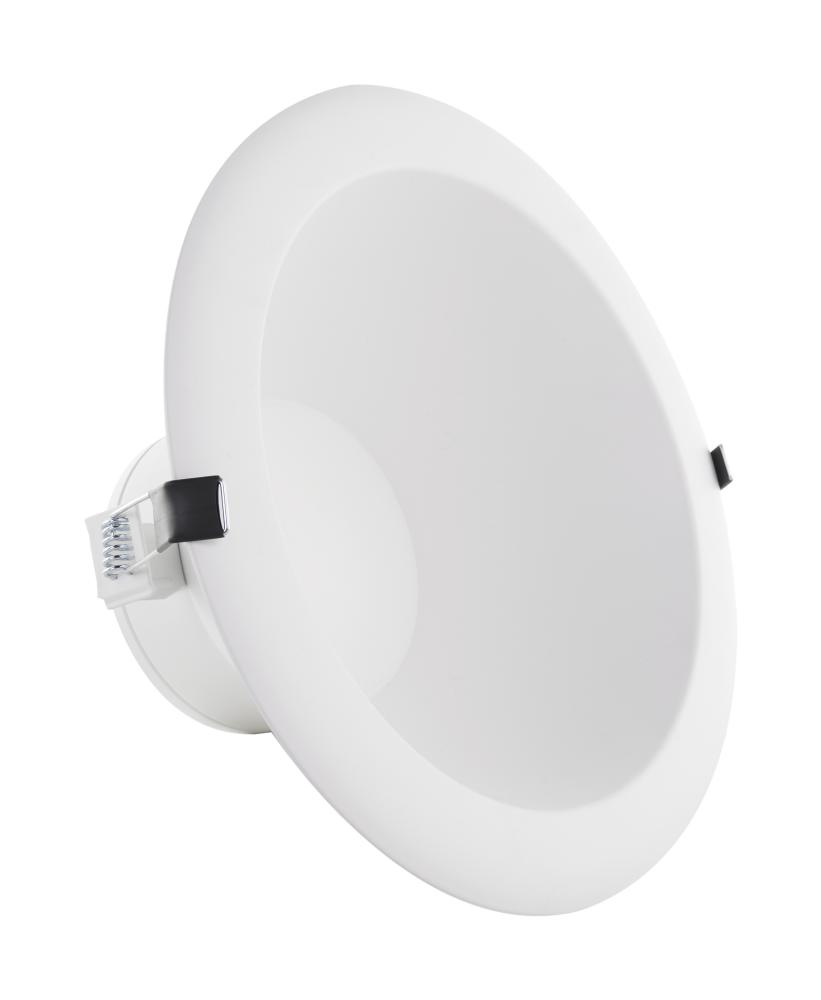

23 Watt Commercial LED Downlight; 6 in.; Color Adjustable; Lumen Adjustable; 120-277 volt : X3JVE

Return to Catalog

Part Number: X3JVE / Vendor ID #: 27

23 Watt Commercial LED Downlight; 6 in.; Color Adjustable; Lumen Adjustable; 120-277 volt

$89.55

Item Sales Info

Add To Wishlist

Compare Item

Availability

Manufacturer has 1568 items available.

Dimensions

Height: 3.84"

Width: 6.77"

Product Overview

23 Watt Commercial LED Downlight; 6 in.; Color Adjustable; Lumen Adjustable; 120-277 volt

Standard Information

Category:

Recessed Ltg.

Subcategory:

LED Bulbs

Other Recessed Ltg.

Finish:

White

Style:

Traditional

Option:

Energy Star

LED

Prop 65

Lumens:

801-1100

Kelvin:

4001-4500

Refinement Options

Category:

Recessed

Sub Category:

Commercial

Style:

Utility

Bulb Hours:

50000

Bulb Kelvin:

Warm to Cool White

Bulb Shape:

Integrated LED

Bulb Type:

LED

Diameter:

6.77

Dimmable:

Yes-Dimmable

Harmonized Codes:

9405.42.6000

Lumens:

900L/1200L/1750L

Ship Carton Height:

6.3

Ship Carton Length:

7.48

Ship Carton Width:

7.48

Warranty:

5 Year Limited - LED Commercial Downlights

Air Tight:

Amps:

0.092-0.040/0.133-0.058/0.192-0.083A

BAA Compliant:

Beam Spread:

CA Prop-65:

Lead

Can Size:

6 in.

Carton Cubic Feet:

0.204

Cartons Per Unit:

CCT Selectable:

Yes

CEC:

T20 Exempt - Fixtures Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Ceiling Aperture:

5.90 in. Cutout

Connection:

Direct Wired

Country Of Origin:

China

CRI:

Dimmable Down To:

100 to 20 percent

Dimmable Function:

0-10V Dimming Only

Efficacy:

81.82/75.00/76.09 LPW

ES Category:

Downlight Recessed

ES Unique ID:

ESID-2353226

FCC Compliant:

Yes

Feature 1:

Lawful for sale in California

Feature 2:

Selectable wattage, lumens, and CCT

Feature 3:

Remote driver and J-box with knockouts

Feature 4:

Quick connect feature for easy installation

Feature 5:

ENERGY STAR listed

Feature 6:

Five year limited warranty

Feature 7:

Five year limited warranty

Finish Family:

White

Fixture shape:

Round

Flr Equiv:

1 x 26W CFL

Has Driver:

Yes

IC Rated:

Yes

Incandescent Equivalent:

65W/85W/100W

Indoor Outdoor:

Indoor

Installation Notes:

Can be installed with or without the rough-in plate (80-959)

JA8 Compliant:

Lens Finish:

Clear

Lens Material:

Polycarbonate (PC)

Long Description:

Satco's S11811 wattage selectable, 6 inch LED commercial downlight is the perfect solution for offices, stores, hospitals, and hotels. Dimmable and CCT selectable, this direct wired downlight installs easily even in the most challenging renovations and

Material:

Aluminum

Mounting Procedure:

Ceiling

Operating Frequency:

60Hz

Operating Temprature:

-20C (-4F) to +40C (+104F)

Pack Type:

Box

Power Factor:

>0.9

Quantity In Pack:

Replaceable Light Source:

RoHS Compliant:

Yes

Romance Copy:

This a commercial LED downlight with Color Quick technology: Select among a range of watts, lumens, and color temperatures. An outboard LED driver/junction box allows for easy placement, even in the most challenging renovations. The downlight mounts secure

Safety Listing:

cETLus - Listed

SDS class:

LED_Lamp

Short Description:

23WLED/CDL/6/ADJ-CCT/80D

Temperature (CCT):

2700K/3000K/3500K/4000K/5000K

Title 20 Compliant:

Title 24 Compliant:

Trim Color:

White

Wattage Selectable:

Yes

Weight Lb.:

1.44
