24 Watt T8 LED; Single Pin Base; CCT Selectable; Type B; Ballast Bypass; PET Shatterproof Coated; : X3QRL

Return to Catalog

Part Number: X3QRL / Vendor ID #: 27

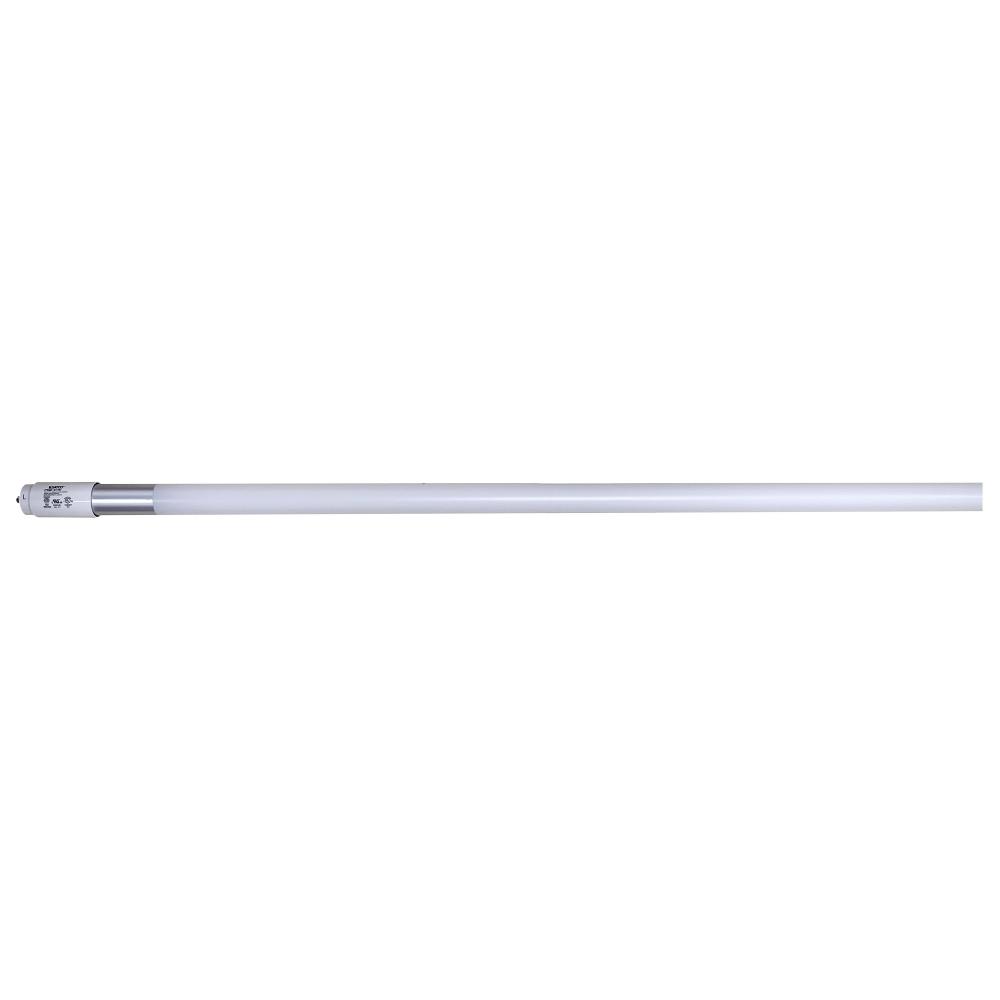

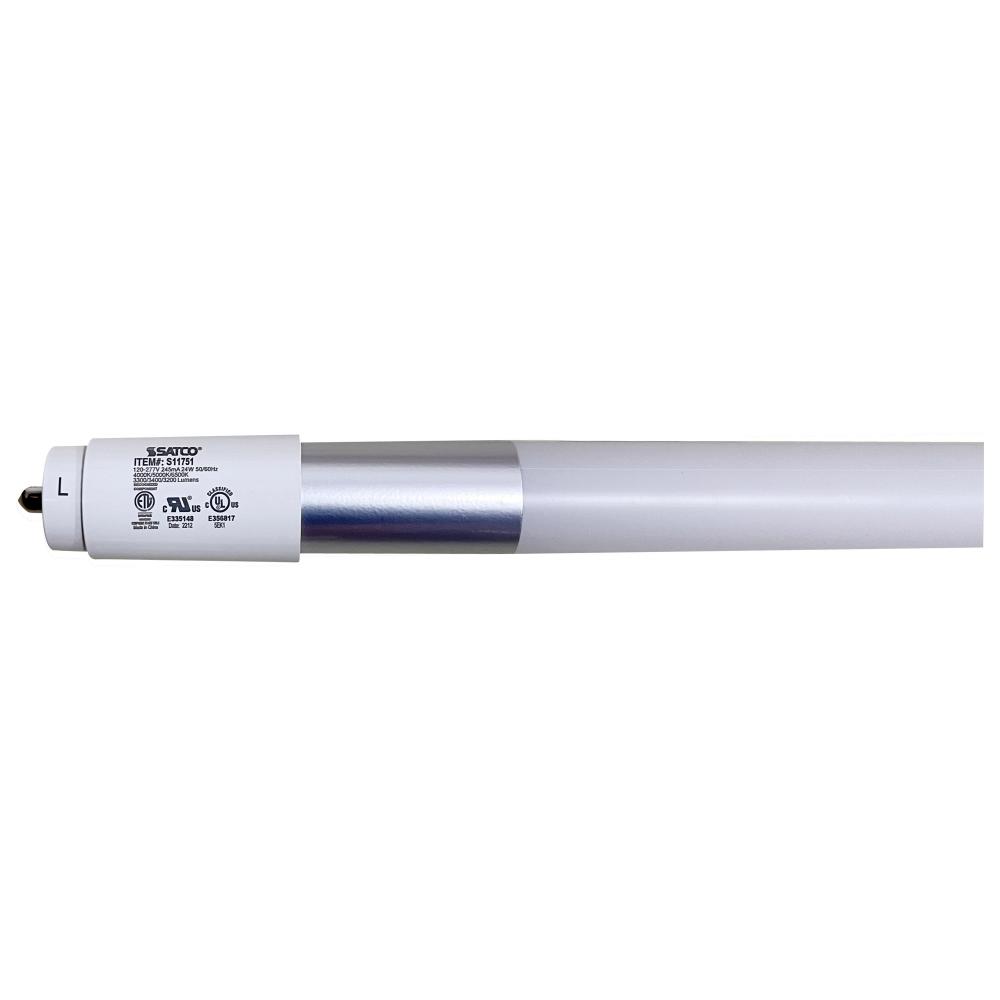

24 Watt T8 LED; Single Pin Base; CCT Selectable; Type B; Ballast Bypass; PET Shatterproof Coated;

$32.38

Item Sales Info

Add To Wishlist

Compare Item

Availability

Manufacturer has 819 items available.

Dimensions

Width: 1.00"

Product Overview

24 Watt T8 LED; Single Pin Base; CCT Selectable; Type B; Ballast Bypass; PET Shatterproof Coated; White Finish; 72 Inches; 120-277 Volt

Standard Information

Category:

Lamps

Subcategory:

LED Lamps

Lumens:

3300+

Kelvin:

4001-4500

Refinement Options

Category:

LED

Sub-Category:

LED T8

Volts:

120V-277V

Bulb Hours:

50000

Bulb Kelvin:

4000K/5000K/6500K

Bulb Shape:

Diameter:

EA Length:

Harmonized Codes:

8539.52.0051

Length:

Lumens:

3300L/3400L/3200L

Shap Carton Width:

Ship Carton Height:

Ship Weight:

1.33

Warranty:

5 Year Limited - T8 LED Bulbs - Ballast Bypass

Weight:

1.1

BAA Compliant:

Ballast Bypass Direct:

Ballast Bypass

Ballasting Requirements:

Ballast Bypass

Beam Spread:

180

Bulb ANSI Base:

Fa8

Bulb Base:

Single Pin

Bulb Finish:

White

Burning Position:

Universal

Carton Cubic Feet:

0.0417

Cartons Per Unit:

CCT Selectable:

Yes

CEC:

Exempt - Base Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Color Temprature:

Cool White to Daylight

Country Of Origin:

China

CRI:

DLC Approved:

Efficacy:

137.50/141.67/133.33 LPW

Enclosed Fixture Use:

Yes

FCC Compliant:

Yes

Feature 1:

Direct replacement for fluorescent T8 or T12 lamps

Feature 2:

Ballast bypass - UL Type B installation

Feature 3:

NSF certified - P.E.T. coated, shatter resistant glass tube

Feature 4:

Compatible with S8002 Emergency Driver

Feature 5:

5-Year warranty

Feature 6:

CCT Selectable

Feature 7:

Rated for 50,000 hours

Flourescent Equivalent:

38W

Housing Color:

White

Incandescent Equivalent:

100W

Indoor Outdoor:

Indoor

Installation Notes:

Not for use in vapor tight fixtures.

IOT Enabled:

IP Rating:

IP20

JA8 Compliant:

Lamp Ballast Type A/B/C:

Type B

Lamp End Type:

Double Ended

Lamp Filament:

LED

Lens Finish:

Frost

Lens Material:

Glass

Location Rating:

Damp

Material:

Glass / Plastic

Nominal Length:

NSF Approved:

Yes

Operating Frequency:

50/60Hz

Operating Temp:

-20C (-4F) to +45C (+113F)

Order In Multiples Of:

Pack Type:

Box

Power Factor:

0.9

Quantity In Pack:

RoHS Compliant:

Yes

Romance Copy:

SATCO|NUVO's LED T8 lamps with Fa8 or R17d bases are some of our most versatile lamps. Featuring ColorQuick selectable color technology, these lamps allow for easy selection of 4000K/5000K/6500K color temperatures at installation. The P.E.T. coated lam

SDS class:

LED_Lamp

Shatter Proof Text:

PET Coated

Short Description:

24T8/LED/72-CCT/BP/FA8

Style:

Utility

Surge Protection:

Built-in surge protection - 1KV

Technology:

LED

Title 20 Compliant:

Title 24 Compliant:

Total Harmonic Distortion:

<25%

Wattage Selectable:

Watts:

24W
