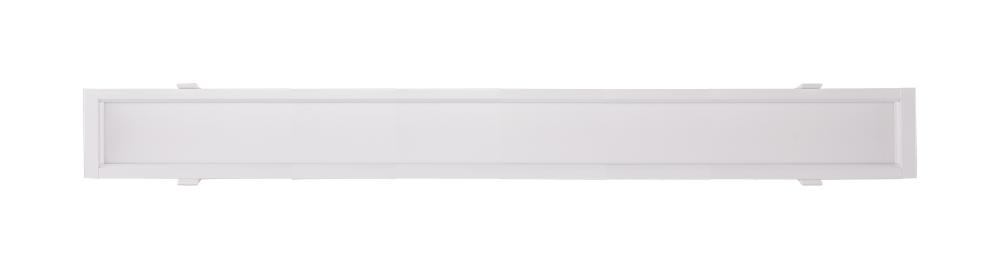

25 Watt LED Direct Wire Linear Downlight; 32 in.; Adjustable CCT; 120 Volt (X3JV8)

Image may not reflect selected features

No Image
Available

25 Watt LED Direct Wire Linear Downlight; 32 in.; Adjustable CCT; 120 Volt

BASE PRICE:

126

/ / 1

($126.70 / 1)

WAS

Call for Price

Item #:

X3JV8

Dimensions:

Height: 3.15"

Width: 3.74"

Finish:

White

Availability:

Manufacturer has 136 items available.
This Item has been Discontinued. Please verify product pricing and availability with vendor prior to submitting any orders.

Recommended Items

Description

Details

Downloads

25 Watt LED Direct Wire Linear Downlight; 32 in.; Adjustable CCT; 120 Volt

Category:

Recessed Ltg.

Subcategory:

Other Recessed Ltg.

Finish:

White

Option:

LED , Prop 65

Category:

Recessed

Sub Category:

Direct Wire

Style:

Utility

Bulb Hours:

40000

Bulb Kelvin:

Warm to Cool White

Bulb Shape:

Integrated LED

Bulb Type:

LED

Dimmable:

Yes-Dimmable

Harmonized Codes:

9405.11.8010

Length:

Lumens:

1875L

Ship Carton Height:

3.15

Ship Carton Length:

Ship Carton Width:

3.74

Warranty:

5 Year Limited - Fixtures

Air Tight:

Yes

Amps:

0.208A

ANSI Base:

Integrated

BAA Compliant:

Beam Spread:

110

CA Prop-65:

Lead

Carton Cubic Feet:

0.2182

Cartons Per Unit:

CCT Selectable:

Yes

CEC:

California T24 2016 - 2022 JA8 Listed

CEC Terse:

Lawful for sale in California

CEC Web Text:

California T24 Listed

Ceiling Aperture:

30.91 L x 3.15 W in. Cutout

Clearance Height:

4.72

Connection:

Direct Wired

Country of Origin:

China

CRI:

Dimmable Down To:

100 to 10 percent

Dimming Type:

Forward Phase or Reverse Phase or Phase Selectable

Efficacy:

75.00 LPW

FCC Compliant:

Yes

Feature 1:

5 sizes with 3 CCT selections

Feature 2:

Title 24 compliant

Feature 3:

Damp location rated

Feature 4:

Air tight

Feature 5:

40,000 average rated hours

Feature 6:

40,000 average rated hours

Finish Family:

White

Fixture shape:

Linear

IC Rated:

Yes

Incandescent Equivalent:

150W

Indoor Outdoor:

Indoor

JA8 Compliant:

Yes

Lens Material:

Polycarbonate (PC)

Long Description:

Satco's S11723 25 watt, 32 inch LED recessed downlight is a sleek solution for advanced architectural installations. This air tight fixture offers a low-profile aesthetic with even light distribution and CCT selectability for design versatility. This e

Material:

Aluminum / Plastic

Max Drywall Thickness:

1-1/8 in.

Minimum Compartment Size:

Length: 31.5 in. Width: 7.87 in. Height: 4.72 in.

Mounting Procedure:

Ceiling/Wall

Operating Frequency:

60Hz

Operating Temprature:

-20C (-4F) to +45C (+113F)

Pack Type:

Box

Power Factor:

>0.9

Quantity In Pack:

Replaceable Light Source:

RoHS Compliant:

Yes

Romance Copy:

Satco's LED Linear Recessed/Direct Wire feature a beveled trim for a sleek, recessed appearance and offer a low-profile aesthetic with even light distribution and design versatility. The convenient direct wire junction box and spring-clip mounting make

Safety Listing:

cETLus - Listed

SDS class:

LED_Lamp

Short Description:

25WLED/DW/LINEAR/32"/ADJ-CCT

Sloped Ceiling Compatible:

Yes

Temperature (CCT):

3000K/4000K/5000K

Title 20 Compliant:

Title 24 Compliant:

Yes

Trim Color:

White

Wattage Selectable:

Weight Lb.:

2.07
