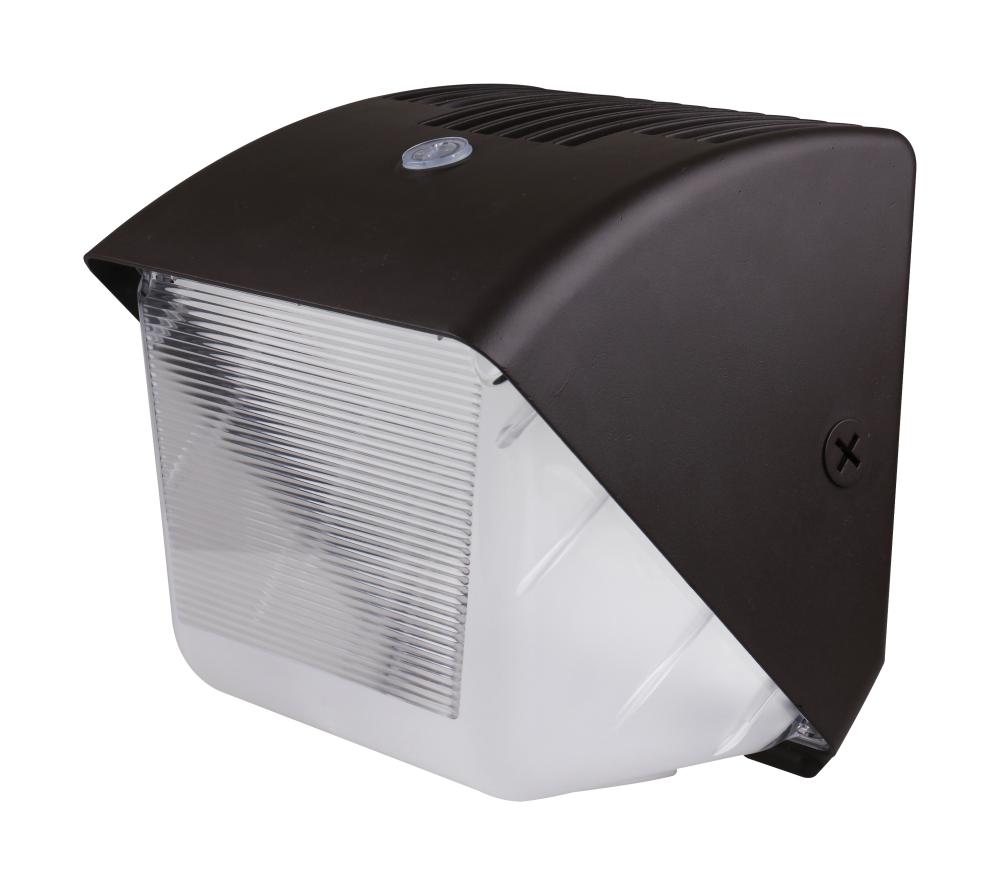

29 Watt Small LED Wall Pack with Integrated Bypassable Photocell; CCT Selectable; 120-277 Volts; (A36GF)

Image may not reflect selected features

No Image
Available

29 Watt Small LED Wall Pack with Integrated Bypassable Photocell; CCT Selectable; 120-277 Volts;

BASE PRICE:

155

/ / 1

($155.00 / 1)

WAS

Call for Price

Item #:

A36GF

Dimensions:

Height: 8.44"

Width: 8.50"

Finish:

Bronze

Availability:

Manufacturer has 123 items available.

Recommended Items

Description

Details

Downloads

29 Watt Small LED Wall Pack with Integrated Bypassable Photocell; CCT Selectable; 120-277 Volts; Dusk to Dawn Security Lighting; IP65; Bronze Finish

Category:

Exterior , Sconces

Subcategory:

Wall Lights , Outdoor Wall Lights

Finish:

Bronze

Style:

Traditional

Option:

LED , Prop 65

Lumens:

3300+

Kelvin:

4001-4500

Category:

Wall Pack

Sub Category:

Mini

Style:

Traditional

Additional Info:

IK10 Lens

Avg Rated Hours:

50000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Warm to Cool White

Dimmable:

Yes-Dimmable

Each Height:

9.65

Each Length:

9.88

Each Width:

10.19

Lumens:

3650L-3770L

Tariff Code:

9405.42.6000

Warranty:

5 Year Limited - Fixtures

Amps:

0.242-0.105A

ANSI Base:

Integrated

BAA Compliant:

Beam Angle:

B_U_G_Rating:

B1-U3-G2

CA Prop-65:

Lead

CCT Selectable:

Yes

CEC:

T20 Exempt - Fixtures Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Connection:

Hardwire

Country Of Origin:

Vietnam

CRI:

70+

Dimmable Down To:

100 to 20 percent

Dimmable Function:

0-10V Dimming Only

DLC Classification:

Premium

DLC Primary Use:

Outdoor Non-Cutoff and Semi-Cutoff Wall-Mounted Area Luminaires

Each Cube:

0.5622

Each Quantity:

Efficacy:

125.86/127.93/130.00 LPW

FCC Compliant:

Yes

Feature 1:

DLC Premium

Feature 2:

Integrated Bypassable Photocell

Feature 3:

CCT Selectable

Feature 4:

UV stabilized powder coated finish

Feature 5:

IP65 Rated

Feature 6:

80 Degree Viewing Angle

Finish Family:

Bronze

Flicker Free:

Yes

HID Equiv:

125W

Impact Rating (IK):

IK10

Incandescent Equivalent:

200W

Indoor Outdoor:

Outdoor

IOT Enabled:

IP Rating:

IP65

JA8 Compliant:

Long Description:

SATCO|NUVO's 65-655 CCT selectable small wall pack comes in a compact size, perfect for light commercial use. This fixture is built tough with UV-coated die-cast aluminum bodies and impact resistant IK10 lens for all-weather endurance. Designed to dire

Material:

Aluminum / Polycarbonate (PC)

Mounting Procedure:

Wall

Operating Frequency:

50/60Hz

Operating Temp:

-40C (-40F) to +45C (+113F)

Pack Type:

Box

Photocell:

Yes - Bypassable

Power Factor:

>0.9

Quantity In Pack:

R9 Value:

Replaceable Light Source:

RoHS Compliant:

Yes

Romance Copy:

SATCO|NUVO's CCT selectable small wall pack comes in a compact size, perfect for light commercial use. This fixture is built tough with UV-coated die-cast aluminum bodies and impact resistant IK10 lens for all-weather endurance. Designed to direct ligh

Safety Listing:

cULus

SDS class:

LED_Fixture

Short Description:

29W LED SMALL WALL PACK

Temperature (CCT):

3000K/4000K/5000K

Title 20 Compliant:

Title 24 Compliant:

Total Harmonic Distortion:

15%

Wattage Selectable:

Weight Lb.:

5.08
