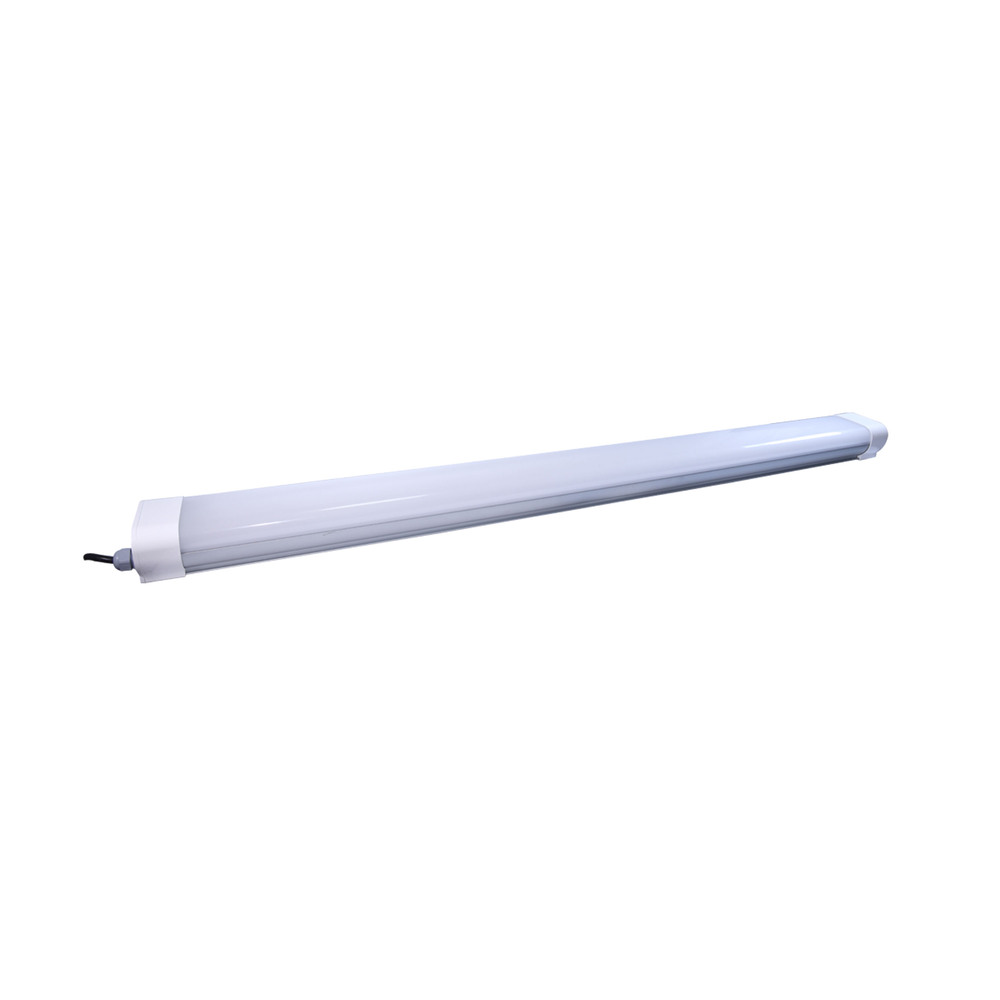

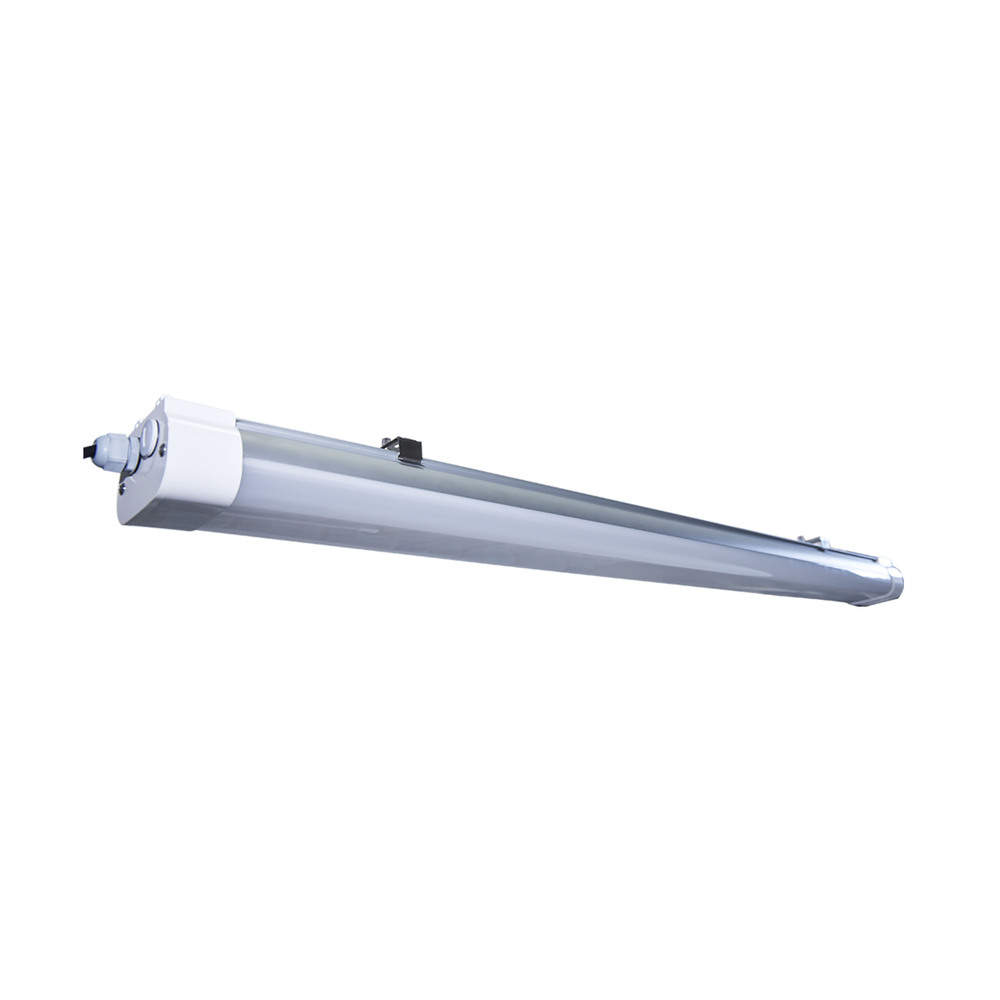

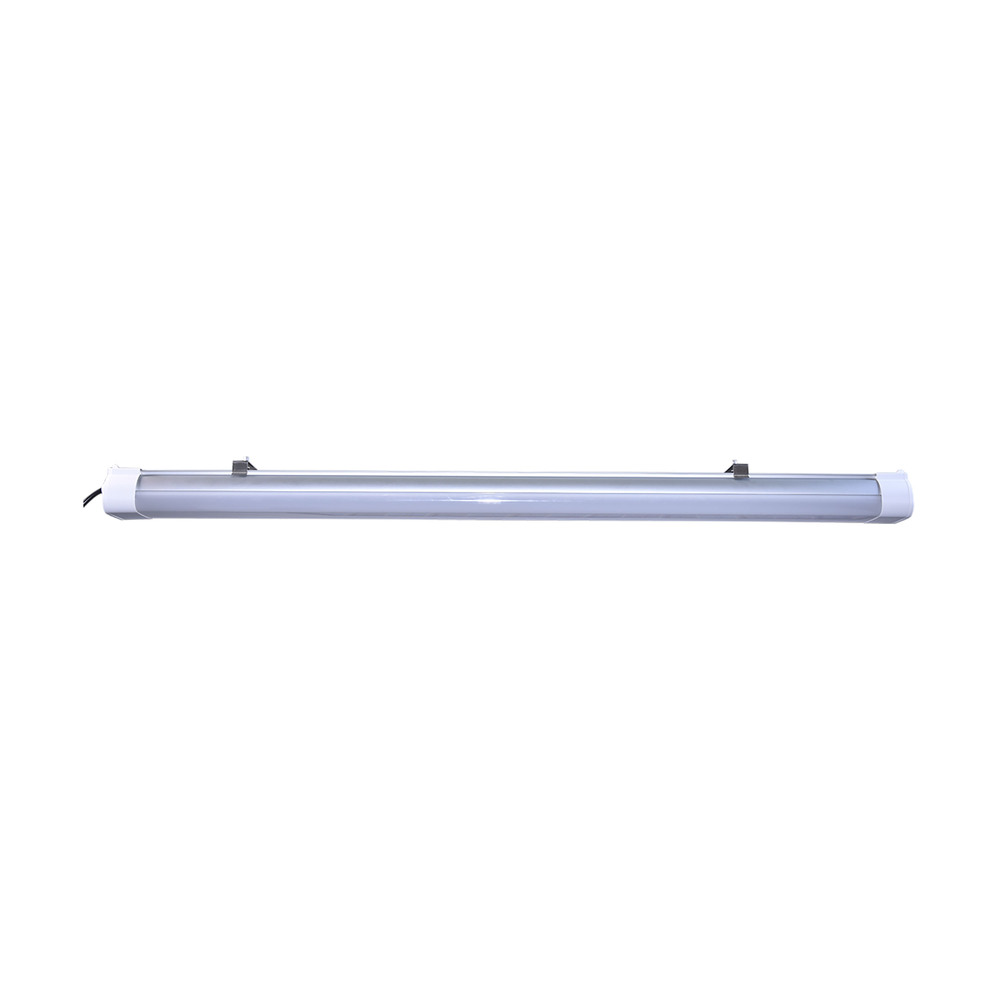

4 Foot; LED Tri-Proof Linear Fixture with Integrated Microwave Sensor; CCT & Wattage Selectable; (A37G0)

Image may not reflect selected features

No Image
Available

4 Foot; LED Tri-Proof Linear Fixture with Integrated Microwave Sensor; CCT & Wattage Selectable;

BASE PRICE:

210

/ / 1

($210.00 / 1)

WAS

Call for Price

Item #:

A37G0

Dimensions:

Height: 3.11"

Width: 3.98"

Finish:

White and Gray

Availability:

Manufacturer may be Out Of Stock.

Recommended Items

Description

Details

Downloads

4 Foot; LED Tri-Proof Linear Fixture with Integrated Microwave Sensor; CCT & Wattage Selectable; IP65 and IK08 Rated

Category:

Track Ltg.

Subcategory:

Track Heads

Finish:

Gray , White

Style:

Traditional

Option:

LED , Prop 65

Lumens:

3300+

Kelvin:

4001-4500

Category:

Linear

Sub Category:

Vapor Proof

Style:

Utility

Avg Rated Hours:

50000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Warm to Cool White

Dimmable:

Yes-Dimmable

Each Height:

4.33

Each Length:

49.61

Each Width:

6.89

Length:

47.24

Lumens:

5040L-7669L

Tariff Code:

9405.42.6000

Warranty:

5 Year Limited - Fixtures

Amps:

0.400-0.144/0.500-0.181/0.600-0.217A

ANSI Base:

Integrated

BAA Compliant:

Beam Angle:

115

CA Prop-65:

Lead

CCT Selectable:

Yes

CEC:

T20 Exempt - Fixtures Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Connection:

Hardwire

Country Of Origin:

China

CRI:

Dimmable Function:

0-10V; Integrated Sensor

DLC Classification:

Standard

DLC Primary Use:

Direct Linear Ambient Luminaires

Each Cube:

0.8565

Each Quantity:

Efficacy:

126.00/127.09/127.82 LPW

FCC Compliant:

Yes

Feature 1:

Maintenance free; no bulb to change

Feature 10:

Suspension kit (sold separately)

Feature 2:

Heat and tamper resistant, water-proof and dust-proof. Can be used for food factories

Feature 3:

IP65 and IK08 Rated

Feature 4:

CCT and Wattage Selectable

Feature 5:

2KV built-in Surge Protection

Feature 6:

Non-corrosive (PC) polycarbonate housing

Feature 7:

Integrated Microwave Sensor

Feature 8:

FCC and RoHS compliant

Feature 9:

5 Year Warranty

Finish Family:

White

Fixture shape:

Linear

Flicker Free:

Flr Equiv:

80W-100W

Has Driver:

Yes

HID Equiv:

125W-150W

Impact Rating (IK):

IK08

Incandescent Equivalent:

300W-400W

Indoor Outdoor:

Indoor;Outdoor

IOT Enabled:

IP Rating:

IP65

JA8 Compliant:

Lens Material:

Polycarbonate (PC)

Long Description:

SATCO|NUVO's 65-833 wattage selectable, 4 foot Tri-Proof fixture is a practical solution for interior and exterior lighting. Packed with improvements and features, this linear fixture is CCT and wattage selectable and wet location rated, with 2KV surge

Material:

Plastic

Mounting Procedure:

Surface: Bracket;Suspension: CablesChain

NSF Approved:

Yes

Operating Frequency:

50/60Hz

Operating Temp:

-40C (-40F) to +45C (+113F)

Pack Type:

Box

Photocell:

Integrated Microwave Sensor

Power Factor:

>0.96

Quantity In Pack:

Rated For Vapor Tight Fixture:

Yes

Replaceable Light Source:

RoHS Compliant:

Yes

Romance Copy:

SATCO|NUVO's latest LED Vapor Proof and Tri Proof CCT selectable fixtures are packed with improvements and features. All products in the line include three selectable CCT options, while the 4-foot and 8-foot versions are also wattage selectable. These

Safety Listing:

cETLus - Listed

SDS class:

LED_Fixture

Short Description:

4' LED TRI-PROOF W/SENSOR

Sloped Ceiling Compatible:

Yes

Temperature (CCT):

3000K/4000K/5000K

Title 20 Compliant:

Title 24 Compliant:

Total Harmonic Distortion:

9.40%

Wattage Selectable:

Yes

Weight Lb.:

4.63
