4 Watt T5 LED; Miniature bi-pin base; 3000K; 50000 Average rated hours; 400 Lumens; 120-277 Volt; : LNFUV

Return to Catalog

Part Number: LNFUV / Vendor ID #: 27

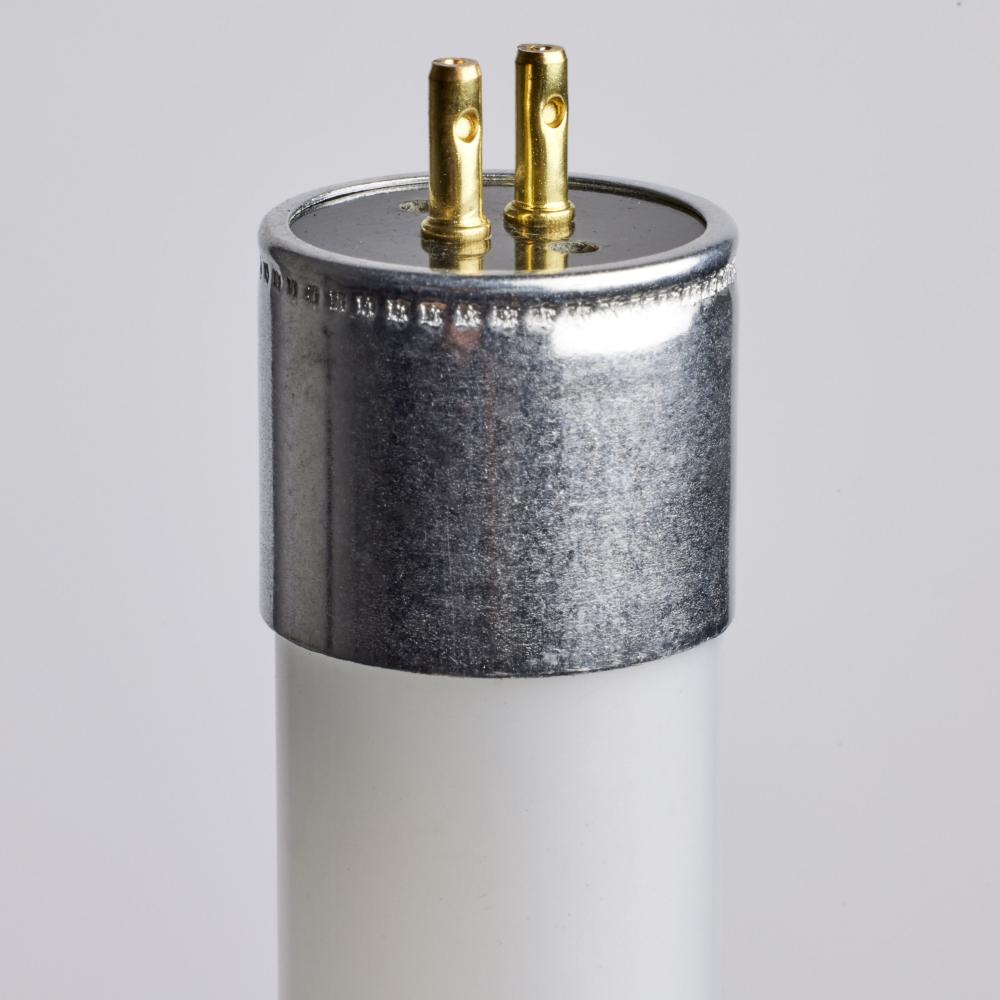

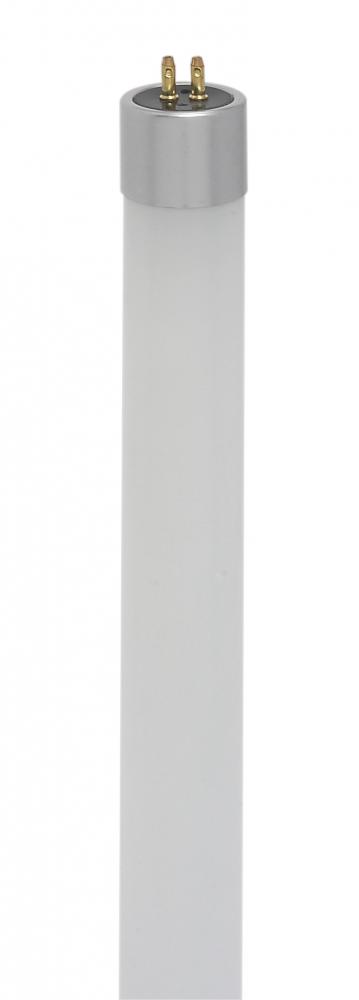

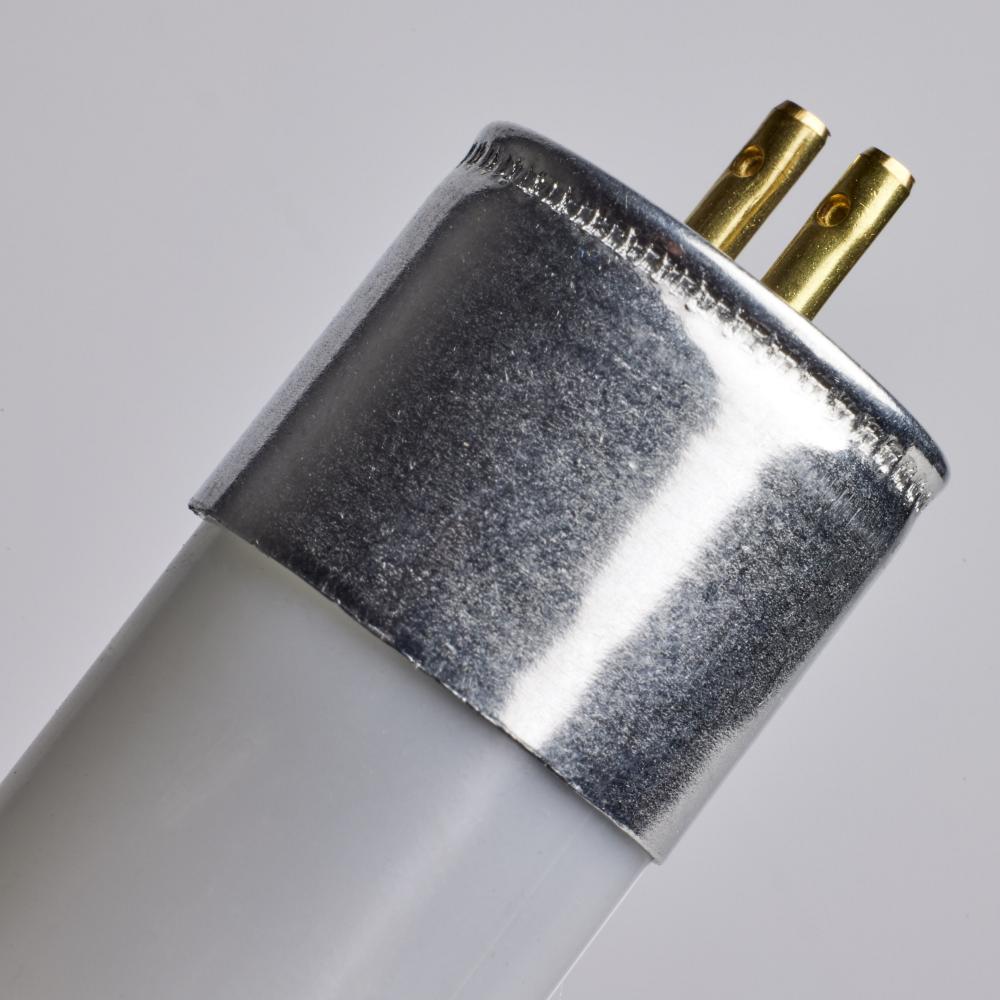

4 Watt T5 LED; Miniature bi-pin base; 3000K; 50000 Average rated hours; 400 Lumens; 120-277 Volt;

$11.68

Item Sales Info

Add To Wishlist

Compare Item

Availability

Manufacturer has 355 items available.

Dimensions

Width: 0.83"

Product Overview

4 Watt T5 LED; Miniature bi-pin base; 3000K; 50000 Average rated hours; 400 Lumens; 120-277 Volt; Type B; Ballast Bypass; Double Ended Wiring

Standard Information

Category:

Light Bulbs

Subcategory:

LED Bulbs

Finish:

White

Style:

Traditional

Lumens:

450-800

Kelvin:

2501-3000

Refinement Options

Category:

LED

Sub-Category:

LED T5

Volts:

120V-277V

Bulb Dimmable:

Non-Dimmable

Bulb Hours:

50000

Bulb Kelvin:

3000K

Bulb Shape:

Diameter:

0.83

EA Length:

Harmonized Codes:

8539.52.0051

Length:

11.91

Lumens:

400L

Shap Carton Width:

0.9

Ship Carton Height:

0.9

Ship Weight:

0.08

Warranty:

5 Year Limited - T5 LED Bulbs - Ballast Bypass

Weight:

0.08

Additional Info:

Replaces F8T5/WW lamps

BAA Compliant:

Ballast Bypass Direct:

Ballast Bypass

Ballasting Requirements:

No ballast or external driver required

Beam Spread:

240

Bulb ANSI Base:

Bulb Base:

Miniature Bi Pin

Bulb Finish:

Frost

Burning Position:

Universal

Carton Cubic Feet:

0.0056

Cartons Per Unit:

CCT Selectable:

CEC:

Exempt - Base Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Color Temprature:

Warm White

Country Of Origin:

China

CRI:

DLC Approved:

DLC ID:

Efficacy:

100.00 LPW

Enclosed Fixture Use:

Yes

Enclosure Rating:

Enclosed Rated Lamp

FCC Compliant:

Yes

Feature 1:

MOL: 11.91 inches, MOD: 0.83 inches

Feature 2:

Superior 82 CRI light quality, 400 lumens, 3000K warm white light, with a 240 degree beam spread

Feature 3:

Rated for enclosed fixtures

Feature 4:

Damp location rated

Feature 5:

8 watt fluorescent equivalent

Feature 6:

Frost finished linear bulb

Feature 7:

LED energy efficient fixture

Feature 8:

5 Year Limited Warranty

Flourescent Equivalent:

Incandescent Equivalent:

25W

Installation Notes:

Not for use in vapor tight fixtures. Direct wire 120-277V line voltage; Double ended wiring

Lamp Ballast Type A/B/C:

Type B

Lamp End Type:

Double Ended

Lamp Filament:

LED

Lens:

Yes

Lens Finish:

Frost

Location Rating:

Damp

Long Description:

Satco's S11904 4 watt T5 LED Type B miniature bi-pin replaces traditional linear lamps with a no ballast, no external driver option for lasting retrofit conversion. With double ended wiring for convenience, the frosted bulb has a temperature of 3000 ke

Material:

Glass

Nominal Length:

NSF Approved:

Yes

Operating Frequency:

50/60Hz

Operating Temp:

-25C (-13F) to +45C (+113F)

Pack Type:

Box

Power Factor:

0.9

Quantity In Pack:

RoHS Compliant:

Yes

Romance Copy:

Satco's 4 watt T5 LED Type B miniature bi-pin replaces traditional linear lamps with a no ballast, no external driver option for lasting retrofit conversion. With double ended wiring for convenience, the frosted bulb has a temperature of 3000 kelvins a

SDS class:

LED_Lamp

Shatter Proof Text:

PET Coated

Short Description:

4W/LED/T5/830/BP

Style:

Utility

Surge Protection:

Built-in-surge protection - 0.5KV

Technology:

LED

Title 20 Compliant:

Total Harmonic Distortion:

20%

Wattage Selectable:

Watts:
