6" recessed panel, 5CCT, 2hrs Fire rated : 6Y1NN

Return to Catalog

Part Number: 6Y1NN / Vendor ID #: 776

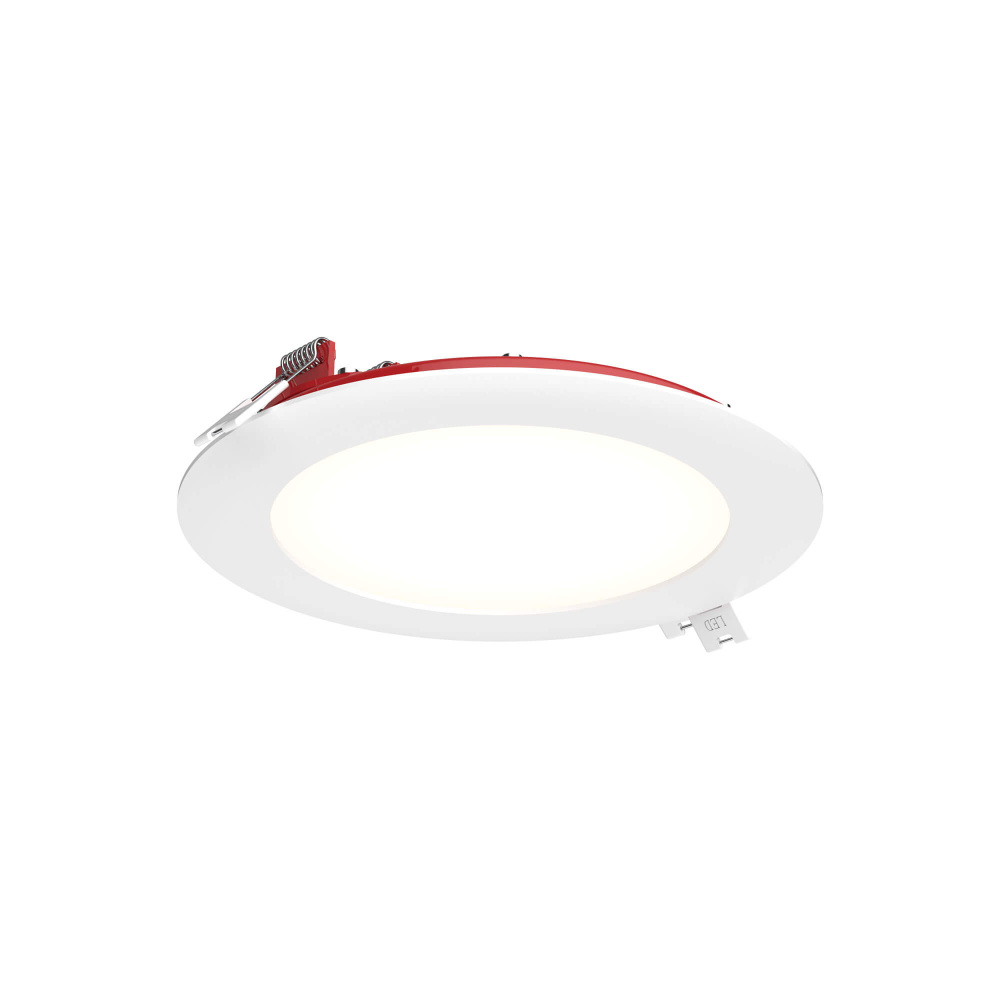

6" recessed panel, 5CCT, 2hrs Fire rated

$73.75

Item Sales Info

Add To Wishlist

Compare Item

Availability

Manufacturer availability unknown.

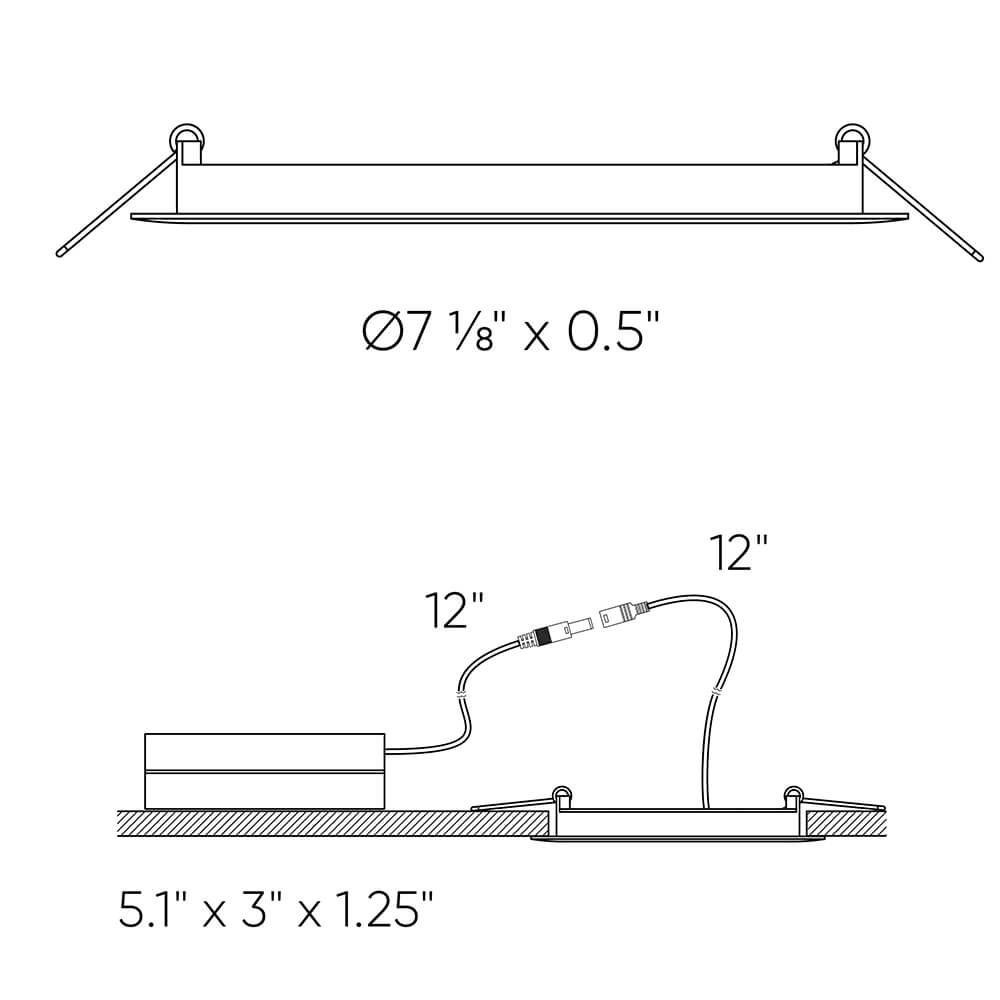

Dimensions

Height: 1.13"

Width: 7.13"

Length: 7.13"

Info & Guides

Product Overview

Our new LED Panel lights are more accessible than ever before. The sleek and minimal construction allows for the easiest of installations.

Standard Information

Category:

Recessed Ltg.

Subcategory:

Other Recessed Ltg.

Finish:

White

Option:

Title 24

Outdoor

Wet Rated

Prop 65

Refinement Options

Category:

Recessed

Subcategory:

Slim Panel

Finish:

White

Family:

Excel

Voltage:

120 V

Number of Bulbs:

1 Bulbs

Bulb Dimmable:

Yes

Bulb Hours:

50000

Kelvin:

2700/3000/3500/4000/5000

Material:

Aluminum

Ship Carton Height:

2.5

Ship Carton Length:

8.5

Ship Carton Width:

7.25

Ship Weight:

1.2

Warranty:

5 Years Limited

Weight:

1.1

Air-Tight (ASTM E283--4):

Yes

Beam Angle:

110°

Bulb CRI:

Country of Origin:

China

Delivered Lumens:

1230

Dimmer Type:

Triac/ELV

Energy Star:

IC Certification:

Yes

Indoor:

Yes

IP Rating:

IP44

JA8:

Yes

Lens Material:

Plastic

Location Rating:

Wet Rated

Max Wattage:

14 W

Maximum Working Temperature:

40°C

Minimum Working Temperature:

-20°C

Outdoor:

Yes

Prop 65:

View

Safety Rating:

ETL Approved

Shipping Master Height:

15.25

Shipping Master Length:

17.5

Shipping Master Quantity:

Shipping Master Weight:

Shipping Master Width:

Title 24:

Yes

Wiring:

Hardwired

2-hour fire-rated without additional housing or hardware (in accordance with UL 263, ASTM E119, and CAN ULC S101)

Every fixture includes a junction box with an integrated driver

IC certification (suitable for direct contact with insulation)

Over 35,000 hours of service life

Switch-selectable CCT: 2700 K/3000 K/3500 K/4000 K/5000 K
