7 Watt; 4 inch; Deep Baffle; CCT-Selectable Recessed LED Downlight : X3JW9

Return to Catalog

Part Number: X3JW9 / Vendor ID #: 27

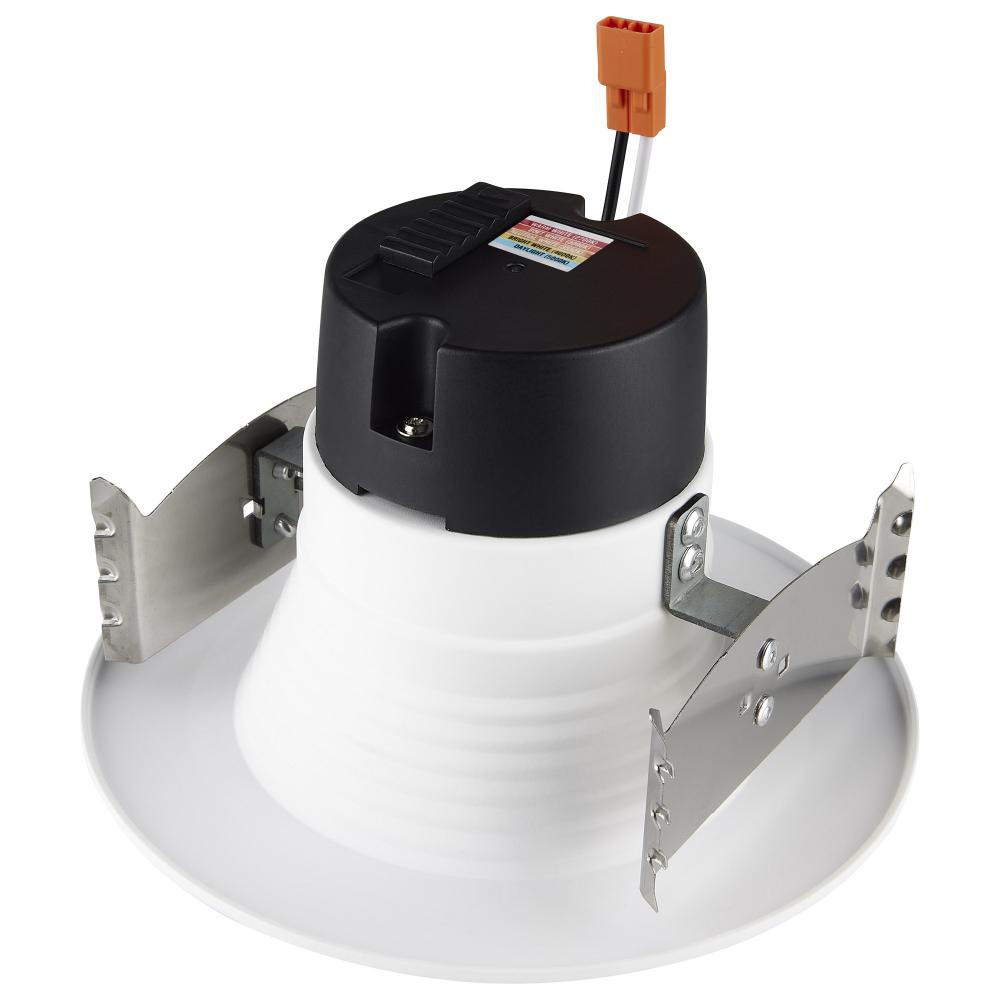

7 Watt; 4 inch; Deep Baffle; CCT-Selectable Recessed LED Downlight

$29.88

Item Sales Info

Add To Wishlist

Compare Item

Availability

Manufacturer has 1433 items available.This Item has been Discontinued. Please verify product pricing and availability with vendor prior to submitting any orders.

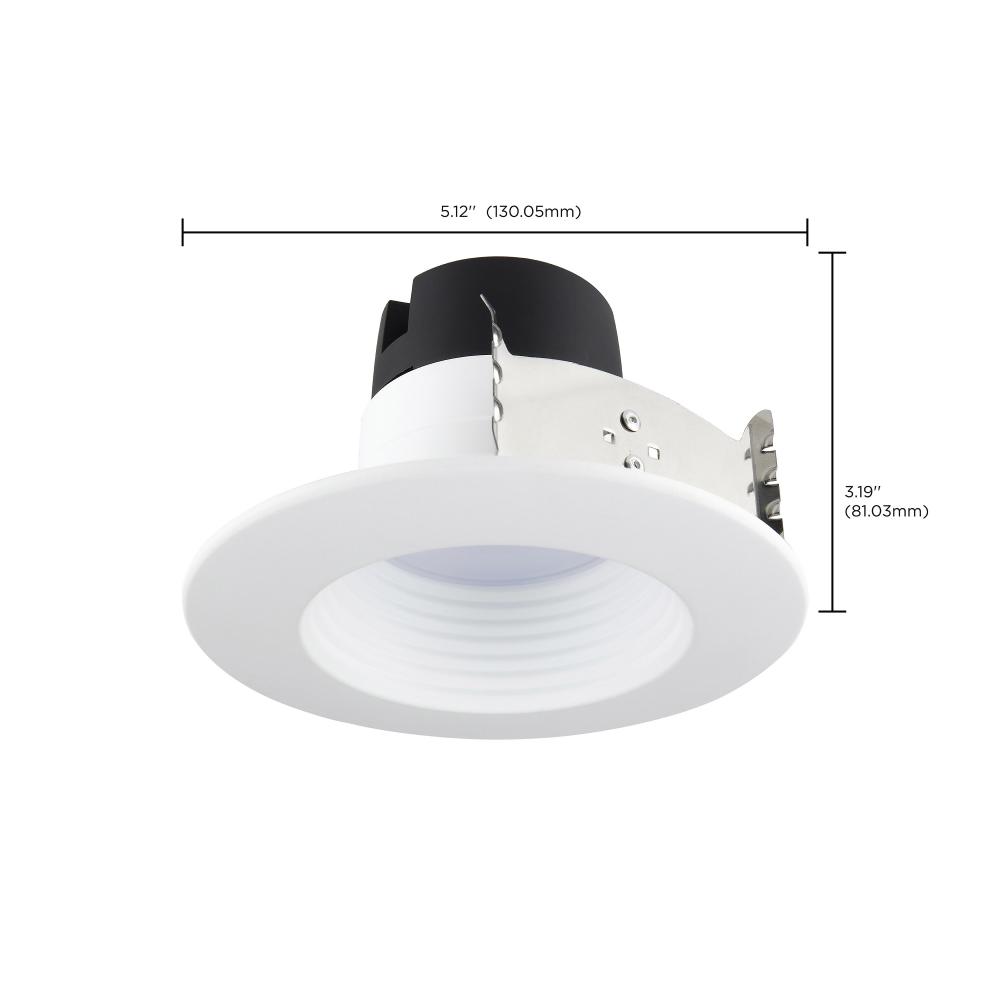

Dimensions

Height: 3.19"

Width: 5.12"

Product Overview

7 Watt; 4 inch; Deep Baffle; CCT-Selectable Recessed LED Downlight

Standard Information

Category:

Recessed Ltg.

Subcategory:

Other Recessed Ltg.

Finish:

White

Option:

Energy Star

LED

Prop 65

Lumens:

450-800

Kelvin:

4001-4500

Refinement Options

Category:

Recessed

Sub Category:

Retrofits

Style:

Utility

Bulb Hours:

50000

Bulb Kelvin:

Warm to Cool White

Bulb Shape:

Integrated LED

Bulb Type:

LED

Diameter:

5.12

Dimmable:

Yes-Dimmable

Harmonized Codes:

8539.52.0091

Lumens:

600L

Ship Carton Height:

5.5

Ship Carton Length:

3.31

Ship Carton Width:

5.31

Warranty:

5 Year Limited - Fixtures

Air Tight:

Amps:

0.058A

ANSI Base:

Integrated

Beam Spread:

CA Prop-65:

Lead

Can Size:

4 in.

Carton Cubic Feet:

0.0559

Cartons Per Unit:

CCT Selectable:

Yes

CEC:

California T24 2016 - 2022 JA8 Listed; T20 Listed

CEC Terse:

Lawful for sale in California

CEC Web Text:

California T24 Listed

Connection:

Direct Wired

Country Of Origin:

China

CRI:

Dimmable Down To:

100 to 10 percent

Efficacy:

85.71 LPW

ES Category:

Downlight Solid State Retrofit

ES Unique ID:

ESID-2396746

FCC Compliant:

Yes

Feature 1:

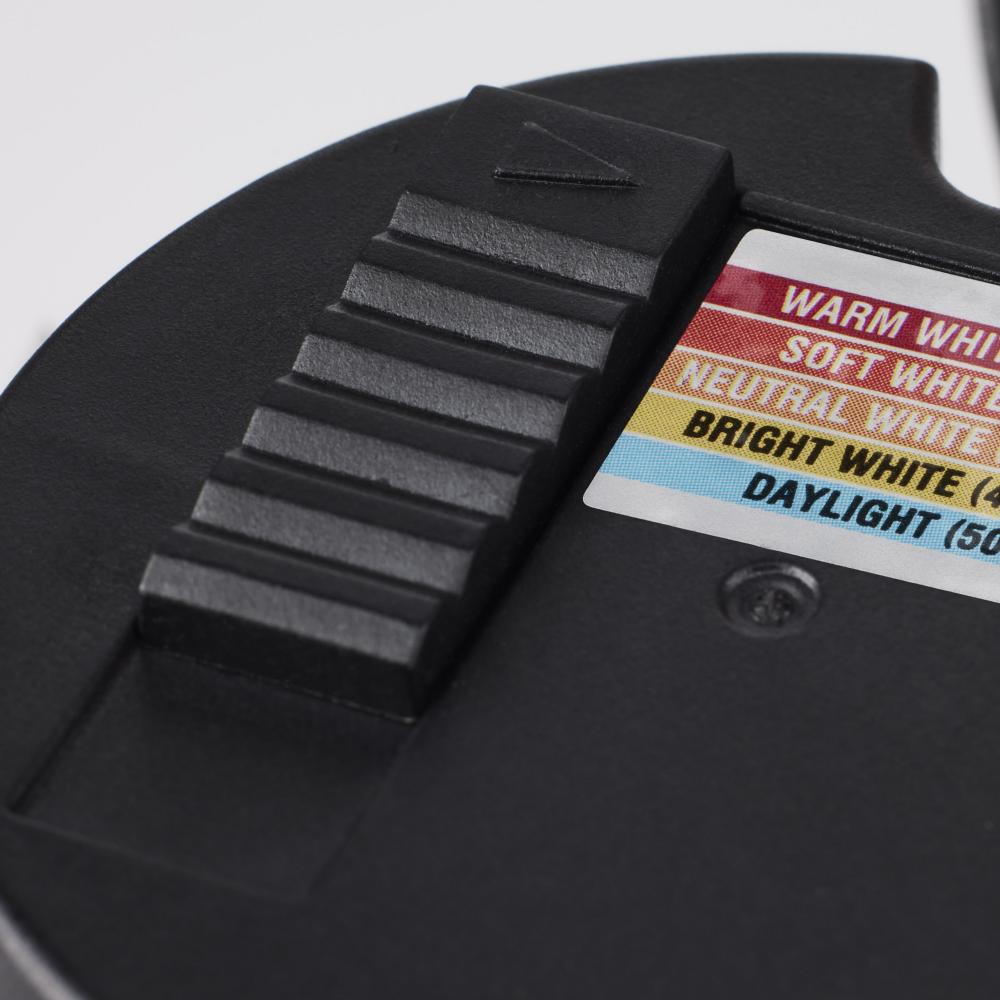

ColorQuick Technology; CCT Selectable

Feature 2:

Reduced glare with subtle, pleasing light distribution

Feature 3:

Dimmable

Feature 4:

90 CRI and Wet location rated

Feature 5:

T20, T24 compliant

Feature 6:

Energy Star certified

Feature 7:

Rated life of 50,000 hours

Finish Family:

White

Fixture shape:

Round

IC Rated:

Yes

Incandescent Equivalent:

45W

Includes:

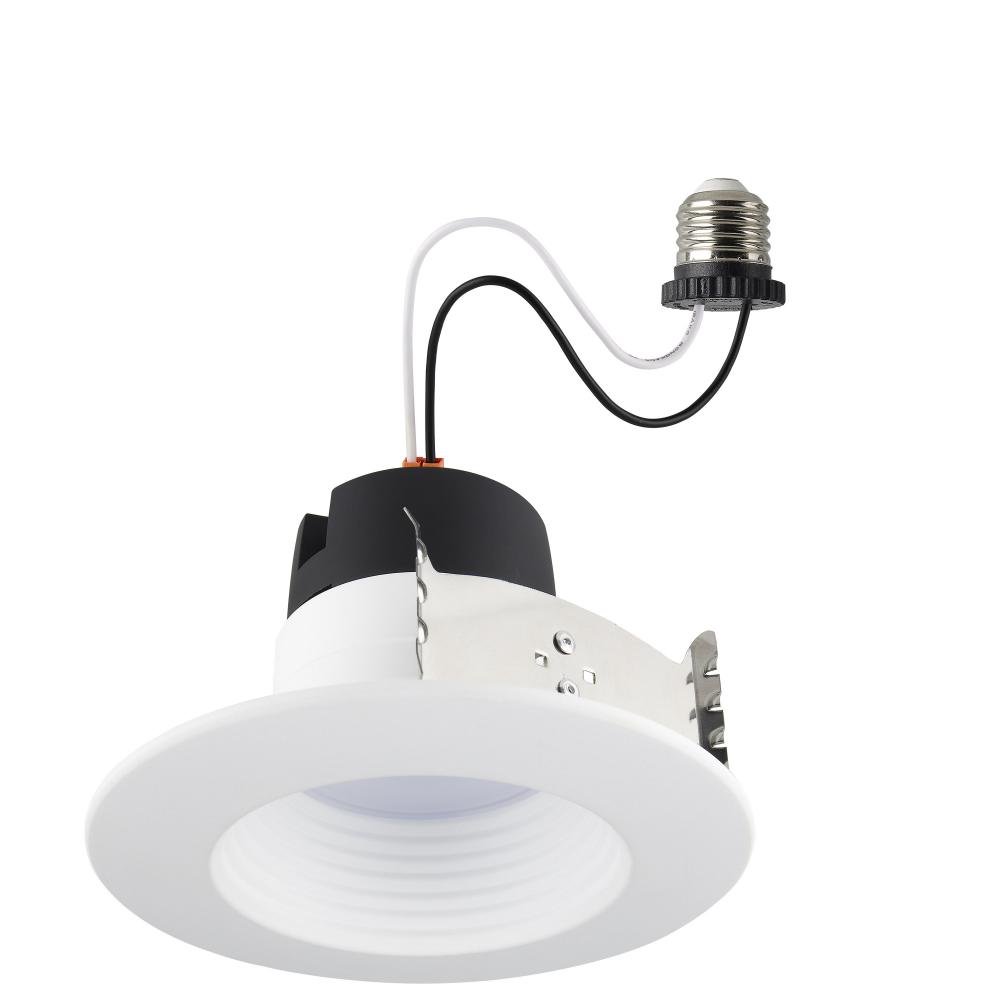

E26 Adapter included (S9001)

Indoor Outdoor:

Indoor

IOT Enabled:

JA8 Compliant:

Yes

Lens Material:

Polycarbonate (PC)

Long Description:

The Satco S11844, 7 watt, 4 inch recessed retrofit is designed with the architect in mind. It represents an elegant, value oriented, easy to install solution wherever more design is required, but without the harsh glare of standard downlight retrofits. Our

Material:

Aluminum

Mounting Procedure:

Ceiling

Operating Frequency:

60Hz

Operating Temprature:

-20C (-4F) to +40C (+104F)

Pack Type:

Box

Power Factor:

0.95

Quantity In Pack:

R9 Value:

Replaceable Light Source:

RoHS Compliant:

Yes

Romance Copy:

Satco's latest LED recessed retrofits are designed with the architect in mind. They represent an elegant, value oriented, easy to install solution wherever more design is required, but without the harsh glare of standard downlight retrofits. Our latest

Safety Listing:

cULus - Classified

SDS class:

LED_Fixture

Short Description:

7WLED/DB/RDL/4/CCT-SEL/120V

Sloped Ceiling Compatible:

Temperature (CCT):

2700K/3000K/3500K/4000K/5000K

Title 20 Compliant:

Yes

Title 24 Compliant:

Yes

Trim Color:

White

Trim Material:

Aluminum

Wattage Selectable:

Weight Lb.:

0.36
