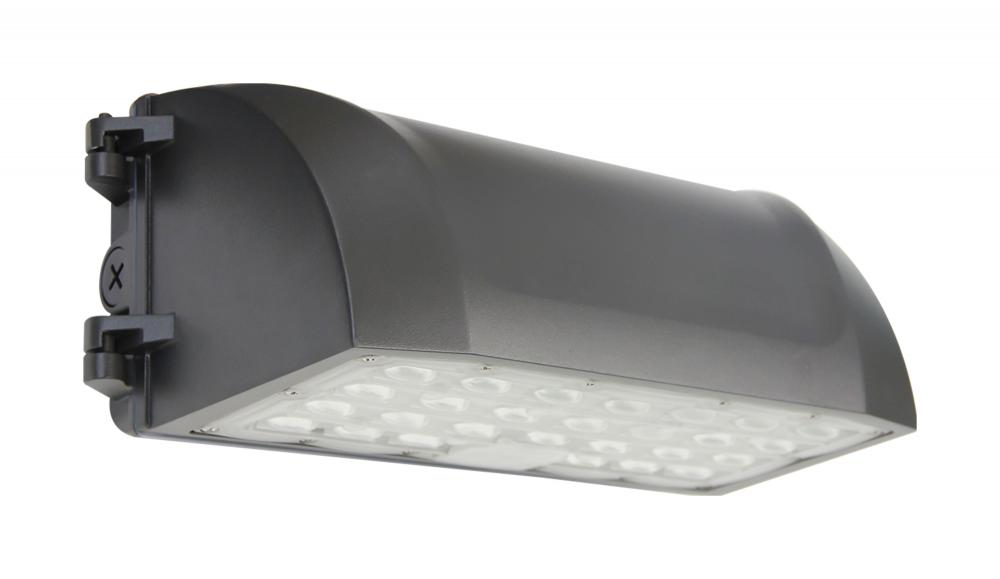

80 Watt Full Cutoff LED Wall Pack; CCT Selectable; 9600-10K Lumens; DLC Premium : A36GN

Return to Catalog

Part Number: A36GN / Vendor ID #: 81

80 Watt Full Cutoff LED Wall Pack; CCT Selectable; 9600-10K Lumens; DLC Premium

$247.50

Item Sales Info

Add To Wishlist

Compare Item

Availability

Manufacturer has 165 items available.

Dimensions

Height: 5.10"

Width: 12.61"

Product Overview

80 Watt Full Cutoff LED Wall Pack; CCT Selectable; 9600-10K Lumens; DLC Premium

Standard Information

Category:

Exterior

Sconces

Subcategory:

Wall Lights

Outdoor Wall Lights

Finish:

Bronze

Style:

Traditional

Option:

LED

Prop 65

Lumens:

3300+

Kelvin:

4001-4500

Refinement Options

Category:

Wall Pack

Sub Category:

Standard

Style:

Utility

Avg Rated Hours:

50000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Warm to Cool White

Dimmable:

Yes-Dimmable

Each Height:

9.06

Each Length:

13.78

Each Width:

7.28

Lumens:

9600L-10000L

Tariff Code:

9405.42.6000

Warranty:

5 Year Limited - Fixtures

Amps:

0.667-0.289A

ANSI Base:

Integrated

BAA Compliant:

Beam Angle:

90x100

B_U_G_Rating:

B2-U2-G1

CA Prop-65:

Lead

CCT Selectable:

Yes

CEC:

T20 Exempt - Fixtures Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Connection:

Hardwire

Country Of Origin:

Vietnam

CRI:

Dimmable Down To:

100 to 20 percent

Dimmable Function:

0-10V Dimming Only

DLC Classification:

Premium

DLC Primary Use:

Outdoor Full-Cutoff Wall-Mounted Area Luminaires

Each Cube:

0.526

Each Quantity:

Efficacy:

120.00/122.50/125.00 LPW

FCC Compliant:

Yes

Feature 1:

IP65 rating for all-weather durability

Feature 2:

Directs light down, with no light trespass

Feature 3:

0-10V dimming

Feature 4:

Maintenance free

Feature 5:

Polycarbonate lens, die-cast aluminum body

Feature 6:

Operating temperature: -40C (-40F) to a maximum of 40C (104F)

Finish Family:

Bronze

Has Driver:

Yes

HID Equiv:

250W

Incandescent Equivalent:

500W

Indoor Outdoor:

Outdoor

IP Rating:

IP65

JA8 Compliant:

Lens Material:

Impact Resistant PC

Long Description:

SATCO|NUVO's 65-673 rugged 80-watt Full Cutoff Wall pack features Color Quick selectable color temperature, along with advancements in design to minimize light trespass. The pack is DLC Premium certified, and delivers 50,000 hours of superior, energy-e

Material:

Die-Cast Aluminum

Mounting Procedure:

Wall

Operating Frequency:

50-60Hz

Operating Temp:

-40C (-40F) to +40C (+104F)

Pack Type:

Box

Power Factor:

>0.9

Quantity In Pack:

Replaceable Light Source:

RoHS Compliant:

Yes

Romance Copy:

This rugged wall pack features Color Quick selectable color temperature, along with advancements in design to minimize light trespass. The pack is DLC Premium certified, and delivers 50,000 hours of superior, energy-efficient LED light. An add-on photocell

Safety Listing:

cULus - Listed

SDS class:

LED_Fixture

Short Description:

80W FULL CUTOFF WALL PACK

Temperature (CCT):

3000K/4000K/5000K

Title 20 Compliant:

Title 24 Compliant:

Total Harmonic Distortion:

10.06%

Wattage Selectable:

Weight Lb.:

5.73

Wire Temp Rating:

105C (221F)
