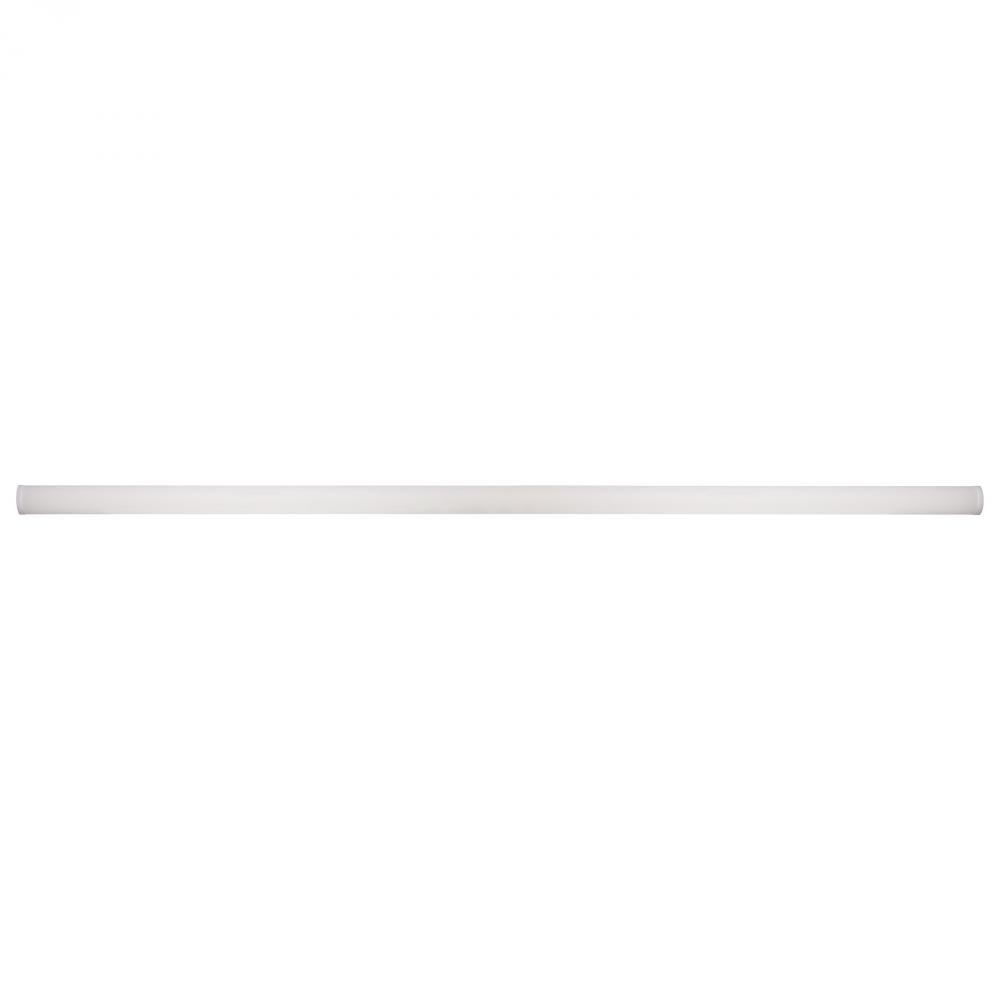

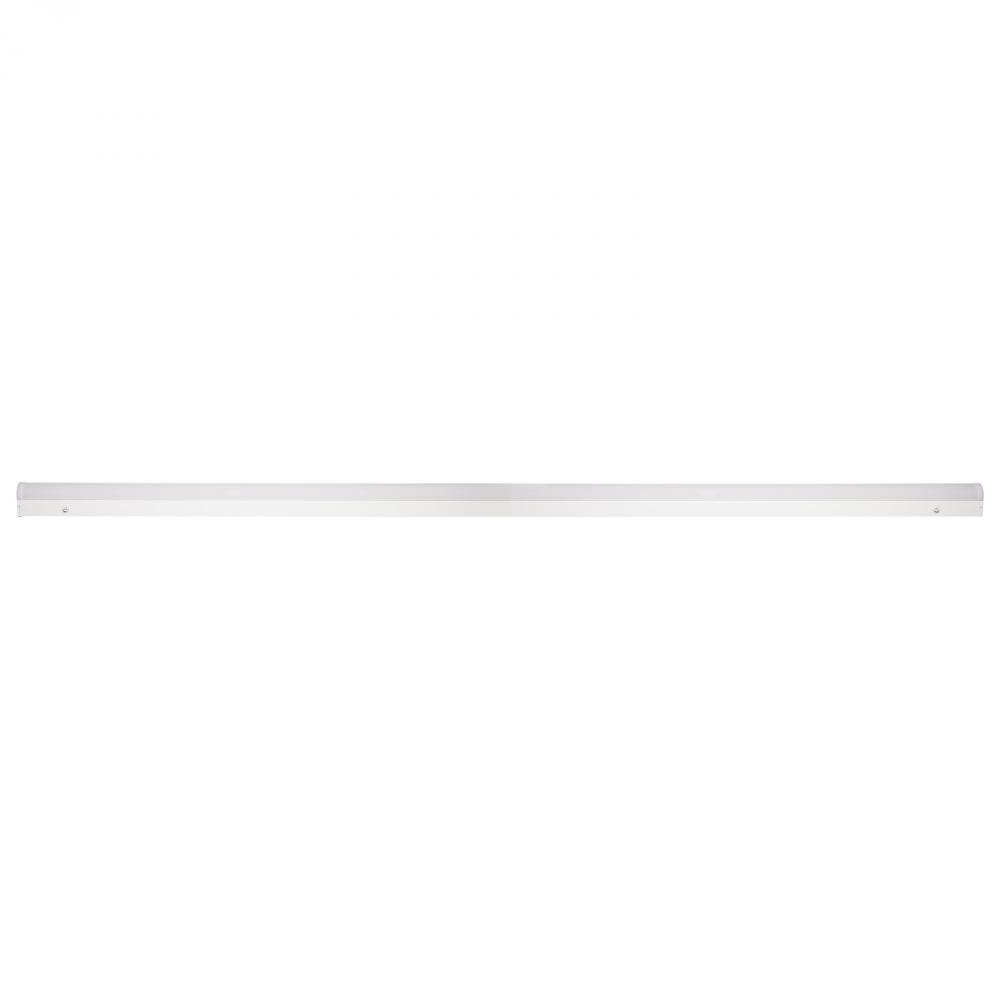

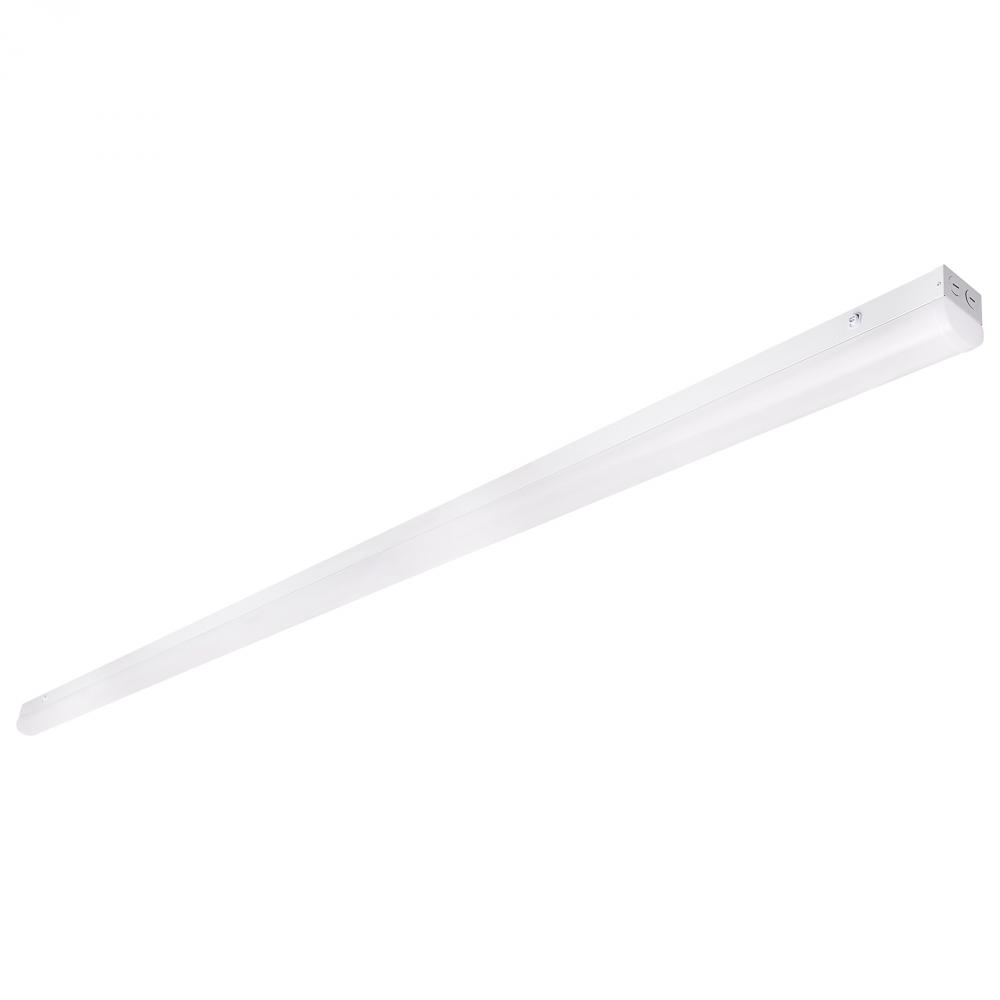

82 Watt; 8 Foot LED; Linear Strip Light; CCT Selectable; 120-347 Volt; White Finish; Microwave (A95XC)
$310.00
Call For Price
Enlarge Image
Description:
82 Watt; 8 Foot LED; Linear Strip Light; CCT Selectable; 120-347 Volt; White Finish; Microwave Sensor
Availability:
  • Manufacturer has 8 items available.
Required Components:

Optional Accessory:

Dimensions:
right arrow Height: 3.27"
right arrow Width: 2.95"
Additional Details:
right arrow Finish: White
right arrow Category: Linear Strip
right arrow Sub Category: Strip Fixture
right arrow Style: Utility
right arrow Additional Info: Other DLC Listing: S-RN5TPJ, Standard, Direct Linear Ambient Luminaires.
right arrow Avg Rated Hours: 50000
right arrow Bulb Shape1: Integrated LED
right arrow Bulb Type1: LED
right arrow Color Temperature: Neutral White to Daylight
right arrow Dimmable: Yes-Dimmable
right arrow Each Height: 5.32
right arrow Each Length: 98.03
right arrow Each Width: 5.2
right arrow Length: 96
right arrow Lumens: 10400L-10800L
right arrow Tariff Code: 9405.11.6010
right arrow Warranty: 5 Year Limited - Fixtures
right arrow Amps: 0.683-0.236A
right arrow ANSI Base: Integrated
right arrow BAA Compliant: No
right arrow Beam Angle: 120
right arrow B_U_G_Rating: B3-U4-G3
right arrow CA Prop-65: Lead
right arrow CCT Selectable: Yes
right arrow CEC: T20 Exempt - Fixtures Not Regulated
right arrow CEC Terse: Lawful for sale in California
right arrow CEC Web Text: Lawful for sale
right arrow Connection: Hardwire
right arrow Country Of Origin: Vietnam
right arrow CRI: 80+
right arrow Dimmable Down To: 100 to 10 percent
right arrow Dimmable Function: 0-10V Dimming Only
right arrow DLC Classification: Premium; Standard; Standard
right arrow DLC Primary Use: Stairwell and Passageway Luminaires; High-Bay Luminaires for Commercial and Industrial Buildings; Direct Linear Ambient Luminaires
right arrow Each Cube: 1.5694
right arrow Each Quantity: 1
right arrow Efficacy: 126.83/129.27/131.71 LPW
right arrow FCC Compliant: Yes
right arrow Feature 1: CCT Selectable
right arrow Feature 2: Flicker Free Driver
right arrow Feature 3: 0-10V Dimmable
right arrow Feature 4: Multiple Mounting Options
right arrow Feature 5: DLC Premium
right arrow Feature 6: Integrated Microwave Sensor
right arrow Feature 7: 120-347 Voltage - FOR USE IN CANADA
right arrow Finish Family: White
right arrow Flicker Free: Yes
right arrow Has Driver: Yes
right arrow HID Equiv: 150W
right arrow Incandescent Equivalent: 550W
right arrow Indoor Outdoor: Indoor
right arrow IOT Enabled: No
right arrow IP Rating: IP20
right arrow JA8 Compliant: No
right arrow Lens Finish: White
right arrow Lens Material: Polycarbonate (PC)
right arrow Long Description: The SATCO|NUVO 65-1703 LED 8-foot Linear Strip Fixture features an integrated microwave sensor for added energy efficiency and savings. With 3-CCT selectable options - 3500K, 4000K, 5000K - the user can tailor the lighting to their specific needs and prefe
right arrow Material: Steel
right arrow Mounting Diameter: 4.75

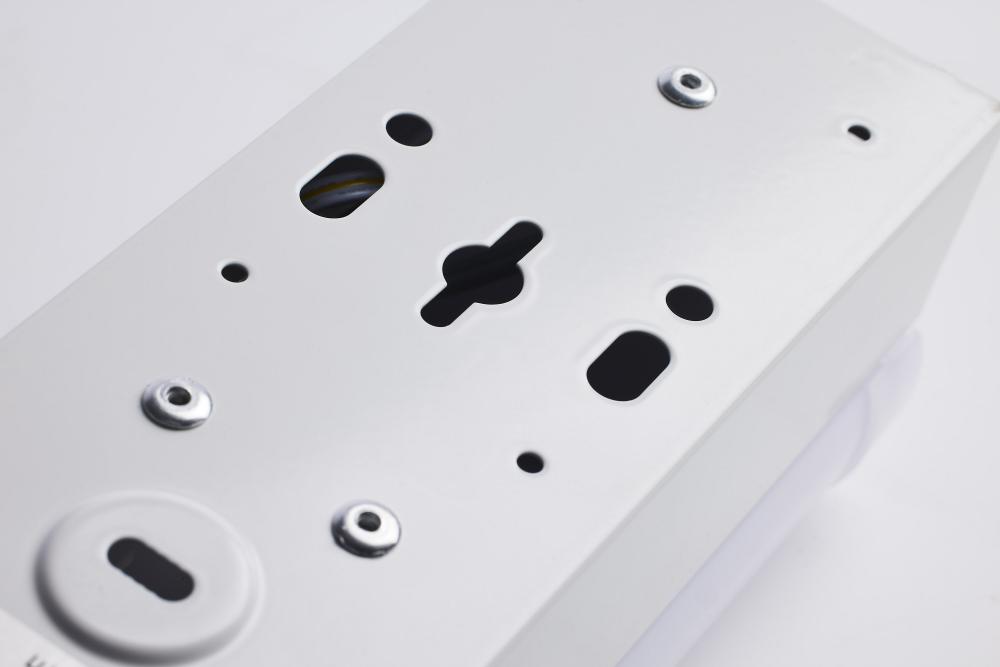

right arrow Mounting Procedure: Ceiling/Wall
right arrow NSF Approved: No
right arrow Operating Frequency: 50/60Hz
right arrow Operating Temp: -20C (-4F) to +60C (+140F)
right arrow Order In Multiples Of: 1
right arrow Pack Type: Box
right arrow Photocell: Bi-Level Microwave Sensor
right arrow Power Factor: 0.9
right arrow Quantity In Pack: 1
right arrow Replaceable Light Source: No
right arrow RoHS Compliant: Yes
right arrow Romance Copy: SATCO|NUVO offers LED Linear Strip Fixtures in 2, 4, and 8-foot sizes. These fixtures provide flexibility with 3-CCT selectable options - 3500K, 4000K, and 5000K - allowing the user to tailor the lighting to their specific needs and preferences. Select mod
right arrow Safety Listing: cULus - Certified
right arrow SDS class: LED_Fixture
right arrow Sensor Type: Microwave
right arrow Short Description: 8' LINEAR STRIP W/SENSOR
right arrow Sloped Ceiling Compatible: Yes
right arrow Temperature (CCT): 3500K/4000K/5000K
right arrow Title 20 Compliant: Exempt
right arrow Title 24 Compliant: No
right arrow Total Harmonic Distortion: 10.77%
right arrow Wattage Selectable: No
right arrow Weight Lb.: 6.84
right arrow Standard Category: Undercabinet
right arrow Standard Subcategory: LED Undercabinet Lights
right arrow Standard Option: LED , Prop 65 prop65.png
right arrow Standard Lumens: 3300+
right arrow Standard Kelvin: 5501-6000
