Part Number: A96XH / Vendor ID #: 81

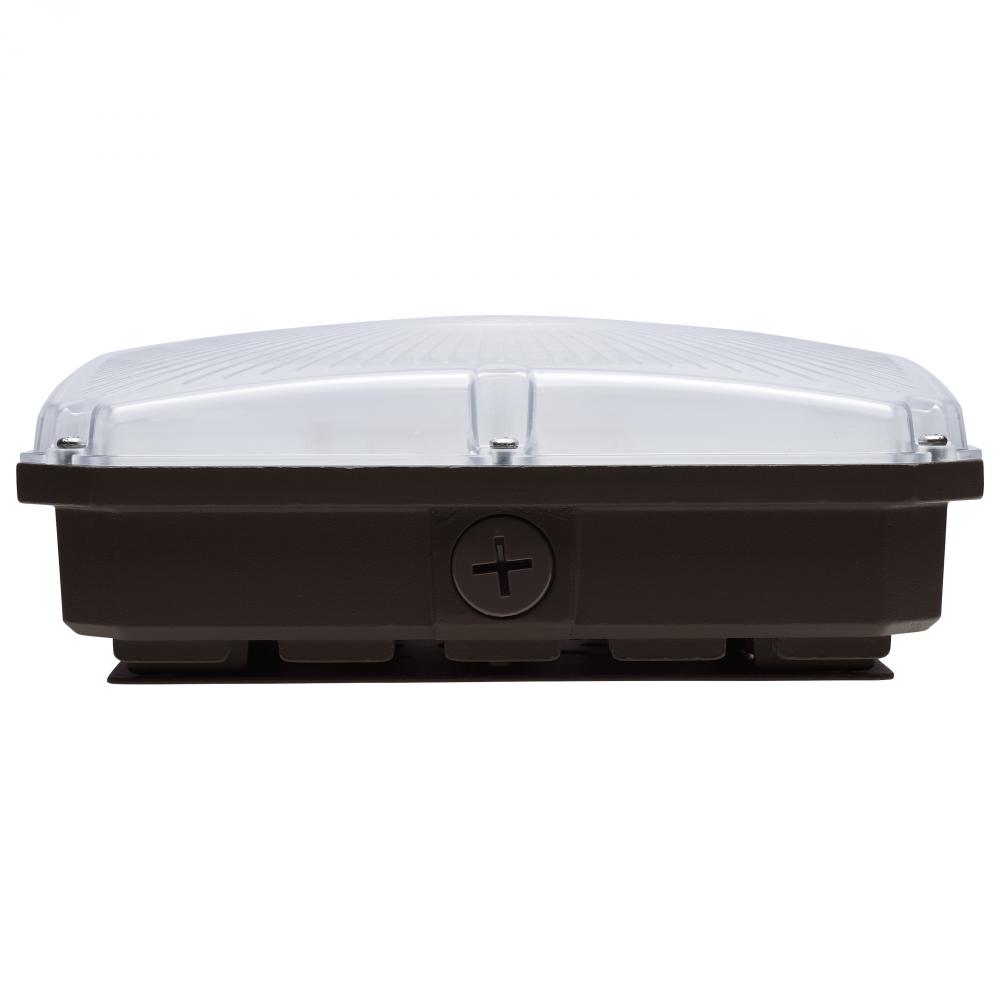

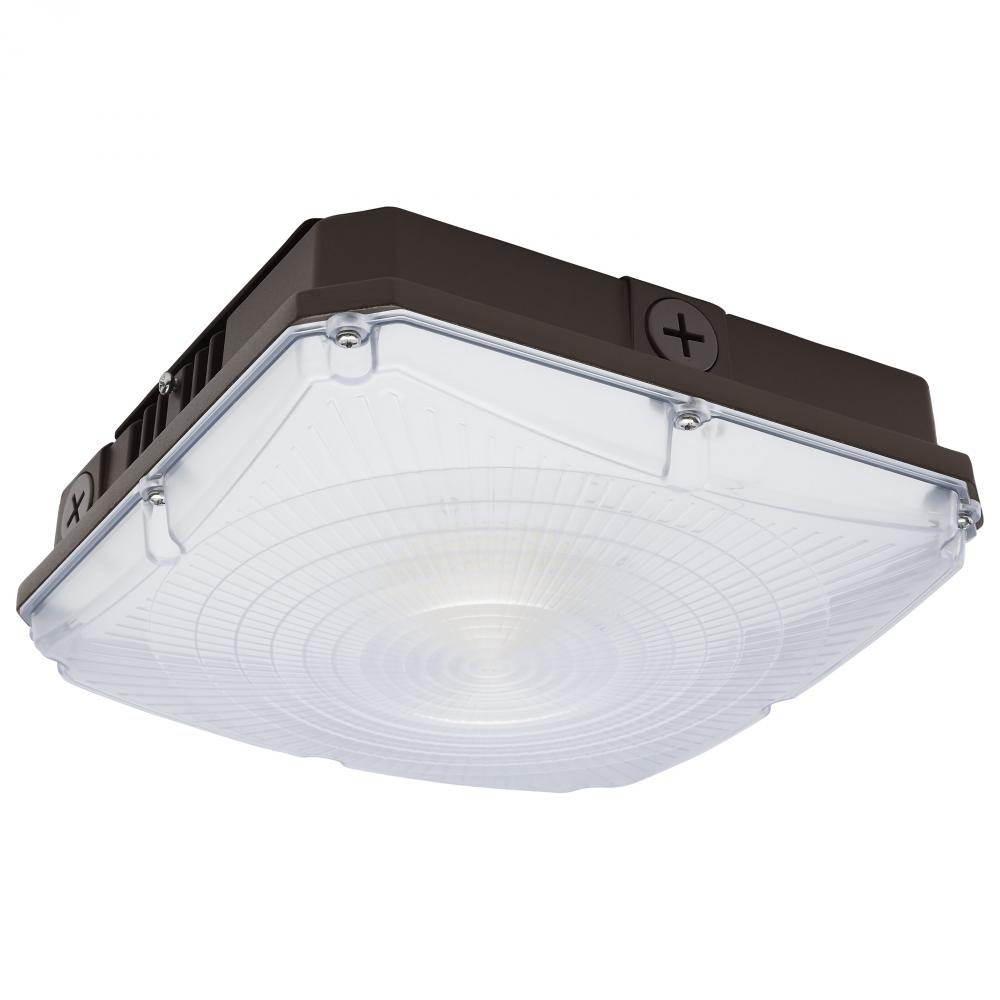

8.5 Inch LED Field Selectable Canopy Fixture; 25/30/40 Watts; 3K/4K/5K CCT

$160.00

Item Sales Info

Add To Wishlist

Compare Item

Availability

Manufacturer has 509 items available.

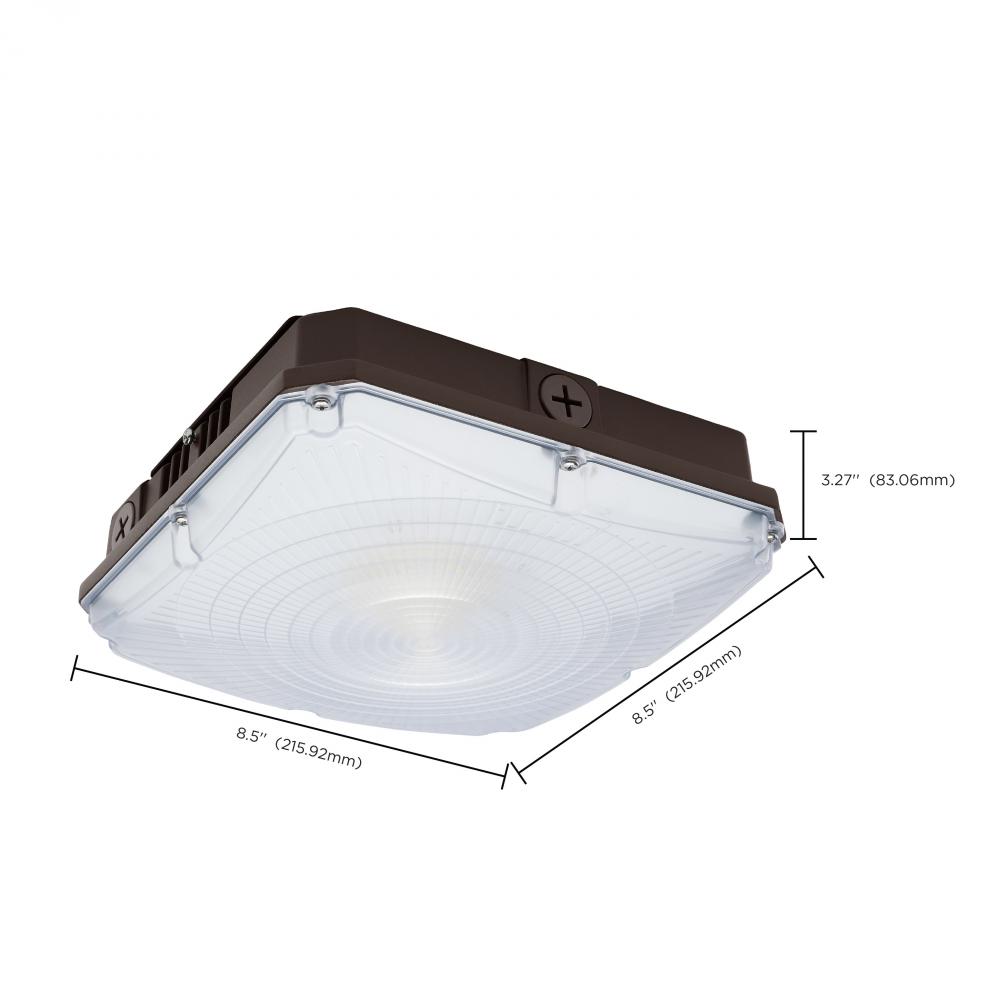

Dimensions

Height: 3.27"

Width: 8.50"

Product Overview

8.5 Inch LED Field Selectable Canopy Fixture; 25/30/40 Watts; 3K/4K/5K CCT

Standard Information

Category:

Utility

Subcategory:

Other Utility

Option:

LED

Prop 65

Refinement Options

Category:

Surface Mount

Sub Category:

Canopy Fixture

Style:

Utility

Additional Info:

UV stabilized powder coated finish

Avg Rated Hours:

50000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Soft White to Natural Light

Dimmable:

Yes-Dimmable

Each Height:

10.51

Each Length:

10.39

Each Width:

5.04

Length:

8.5

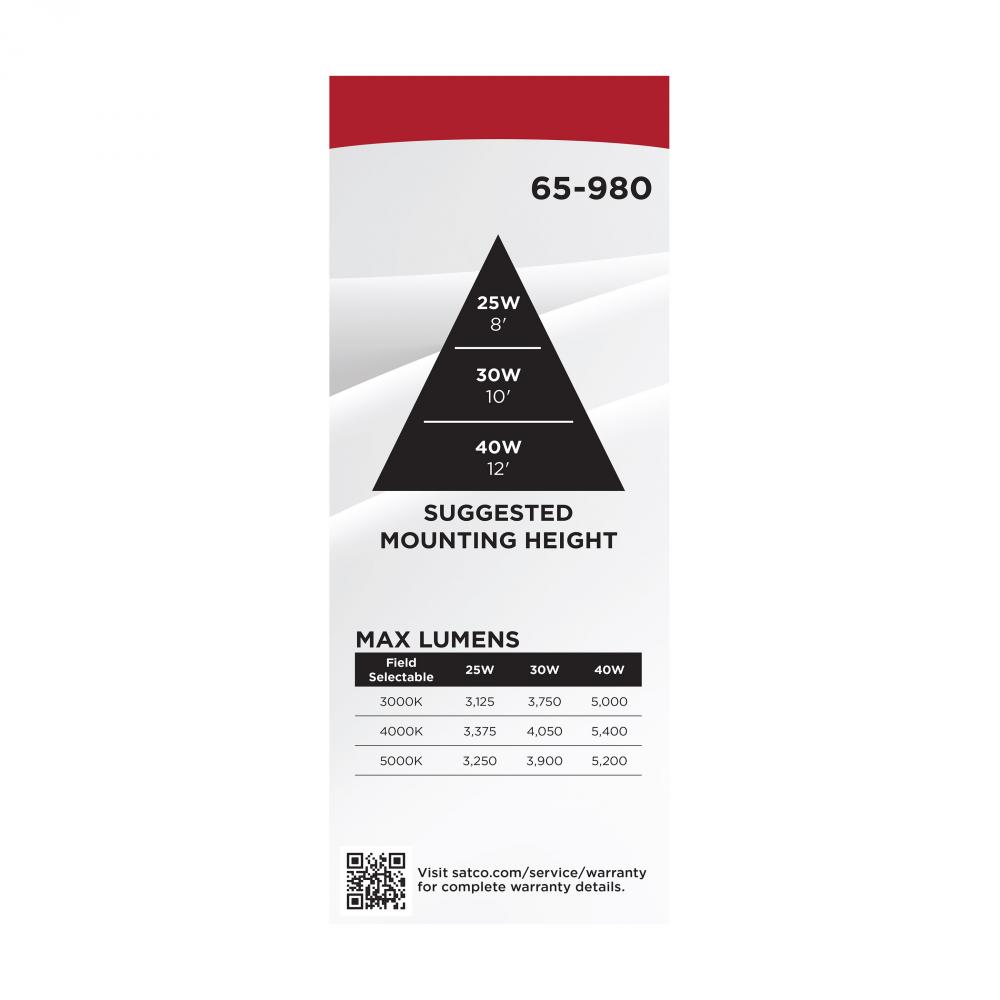

Lumens:

3125L-5400L

Tariff Code:

9405.11.6020

Warranty:

5 Year Limited - Fixtures

Amps:

0.210-0.090/0.250-0.108/0.333-0.144A

ANSI Base:

Integrated

Beam Angle:

150

B_U_G_Rating:

B2-U3-G2

CA Prop-65:

Lead

CCT Selectable:

Yes

CEC:

T20 Exempt - Fixtures Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

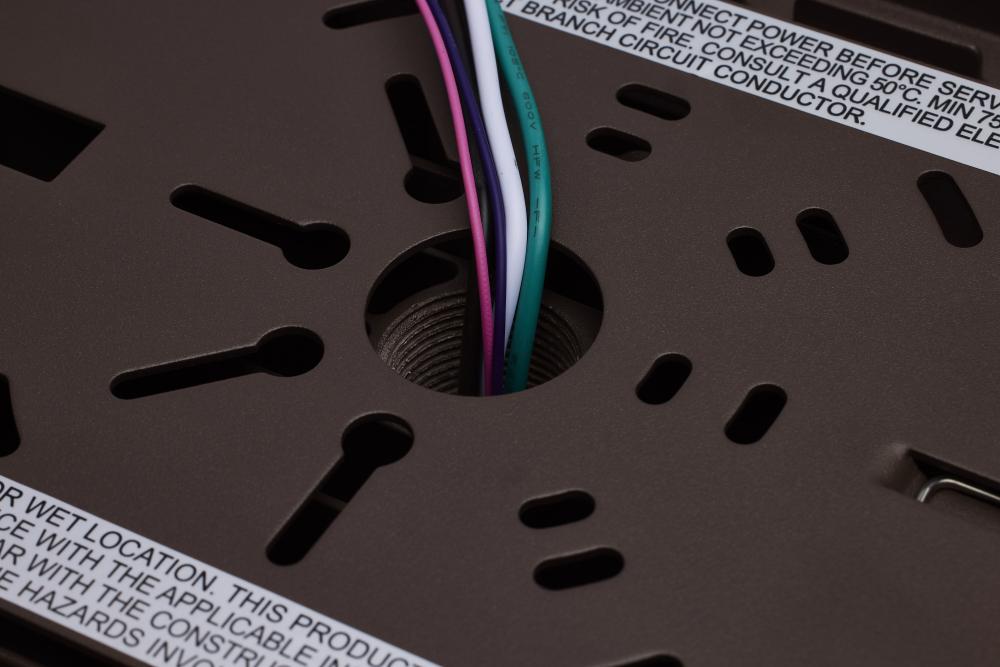

Connection:

Direct Wired

Country Of Origin:

Vietnam

CRI:

Dimmable Down To:

100 to 10 percent

Dimmable Function:

0-10V Dimming

DLC Classification:

Premium

DLC Primary Use:

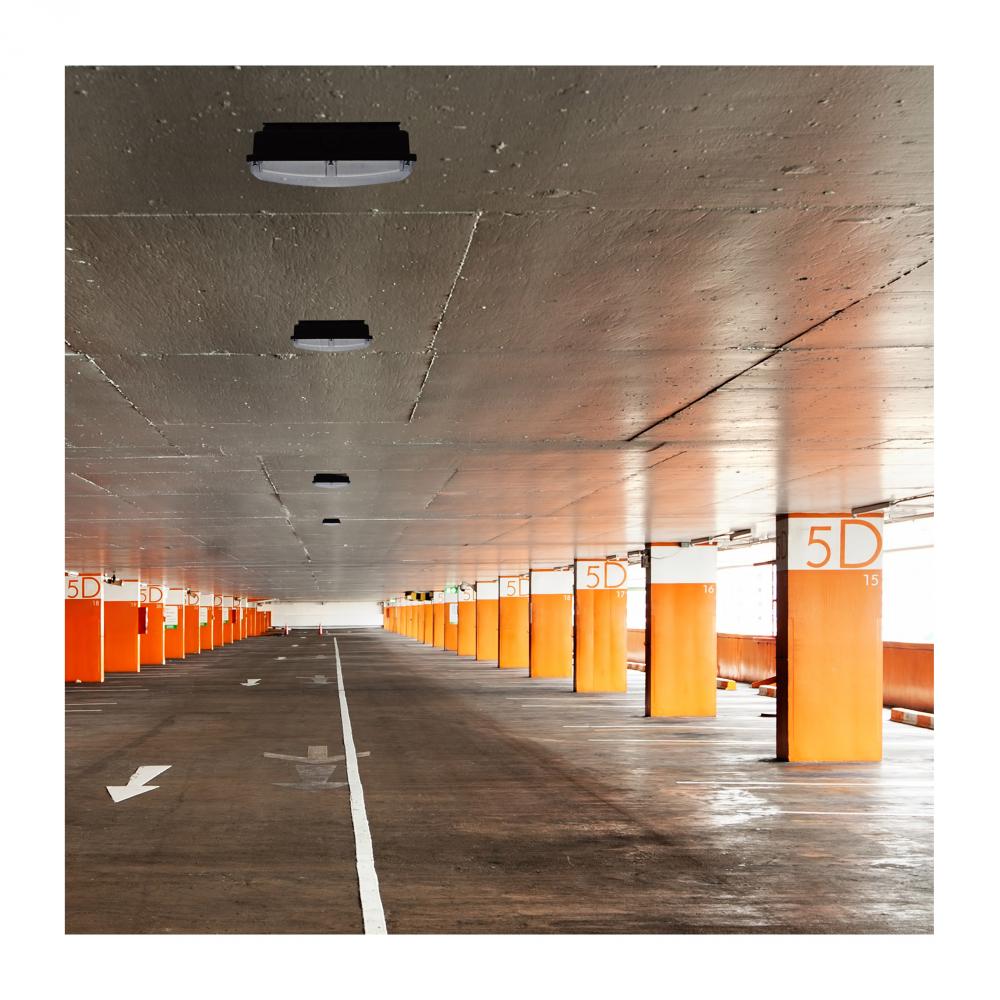

Parking Garage Luminaires

Each Cube:

0.3185

Each Quantity:

Efficacy:

125.00/130.00/135.00 LPW

FCC Compliant:

Yes

Feature 1:

CCT and Wattage Selectable

Feature 2:

Ceiling or Pendant Mounting

Feature 3:

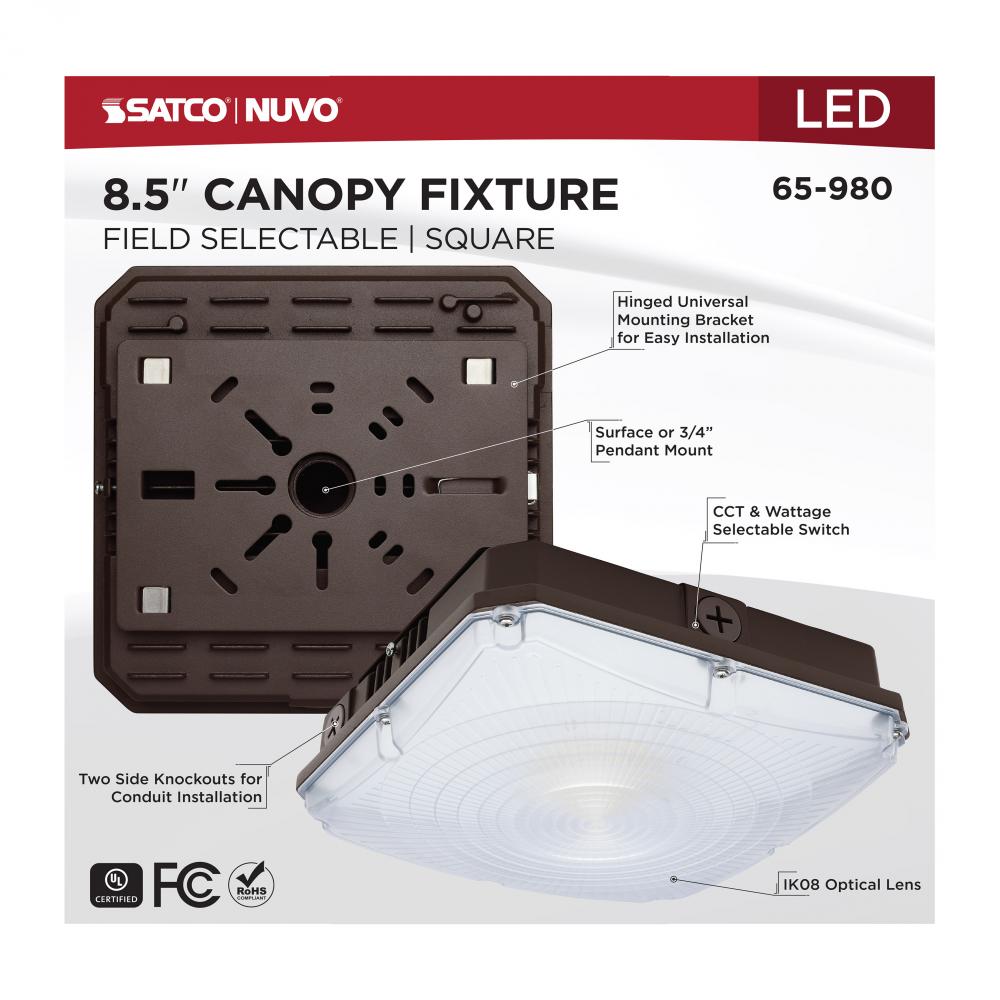

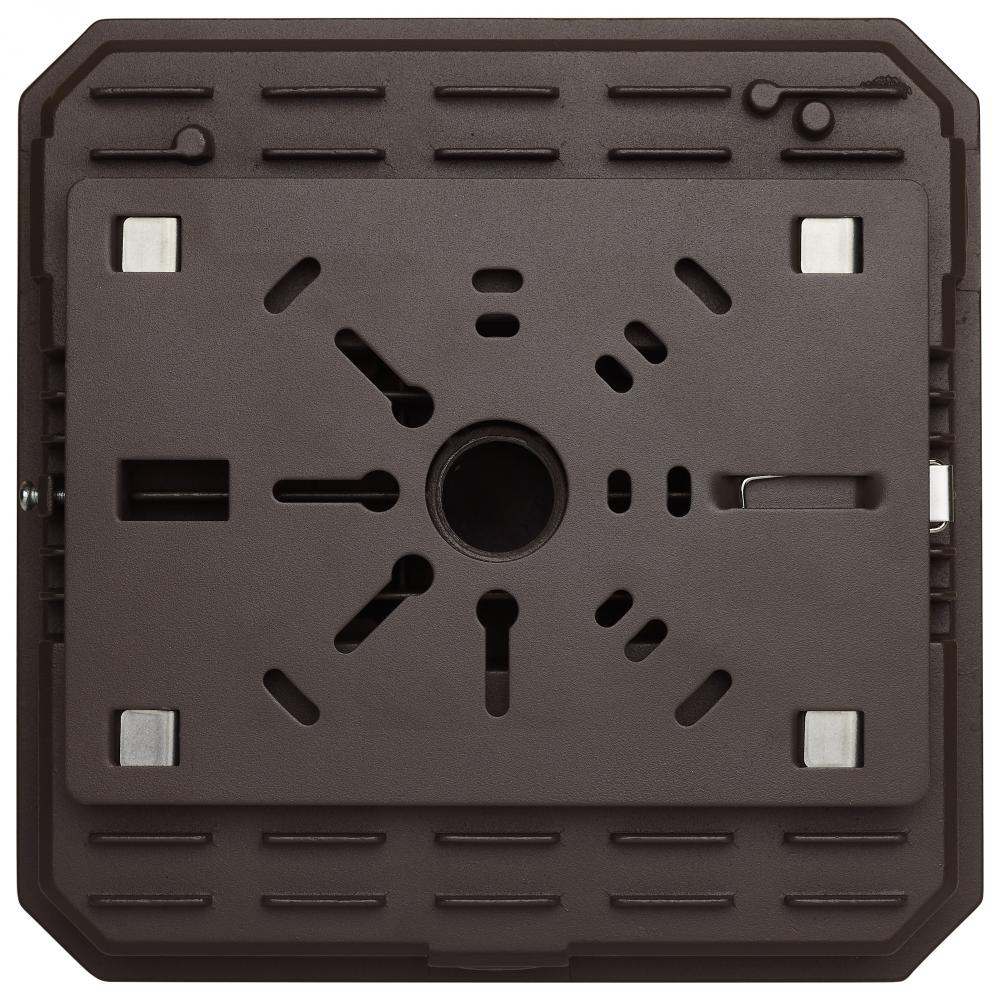

Hinged Universal Mounting Bracket

Feature 4:

6KV Surge Protection

Feature 5:

IP65 and IK08 Vandal Resistant

Feature 6:

Wet location rated

Feature 7:

50,000 Hour Functional Life

Feature 8:

8.5 Inch Square Fixture

Feature 9:

B2-U3-G2 Rating

Finish Family:

Bronze

Fixture shape:

Square

HID Equiv:

52W/71W/90W

Impact Rating (IK):

IK08

Incandescent Equivalent:

150W/250W

Indoor Outdoor:

Outdoor

IP Rating:

IP65

JA8 Compliant:

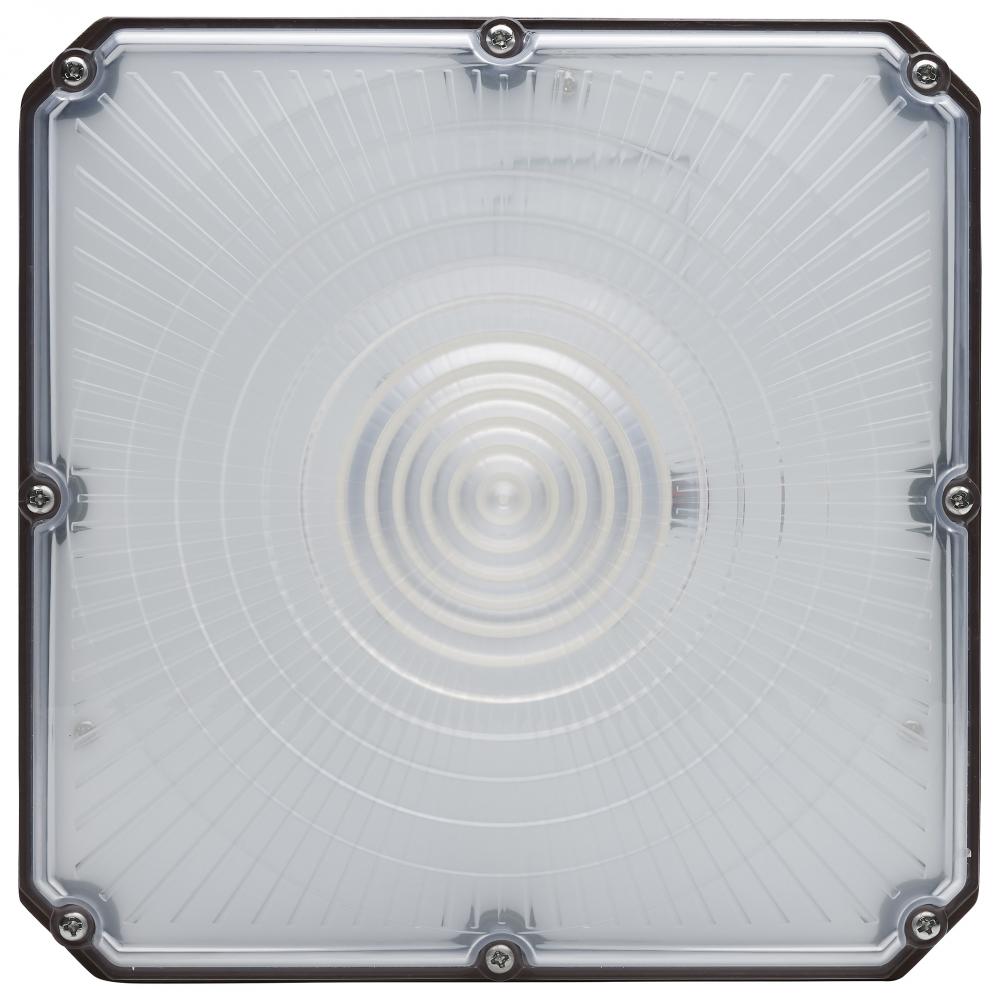

Lens Finish:

Clear

Lens Material:

Polycarbonate (PC)

Long Description:

SATCO|NUVO's 65-980 Field Selectable 8.5 inch square canopy fixture is an ideal choice for multiple applications. This fixture gives users the flexibility to choose from three wattage and three CCT options during installation. With a choice of surface

Material:

Die-Cast Aluminum

Mounting Procedure:

Ceiling;Pendant Hanging Surface

Operating Frequency:

50/60Hz

Operating Temp:

-30C (-22F) to +45C (+113F)

Order In Multiples Of:

Pack Type:

Color Box

Photocell:

Power Factor:

0.9

Quantity In Pack:

Replaceable Light Source:

RoHS Compliant:

Yes

Romance Copy:

SATCO|NUVO's Field Selectable square canopy fixtures are an ideal choice for multiple applications. These fixtures offer the flexibility to choose from three wattage and three CCT options during installation, with some models featuring an integrated mi

Safety Listing:

cULus - Certified

SDS class:

LED_Fixture

Sensor Occupancy or Vacancy:

Short Description:

8.5" LED SELECTABLE CANOPY

Temperature (CCT):

3000K/4000K/5000K

Title 20 Compliant:

Title 24 Compliant:

Total Harmonic Distortion:

10.20%

Wattage Selectable:

Yes

Weight Lb.:

3.35
