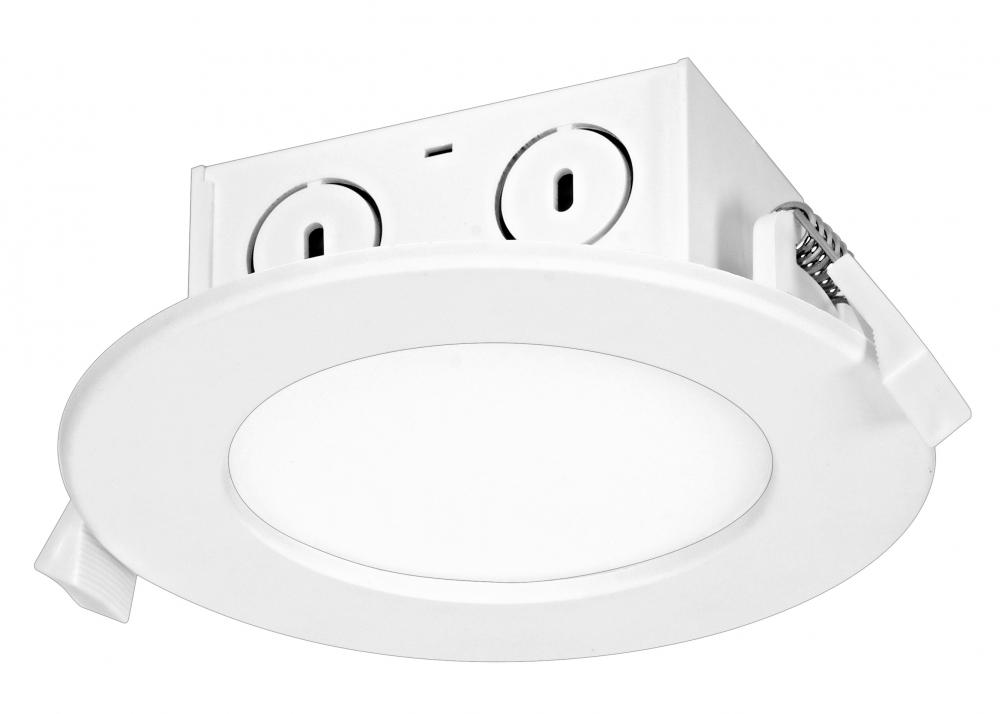

8.5 watt LED Direct Wire Downlight; Edge-lit; 4 inch; 4000K; 120 volt; Dimmable : X3LTC

Return to Catalog

Part Number: X3LTC / Vendor ID #: 27

8.5 watt LED Direct Wire Downlight; Edge-lit; 4 inch; 4000K; 120 volt; Dimmable

$28.90

Item Sales Info

Add To Wishlist

Compare Item

Availability

Manufacturer has 923 items available.

Dimensions

Height: 1.94"

Width: 5.00"

Product Overview

8.5 watt LED Direct Wire Downlight; Edge-lit; 4 inch; 4000K; 120 volt; Dimmable

Standard Information

Category:

Recessed Ltg.

Subcategory:

Other Bulbs

Other Recessed Ltg.

Finish:

White

Style:

Traditional

Option:

LED

Prop 65

Lumens:

450-800

Kelvin:

4001-4500

Refinement Options

Category:

Recessed

Sub Category:

Direct Wire

Style:

Utility

Bulb Hours:

40000

Bulb Kelvin:

Cool White

Bulb Shape:

Integrated LED

Bulb Type:

LED

Diameter:

Dimmable:

Yes-Dimmable

Harmonized Codes:

9405.11.8010

Lumens:

540L

Ship Carton Height:

5.12

Ship Carton Length:

6.3

Ship Carton Width:

2.56

Warranty:

5 Year Limited - Fixtures

Air Tight:

Yes

Amps:

0.071A

ANSI Base:

Integrated

BAA Compliant:

Beam Spread:

100

CA Prop-65:

Lead

Carton Cubic Feet:

0.0478

Cartons Per Unit:

CCT Selectable:

CEC:

California T24 2016 - 2022 JA8 Listed

CEC Terse:

Lawful for sale in California

CEC Web Text:

California T24 Listed

Ceiling Aperture:

4.3125 in. Cutout

Clearance Height:

2.36

Connection:

Direct Wired

Country Of Origin:

China

CRI:

Dimmable Down To:

100 to 10 percent

Dimming Type:

Forward Phase or Reverse Phase or Phase Selectable or Triac

Efficacy:

63.53 LPW

FCC Compliant:

Yes

Feature 1:

Integrated J-Box for Direct Wire Installation

Feature 2:

Edge-lit Technology

Feature 3:

Damp rated for indoor use

Feature 4:

H:1.94 D:5.00

Feature 5:

H:1.94 D:5.00

Finish Family:

White

Fixture shape:

Round

IC Rated:

Yes

Incandescent Equivalent:

45W

Indoor Outdoor:

Indoor

JA8 Compliant:

Yes

Lens Finish:

Frost

Lens Material:

Plastic (PS)

Long Description:

SATCO|NUVO's S39057 8.5-watt, LED 4 inch recessed fixture is edge lit. The direct wired downlight offers cool white light with a 100 degree beam spread. This LED downlight is an energy efficient lighting solution for retail spaces, offices, and drop ce

Material:

Thermal Conductive Plastics

Max Drywall Thickness:

3/4 in.

Mounting Procedure:

Ceiling

Operating Frequency:

60Hz

Operating Temprature:

-20C (-4F) to +45C (+113F)

Pack Type:

Box

Power Factor:

0.93

Quantity In Pack:

R9 Value:

Replaceable Light Source:

RoHS Compliant:

Yes

Romance Copy:

SATCO|NUVO's 8.5-watt, LED 4 inch recessed fixture is edge lit. The direct wired downlight offers cool white light with a 100 degree beam spread. This LED downlight is an energy efficient lighting solution for retail spaces, offices, and drop ceilings.

Safety Listing:

cETLus - Listed

SDS class:

LED_Lamp

Short Description:

8.5WLED/DW/EL/4/40K/120V

Temperature (CCT):

4000K

Title 20 Compliant:

Title 24 Compliant:

Yes

Trim Color:

White

Wattage Selectable:

Weight Lb.:

0.4
