Part Number: X6PG3 / Vendor ID #: 27

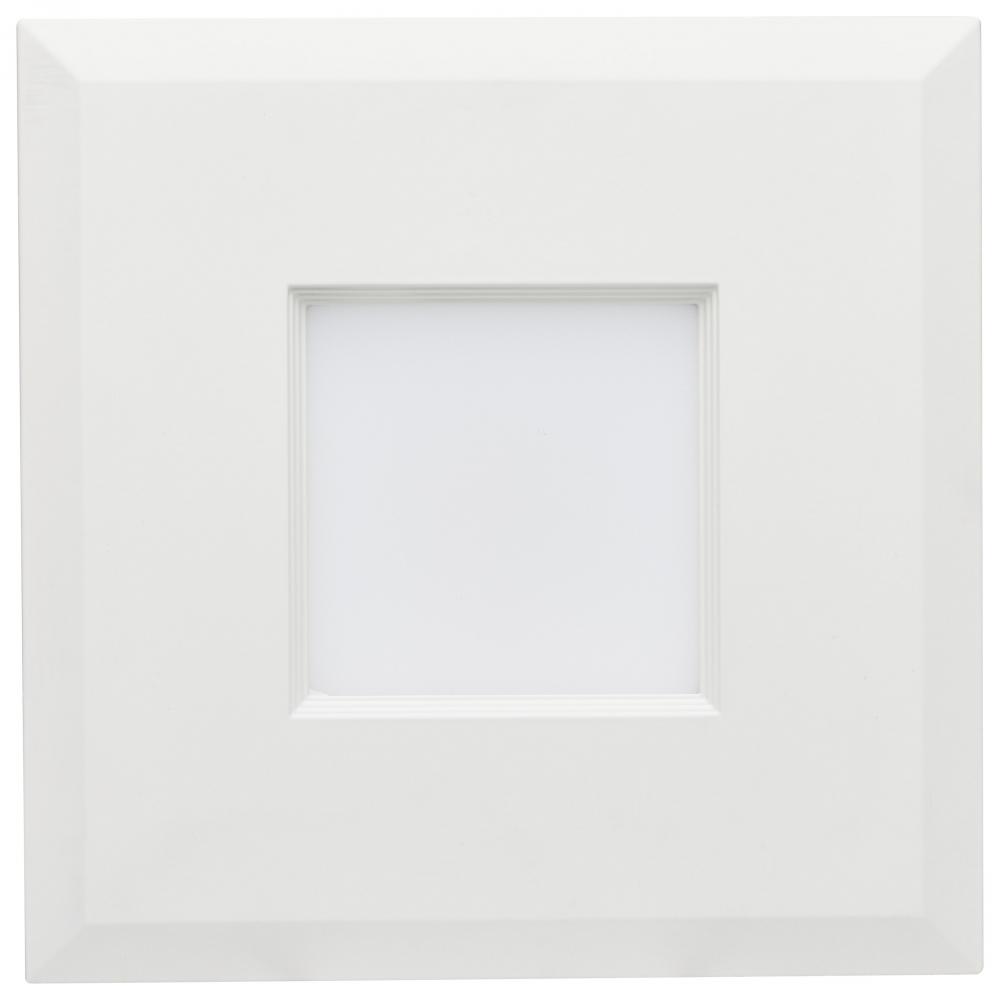

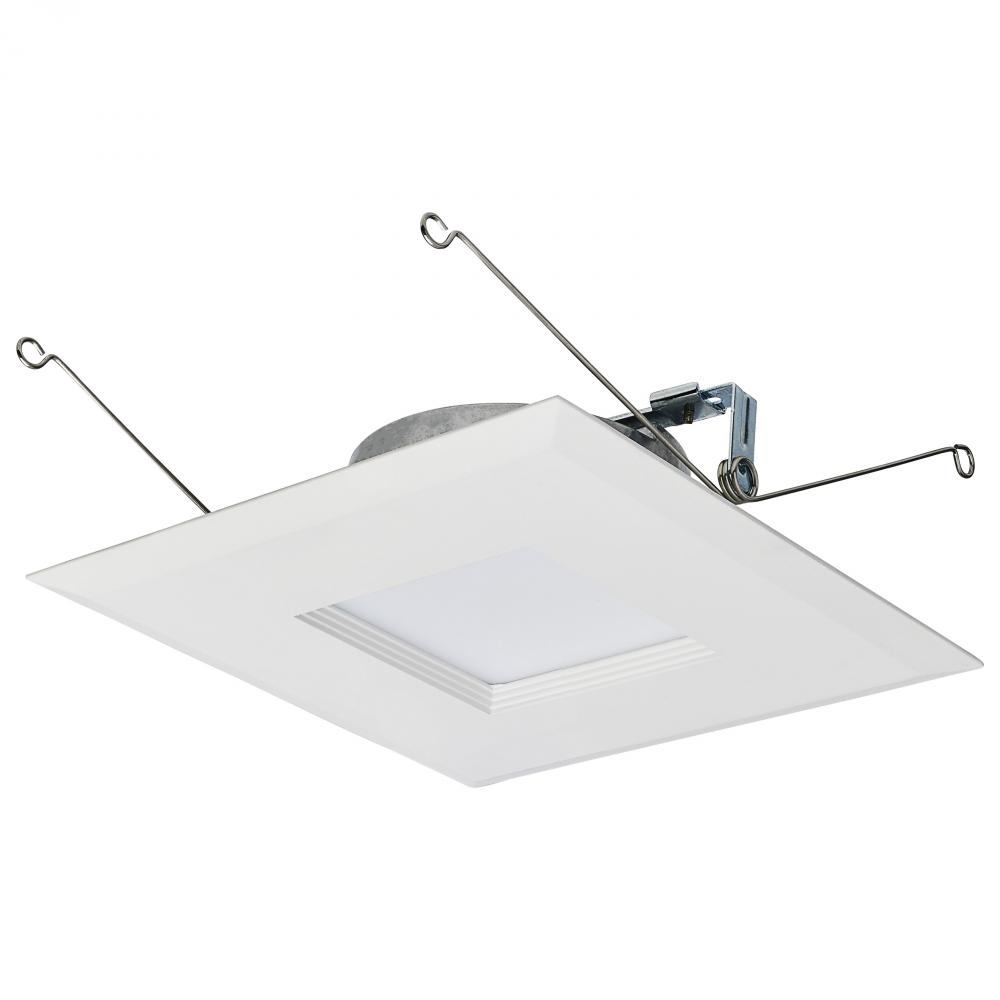

9 Watt LED Downlight Retrofit; 5-6 Inches; CCT Selectable; Square; White Finish; 120 Volt

$27.38

Item Sales Info

Add To Wishlist

Compare Item

Availability

Manufacturer has 1662 items available.

Dimensions

Height: 2.24"

Width: 7.13"

Product Overview

9 Watt LED Downlight Retrofit; 5-6 Inches; CCT Selectable; Square; White Finish; 120 Volt

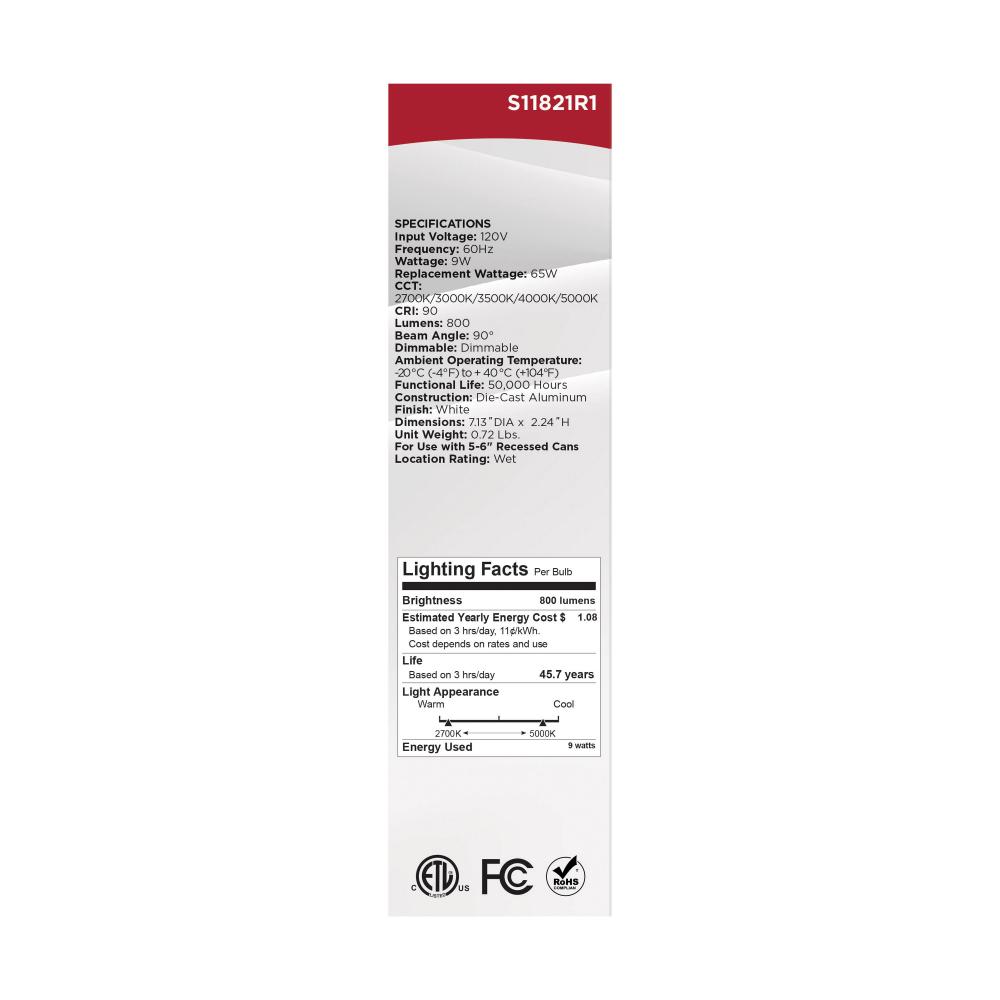

Standard Information

Category:

Recessed Ltg.

Subcategory:

Recessed Lighting Trims

Finish:

White

Option:

Energy Star

LED

Prop 65

Refinement Options

Category:

Recessed

Sub Category:

Retrofits

Style:

Utility

Bulb Hours:

50000

Bulb Kelvin:

Warm White to Natural Light

Bulb Shape:

Integrated LED

Bulb Type:

LED

Dimmable:

Yes-Dimmable

Harmonized Codes:

8539.52.0091

Length:

7.13

Lumens:

800L

Ship Carton Height:

8.460000000000001

Ship Carton Length:

7.6

Ship Carton Width:

2.36

Warranty:

5 Year Limited - Fixtures

Air Tight:

Amps:

0.075A

ANSI Base:

Integrated

Beam Spread:

CA Prop-65:

Lead

Can Size:

5-6 in.

Carton Cubic Feet:

0.0878

Cartons Per Unit:

CCT Selectable:

Yes

CEC:

California T24 2016 - 2022 JA8 Listed; T20 Listed

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Ceiling Aperture:

5.00 in. Cutout

Connection:

Connector or Adapter

Country Of Origin:

China

CRI:

Dimmable Down To:

100 to 10 percent

Dimming Type:

Triac

Efficacy:

88.89 LPW

Enclosed Fixture Use:

Yes

ES Category:

Downlight Solid State Retrofit

ES Unique ID:

ESID-2592093

FCC Compliant:

Yes

Feature 1:

5 CCT Selectable

Feature 10:

ENERGY STAR Certified

Feature 2:

White Trim

Feature 3:

90-Degree Beam Angle

Feature 4:

E26 Adapter Included

Feature 5:

90 CRI

Feature 6:

Wet Location Rated

Feature 7:

50,000 hour life

Feature 8:

Dimmable Down to 10%

Feature 9:

Suitable for Bathroom Applications

Finish Family:

White

Fixture shape:

Square

Incandescent Equivalent:

65W

Includes:

E26 Adapter included (S9001)

Indoor Outdoor:

Indoor

IOT Enabled:

JA8 Compliant:

Yes

Lens Finish:

Frost

Lens Material:

Polycarbonate (PC)

Long Description:

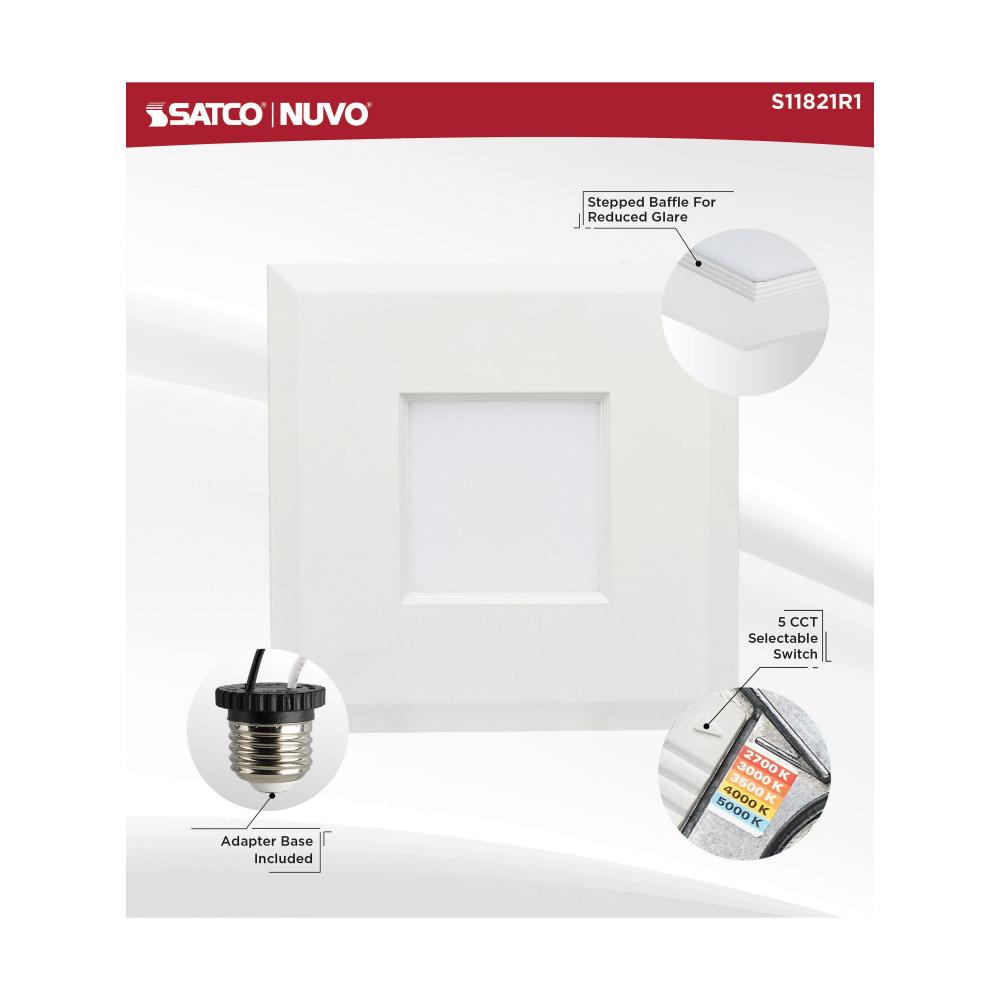

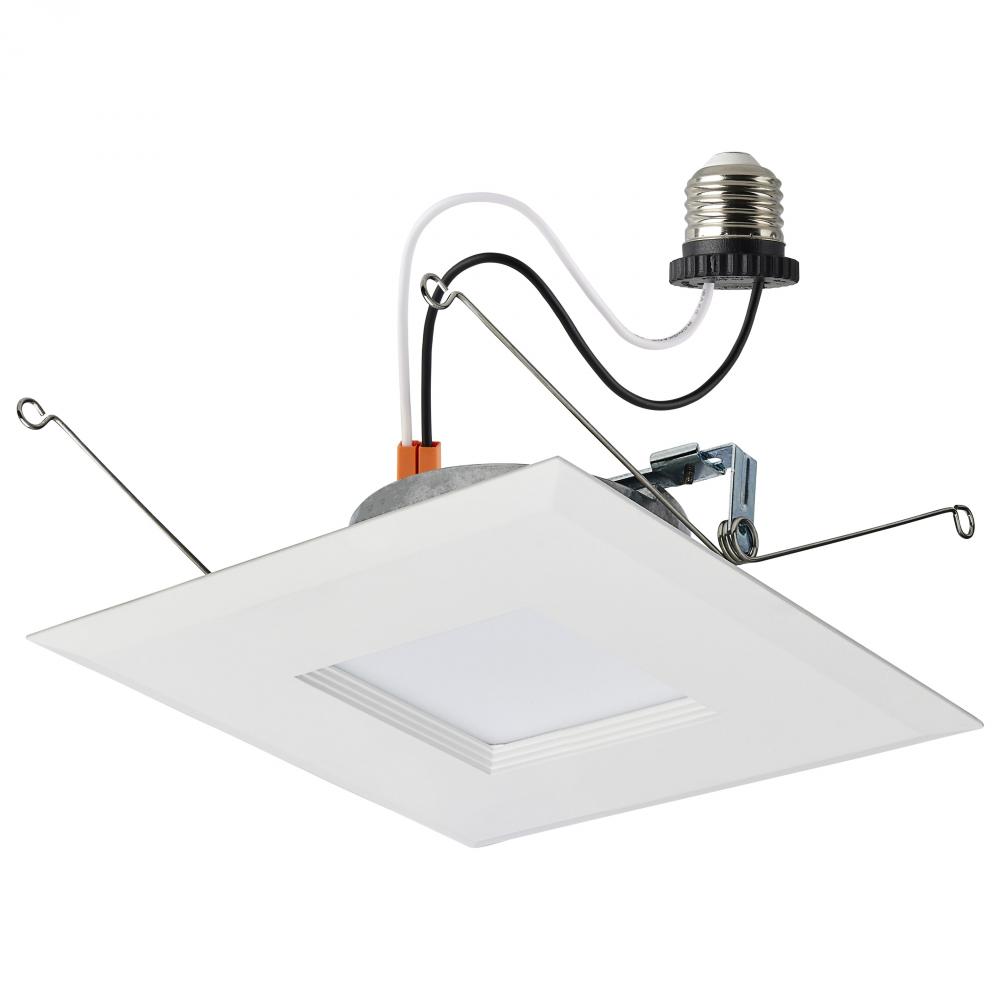

SATCO|NUVO’s S11821R1 LED Retrofit Downlight is the easy way to convert traditional recessed lighting to LED. This 5/6-inch square fixture is sized for, and comes ready with, an E26 base adapter for instant illumination when installed with existing cans.

Material:

Aluminum

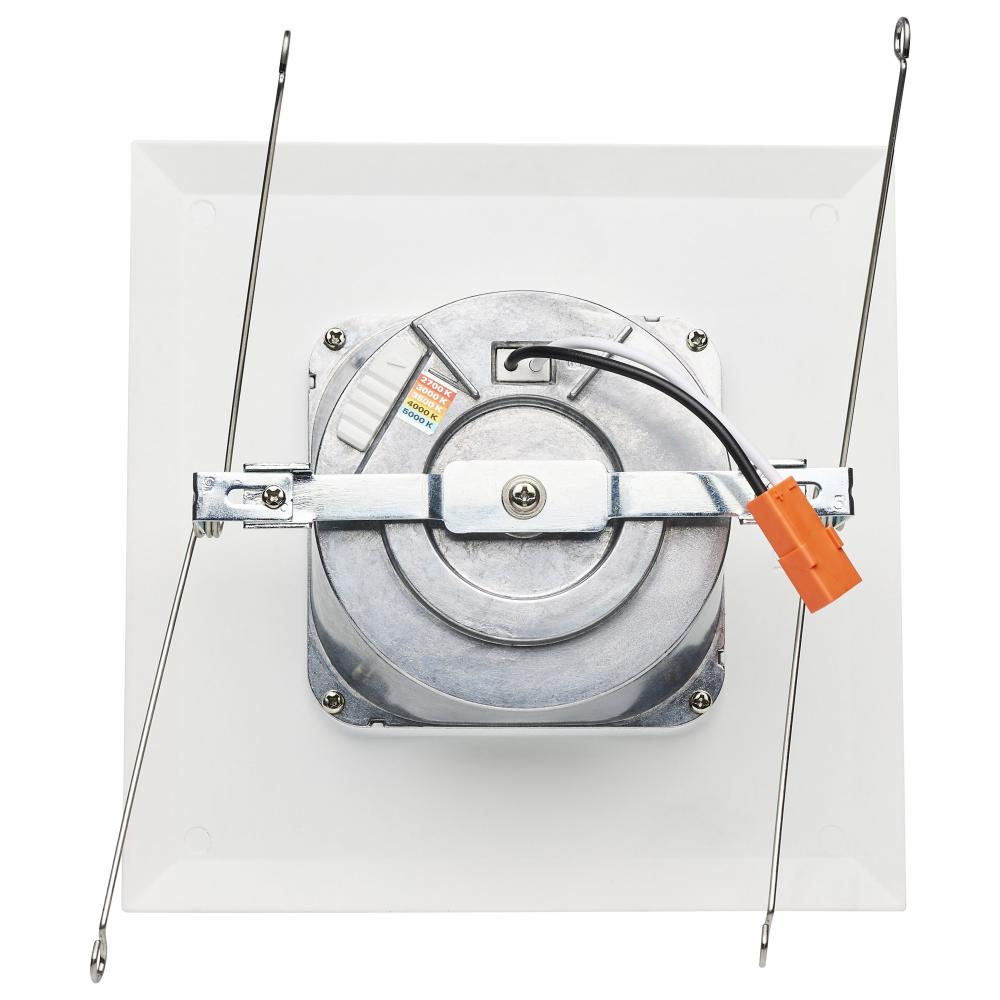

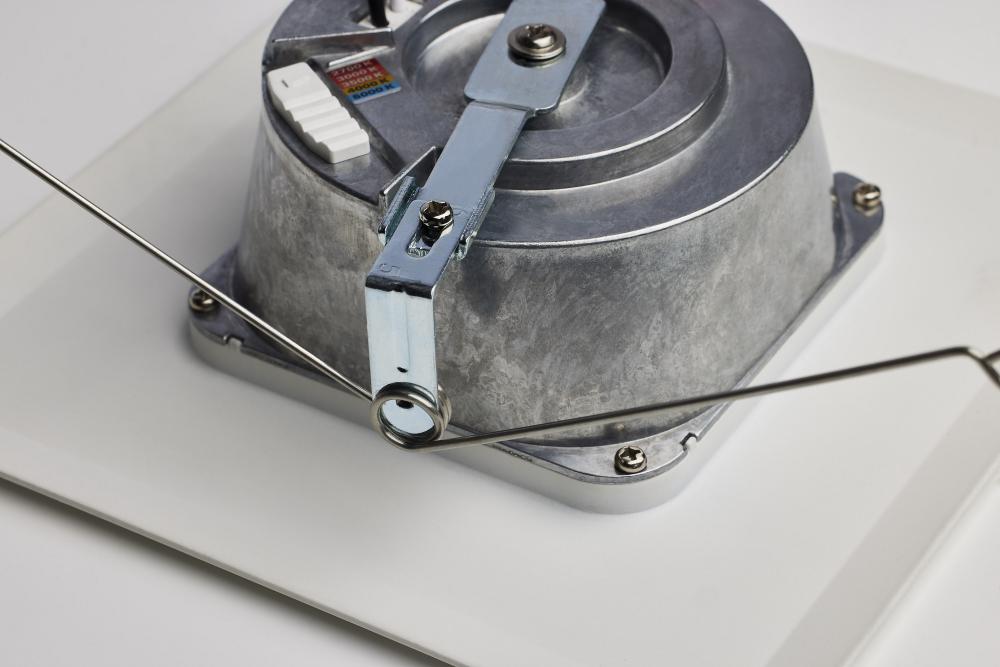

Mounting Procedure:

Recessed Retrofit

Operating Frequency:

60Hz

Operating Temprature:

-20C (-4F) to +40C (+104F)

Pack Type:

Box

Power Factor:

0.9

Quantity In Pack:

R9 Value:

Replaceable Light Source:

RoHS Compliant:

Yes

Romance Copy:

SATCO|NUVO’s LED Retrofit Downlights are the easy way to convert traditional recessed lighting to LED. Offered in 4-inch and 5/6-inch models, these fixtures are sized for, and come ready with, an E26 base adapter for instant illumination when installed w

Safety Listing:

cETLus - Listed

SDS class:

LED_Fixture

Short Description:

9WLED/RDL/5-6/5CCT-SEL/SQ

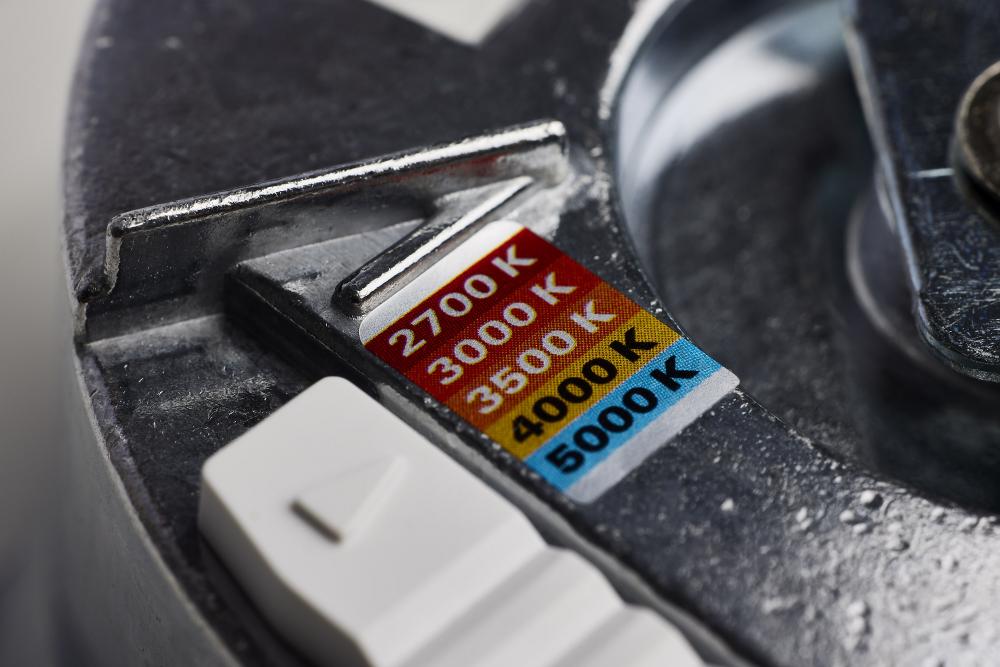

Temperature (CCT):

2700K/3000K/3500K/4000K/5000K

Title 20 Compliant:

Yes

Title 24 Compliant:

Yes

Trim Color:

White

Wattage Selectable:

Weight Lb.:

0.68
