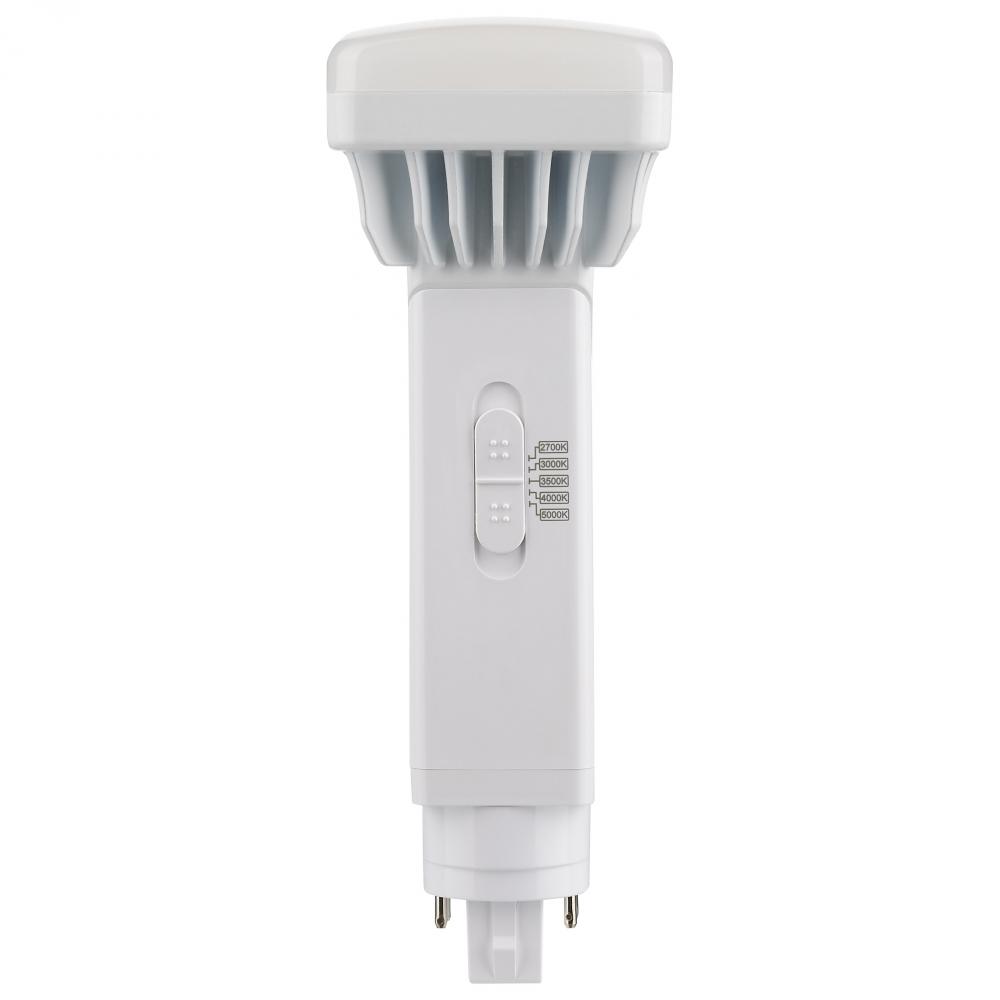

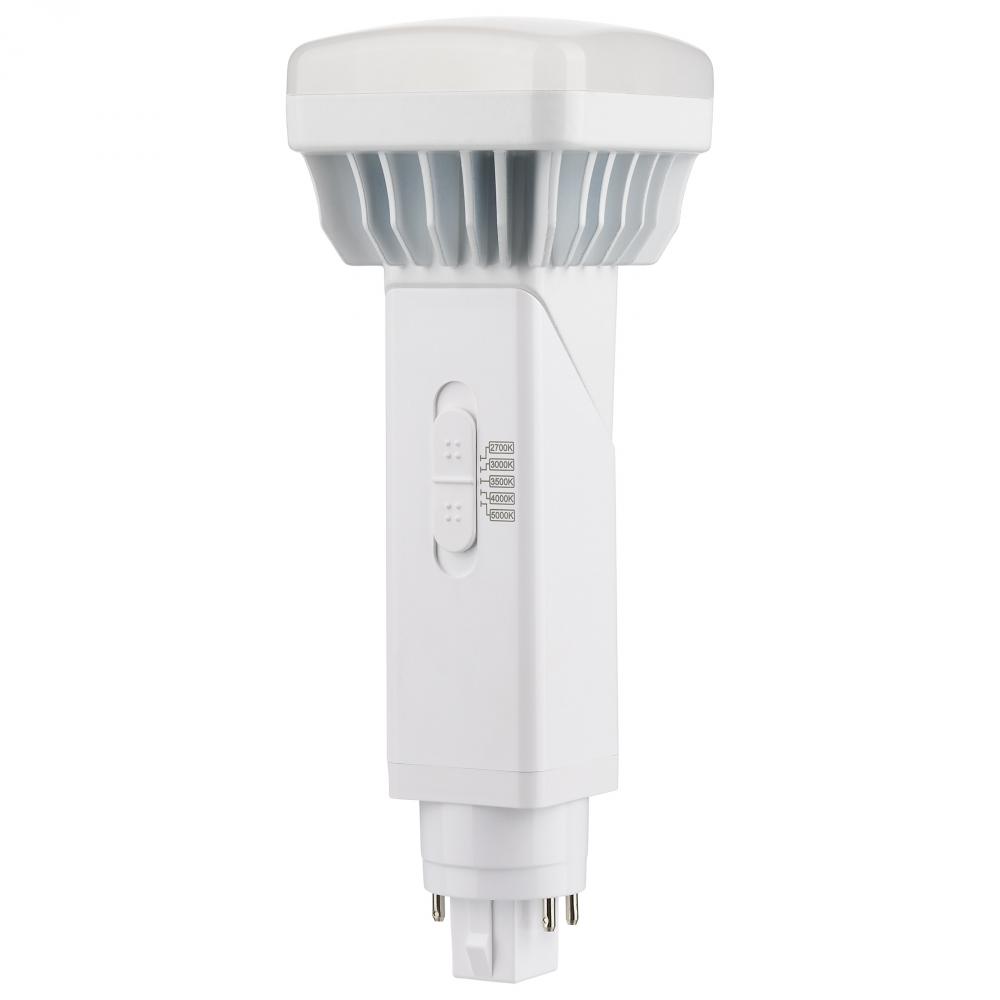

9 Watt PL 4-Pin LED; 1100 Lumens; G24q Base; CCT Selectable; White Finish; 120-277 Volts : X3RQF

Return to Catalog

Part Number: X3RQF / Vendor ID #: 27

9 Watt PL 4-Pin LED; 1100 Lumens; G24q Base; CCT Selectable; White Finish; 120-277 Volts

$27.38

Item Sales Info

Add To Wishlist

Compare Item

Availability

Manufacturer has 4908 items available.

Dimensions

Width: 2.36"

Product Overview

9 Watt PL 4-Pin LED; 1100 Lumens; G24q Base; CCT Selectable; White Finish; 120-277 Volts

Standard Information

Category:

Light Bulbs

Subcategory:

LED Bulbs

Lumens:

801-1100

Kelvin:

2501-3000

Refinement Options

Category:

LED

Sub-Category:

LED CFL Replacements Pin Based

Volts:

120V-277V

Bulb Hours:

50000

Bulb Kelvin:

2700K/3000K/3500K/4000K/5000K

Bulb Shape:

Diameter:

2.36

EA Length:

2.44

Harmonized Codes:

8539.52.0091

Length:

6.76

Lumens:

1100L

Shap Carton Width:

2.44

Ship Carton Height:

6.89

Ship Weight:

0.53

Warranty:

5 Year Limited - 10 hr per day

Weight:

0.4

BAA Compliant:

Ballast Bypass Direct:

Dual

Ballasting Requirements:

Ballast required (Type A) or Ballast Bypass (Type B)

Beam Spread:

120

Bulb ANSI Base:

G24q-4

Bulb Base:

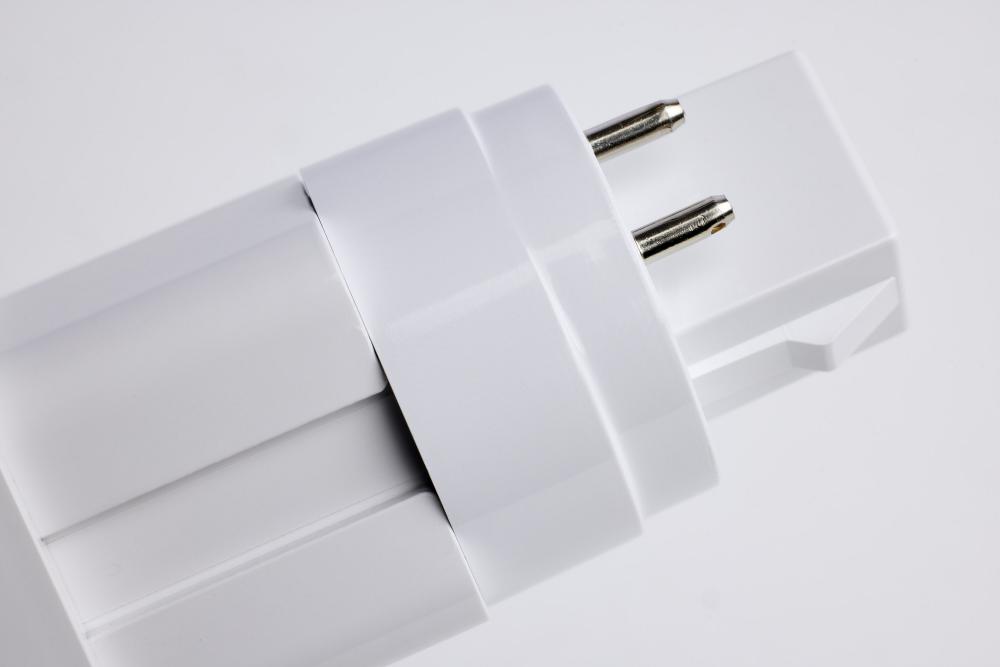

G24q (4-Pin)

Bulb Finish:

White

Burning Position:

Universal

Carton Cubic Feet:

0.0237

Cartons Per Unit:

CCT Selectable:

Yes

CEC:

Exempt - Base Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Color Temprature:

Warm White to Natural Light

Country Of Origin:

China

CRI:

Dimmable Function:

Only Dimmable with Compatible Dimming Ballasts

DLC Approved:

Efficacy:

122.22 LPW

Enclosed Fixture Use:

FCC Compliant:

Yes

Feature 1:

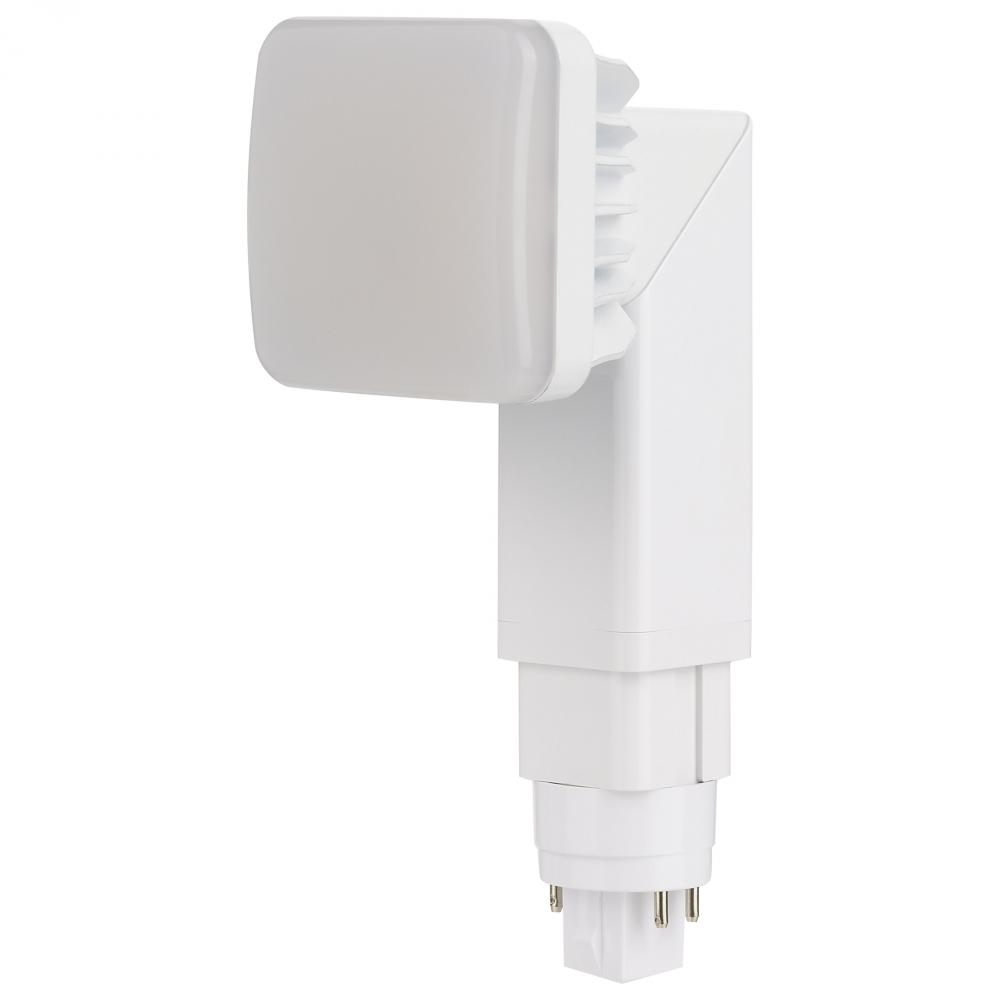

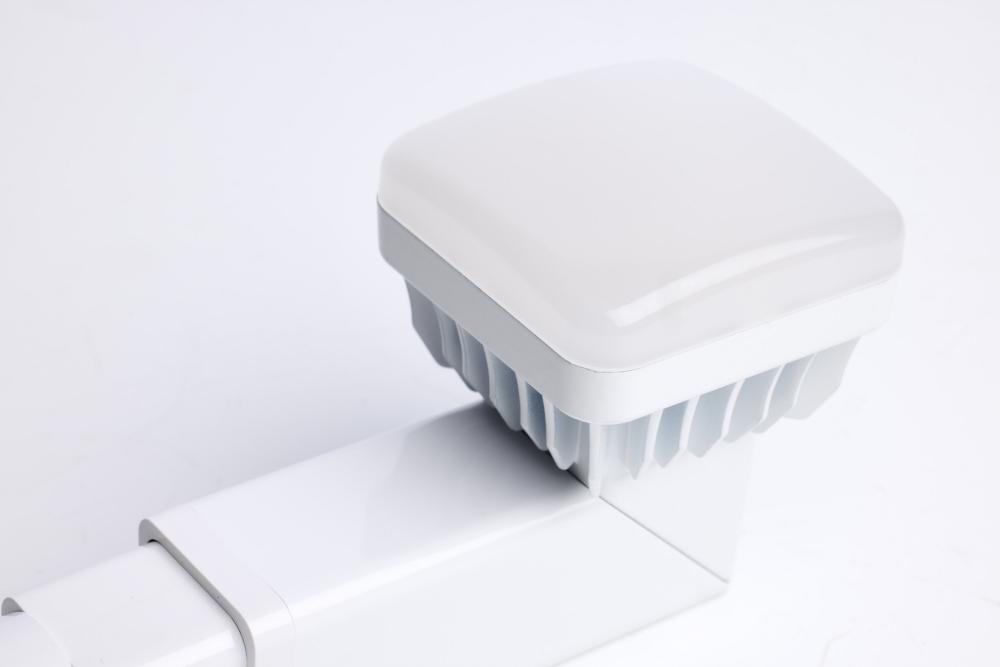

90 Degree Rotatable and lockable head and end-cap

Feature 2:

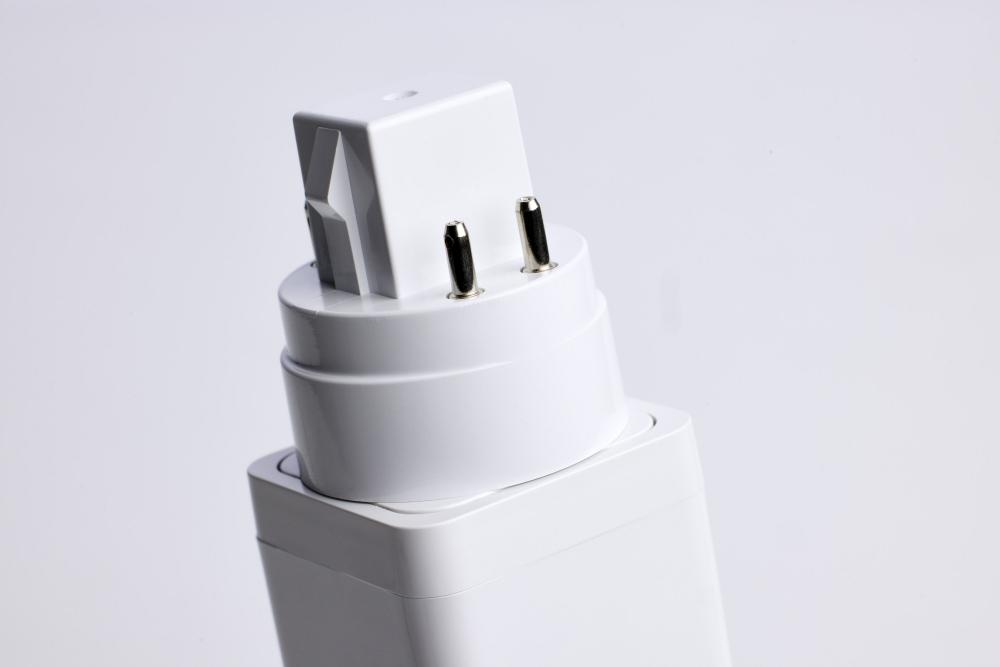

Extendable base for horizontal applications

Feature 3:

26W and 42W triple CFL bulb replacements

Feature 4:

Dual mode Type A/B

Feature 5:

5 CCT Selectable

Feature 6:

Dimmable

Feature 7:

Wet Location Rated

Feature 8:

Suggested for use in Indoor commercial downlights and high ceiling applications

Flourescent Equivalent:

26W

Housing Color:

White

Incandescent Equivalent:

40W

Indoor Outdoor:

Indoor

Installation Notes:

Suggested wattage equivalency = 26W CFL

IOT Enabled:

JA8 Compliant:

Lamp Ballast Type A/B/C:

Type A/B

Lamp Filament:

LED

Location Rating:

Damp

Long Description:

SATCO|NUVO's Dual Position 9W 4-pin PL Lamp is the perfect blend of flexibility, functionality and innovation. Designed with versatility in mind, this lamp features a 90 degree rotatable head that allows light to be directed as needed in both vertical

Material:

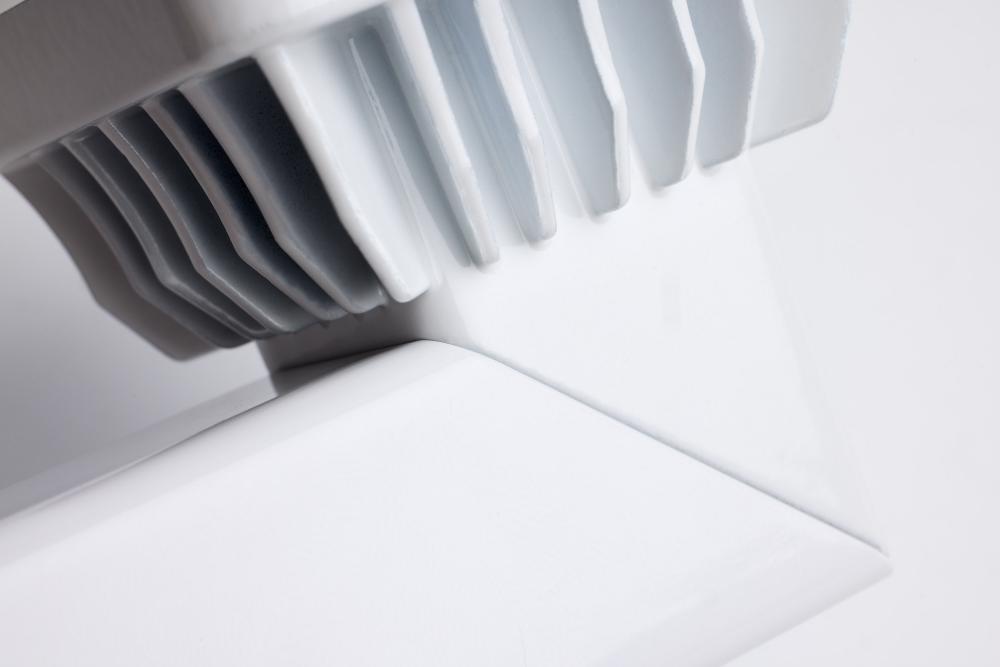

Aluminum / Polycarbonate (PC)

NSF Approved:

Yes

Operating Frequency:

50/60Hz

Operating Temp:

-20C (-4F) to +45C (+113F)

Pack Type:

Box

Power Factor:

0.9

Quantity In Pack:

R9 Value:

RoHS Compliant:

Yes

Romance Copy:

SATCO|NUVO's Dual Position PL Lamps are the perfect blend of flexibility, functionality and innovation. Designed with versatility in mind, these lamps feature a 90 degree rotatable head that allows light to be directed as needed in both vertical and ho

SDS class:

LED_Lamp

Short Description:

9PL/LED/HV/5CCT/A+B/G24Q

Style:

Transitional

Surge Protection:

Built-in surge protection - 1KV

Technology:

LED

Title 20 Compliant:

Total Harmonic Distortion:

20%

Wattage Selectable:

Watts:
