CCT and Wattage Adjustable LED Cutoff Wall Pack; Integrated Bypassable Photocell; CCT Selectable : A36J4

Return to Catalog

Part Number: A36J4 / Vendor ID #: 81

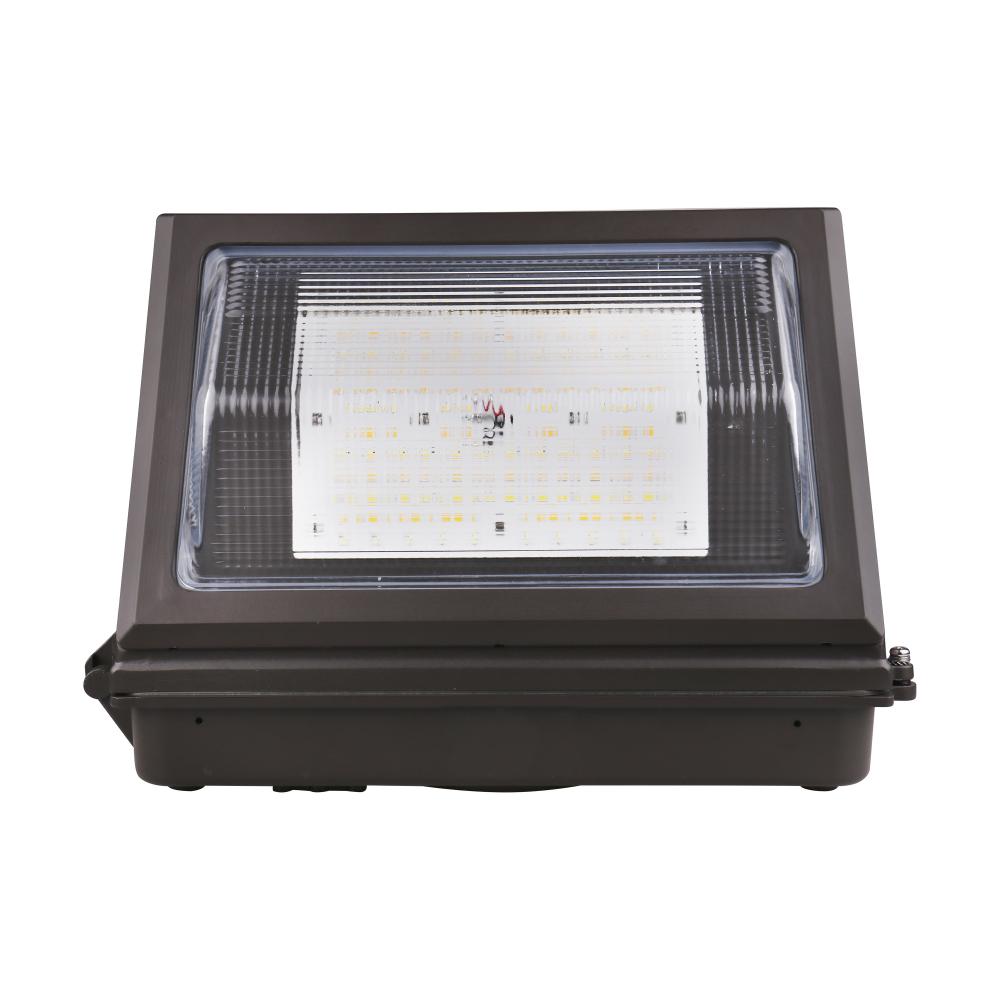

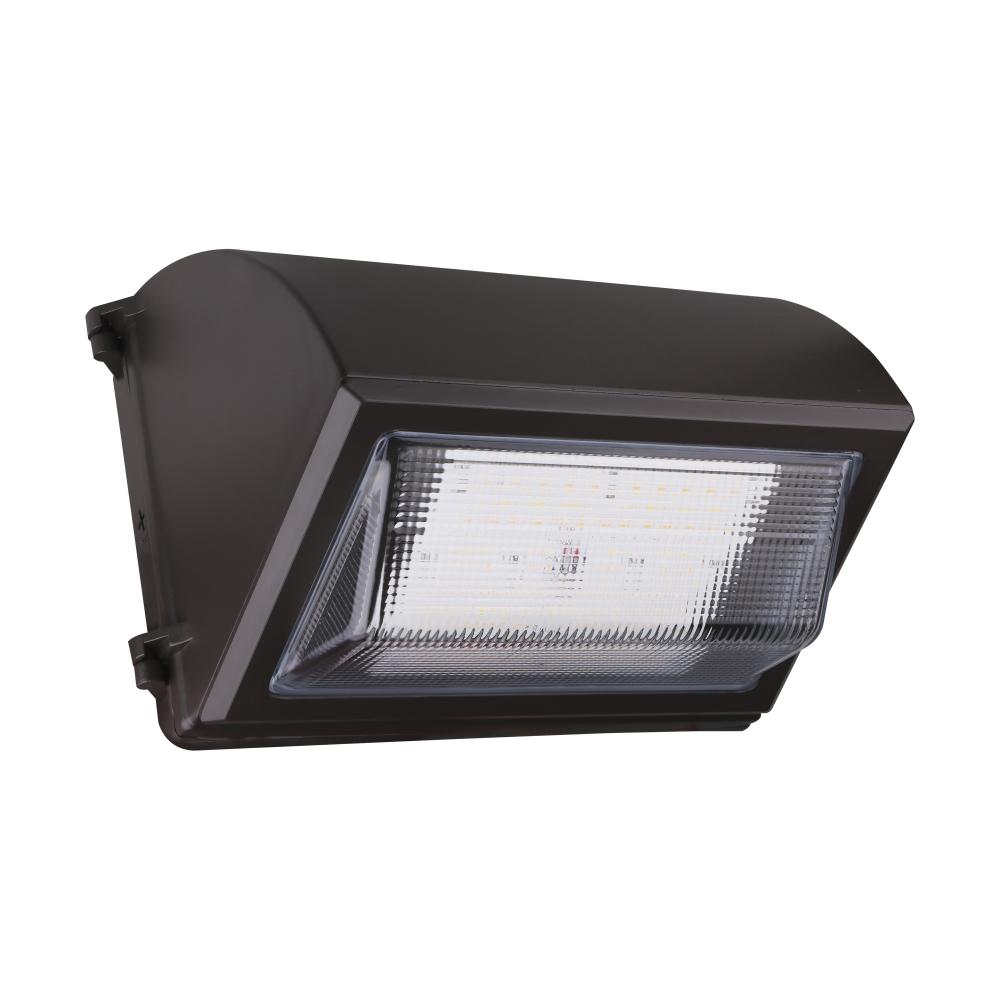

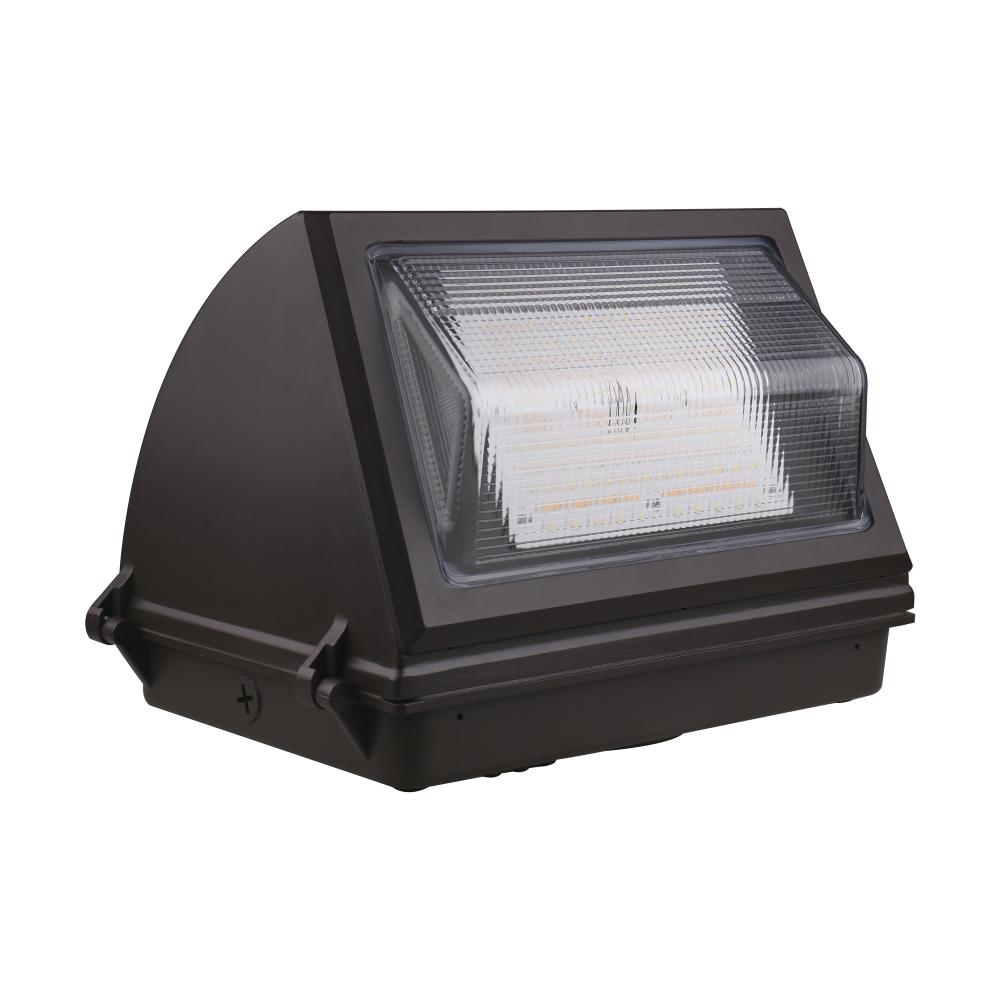

CCT and Wattage Adjustable LED Cutoff Wall Pack; Integrated Bypassable Photocell; CCT Selectable

$297.50

Item Sales Info

Add To Wishlist

Compare Item

Availability

Manufacturer has 12 items available.

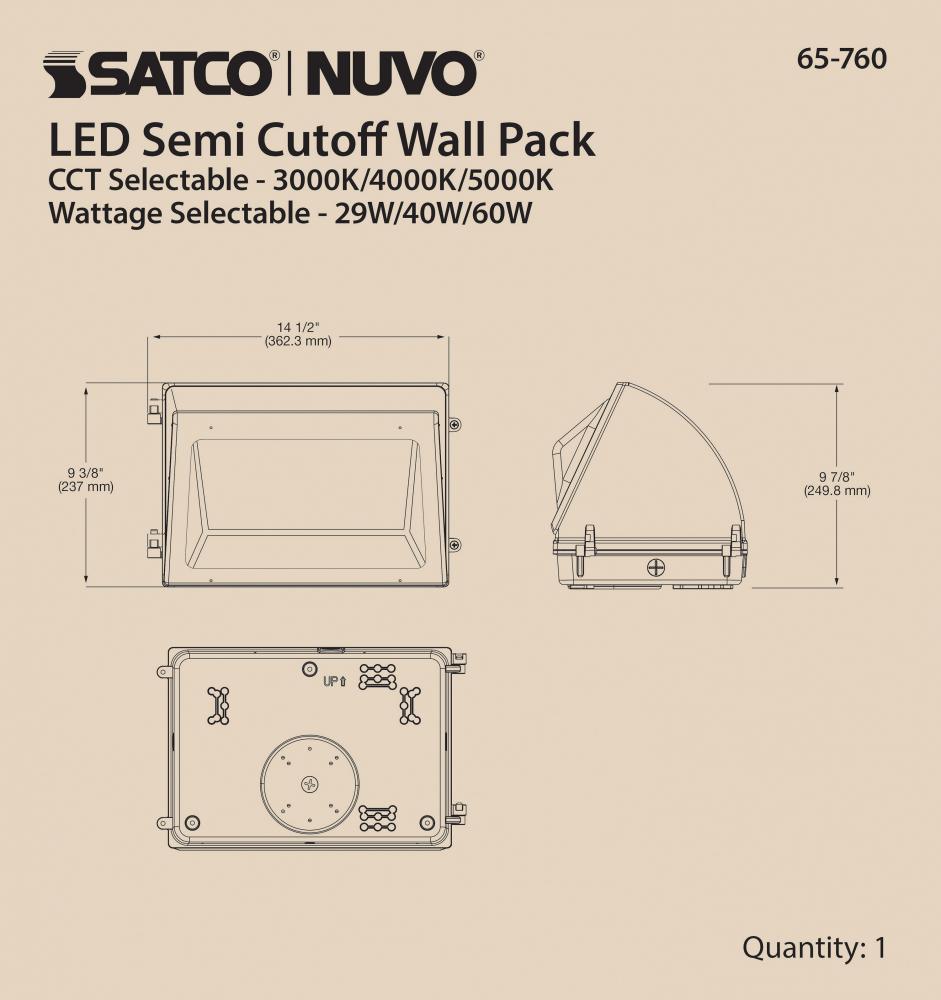

Dimensions

Height: 9.83"

Width: 14.26"

Product Overview

CCT and Wattage Adjustable LED Cutoff Wall Pack; Integrated Bypassable Photocell; CCT Selectable from 3000, 4000 or 5000K; Wattage Selectable from 29, 40, or 60 Watt; 120-277 Volt

Standard Information

Category:

Exterior

Sconces

Subcategory:

Wall Lights

Outdoor Wall Lights

Finish:

Bronze

Style:

Traditional

Option:

LED

Prop 65

Lumens:

3300+

Kelvin:

4001-4500

Refinement Options

Category:

Wall Pack

Sub Category:

Cutoff

Style:

Traditional

Avg Rated Hours:

50000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Warm to Cool White

Dimmable:

Yes-Dimmable

Each Height:

12.6

Each Length:

15.75

Each Width:

11.81

Lumens:

3915L-8400L

Tariff Code:

9405.42.6000

Warranty:

5 Year Limited - Fixtures

Amps:

0.242-0.105/0.333-0.144/0.500-0.217A

ANSI Base:

Integrated

BAA Compliant:

Beam Angle:

110

B_U_G_Rating:

B2-U3-G3

CA Prop-65:

Lead

CCT Selectable:

Yes

CEC:

T20 Exempt - Fixtures Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Connection:

Hardwire

Country Of Origin:

Vietnam

CRI:

80+

Dimmable Down To:

100 to 20 percent

Dimmable Function:

0-10V Dimming Only

DLC Classification:

Premium

DLC Primary Use:

Outdoor Non-Cutoff and Semi-Cutoff Wall-Mounted Area Luminaires

Each Cube:

1.3563

Each Quantity:

Efficacy:

135.00/153.94/140.00 LPW

FCC Compliant:

Yes

Feature 1:

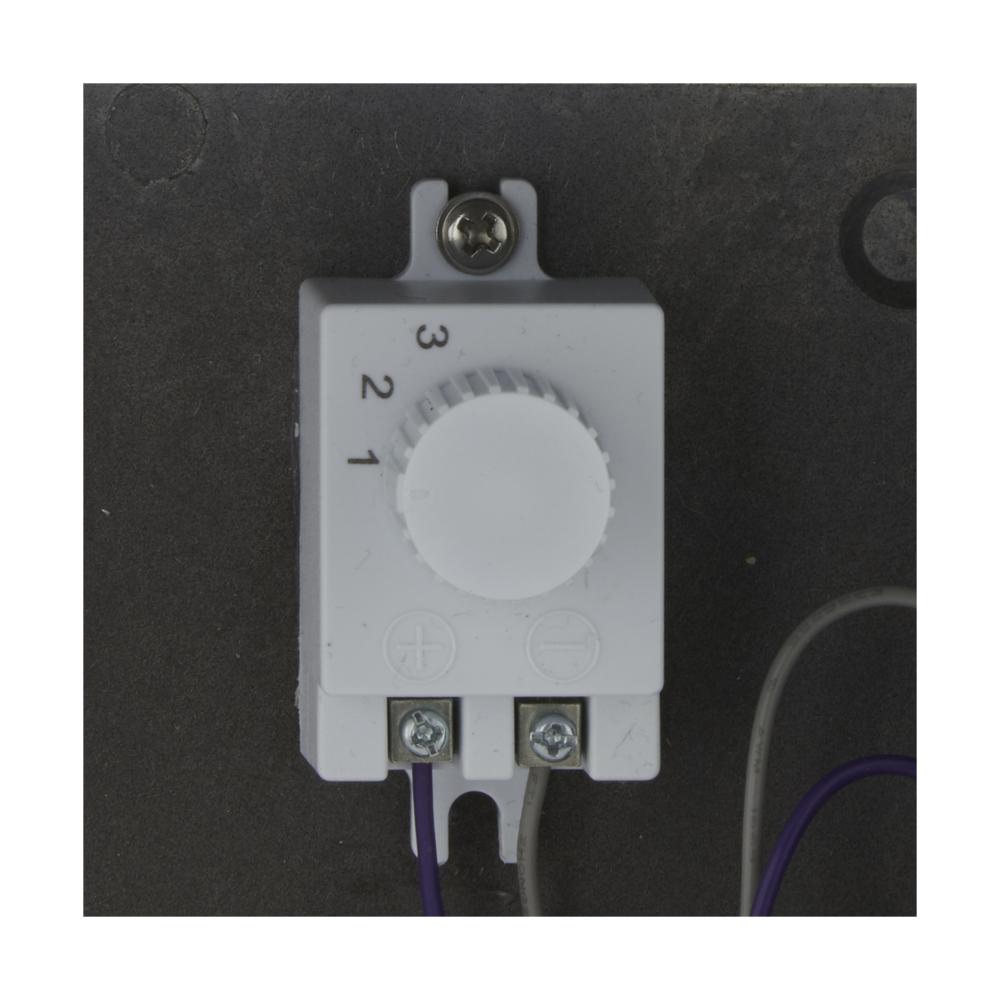

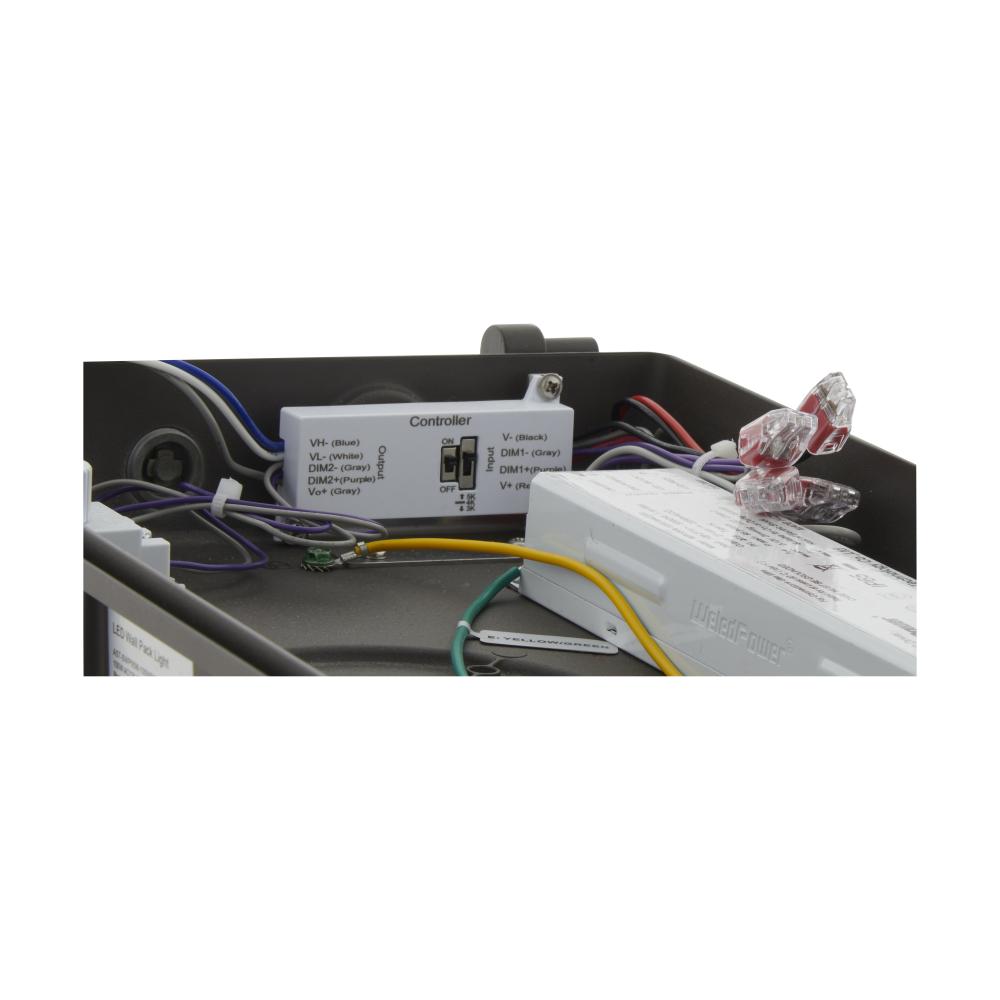

Wattage Selectable 29W/40W/60W

Feature 2:

CCT Selectable 3000K/4000K/5000K

Feature 3:

Integrated by-passable photocell

Feature 4:

10KV Surge Protection

Feature 5:

50,000 Hours

Feature 6:

DLC Premium

Feature 7:

5 Year Warranty

Finish Family:

Bronze

HID Equiv:

75W-175W

Incandescent Equivalent:

200W-500W

Indoor Outdoor:

Indoor;Outdoor

IOT Enabled:

IP Rating:

IP65

JA8 Compliant:

Lens Material:

Glass

Long Description:

Introducing 65-760, SATCO|NUVO's new CCT and Wattage selectable wall pack with integrated bypassable photocell. This cULus certified wall pack is offered in a semi-cutoff style with 29W/40W/60W wattage configurations, CCT selectable temperatures of 300

Material:

Die-Cast Aluminum

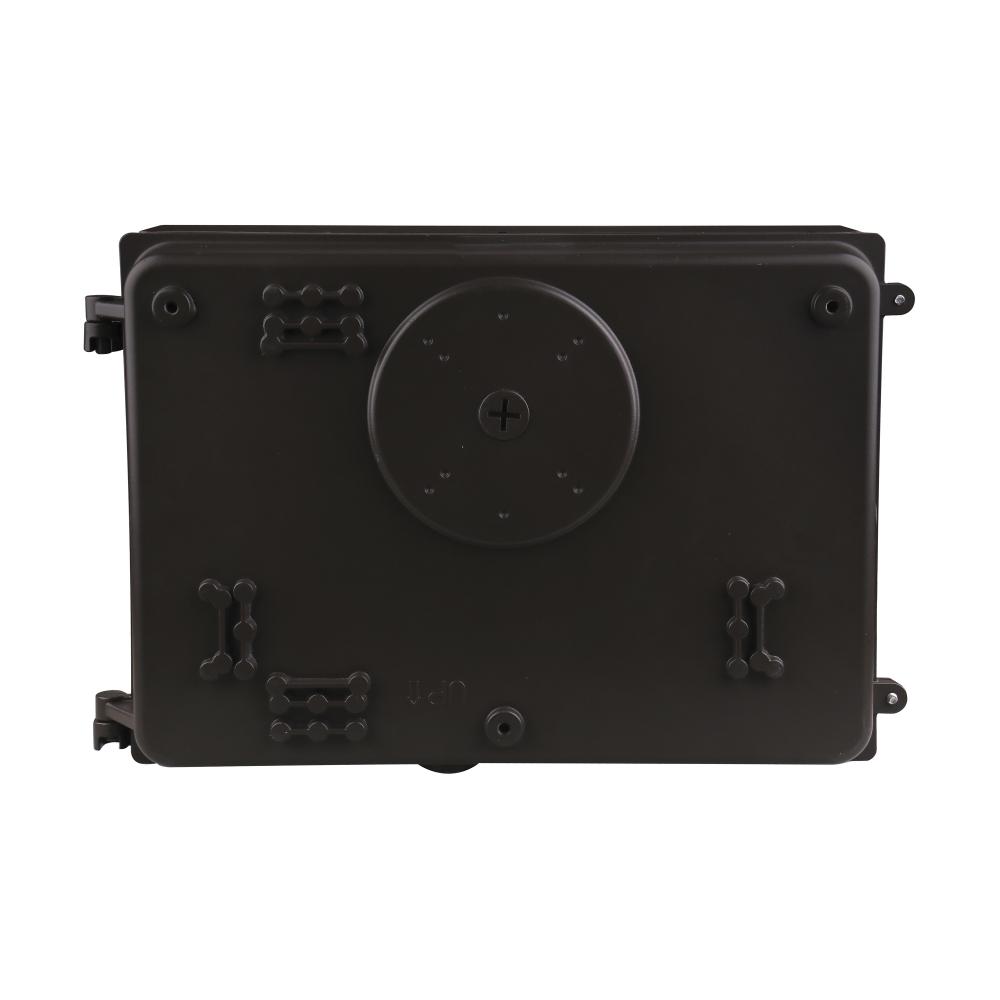

Mounting Procedure:

Wall

Operating Frequency:

50/60Hz

Operating Temp:

-40C (-40F) to +50C (+122F)

Pack Type:

Box

Photocell:

Yes - Bypassable

Power Factor:

>0.9

Quantity In Pack:

Replaceable Light Source:

RoHS Compliant:

Yes

Romance Copy:

Introducing SATCO|NUVO's new CCT and Wattage selectable wall packs with integrated by-passable photocells. These cULus certified wall packs are offered in a traditional style and semi-cutoff style in two wattage configurations, 29W/40W/60W and 80W/100W

Safety Listing:

cULus - Listed

SDS class:

LED_Fixture

Short Description:

LED CUTOFF WALL PACK CCT&WATT

Temperature (CCT):

3000K/4000K/5000K

Title 20 Compliant:

Title 24 Compliant:

Total Harmonic Distortion:

15%

Wattage Selectable:

Yes

Weight Lb.:

10.5
