Field Selectable LED Downlight Retrofit; Deep Baffle; 5.8/7/9.5 Watts; 27K/30K/35K/40K/50K CCT; 4 : X6QDZ

Return to Catalog

Part Number: X6QDZ / Vendor ID #: 27

Field Selectable LED Downlight Retrofit; Deep Baffle; 5.8/7/9.5 Watts; 27K/30K/35K/40K/50K CCT; 4

$29.88

Item Sales Info

Add To Wishlist

Compare Item

Availability

Manufacturer has 722 items available.

Dimensions

Height: 3.25"

Width: 5.12"

Product Overview

Field Selectable LED Downlight Retrofit; Deep Baffle; 5.8/7/9.5 Watts; 27K/30K/35K/40K/50K CCT; 4 Inch; Round Shape; White Finish; 120 Volts

Standard Information

Category:

Recessed Ltg.

Subcategory:

Other Recessed Ltg.

Finish:

White

Option:

Energy Star

LED

Prop 65

Refinement Options

Category:

Recessed

Sub Category:

Retrofits

Style:

Utility

Bulb Hours:

50000

Bulb Kelvin:

Warm White to Natural Light

Bulb Shape:

Integrated LED

Bulb Type:

LED

Diameter:

5.12

Dimmable:

Yes-Dimmable

Harmonized Codes:

8539.52.0091

Lumens:

600L/750L/900L

Ship Carton Height:

5.31

Ship Carton Length:

5.31

Ship Carton Width:

3.43

Warranty:

5 Year Limited - Fixtures

Air Tight:

Amps:

0.050/0.062/0.080A

ANSI Base:

E26 Adapter

Beam Spread:

CA Prop-65:

Lead

Can Size:

4 in.

Carton Cubic Feet:

0.056

Cartons Per Unit:

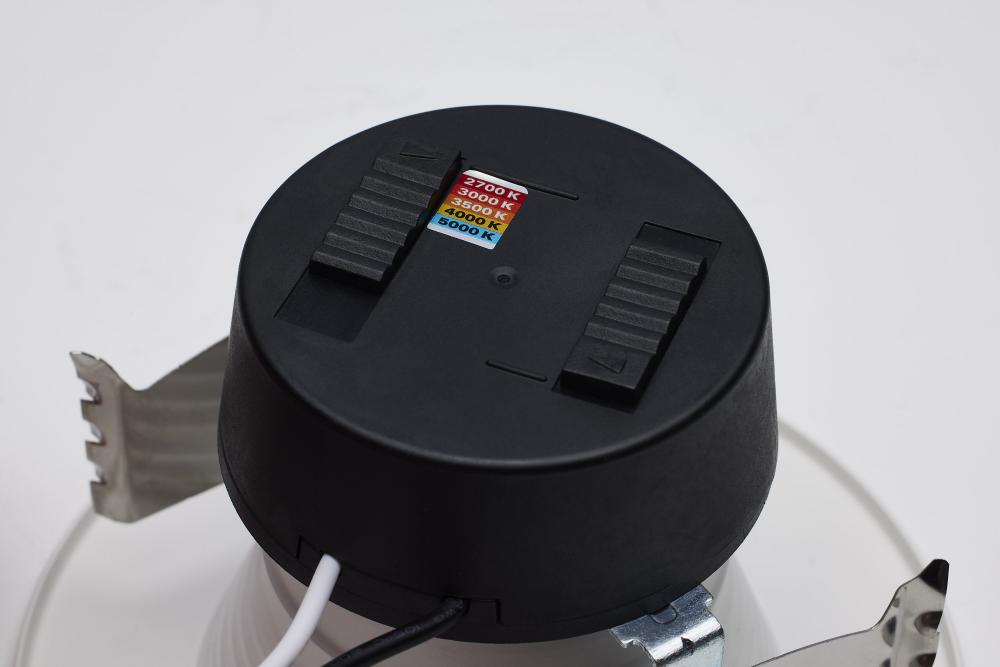

CCT Selectable:

Yes

CEC:

California T24 2016 - 2022 JA8 Listed; T20 Listed

CEC Terse:

Lawful for sale in California

CEC Web Text:

California T24 Listed

Ceiling Aperture:

4.00 in. Cutout

Connection:

Connector or Adapter

Country Of Origin:

China

CRI:

Dimmable Down To:

100 to 10 percent

Dimming Type:

Phase cut

Efficacy:

103.45/107.14/94.74 LPW

ES Unique ID:

ESID-3354723

FCC Compliant:

Yes

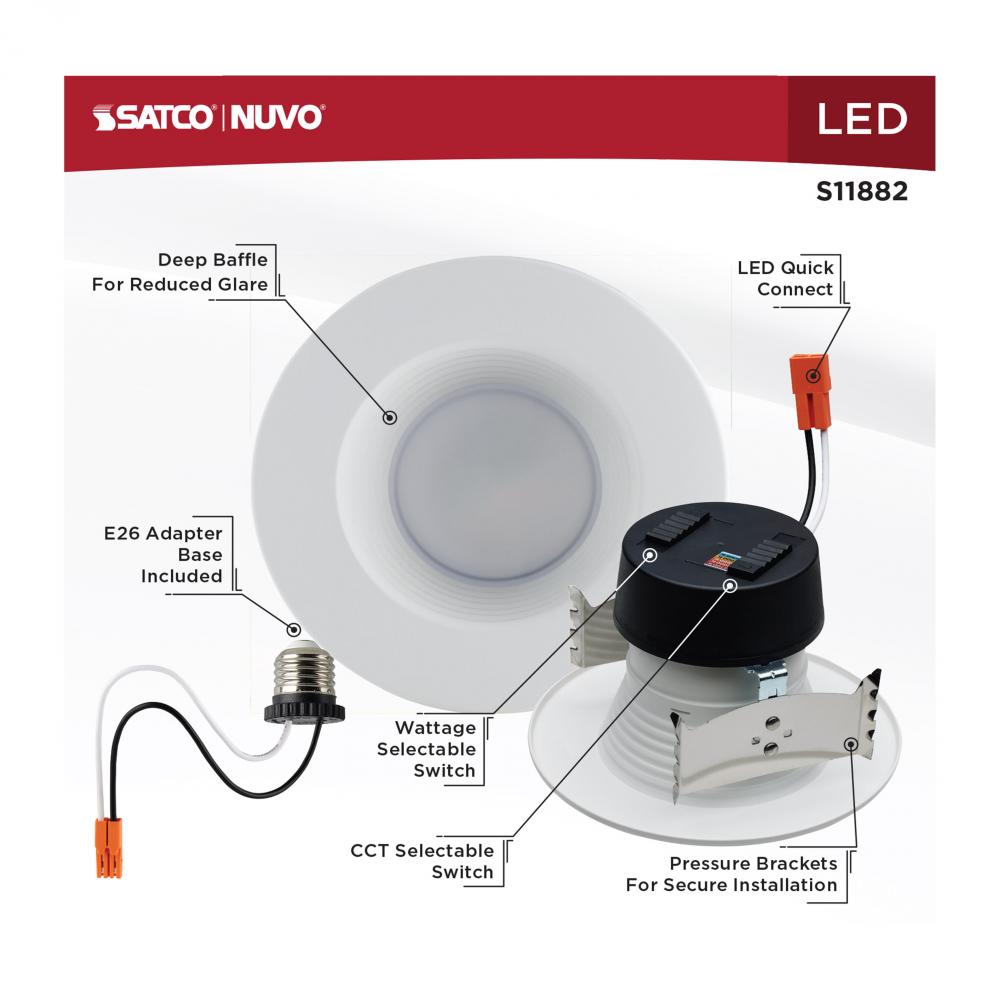

Feature 1:

CCT and Wattage Selectable

Feature 2:

Stepped Baffle for Reduced Glare

Feature 3:

Dimmable

Feature 4:

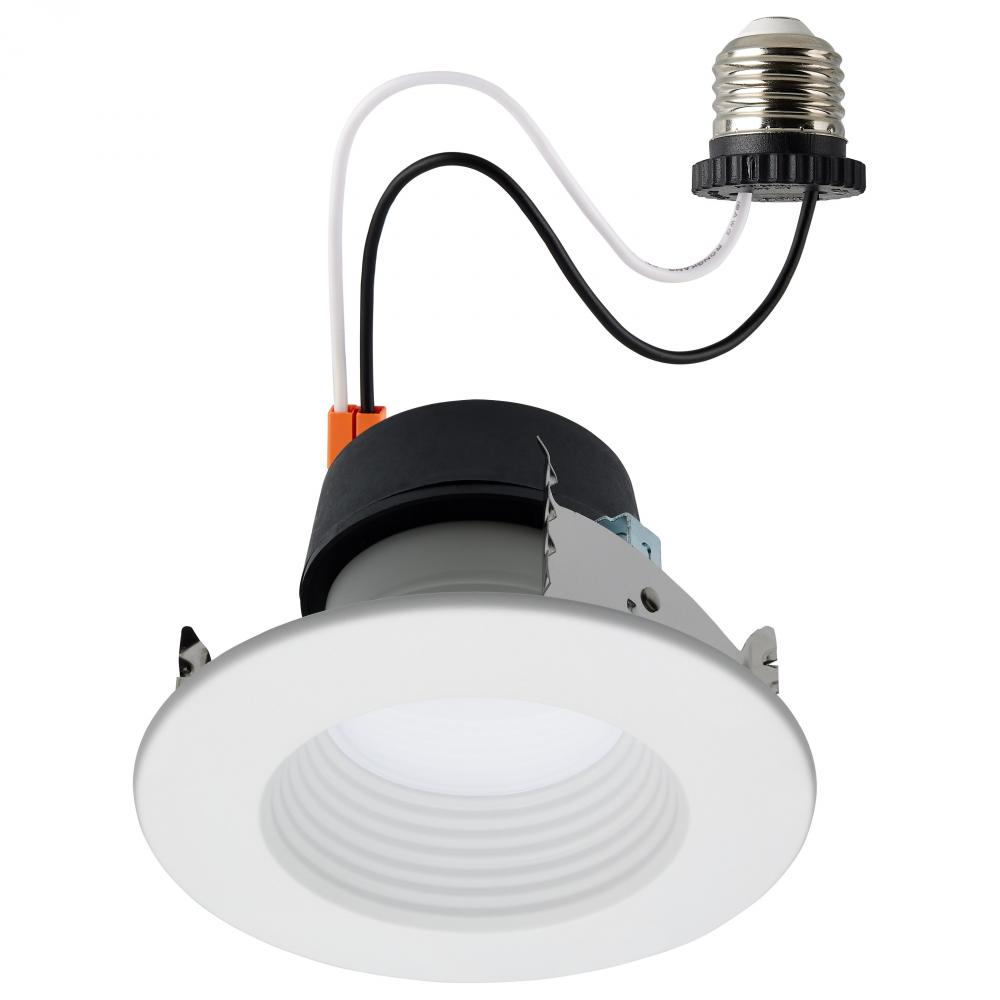

E26 Adapter Included

Feature 5:

90 CRI

Feature 6:

Wet Location Rated

Feature 7:

Accessories available to meet Non-Conductive "Dead-Front" Trim Requirements

Feature 8:

50,000 Hour Functional Life

Finish Family:

White

Fixture shape:

Round

IC Rated:

Incandescent Equivalent:

60W

Indoor Outdoor:

Indoor

JA8 Compliant:

Yes

Lens Material:

Polycarbonate (PC)

Long Description:

SATCO|NUVO’s S11882 4-inch round field selectable deep baffle retrofit downlight is designed with the look of sophistication in mind. The deep stepped baffle crafted on this downlight drastically reduces glare and with a high CRI rating of 90, users can

Material:

Aluminum

Mounting Procedure:

Ceiling

Operating Frequency:

60Hz

Operating Temprature:

-20C (-4F) to +40C (+104F)

Pack Type:

Color Box

Power Factor:

0.94

Quantity In Pack:

Replaceable Light Source:

RoHS Compliant:

Yes

Romance Copy:

SATCO|NUVO’s LED Field Selectable Deep Baffle Retrofit Downlights are designed with the look of sophistication in mind. The deep stepped baffle crafted on these downlights drastically reduces glare and with a high CRI rating of 90, users can enjoy enhanc

Safety Listing:

cETLus - Classified

Short Description:

9.5WLED/DLR/4/WS/5CCT/RD/DB

Temperature (CCT):

2700K/3000K/3500K/4000K/5000K

Title 20 Compliant:

Yes

Title 24 Compliant:

Yes

Total Harmonic Distortion:

<25%

Wattage Selectable:

Yes

Weight Lb.:

0.39
