Field Selectable LED Downlight Retrofit; Deep Baffle; 8/10.5/13.5 Watts; 27K/30K/35K/40K/50K CCT; : X6QE2

Return to Catalog

Part Number: X6QE2 / Vendor ID #: 27

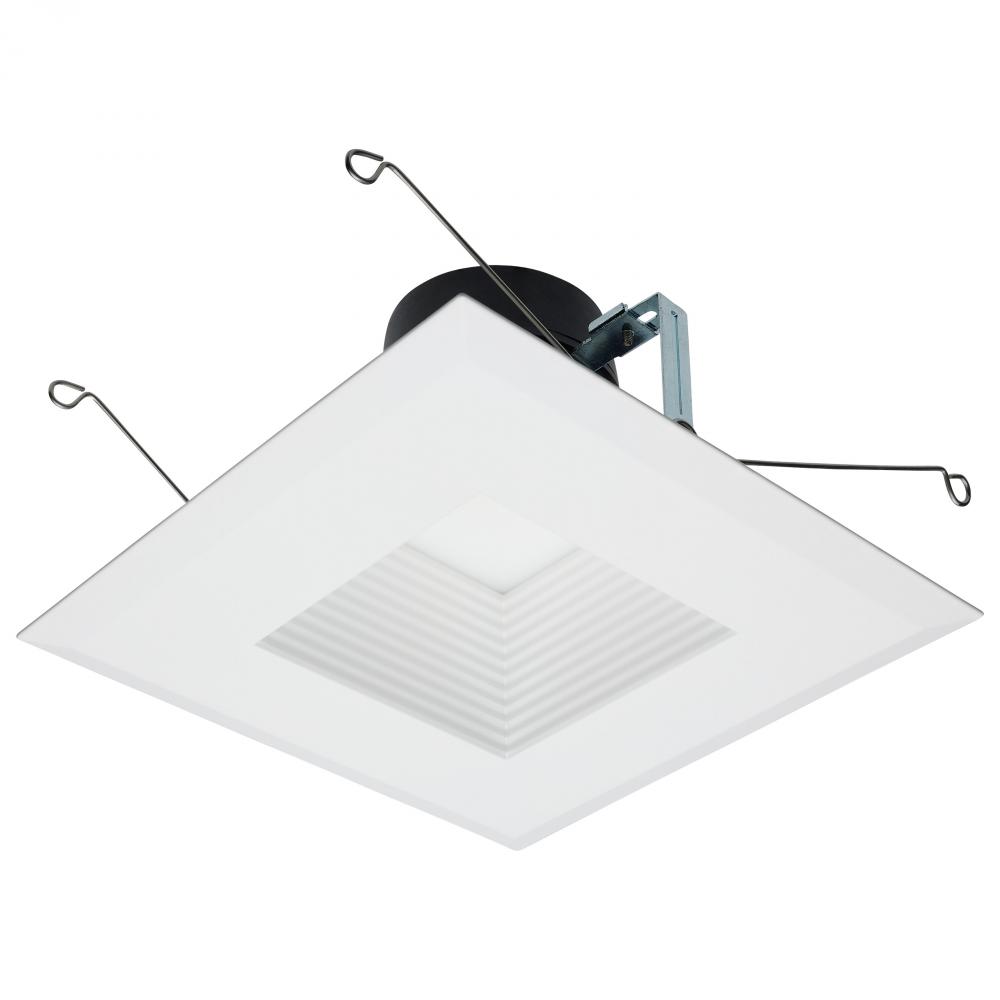

Field Selectable LED Downlight Retrofit; Deep Baffle; 8/10.5/13.5 Watts; 27K/30K/35K/40K/50K CCT;

$37.38

Item Sales Info

Add To Wishlist

Compare Item

Availability

Manufacturer has 1188 items available.

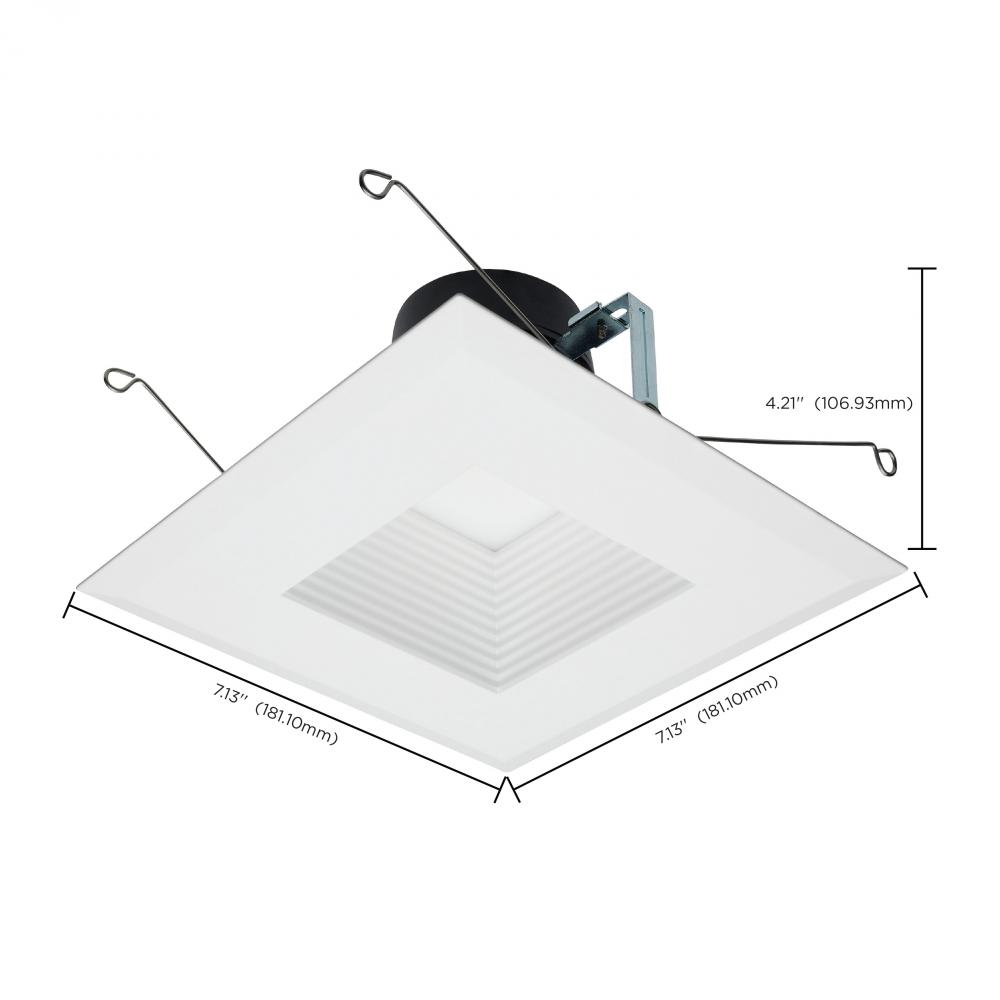

Dimensions

Height: 4.21"

Width: 7.13"

Product Overview

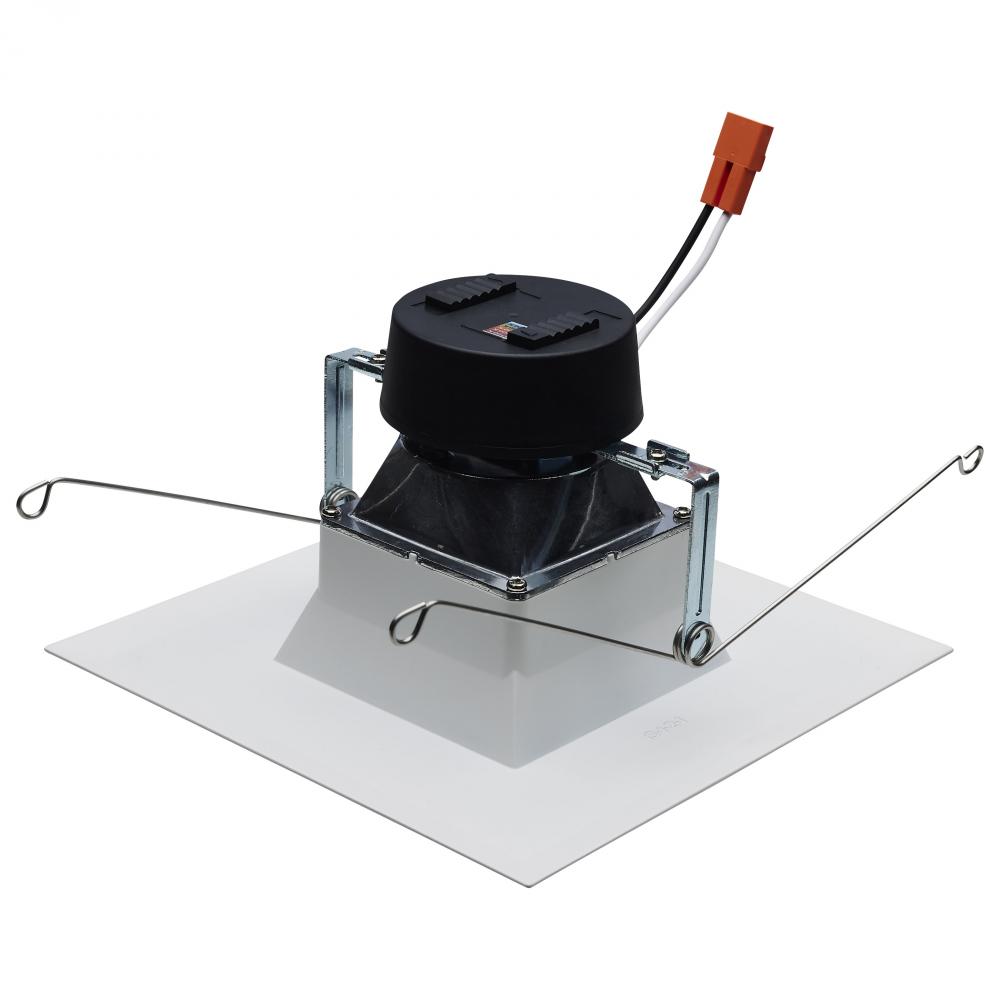

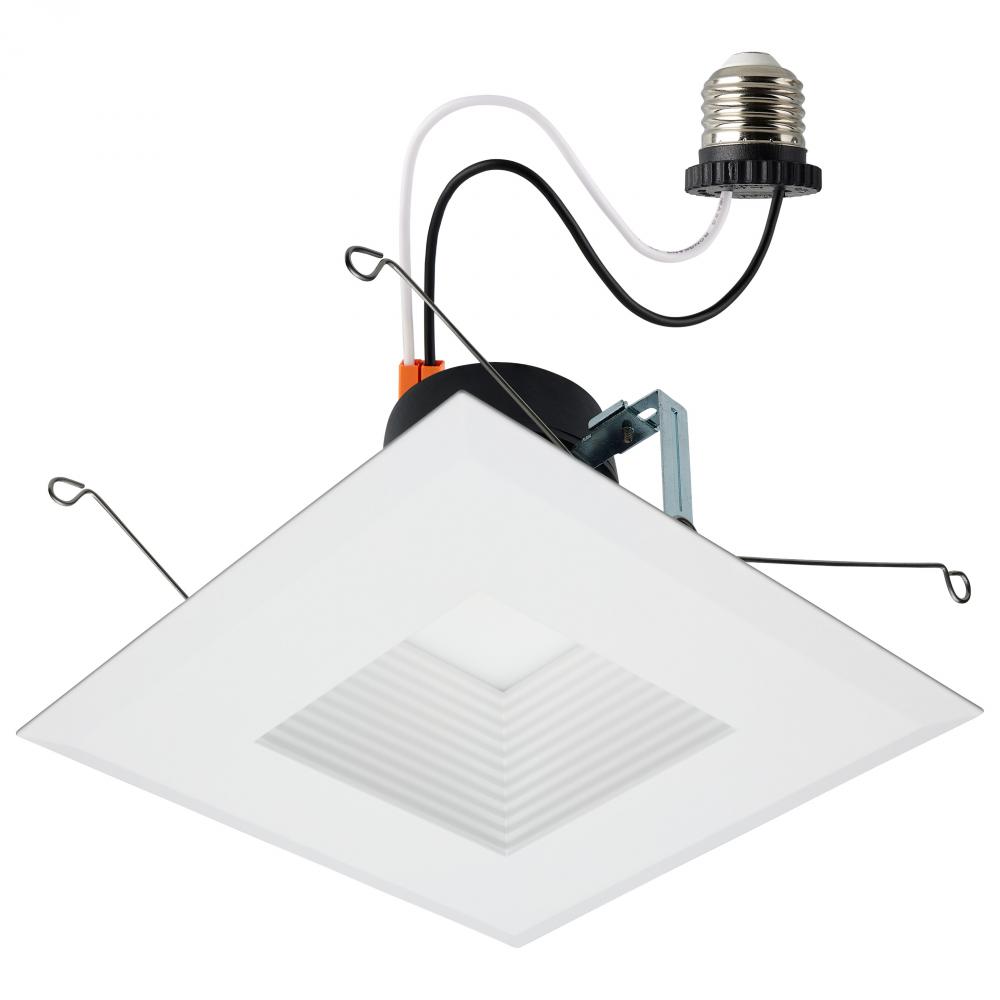

Field Selectable LED Downlight Retrofit; Deep Baffle; 8/10.5/13.5 Watts; 27K/30K/35K/40K/50K CCT; 5-6 Inch; Square Shape; White Finish; 120 Volts

Standard Information

Category:

Recessed Ltg.

Subcategory:

Other Recessed Ltg.

Finish:

White

Option:

Energy Star

LED

Prop 65

Refinement Options

Category:

Recessed

Sub Category:

Retrofits

Style:

Utility

Bulb Hours:

50000

Bulb Kelvin:

Warm White to Natural Light

Bulb Shape:

Integrated LED

Bulb Type:

LED

Dimmable:

Yes-Dimmable

Harmonized Codes:

8539.52.0091

Length:

7.13

Lumens:

800L/1000L/1200L

Ship Carton Height:

8.460000000000001

Ship Carton Length:

7.28

Ship Carton Width:

4.41

Warranty:

5 Year Limited - Fixtures

Air Tight:

Amps:

0.071/0.092/0.115A

ANSI Base:

E26 Adapter

Beam Spread:

CA Prop-65:

Lead

Can Size:

5-6 in.

Carton Cubic Feet:

0.1572

Cartons Per Unit:

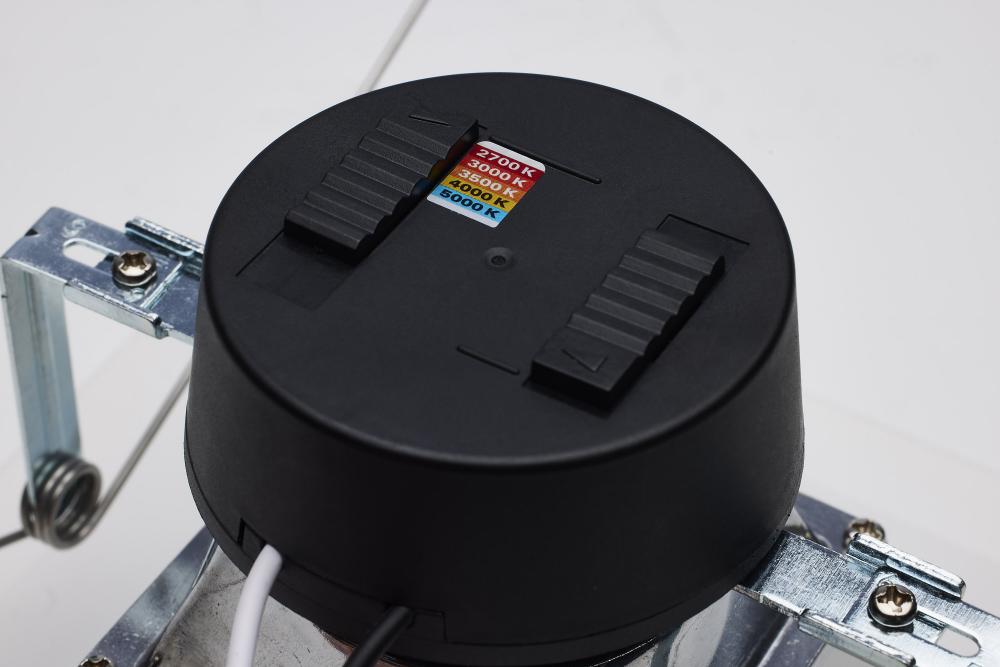

CCT Selectable:

Yes

CEC:

California T24 2016 - 2022 JA8 Listed; T20 Listed

CEC Terse:

Lawful for sale in California

CEC Web Text:

California T24 Listed

Ceiling Aperture:

5.00 in. Cutout

Connection:

Connector or Adapter

Country Of Origin:

China

CRI:

Dimmable Down To:

100 to 10 percent

Dimming Type:

Phase cut

Efficacy:

100.00/95.24/88.89 LPW

ES Unique ID:

ESID-3354724

FCC Compliant:

Yes

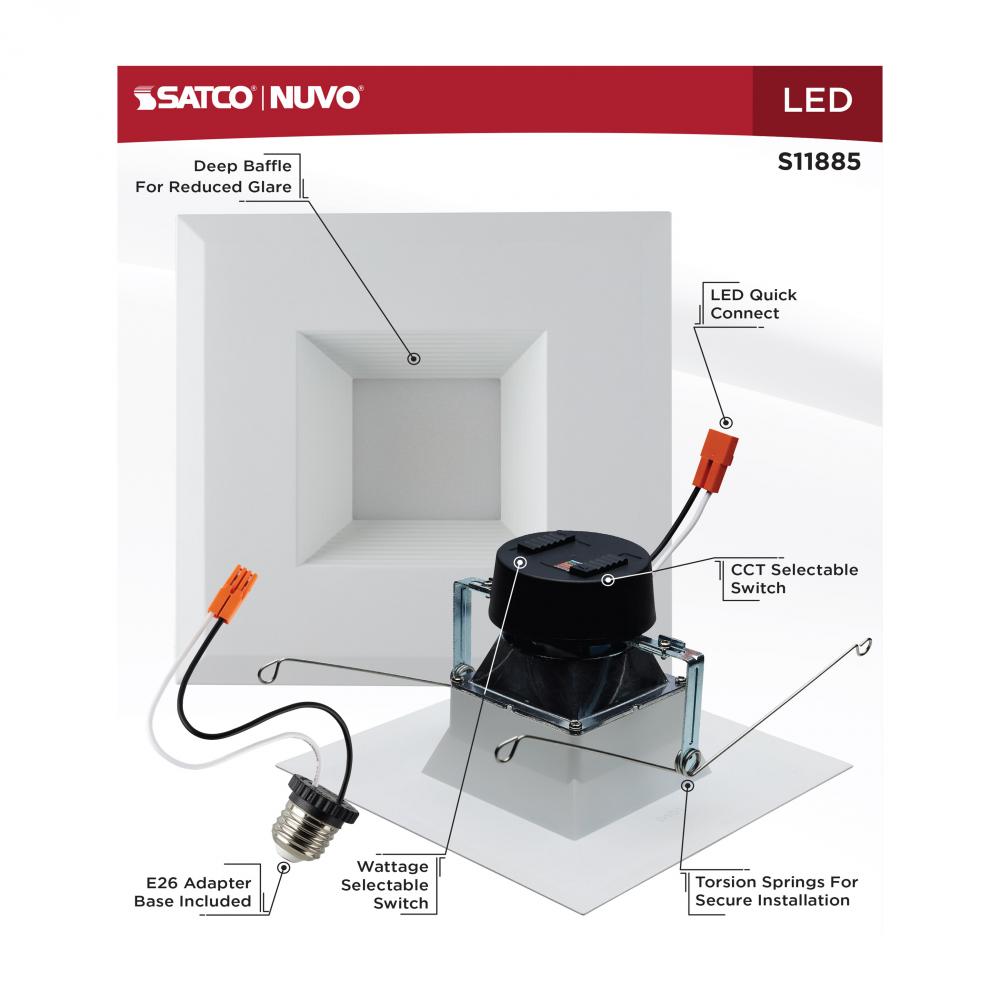

Feature 1:

CCT and Wattage Selectable

Feature 2:

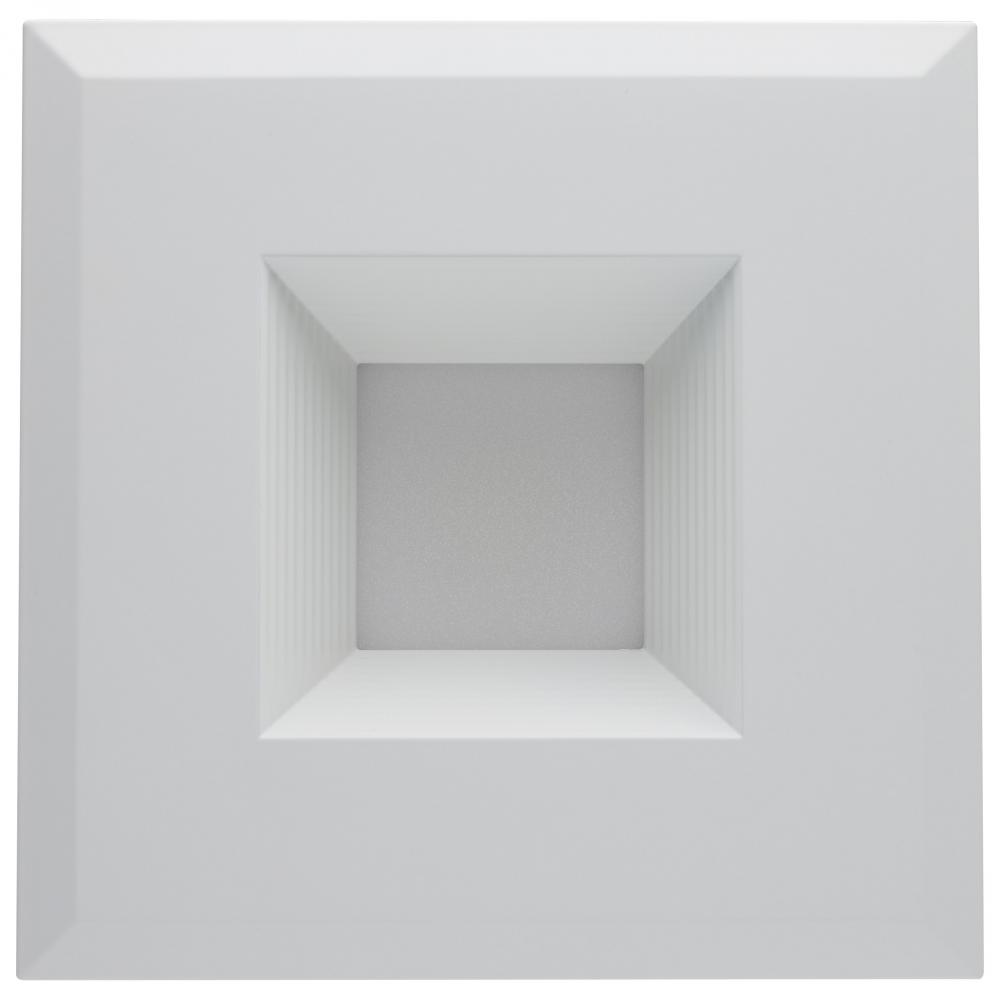

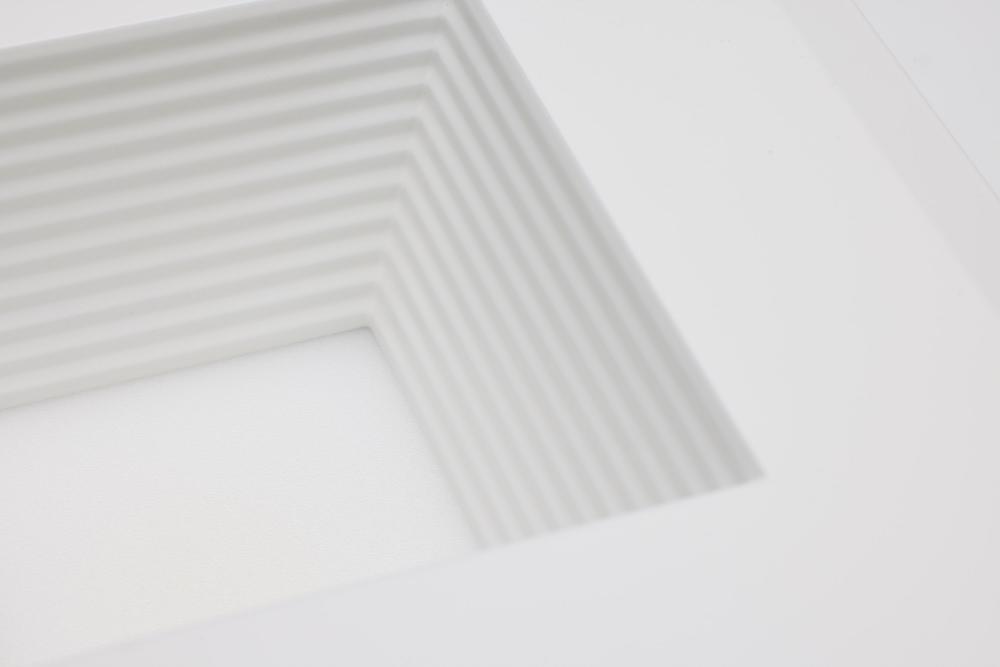

Stepped Baffle for Reduced Glare

Feature 3:

Dimmable

Feature 4:

E26 Adapter Included

Feature 5:

90 CRI

Feature 6:

Wet Location Rated

Feature 7:

Accessories available to meet Non-Conductive "Dead-Front" Trim Requirements

Feature 8:

50,000 Hour Functional Life

Finish Family:

White

Fixture shape:

Square

IC Rated:

Incandescent Equivalent:

100W

Indoor Outdoor:

Indoor

JA8 Compliant:

Yes

Lens Material:

Polycarbonate (PC)

Long Description:

SATCO|NUVO’s S11885 5/6-inch square field selectable deep baffle retrofit downlight is designed with the look of sophistication in mind. The deep stepped baffle crafted on this downlight drastically reduces glare and with a high CRI rating of 90, users c

Material:

Aluminum

Mounting Procedure:

Ceiling

Operating Frequency:

60Hz

Operating Temprature:

-20C (-4F) to +40C (+104F)

Pack Type:

Color Box

Power Factor:

0.96

Quantity In Pack:

Replaceable Light Source:

RoHS Compliant:

Yes

Romance Copy:

SATCO|NUVO’s LED Field Selectable Deep Baffle Retrofit Downlights are designed with the look of sophistication in mind. The deep stepped baffle crafted on these downlights drastically reduces glare and with a high CRI rating of 90, users can enjoy enhanc

Safety Listing:

cETLus - Classified

Short Description:

13.5WLED/DLR/5-6/WS/5CCT/SQ/DB

Temperature (CCT):

2700K/3000K/3500K/4000K/5000K

Title 20 Compliant:

Yes

Title 24 Compliant:

Yes

Total Harmonic Distortion:

<25%

Wattage Selectable:

Yes

Weight Lb.:

0.8
