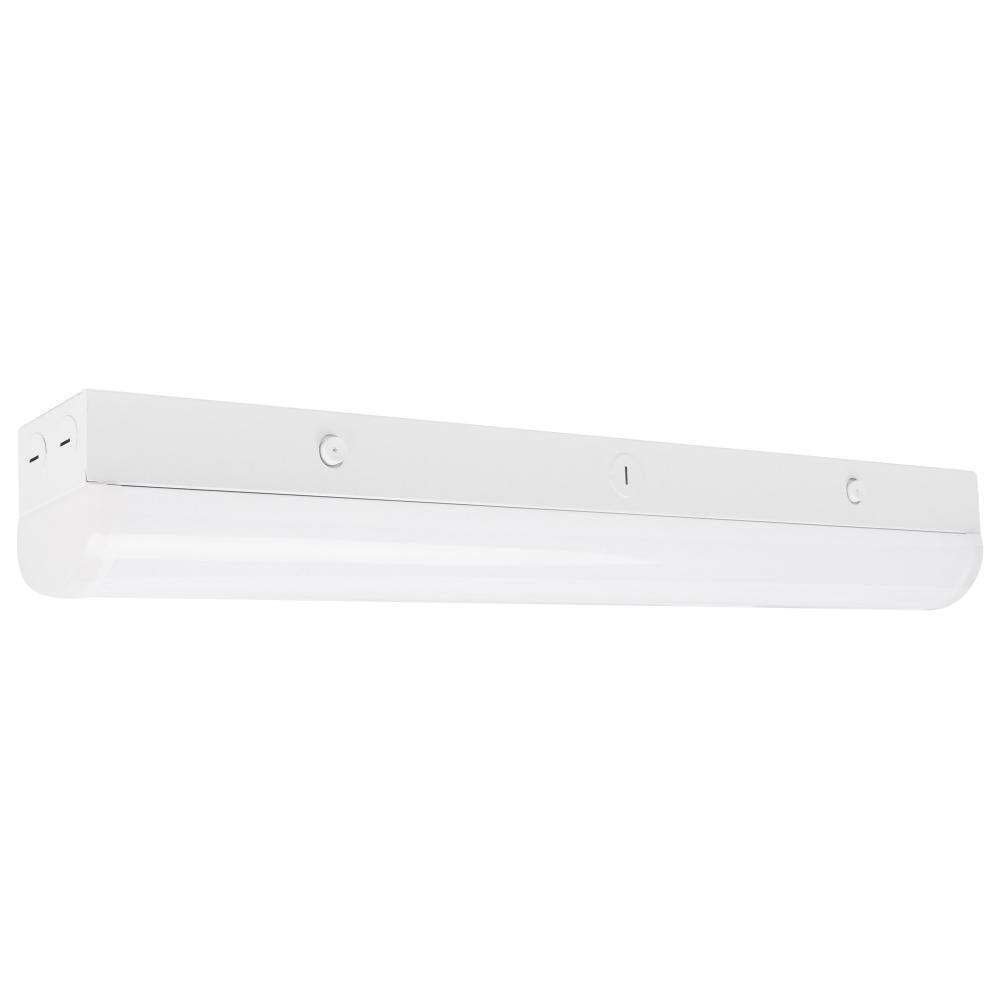

LED 2 ft.; Linear Strip Light; 20W; White Finish; CCT Selectable; 100-277V; Integrated EM & Sensor (A36H7)
$347.50
Call For Price
Enlarge Image
Description:
LED 2 ft.; Linear Strip Light; 20W; White Finish; CCT Selectable; 100-277V; Integrated EM & Sensor
Availability:
  • Manufacturer has 438 items available.
Required Components:

Optional Accessory:

Dimensions:
right arrow Height: 3.27"
right arrow Width: 2.95"
Additional Details:
right arrow Finish: White
right arrow Category: Linear Strip
right arrow Sub Category: Strip Fixture
right arrow Style: Utility
right arrow Additional Info: EM Mode 4W/90 Min run time. Other DLC Listings: S-MU6FZ4, Standard, Direct Linear Ambient Luminaires.
right arrow Avg Rated Hours: 50000
right arrow Bulb Shape1: Integrated LED
right arrow Bulb Type1: LED
right arrow Color Temperature: Neutral White to Daylight
right arrow Dimmable: Yes-Dimmable
right arrow Each Height: 5.31
right arrow Each Length: 26.1
right arrow Each Width: 5.2
right arrow Length: 24
right arrow Lumens: 2735L-2830L
right arrow Tariff Code: 9405.11.6010
right arrow Warranty: 5 Year Limited - Fixtures
right arrow Amps: 0.200-0.072A
right arrow ANSI Base: Integrated
right arrow Beam Angle: 120
right arrow B_U_G_Rating: B1-U3-G1
right arrow CA Prop-65: Lead
right arrow CCT Selectable: Yes
right arrow CEC: T20 Exempt - Fixtures Not Regulated
right arrow CEC Terse: Lawful for sale in California
right arrow CEC Web Text: Lawful for sale
right arrow Connection: Direct Wired
right arrow Country Of Origin: Vietnam
right arrow CRI: 80+
right arrow Dimmable Down To: 100 to 10 percent
right arrow Dimmable Function: 0-10V Dimming
right arrow DLC Classification: Premium; Standard
right arrow DLC Primary Use: Stairwell and Passageway Luminaires; Direct Linear Ambient Luminaires
right arrow Each Cube: 0.4171
right arrow Each Quantity: 1
right arrow Efficacy: 136.75/139.13/141.50 LPW
right arrow FCC Compliant: Yes
right arrow Feature 1: Flicker Free Driver
right arrow Feature 2: CCT Selectable (3500K/4000K/5000K)

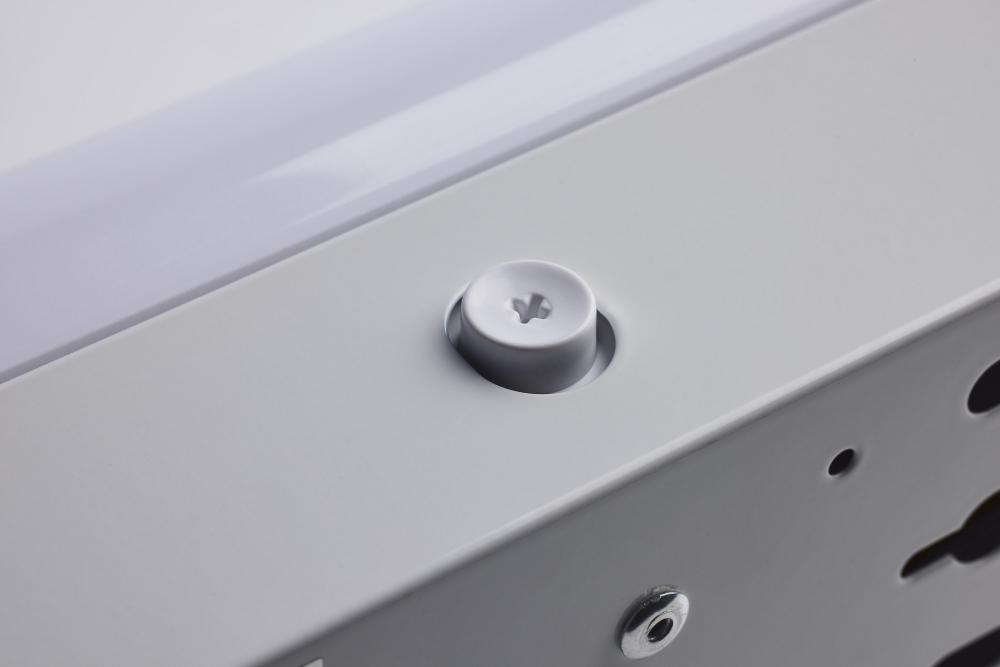

right arrow Feature 3: Quick Release Feature for Easy Opening and Installation

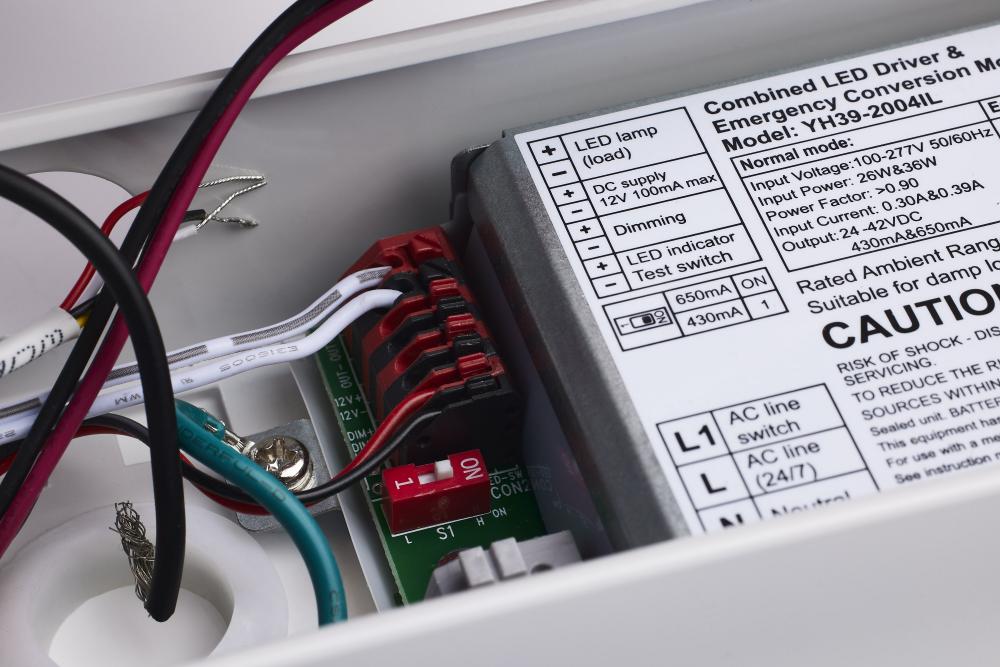

right arrow Feature 4: Integrated EM (4W/90 Minute Run Time)

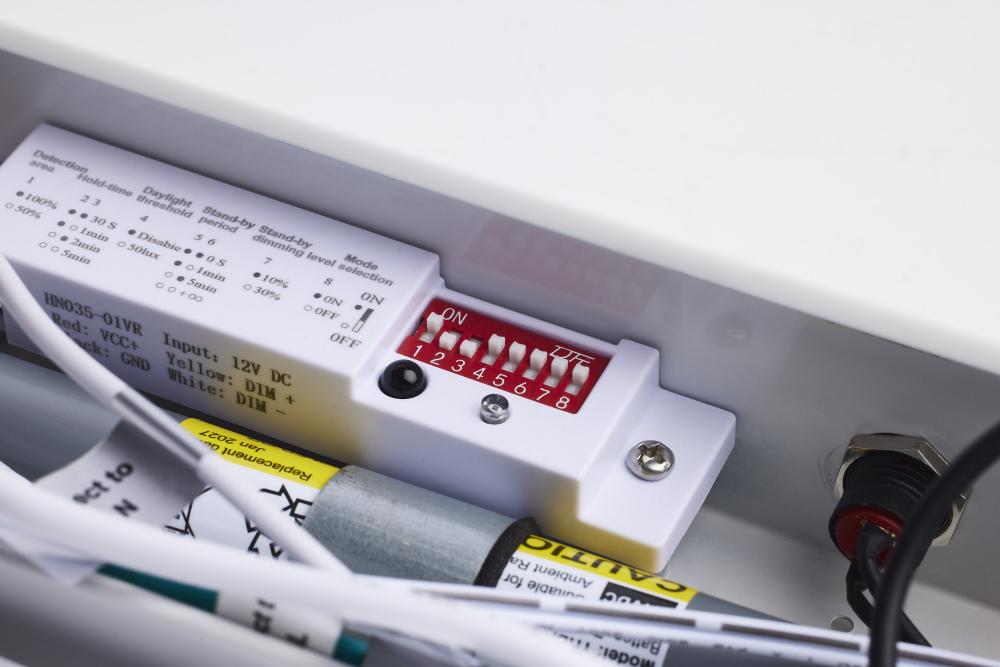

right arrow Feature 5: Integrated Microwave Sensor with Bi-level Dimming and On/Off Capabilities
right arrow Feature 6: 5 Year Warranty

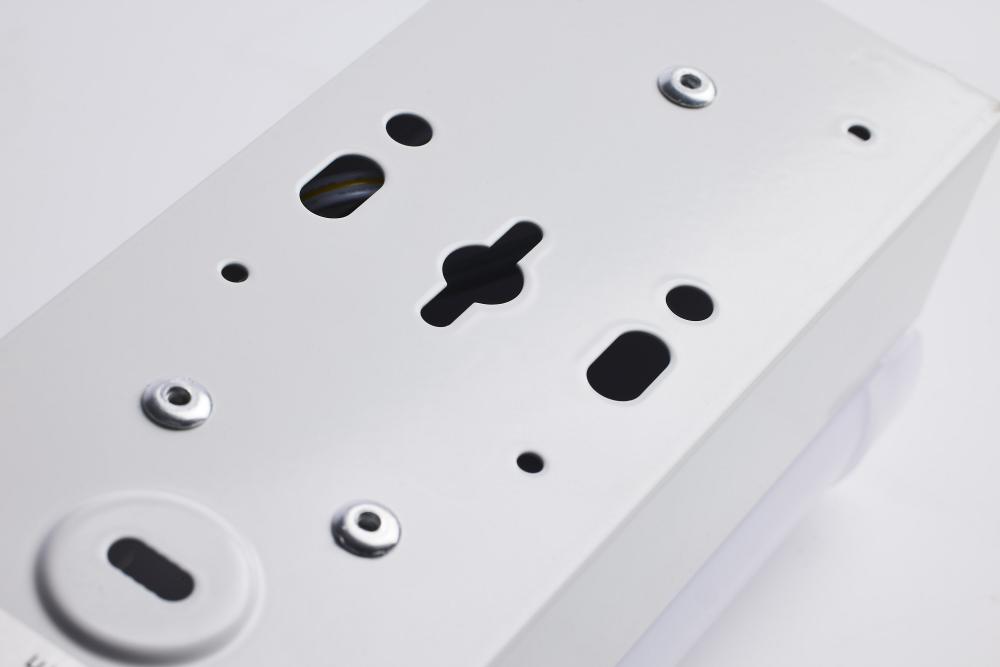

right arrow Feature 7: Multiple Mounting Options
right arrow Feature 8: 2KV Surge Protection
right arrow Finish Family: White
right arrow Fixture shape: Rectangle
right arrow Flicker Free: Yes
right arrow Flr Equiv: 32W
right arrow Has Driver: Yes
right arrow Has Emergency Battery: Yes
right arrow HID Equiv: 100W-150W
right arrow Incandescent Equivalent: 100W
right arrow Indoor Outdoor: Indoor
right arrow IOT Enabled: No
right arrow IP Rating: IP20
right arrow JA8 Compliant: No
right arrow Lens Finish: White
right arrow Lens Material: Polycarbonate (PC)
right arrow Long Description: SATCO|NUVO's new 65-698 linear strip light, with it's rugged quality construction and ease of installation, just became an even better choice with the addition of CCT selectable technology. This 2 foot, 20 watt version will offer both function and
right arrow Material: Steel
right arrow Mounting Diameter: 4.75
right arrow Mounting Procedure: Ceiling
right arrow NSF Approved: No
right arrow Operating Frequency: 50/60Hz
right arrow Operating Temp: -20C (-4F) to +60C (+140F)
right arrow Order In Multiples Of: 1
right arrow Pack Type: Box
right arrow Photocell: Has Photocell
right arrow Power Factor: 0.9
right arrow Quantity In Pack: 1
right arrow Replaceable Light Source: No
right arrow RoHS Compliant: Yes
right arrow Romance Copy: SATCO|NUVO's Strip Lighting, with it's rugged quality construction and ease of installation, just became an even better choice with the addition of CCT and wattage selectable technologies. Available in 2 foot and 4 foot versions, with a quick relea
right arrow Safety Listing: cULus - Listed
right arrow SDS class: LED_Fixture
right arrow Short Description: 2' LINEAR STRIP W/ EM & SENSOR
right arrow Temperature (CCT): 3500K/4000K/5000K
right arrow Title 20 Compliant: Exempt
right arrow Title 24 Compliant: No
right arrow Total Harmonic Distortion: 10.60%
right arrow Wattage Selectable: No
right arrow Weight Lb.: 2.31
right arrow Standard Category: Undercabinet
right arrow Standard Subcategory: Strip Lights
right arrow Standard Finish: White
right arrow Standard Option: LED , Prop 65 prop65.png
right arrow Standard Lumens: 2601-3000
right arrow Standard Kelvin: 5501-6000
