LED Canopy Fixture; 100 Watt; CCT Selectable; Bronze Finish : A676Y

Return to Catalog

Part Number: A676Y / Vendor ID #: 81

LED Canopy Fixture; 100 Watt; CCT Selectable; Bronze Finish

$285.00

Item Sales Info

Add To Wishlist

Compare Item

Availability

Manufacturer may be Out Of Stock.

Dimensions

Height: 3.15"

Width: 11.02"

Product Overview

LED Canopy Fixture; 100 Watt; CCT Selectable; Bronze Finish

Standard Information

Category:

Flush Mounts

Subcategory:

Other Flush Mounts

Option:

LED

Prop 65

Lumens:

1101-1600

Kelvin:

4001-4500

Refinement Options

Category:

Surface Mount

Sub Category:

Canopy Fixture

Style:

Utility

Avg Rated Hours:

50000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Warm to Cool White

Diameter:

11.02

Dimmable:

Yes-Dimmable

Each Height:

5.51

Each Length:

12.8

Each Width:

12.8

Lumens:

14298L/15322/14943L

Tariff Code:

9405.11.6020

Warranty:

5 Year Limited - Fixtures

Amps:

0.833-0.361A

ANSI Base:

Integrated

BAA Compliant:

Beam Angle:

150

B_U_G_Rating:

B3-U3-G2

CA Prop-65:

Lead

CCT Selectable:

Yes

CEC:

T20 Exempt - Fixtures Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Country Of Origin:

Vietnam

CRI:

Dimmable Function:

0-10V Dimming

DLC Classification:

Premium

DLC Primary Use:

Parking Garage Luminaires

Each Cube:

0.5224

Each Quantity:

Efficacy:

142.98/153.22/149.43 LPW

FCC Compliant:

Yes

Feature 1:

CCT Selectable (3000K, 4000K, 5000K)

Feature 2:

0-10V Dimming

Feature 3:

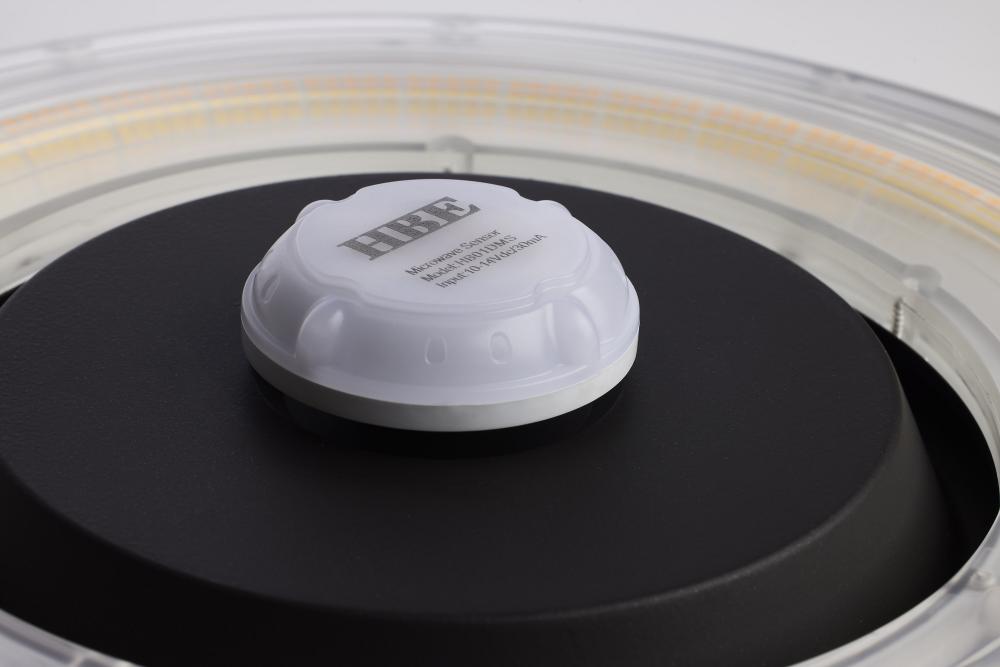

Integrated Sensor Port

Feature 4:

Ceiling and Pendant Mounting

Feature 5:

IK08 Impact Rated

Feature 6:

50,000 Functional Life

Feature 7:

Bronze Finish

Feature 8:

FCC and RoHS compliant

Finish Family:

Bronze

Has Driver:

Yes

Impact Rating (IK):

IK10

Incandescent Equivalent:

500W

Indoor Outdoor:

Outdoor

IP Rating:

IP65

JA8 Compliant:

Lens Material:

Polycarbonate (PC)

Long Description:

SATCO|NUVO's 65-632R1 LED Round Canopy Light offers durable and versatile lighting with ColorQuick technology for easy color temperature selection. With an integrated sensor port, adding microwave or PIR motion sensors is effortless. This canopy light

Material:

Die-Cast Aluminum

Mounting Procedure:

Ceiling Pendant

Operating Frequency:

50/60Hz

Operating Temp:

-40C (-40F) to +45C (+113F)

Pack Type:

Box

Photocell:

Optional Add-On

Power Factor:

>0.9

Quantity In Pack:

Replaceable Light Source:

RoHS Compliant:

Yes

Romance Copy:

SATCO|NUVO's LED Round Canopy Lights are the perfect combination of durability and versatile functionality. With ColorQuick technology, easily select 3000K, 4000K, or 5000K CCT during installation. Also, these canopy lights feature an integrated sensor

Safety Listing:

cULus - Listed

SDS class:

LED_Fixture

Short Description:

100W LED CANOPY W/ SENSOR PORT

Specification Notes:

UV Stabilized Powder Coated Finish

Temperature (CCT):

3000K/4000K/5000K

Title 20 Compliant:

Total Harmonic Distortion:

<20%

Wattage Selectable:

Weight Lb.:

6.56
