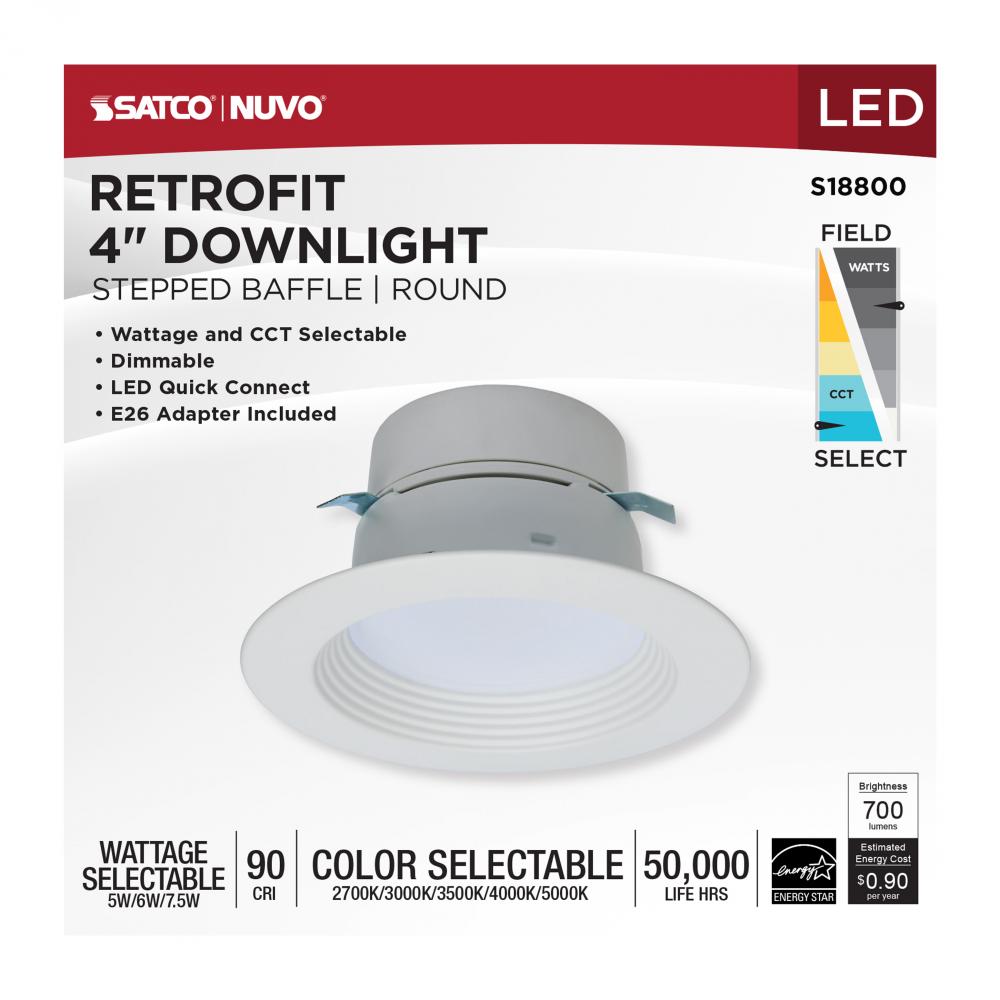

LED Retrofit Downlight; 5/6/7.5 Wattage Selectable; CCT and Lumens Selectable; 120 Volt; ColorQuick : X6PGF

Return to Catalog

Part Number: X6PGF / Vendor ID #: 27

LED Retrofit Downlight; 5/6/7.5 Wattage Selectable; CCT and Lumens Selectable; 120 Volt; ColorQuick

$27.38

Item Sales Info

Add To Wishlist

Compare Item

Availability

Manufacturer has 6571 items available.

Dimensions

Height: 2.90"

Width: 5.31"

Product Overview

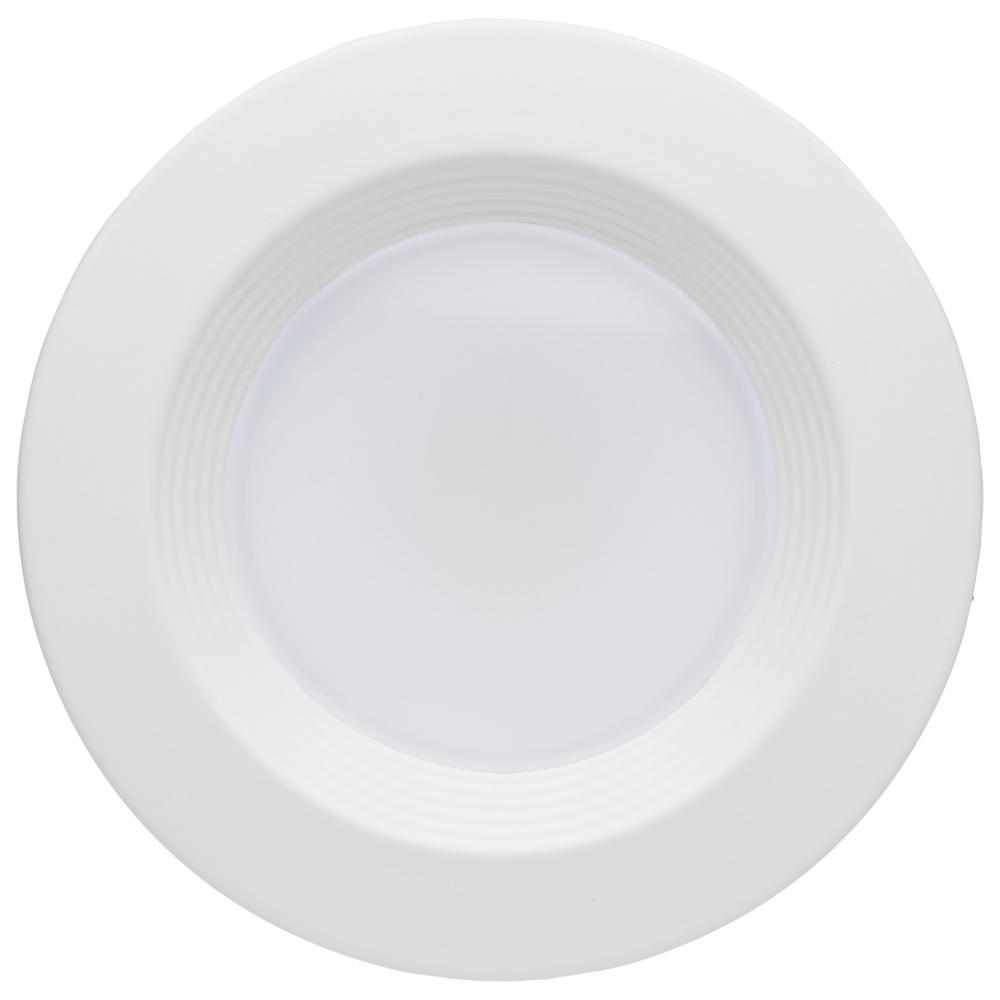

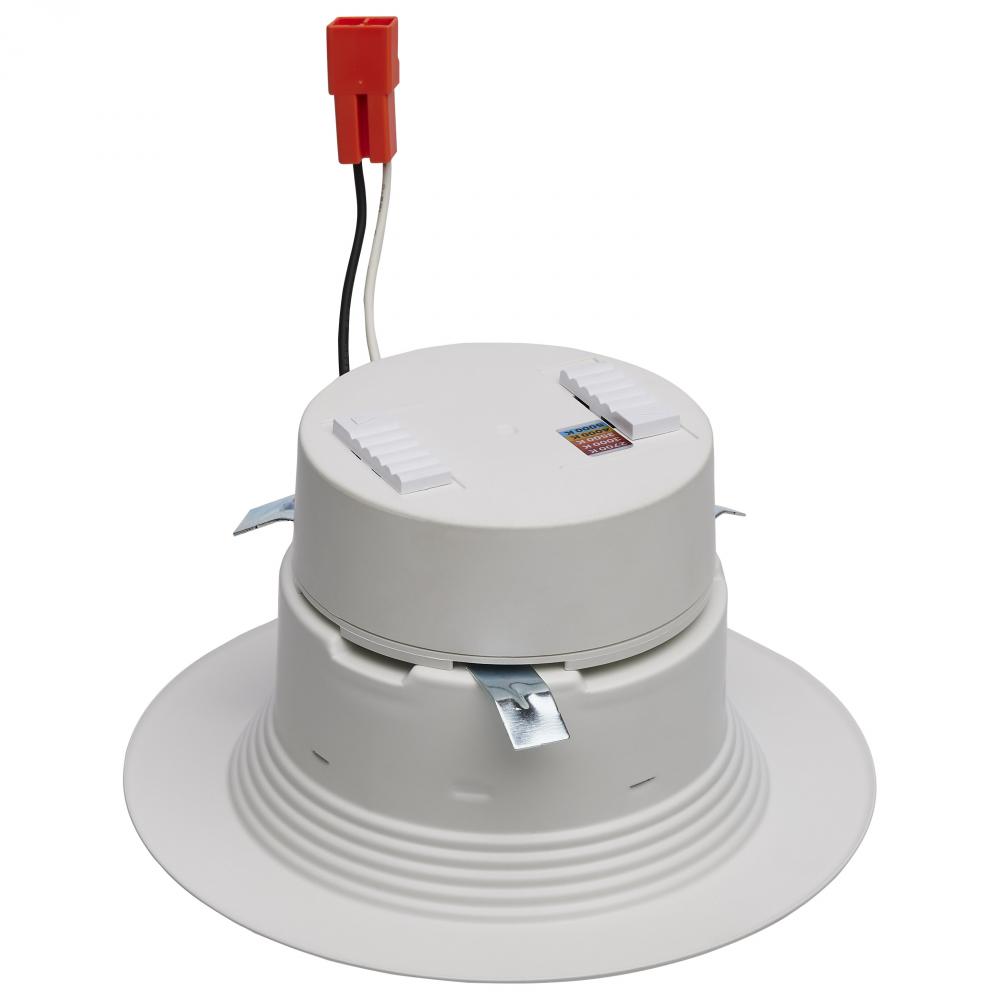

LED Retrofit Downlight; 5/6/7.5 Wattage Selectable; CCT and Lumens Selectable; 120 Volt; ColorQuick and PowerQuick Technology; Round; White Finish

Standard Information

Category:

Recessed Ltg.

Subcategory:

Recessed Lighting Trims

Finish:

White

Option:

Energy Star

LED

Prop 65

Refinement Options

Category:

Recessed

Sub Category:

Retrofits

Style:

Utility

Bulb Hours:

50000

Bulb Shape:

Integrated LED

Bulb Type:

LED

Diameter:

5.31

Dimmable:

Yes-Dimmable

Harmonized Codes:

8539.52.0091

Lumens:

500L/600L/700L

Ship Carton Height:

5.51

Ship Carton Length:

5.51

Ship Carton Width:

3.07

Warranty:

5 Year Limited - Fixtures

Air Tight:

Amps:

0.042/0.05/0.063A

ANSI Base:

E26 Adapter

BAA Compliant:

Beam Spread:

CA Prop-65:

Lead

Can Size:

4 in.

Carton Cubic Feet:

0.0539

Cartons Per Unit:

CCT Selectable:

Yes

CEC:

California T24 2016 - 2022 JA8 Listed; T20 Listed

CEC Terse:

Lawful for sale in California

CEC Web Text:

California T24 Listed

Connection:

Connector or Adapter

Country Of Origin:

China

CRI:

Dimmable Down To:

100 to 10 percent

Dimming Type:

Triac

Efficacy:

100.00/100.00/93.33 LPW

ES Category:

Downlight Solid State Retrofit

ES Unique ID:

ESID-2623030

FCC Compliant:

Yes

Feature 1:

Field Selectable (CCT and Wattage)

Feature 2:

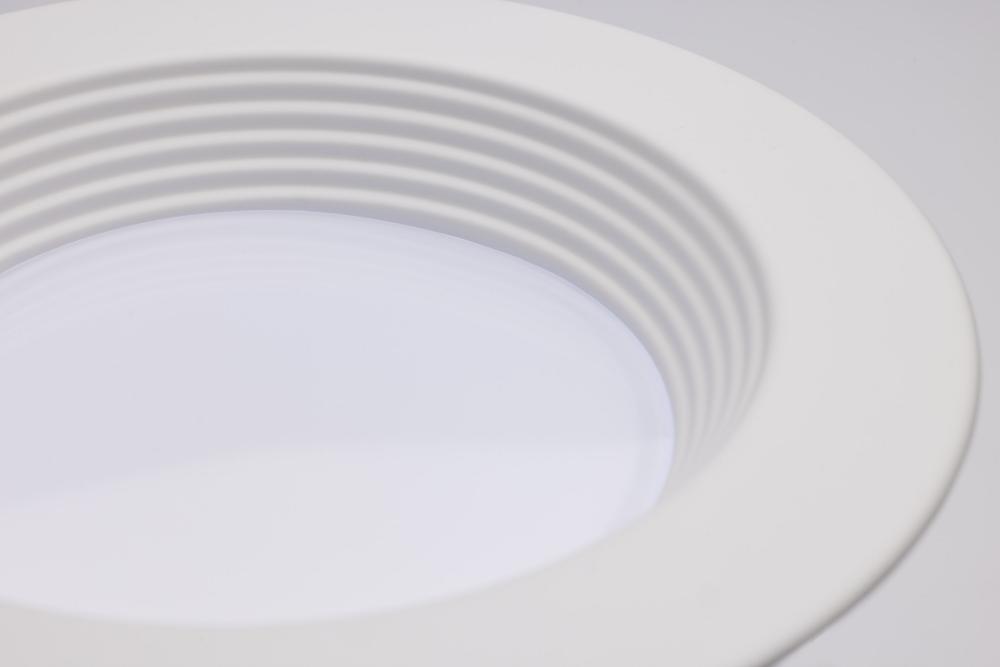

Stepped Baffle for Reduced Glare

Feature 3:

90 CRI

Feature 4:

E26 Adapter Included

Feature 5:

T20 and T24 Compliant

Feature 6:

Steel Construction with Polycarbonate Lens

Feature 7:

50,000 Hour Functional Life

Finish Family:

White

Fixture shape:

Round

Has Driver:

Yes

IC Rated:

Incandescent Equivalent:

60W

Includes:

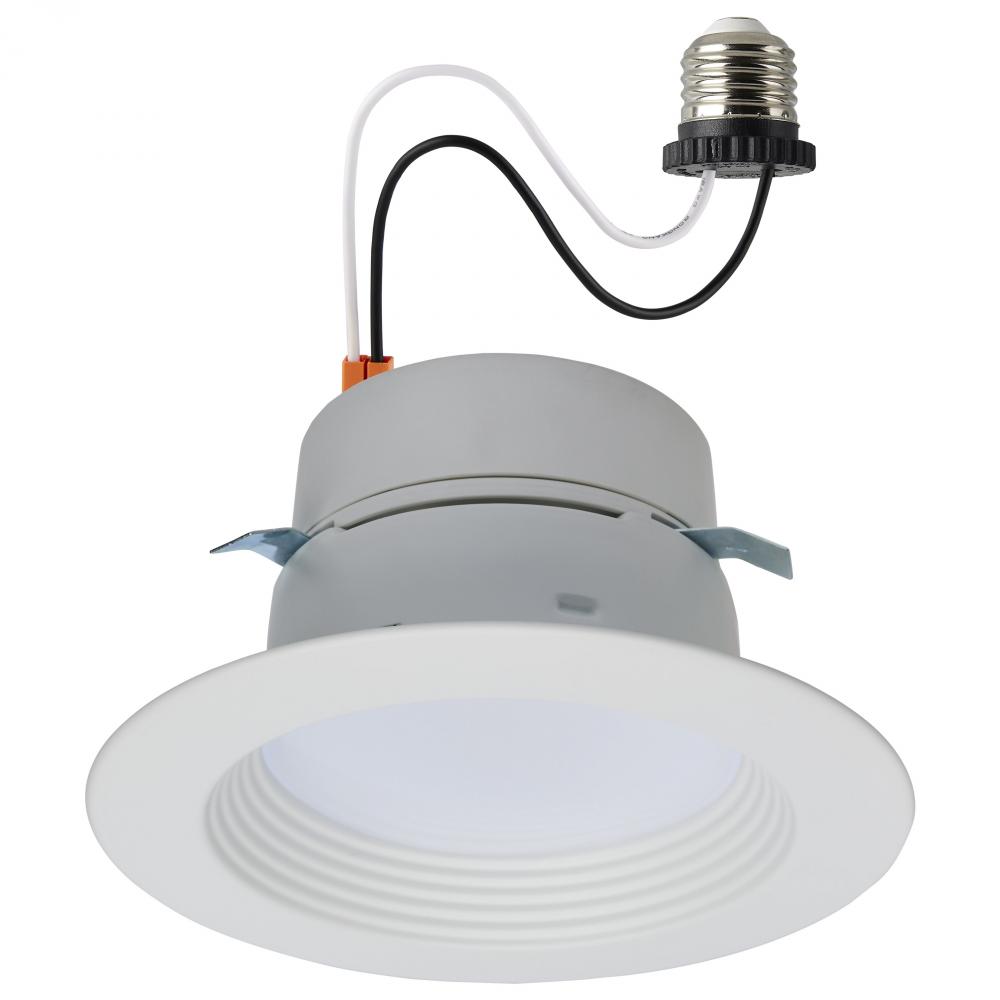

E26 Adapter included (S9001)

Indoor Outdoor:

Indoor

IOT Enabled:

JA8 Compliant:

Yes

Lens Finish:

Frost

Lens Material:

Polycarbonate (PC)

Long Description:

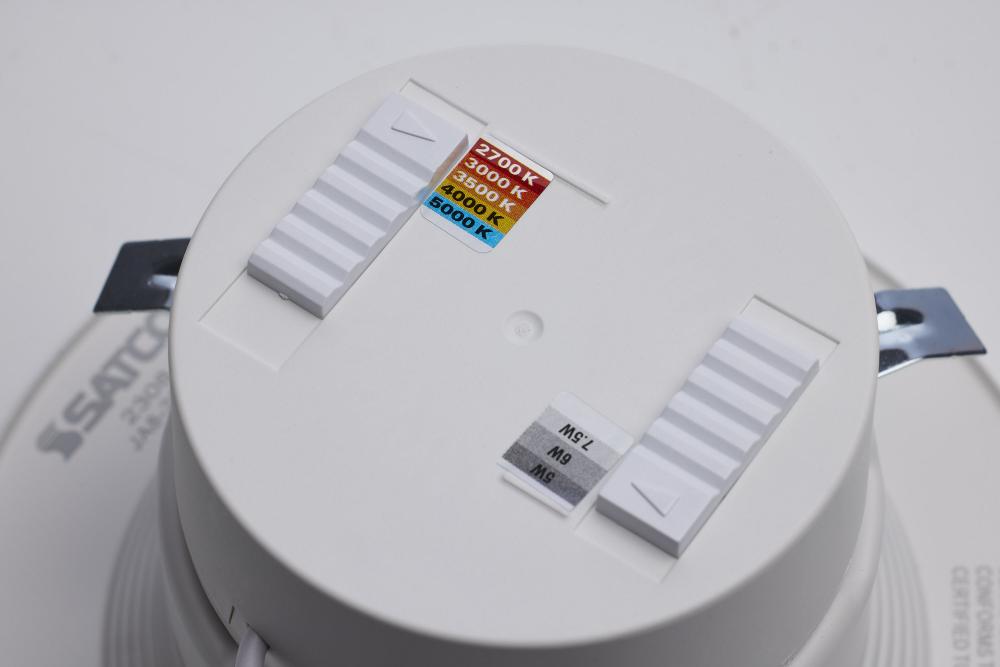

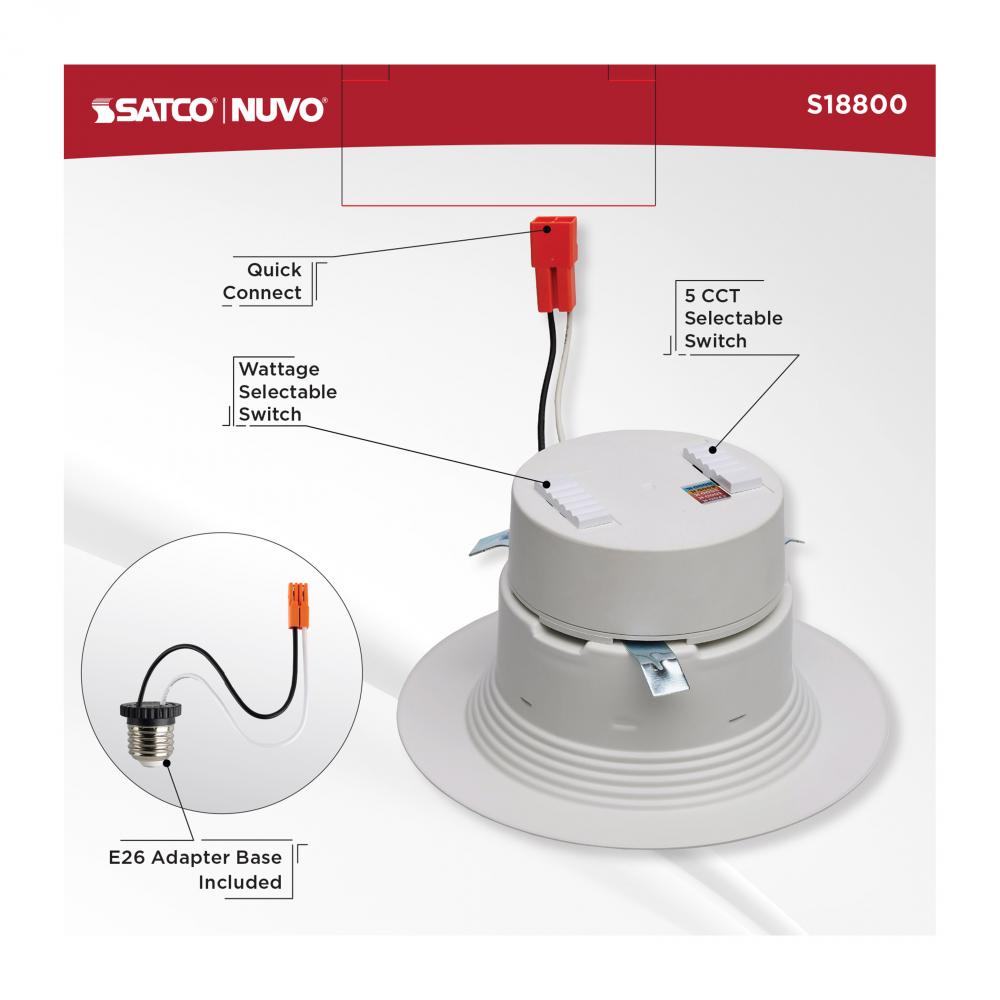

SATCO|NUVO's new S18800, LED Field Selectable Retrofit Downlight, is the effortless solution for upgrading recessed lighting in your space. With two on-unit switches, the adjustment of both the input wattage and color temperature is a breeze and allows

Material:

SPCC Steel

Operating Frequency:

60Hz

Operating Temprature:

-20C (-4F) to +40C (+104F)

Pack Type:

Color Box

Power Factor:

0.9

Quantity In Pack:

R9 Value:

Replaceable Light Source:

RoHS Compliant:

Yes

Romance Copy:

SATCO|NUVO's LED Field Selectable Retrofit Downlights are the effortless solution for upgrading recessed lighting in your space. With two on-unit switches, the adjustment of both the input wattage and color temperature is a breeze and allows for the pe

Safety Listing:

cETLus - Listed

SDS class:

LED_Fixture

Short Description:

7.5LED/RDL/4/WS/5CCT/RD

Temperature (CCT):

2700K/3000K/3500K/4000K/5000K

Title 20 Compliant:

Yes

Title 24 Compliant:

Yes

Trim Color:

White

Wattage Selectable:

Yes

Weight Lb.:

0.47
