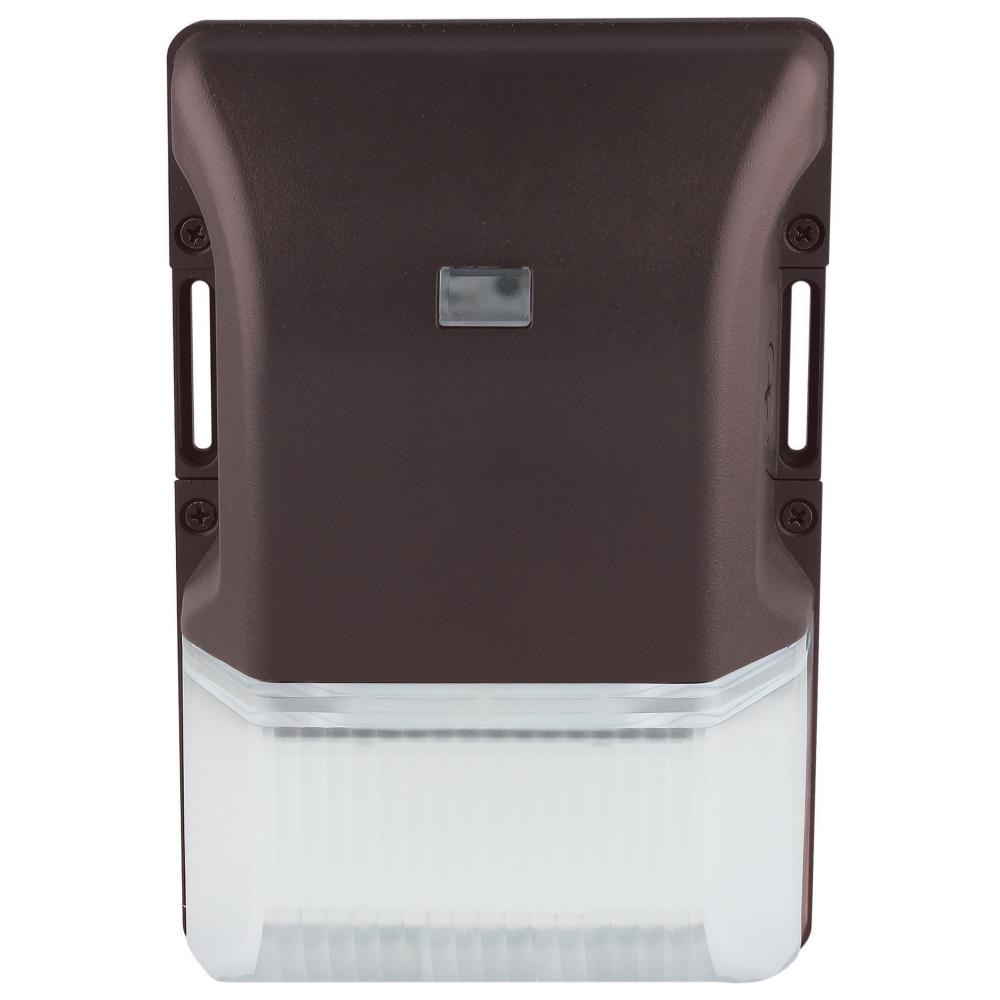

LED Small Wall Pack; 20W; CCT Selectable 3K/4K/5K; Bronze Finish; 100-277V : A36HU

Return to Catalog

Part Number: A36HU / Vendor ID #: 81

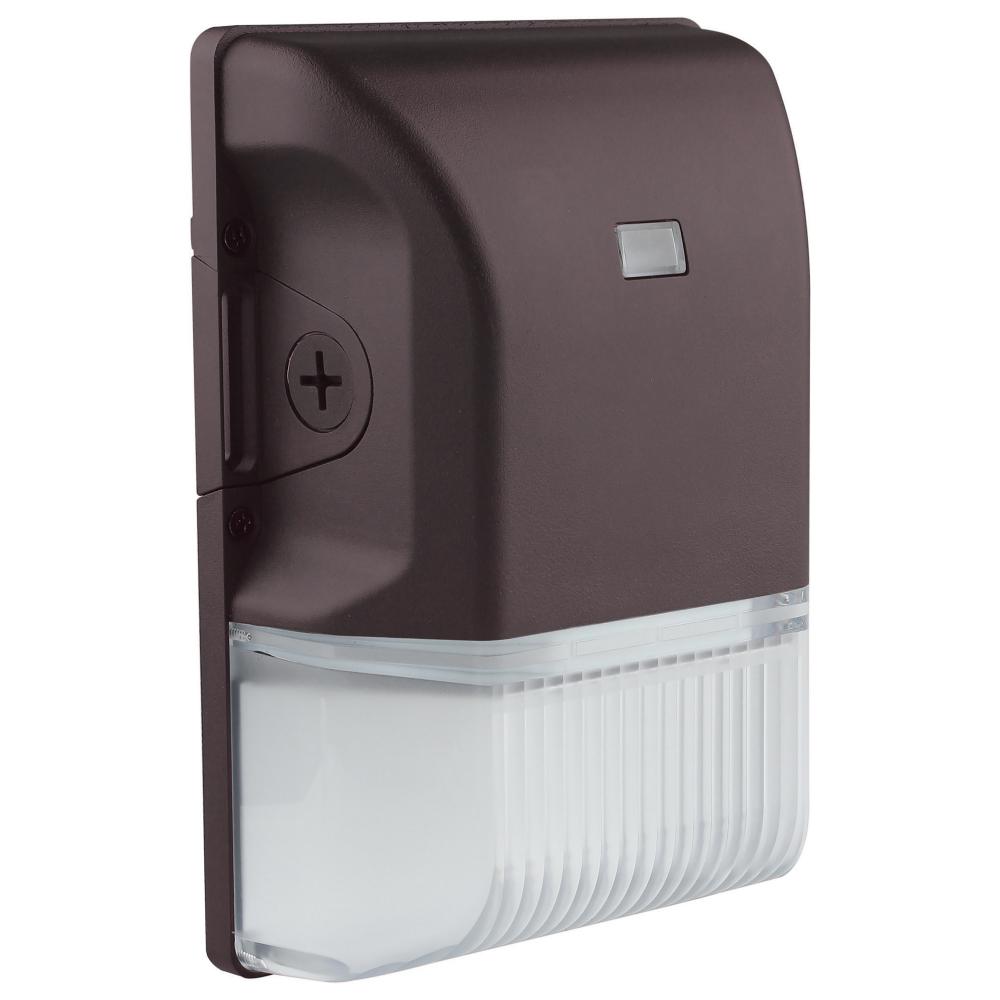

LED Small Wall Pack; 20W; CCT Selectable 3K/4K/5K; Bronze Finish; 100-277V

$100.00

Item Sales Info

Add To Wishlist

Compare Item

Availability

Manufacturer has 762 items available.

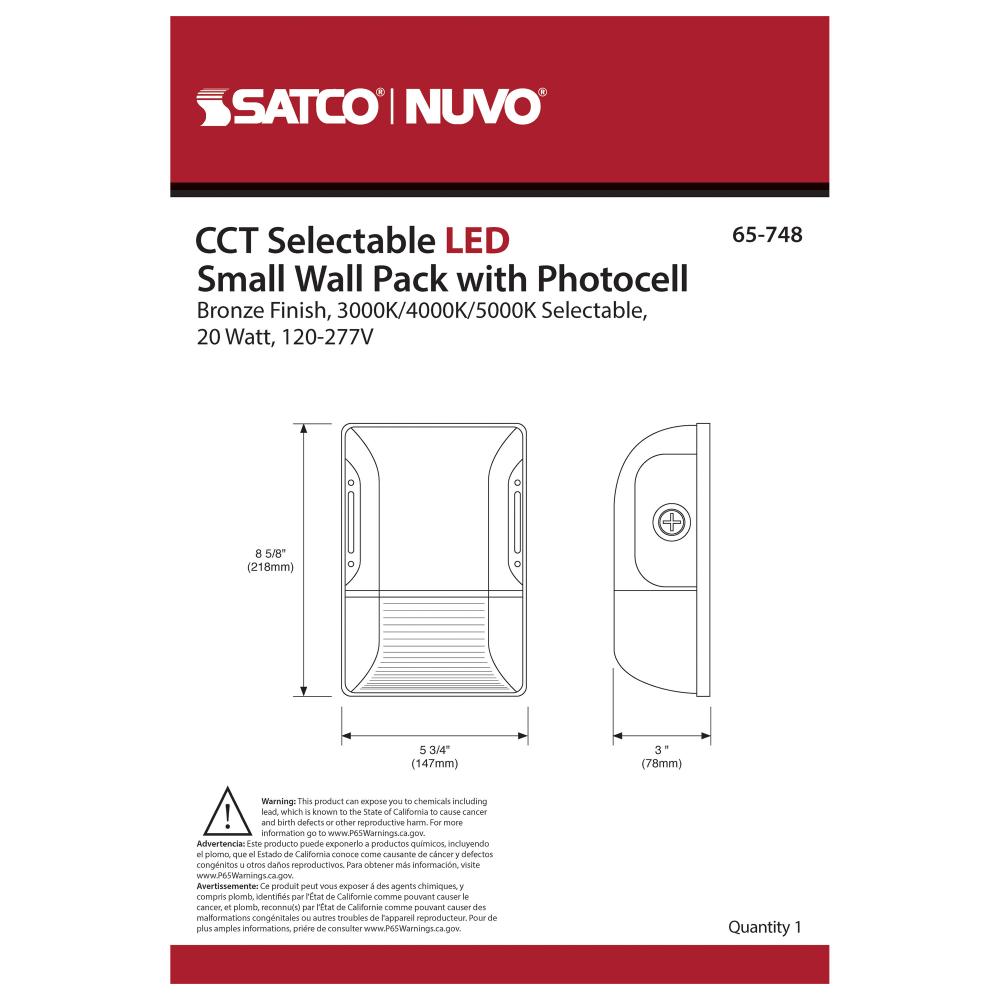

Dimensions

Height: 8.59"

Width: 5.81"

Product Overview

LED Small Wall Pack; 20W; CCT Selectable 3K/4K/5K; Bronze Finish; 100-277V

Standard Information

Category:

Exterior

Sconces

Subcategory:

Wall Lights

Outdoor Wall Lights

Finish:

Bronze

Option:

LED

Prop 65

Lumens:

2601-3000

Kelvin:

4001-4500

Refinement Options

Category:

Wall Pack

Sub Category:

Standard

Style:

Utility

Avg Rated Hours:

50000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Warm to Cool White

Dimmable:

Yes-Dimmable

Each Height:

8.9

Each Length:

6.1

Each Width:

3.5

Lumens:

2608.9L/2920.8L/2703.4L

Tariff Code:

9405.42.6000

Warranty:

5 Year Limited - Fixtures

Amps:

0.167-0.072A

ANSI Base:

Integrated

BAA Compliant:

Beam Angle:

100

B_U_G_Rating:

B1-U3-G2

CA Prop-65:

Lead

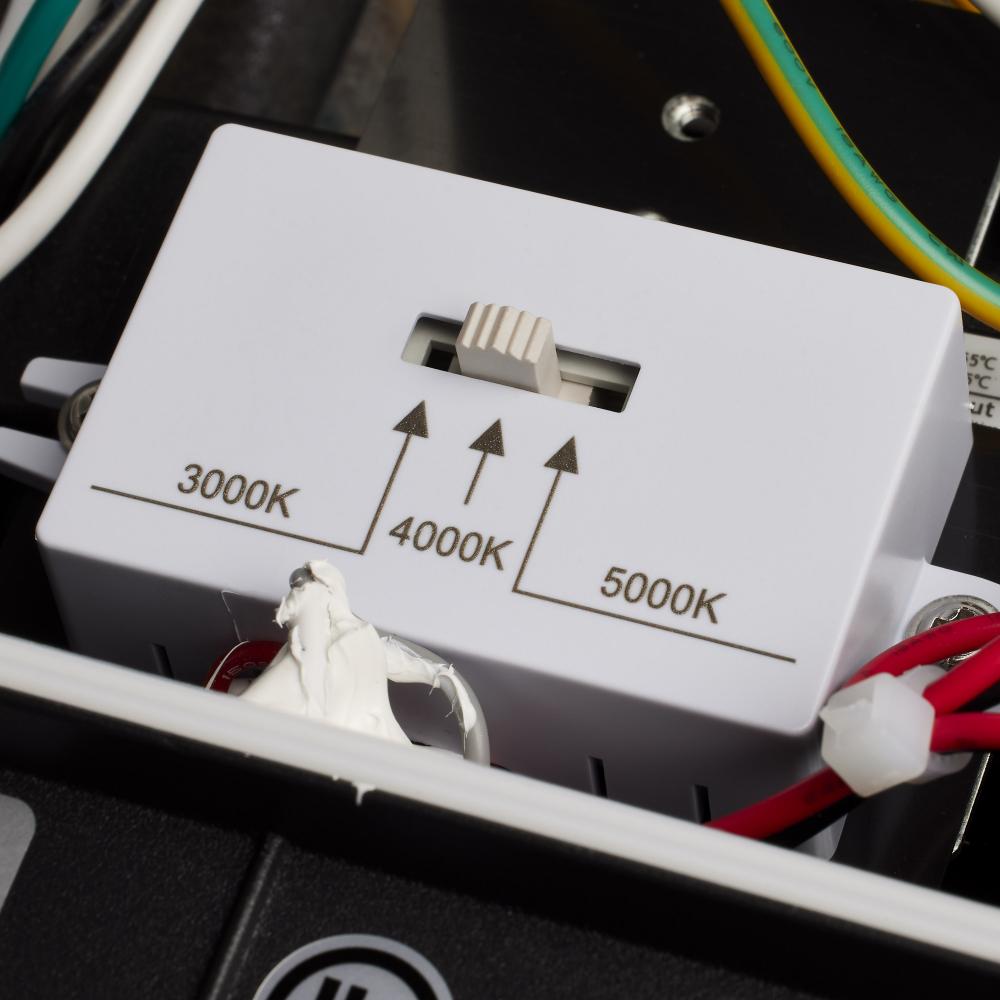

CCT Selectable:

Yes

CEC:

T20 Exempt - Fixtures Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Connection:

Hardwire

Country Of Origin:

Vietnam

CRI:

80+

Dimmable Function:

0-10V Dimming

DLC Classification:

Premium

DLC Primary Use:

Outdoor Non-Cutoff and Semi-Cutoff Wall-Mounted Area Luminaires

Each Cube:

0.11

Each Quantity:

Efficacy:

130.45/146.04/135.17 LPW

FCC Compliant:

Yes

Feature 1:

CCT Selectable

Feature 2:

0-10V Dimmable

Feature 3:

Maintenance Free - No bulb to change

Feature 4:

Die-cast aluminum body

Feature 5:

IP65, Wet rated for outdoor use

Feature 6:

UV Stabilized Powder Coated Finish

Finish Family:

Bronze

Fixture shape:

Rectangle

HID Equiv:

100W-150W

Incandescent Equivalent:

100W

Indoor Outdoor:

Outdoor

IOT Enabled:

IP Rating:

IP65

JA8 Compliant:

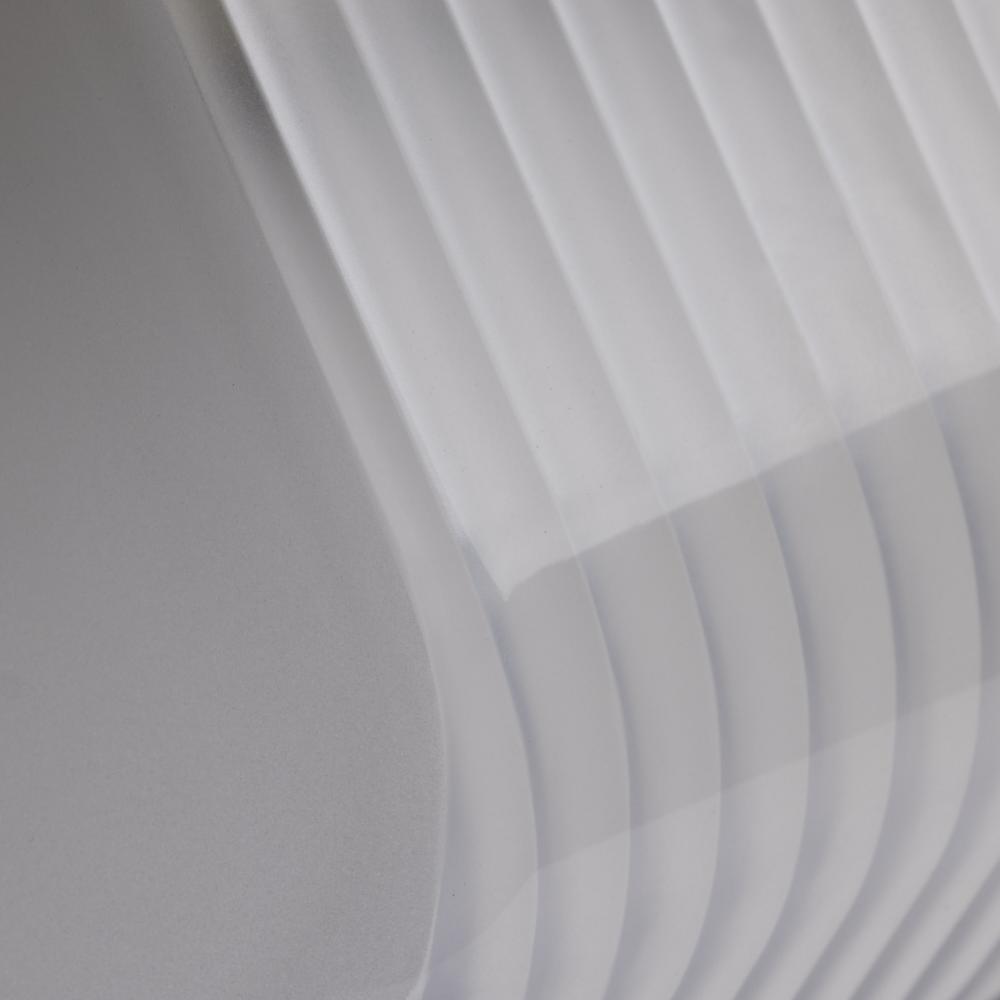

Lens Material:

Polycarbonate (PC)

Long Description:

SATCO|NUVO's 65-748 20W LED Small Wall Pack is now CCT Selectable. Available in a bronze finish and featuring lighting choices from warm, cool, and natural light, this fixture is perfect for all of your lighting needs. This premium Wall Pack has a buil

Material:

Cast Aluminum

Mounting Procedure:

Wall

NSF Approved:

Yes

Operating Frequency:

50/60Hz

Operating Temp:

-20C (-4F) to +45C (+113F)

Pack Type:

Box

Photocell:

Has Photocell

Power Factor:

0.99

Quantity In Pack:

Replaceable Light Source:

RoHS Compliant:

Yes

Romance Copy:

SATCO|NUVO's 20W LED Small Wall Pack is now CCT Selectable. Available in three finishes and featuring lighting choices from warm, cool, and natural light, this fixture is perfect for all of your lighting needs. This premium Wall Pack has a built in pho

Safety Listing:

cULus - Listed

SDS class:

LED_Fixture

Short Description:

LED SMALL WALL PACK W/PHOTOCEL

Temperature (CCT):

3000K/4000K/5000K

Title 20 Compliant:

Title 24 Compliant:

Total Harmonic Distortion:

20%

Wattage Selectable:

Weight Lb.:

1.98
