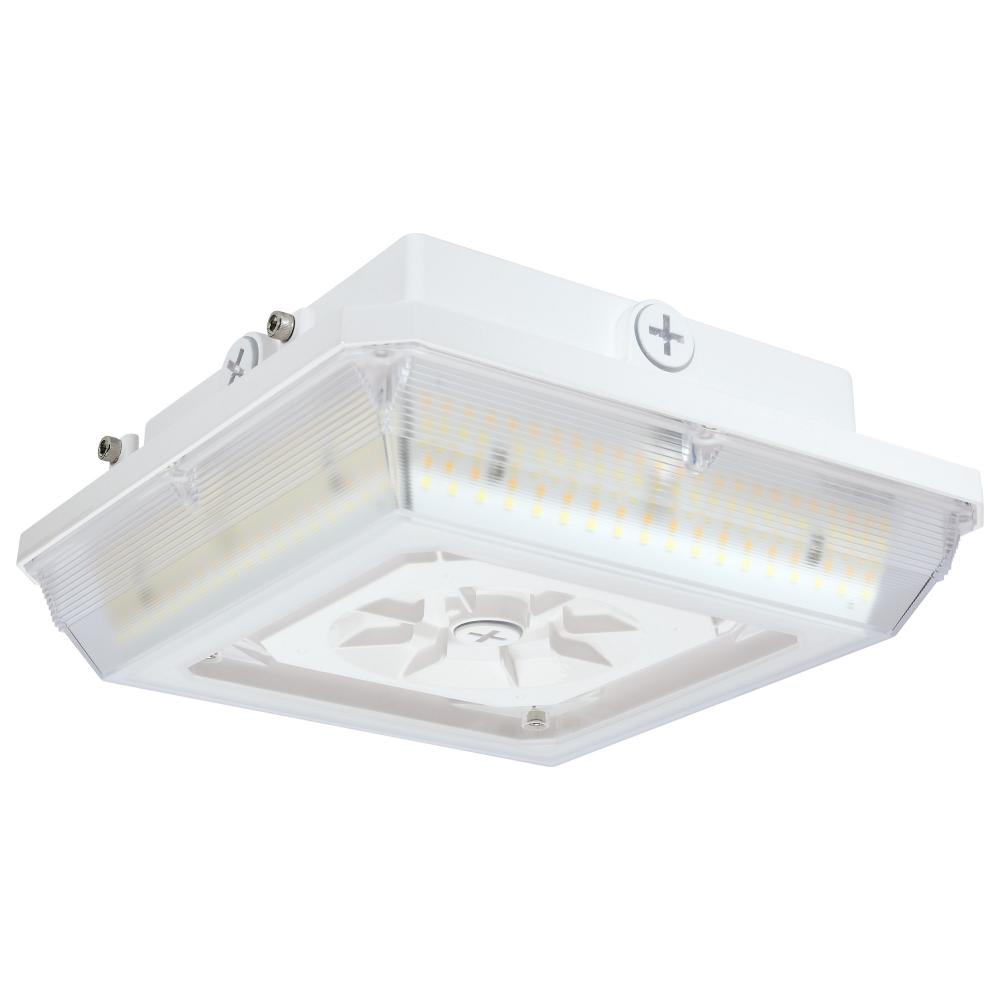

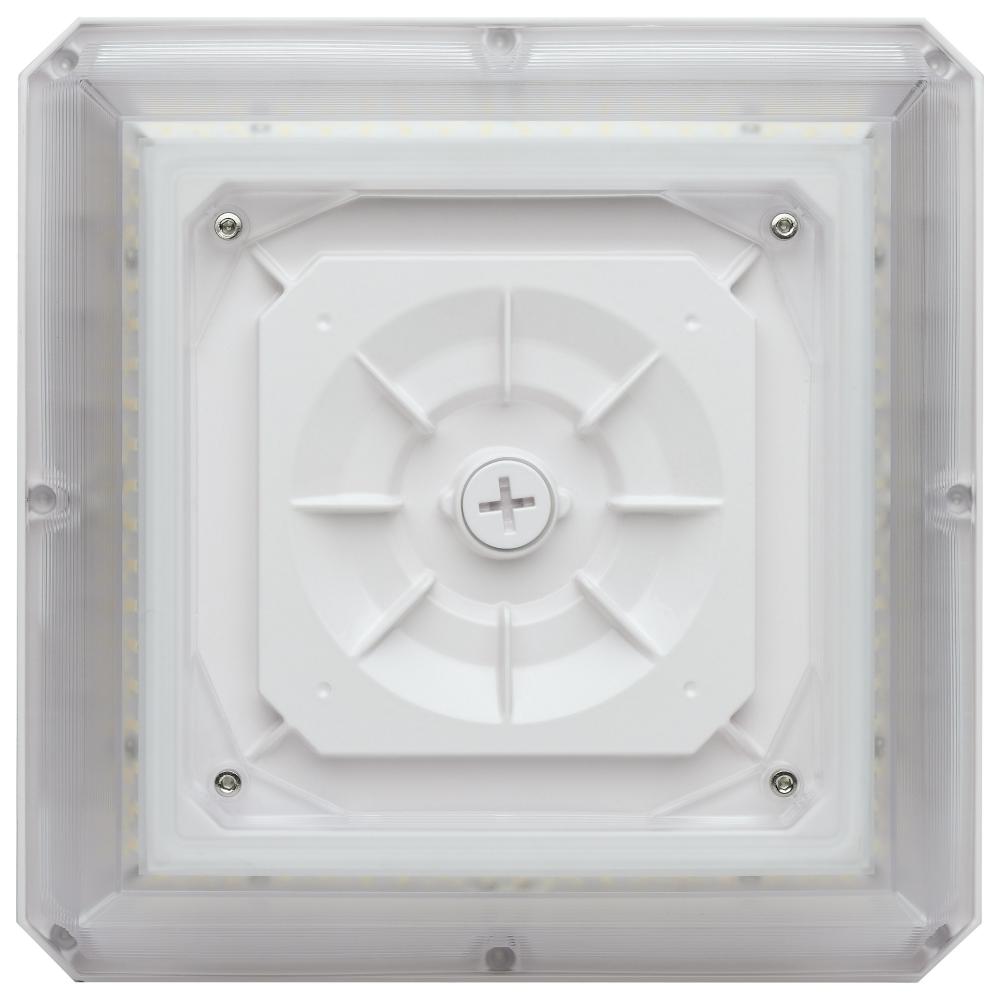

Square LED; Wide Beam Angle Canopy Light; 3K/4K/5K CCT Selectable; 20W/30W/45W Wattage Selectable; : A6A3C

Return to Catalog

Part Number: A6A3C / Vendor ID #: 81

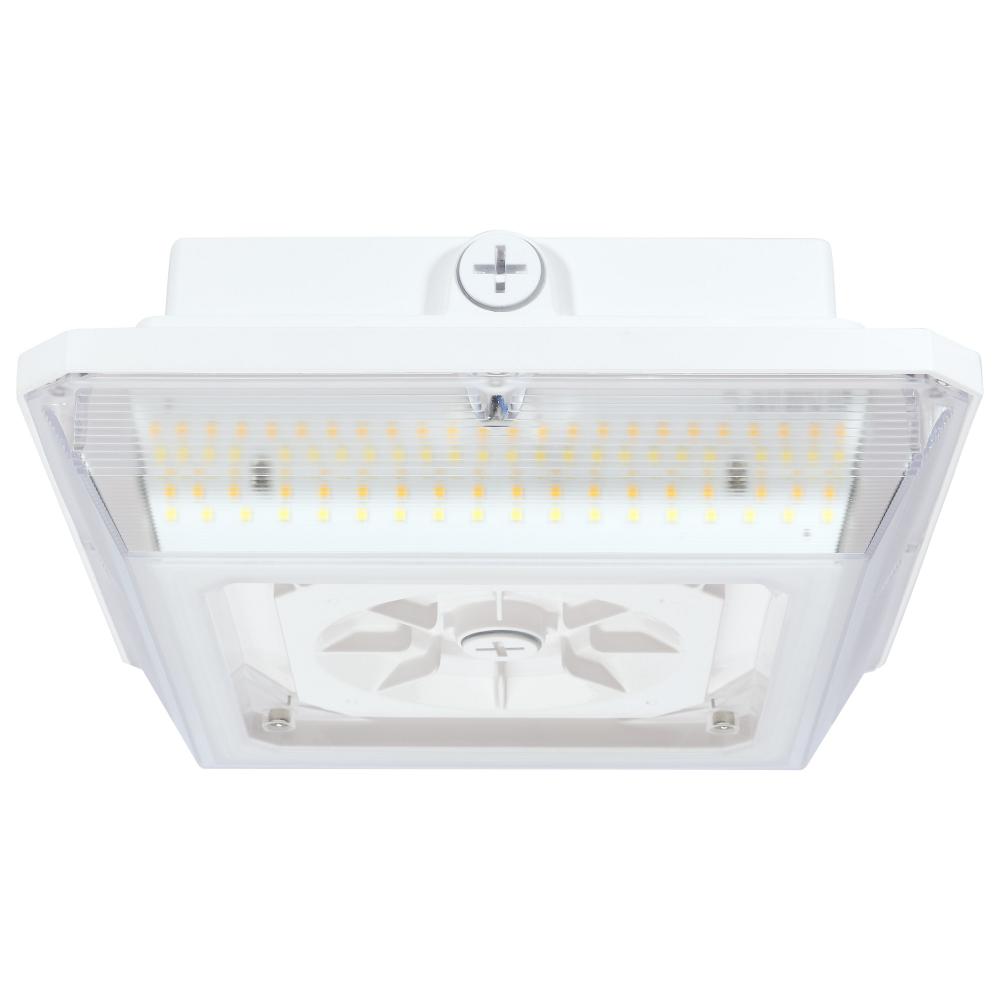

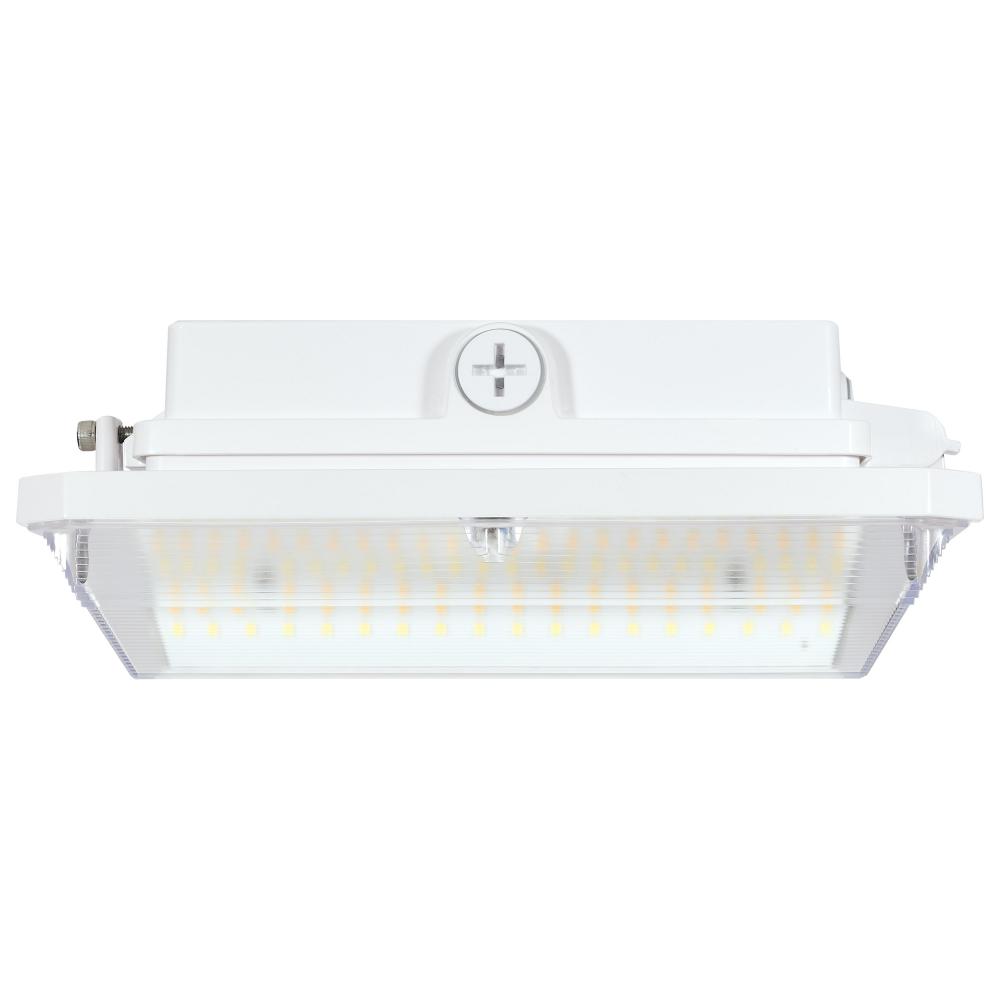

Square LED; Wide Beam Angle Canopy Light; 3K/4K/5K CCT Selectable; 20W/30W/45W Wattage Selectable;

$210.00

Item Sales Info

Add To Wishlist

Compare Item

Availability

Manufacturer may be Out Of Stock.

Dimensions

Height: 3.62"

Width: 9.57"

Product Overview

Square LED; Wide Beam Angle Canopy Light; 3K/4K/5K CCT Selectable; 20W/30W/45W Wattage Selectable; White Finish

Standard Information

Category:

Flush Mounts

Subcategory:

Other Flush Mounts

Option:

LED

Prop 65

Lumens:

2601-3000

Kelvin:

4001-4500

Refinement Options

Category:

Surface Mount

Sub Category:

Canopy Fixture

Style:

Utility

Additional Info:

Recommended Mounting Height: 9 to 15 Feet

Avg Rated Hours:

50000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Warm White to Natural Light

Dimmable:

Yes-Dimmable

Each Height:

11.02

Each Length:

11.02

Each Width:

5.12

Length:

9.57

Lumens:

2663L-6288L

Tariff Code:

9405.11.6020

Warranty:

5 Year Limited - Fixtures

Amps:

0.167-0.072/0.250-0.108/0.375-0.162A

ANSI Base:

Integrated

Beam Angle:

190

B_U_G_Rating:

B2-U3-G3

CA Prop-65:

Lead

CCT Selectable:

Yes

CEC:

T20 Exempt - Fixtures Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Connection:

Hardwire

Country Of Origin:

Vietnam

CRI:

Dimmable Function:

0-10V Dimming

DLC Classification:

Premium

DLC Primary Use:

Parking Garage Luminaires

Each Cube:

0.3598

Each Quantity:

Efficacy:

133.15/149.18/139.73 LPW

FCC Compliant:

Yes

Feature 1:

Wide Beam Angle for Broad Light Coverage

Feature 10:

L:9.57 inches W:9.57 inches H:3.62 inches

Feature 2:

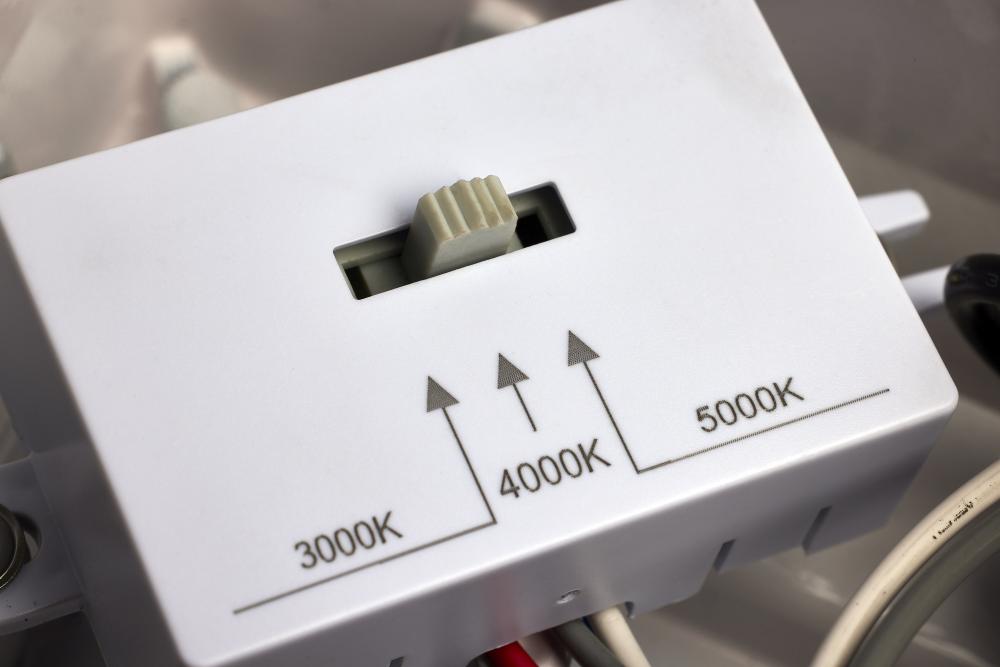

3 CCT Selectable

Feature 3:

3 Wattage Selectable

Feature 4:

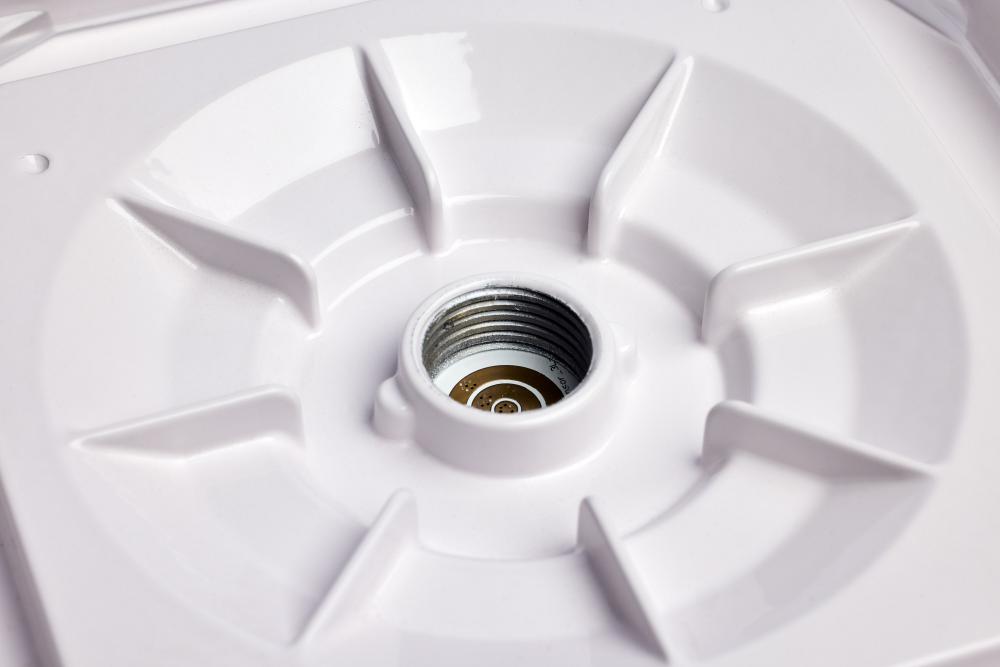

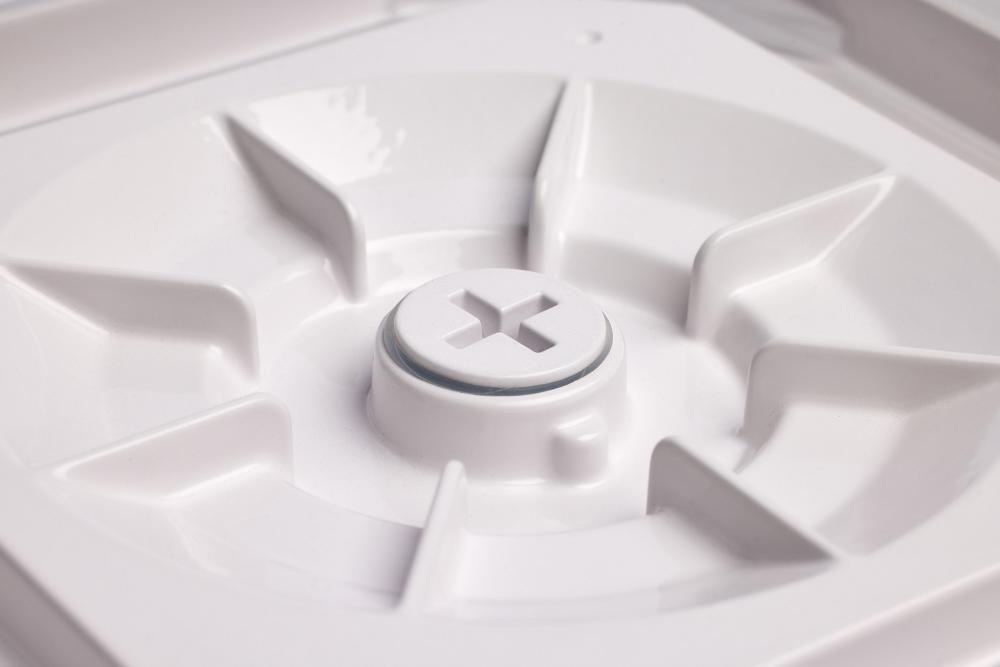

Integrated Sensor Port

Feature 5:

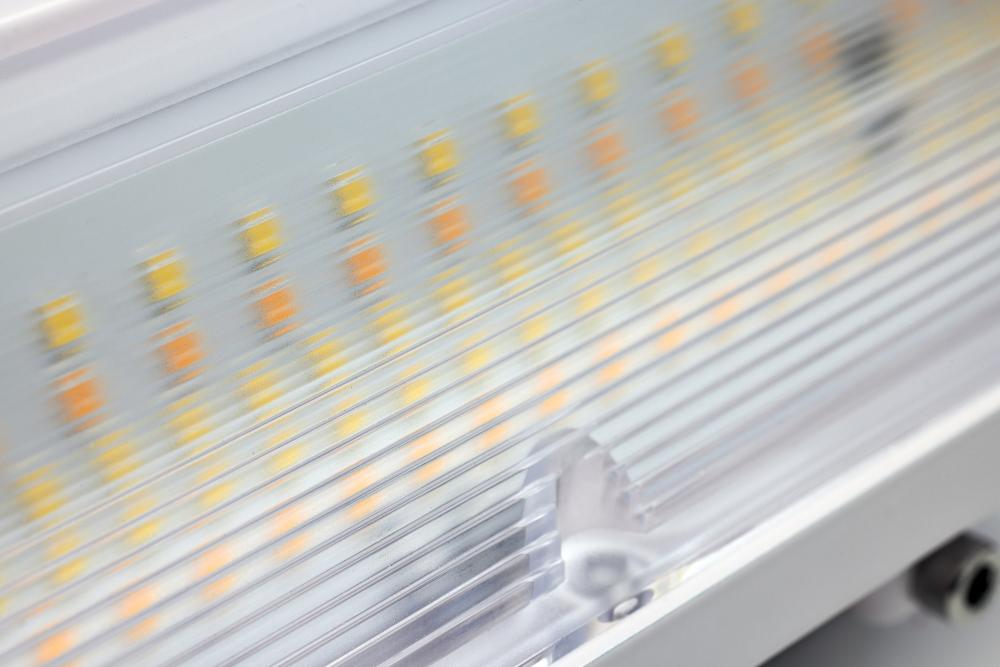

IK10 Vandal Resistant Lens

Feature 6:

EM Battery Backup Capable

Feature 7:

0-10V Dimmable

Feature 8:

2.5kV Built-in Surge Protection

Feature 9:

White Finish

Finish Family:

White

Impact Rating (IK):

IK10

Incandescent Equivalent:

100W

Indoor Outdoor:

Outdoor

Installation Notes:

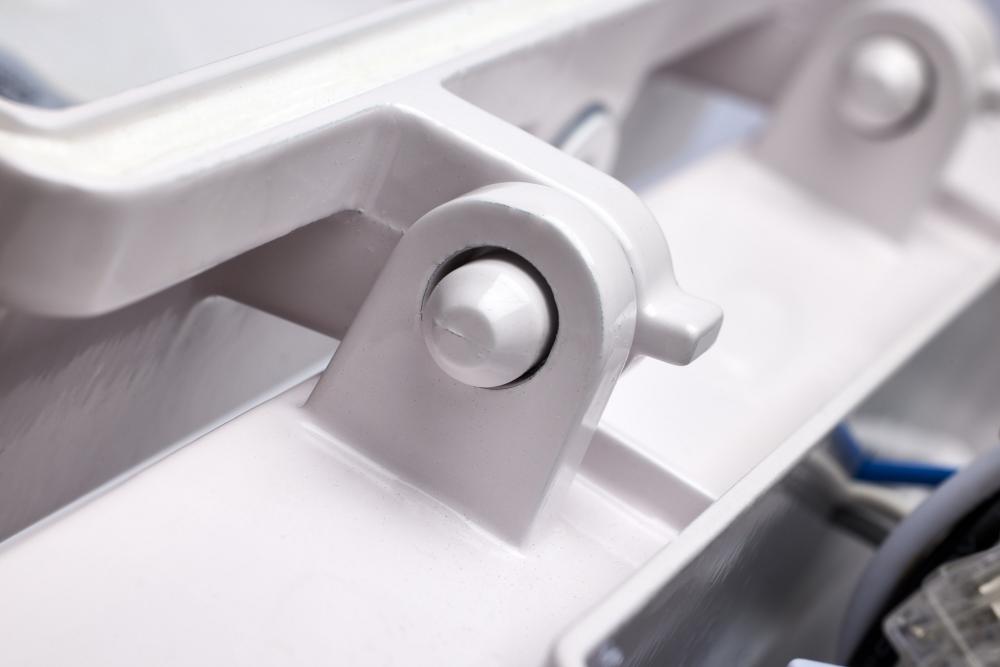

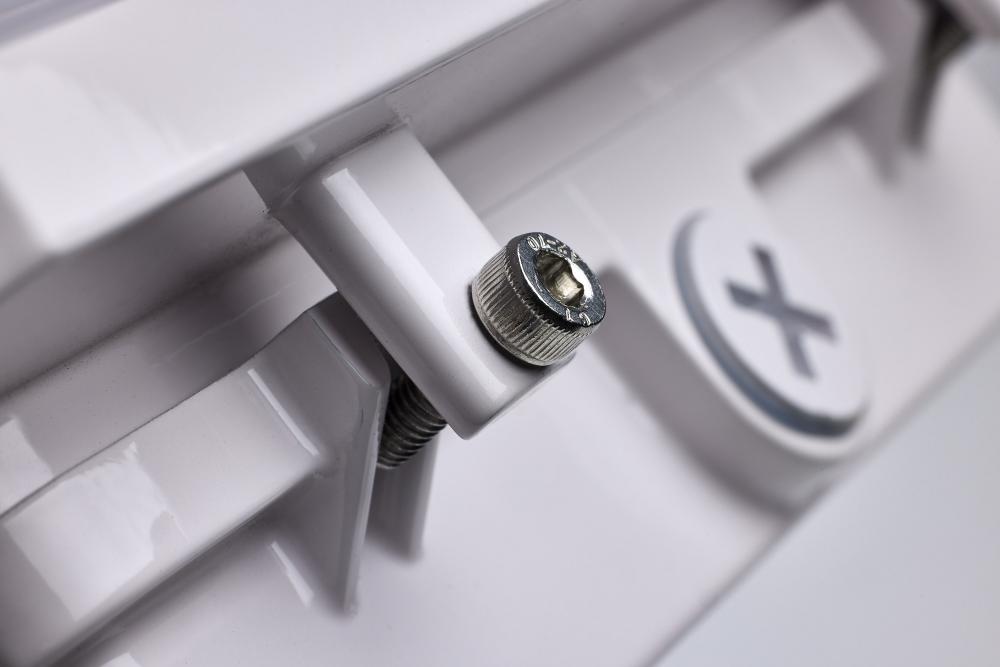

Hinged door for ease of installation

Integrated Features:

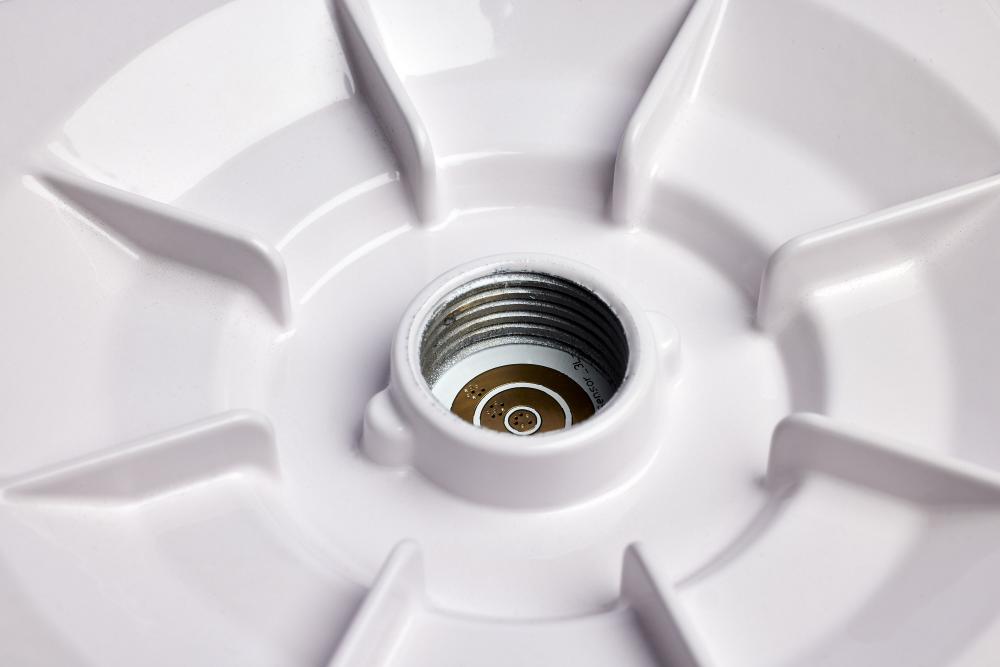

Integrated DC Sensor Port

IOT Enabled:

IP Rating:

IP65

JA8 Compliant:

Lens Material:

Polycarbonate (PC)

Long Description:

SATCO|NUVO's 65-634 LED Wide Beam Angle Canopy, offers cutting-edge field-selectable capabilities. Tailor your lighting experience by selecting from three color temperatures (3K, 4K, 5K) and three wattage options (20W, 30W, 45W.) The canopy comes in a

Material:

Die-Cast Aluminum

Mounting Procedure:

Ceiling

Operating Frequency:

50/60Hz

Operating Temp:

-40C (-40F) to +50C (+122F)

Pack Type:

Brown Box

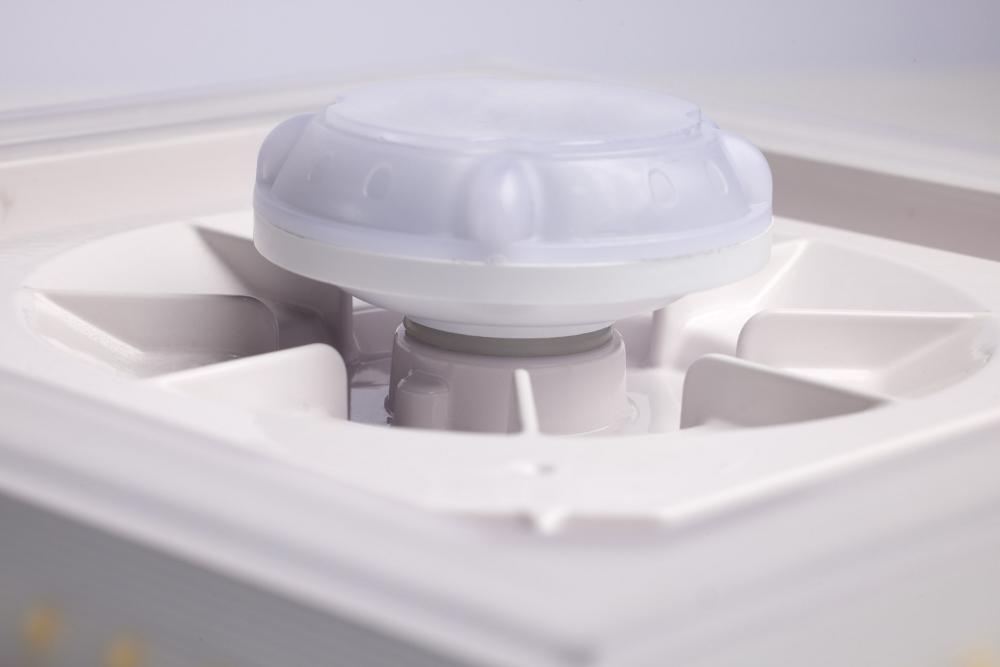

Photocell:

Optional Add-On

Power Factor:

>0.9

Quantity In Pack:

Replaceable Light Source:

RoHS Compliant:

Yes

Romance Copy:

Experience the versatility of SATCO|NUVO's LED Wide Beam Angle Canopy, equipped with cutting-edge field-selectable capabilities. Choose from three color temperatures and three wattage options. Additionally, the integrated sensor port makes the installa

Safety Listing:

cULus - Certified

SDS class:

LED_Fixture

Short Description:

LED WIDE BEAM ANGLE CANOPY

Specification Notes:

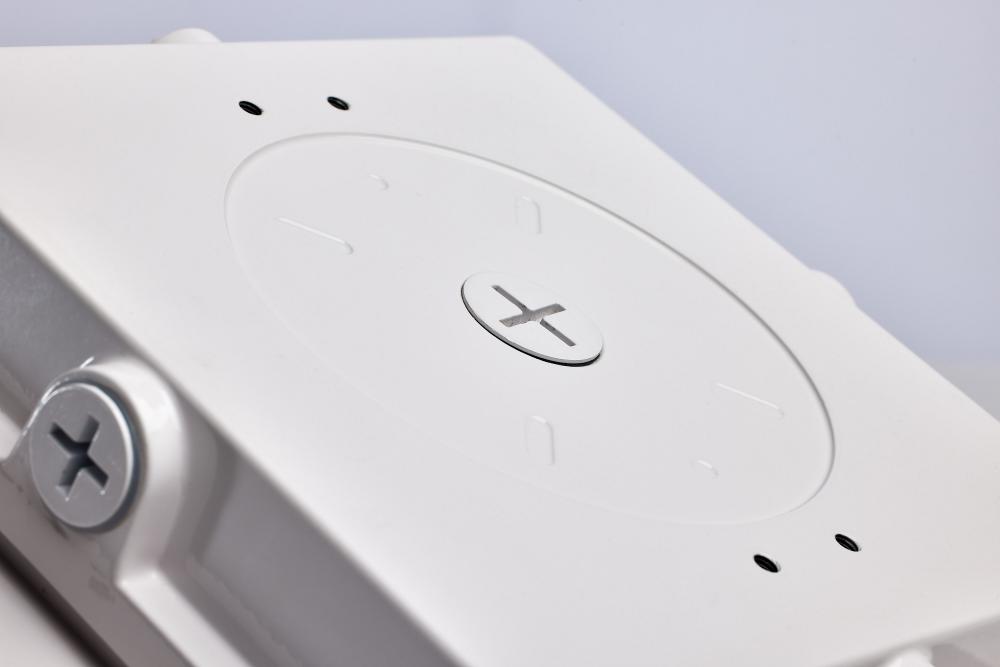

Multiple half-inch knockouts; Three quarter inch back knockout for pendant applications

Temperature (CCT):

3000K/4000K/5000K

Title 20 Compliant:

Total Harmonic Distortion:

<20%

Wattage Selectable:

Yes

Weight Lb.:

4.47
