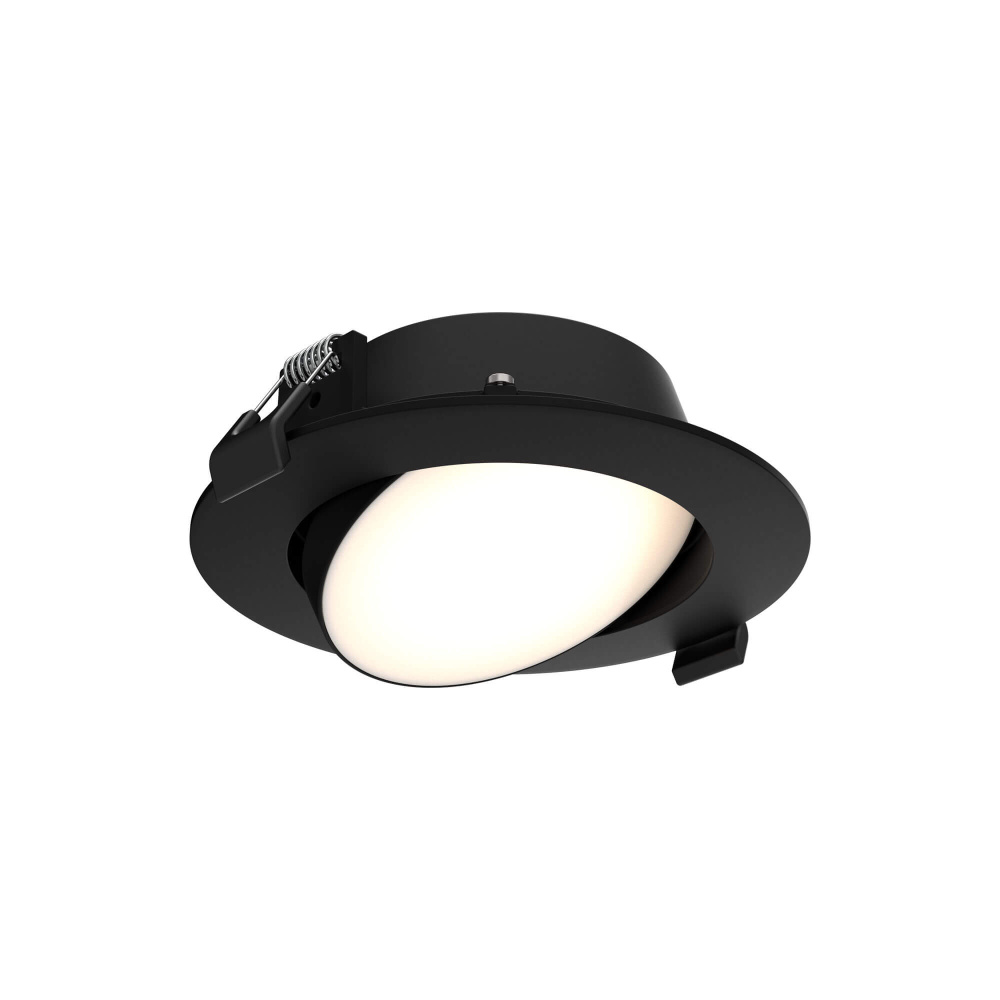

The Fusion is a slim gimbal recessed panel with 5CCT, offering advanced lighting flexibility for precise illumination. Its gimbal design allows users to direct light as needed, and the 5CCT feature provides color temperature versatility, making the Fusion an ideal choice for both residential and commercial applications.
Standard Information
Category:
Recessed Ltg.
Subcategory:
Other Recessed Ltg.
Finish:
White
Option:
Energy Star
Title 24
Outdoor
Wet Rated
Refinement Options
Category:
Recessed
Subcategory:
Directional
Finish:
White
Family:
Fusion
Voltage:
120 V
Number of Bulbs:
1 Bulbs
Bulb Dimmable:
Yes
Bulb Hours:
50000
Kelvin:
2700, 3000, 3500, 4000, 5000
Material:
Aluminum
Ship Carton Height:
3.5
Ship Carton Length:
5.4
Ship Carton Width:
5.25
Ship Weight:
1.1
Warranty:
5 Years Limited
Weight:
1
Air-Tight (ASTM E283--4):
Yes
Beam Angle:
110°
Bulb CRI:
90
Country of Origin:
China
Delivered Lumens:
850
Dimmer Type:
Triac/ELV
Energy Star:
Yes
IC Certification:
Yes
Indoor:
Yes
JA8:
Yes
Lens Material:
PC
Location Rating:
Wet Rated
Max Wattage:
10 W
Maximum Working Temperature:
40°C
Minimum Working Temperature:
-25°C
Outdoor:
Yes
Safety Rating:
ETL Approved
Shipping Master Height:
12.5
Shipping Master Length:
18.25
Shipping Master Quantity:
20
Shipping Master Weight:
23
Shipping Master Width:
11.75
Title 24:
Yes
Wiring:
Hardwired
110° beam angle
25° tilting, 360° rotation
Air-tight certified as per ASTM E283-04
IC certification (suitable for direct contact with insulation)
Switch-selectable CCT: 2700 K/3000 K/3500 K/4000 K/5000 K
